Auto-Hite Carts
Auto-Hite Carts

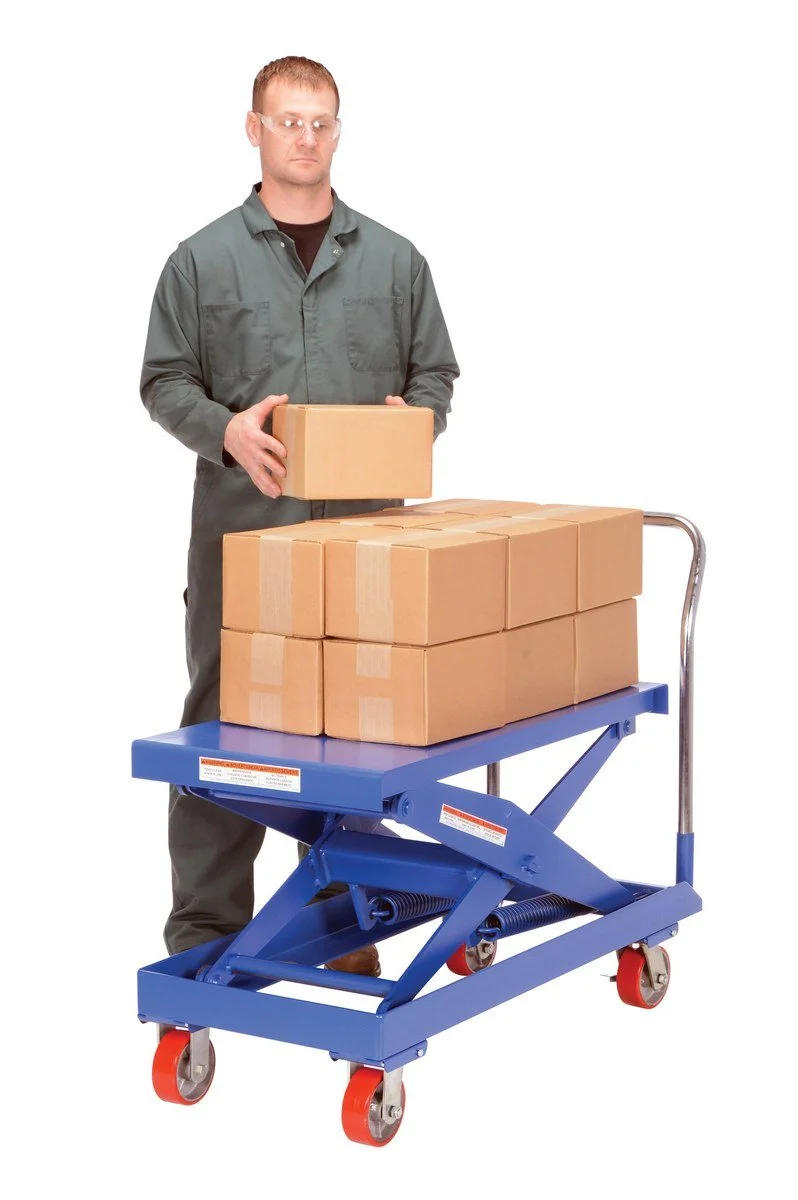

The Auto-Hite Cart raises or lowers as materials are removed or added to the platform, keeping material at an ergonomic work height.
The Auto-Hite Cart raises or lowers as materials are removed or added to the platform, keeping material at an ergonomic work height.
Pricing
| Ergonomic Auto-Hite - Cart | ||||||
|---|---|---|---|---|---|---|
| Model Number | Platform (W x L) | Service Range | Movement lbs./Inch | Capacity (lbs.) | Weight (lbs.) | Price |
| DS-SCSC-500-2040 | 20-3/8" x 40" | 14" to 34" | 25/1" | 500 | 300 | $1,594 |
| DS-SCSC-500-4242 | 42" x 42" | 14" to 34" | 25/1" | 500 | 404 | $1,862 |

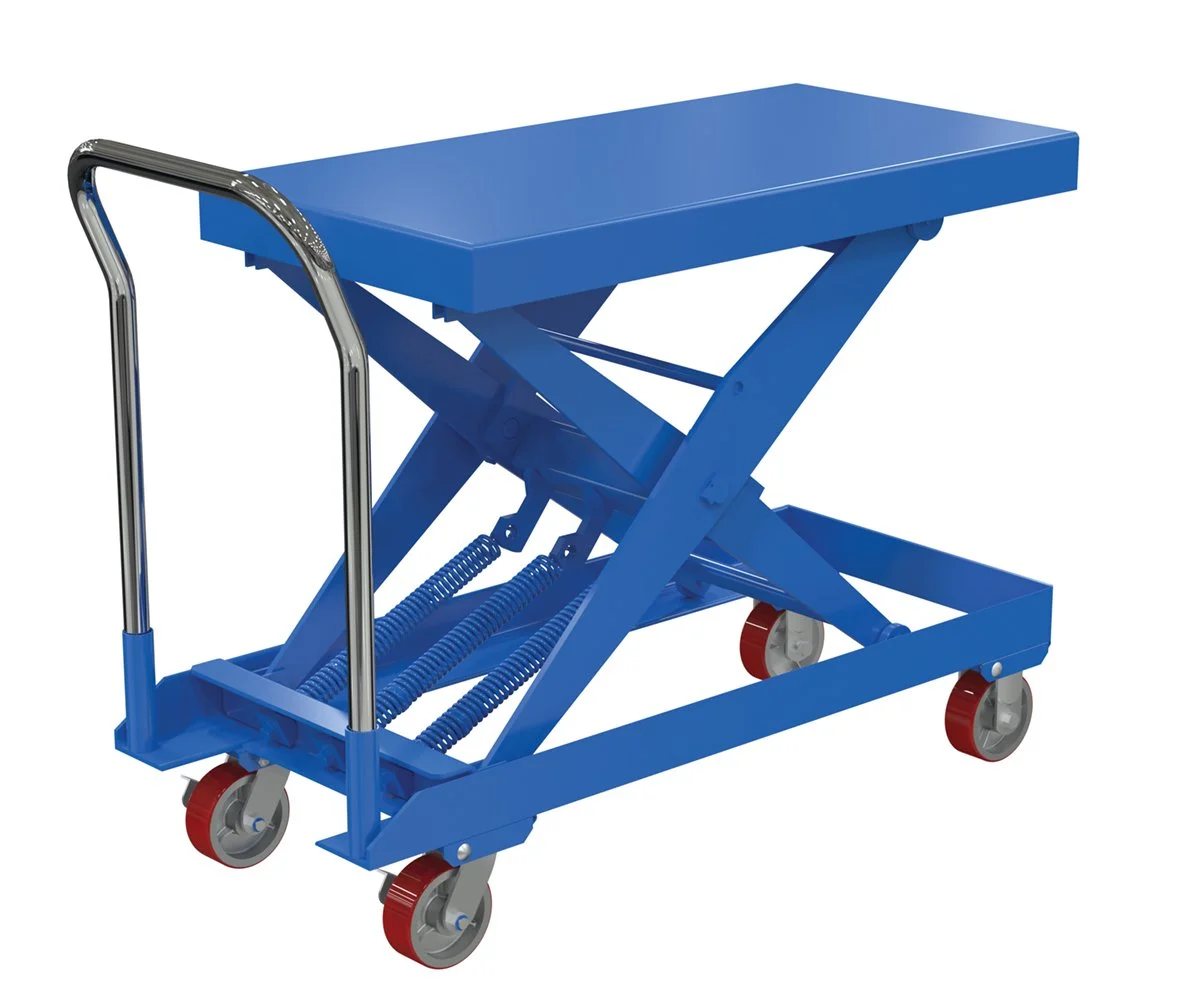

| DS-SCSC-750-2040 | 20-3/8" x 40" | 14" to 34" | 38/1" | 750 | 320 | $1,823 |

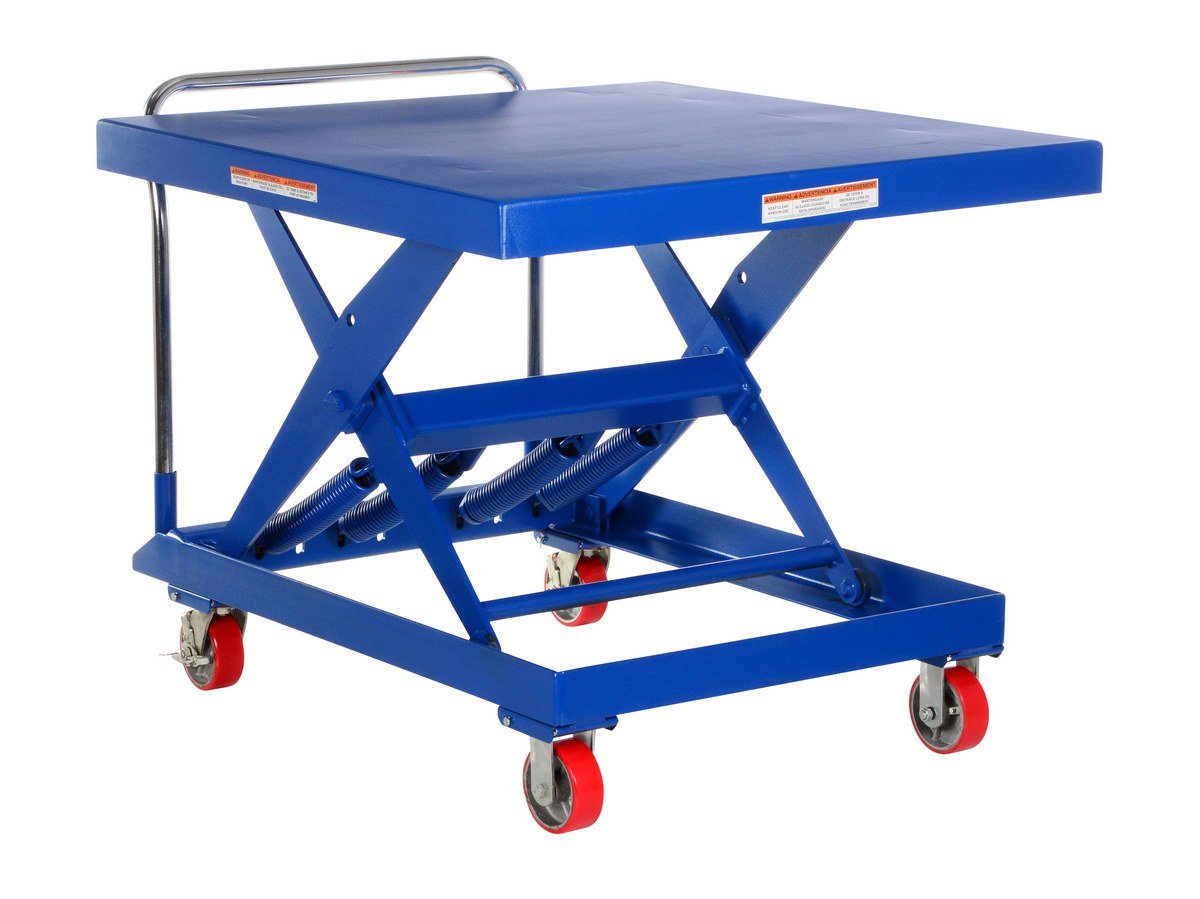

| DS-SCSC-1000-4242 | 42" x 42" | 14" to 34" | 50/1" | 1000 | 413 | $1,893 |

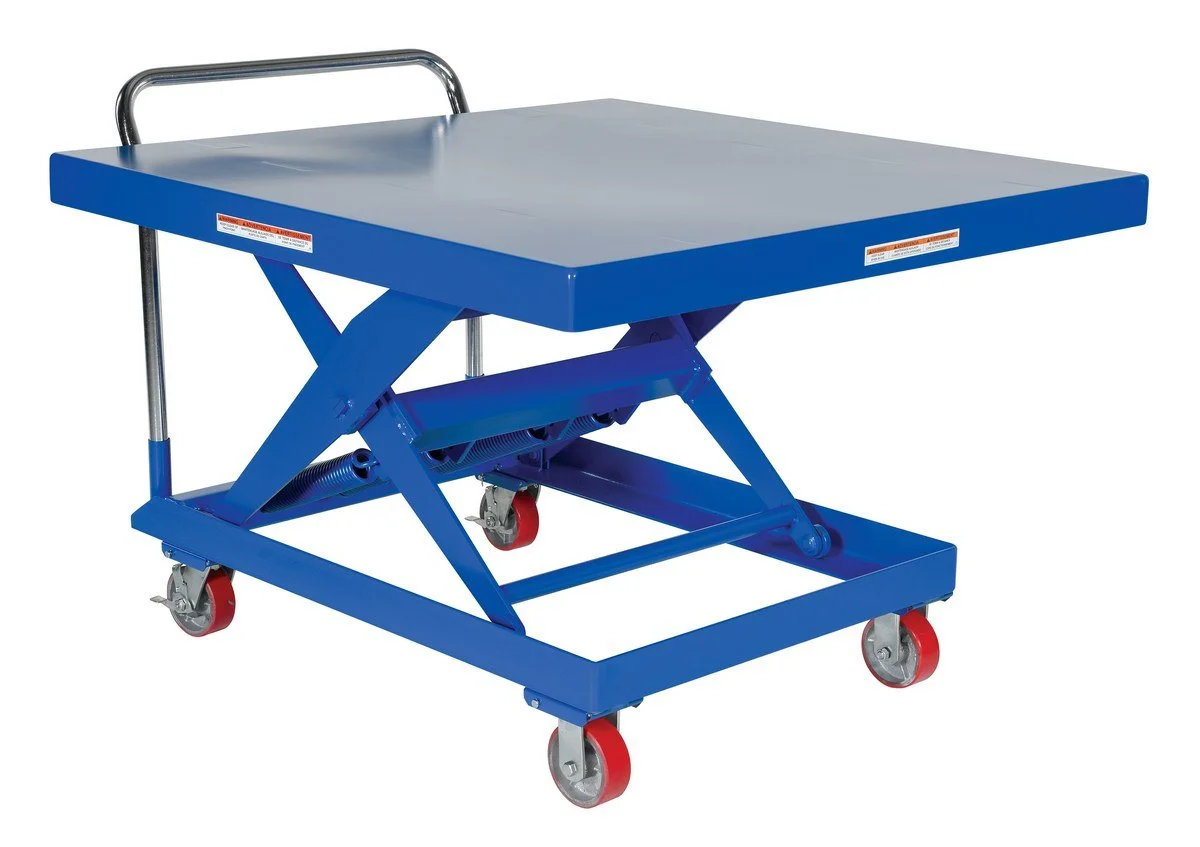

| DS-SCSC-1000-4848 | 48" x 48" | 14" to 34" | 50/1" | 1000 | 435 | $2,533 |

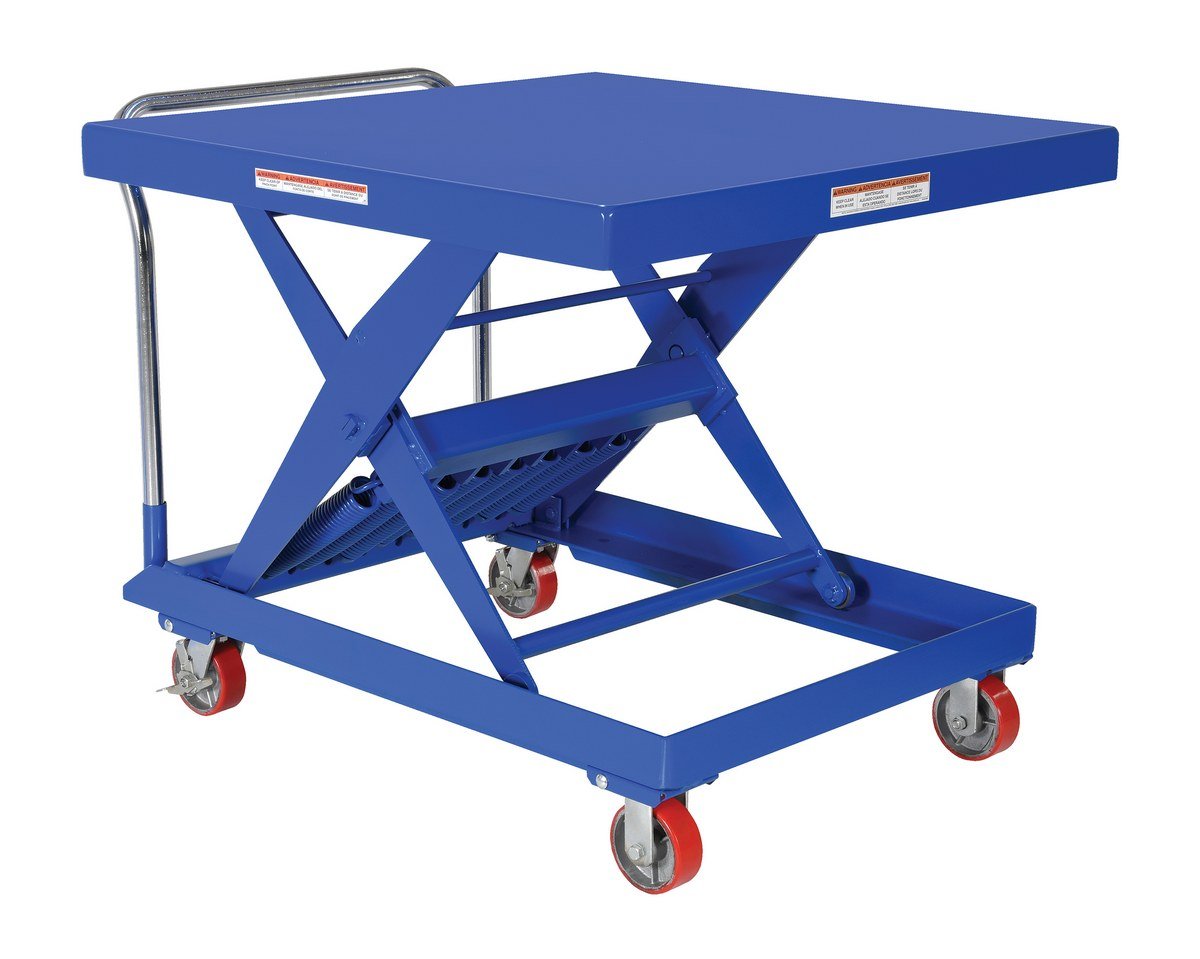

| DS-SCSC-2000-4242 | 42" x 42" | 14" to 34" | 100/1" | 2000 | 475 | $2,793 |

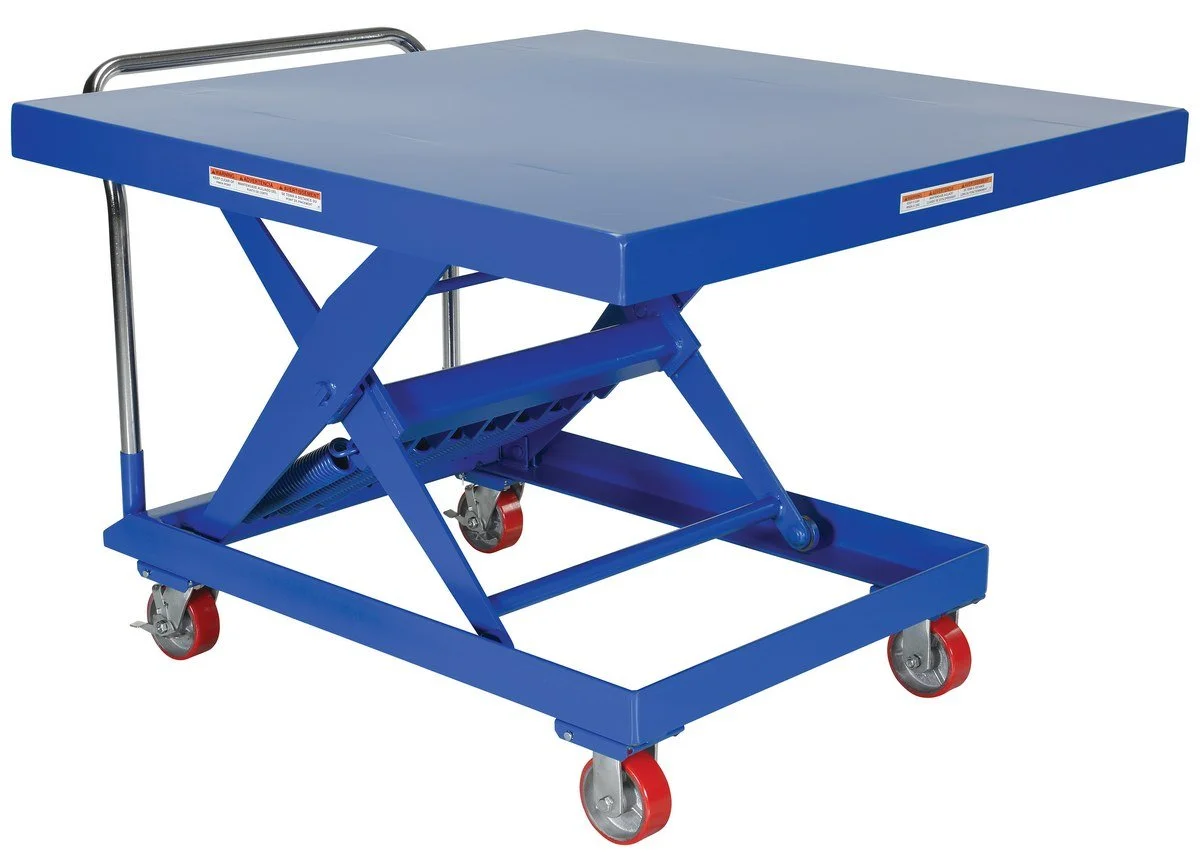

| DS-SCSC-2000-4848 | 48" x 48" | 14" to 34" | 100/1" | 2000 | 497 | $3,239 |
| All dimensions are in inches | ||||||
Features
Standard Features:
Increase efficiency while reducing potentially harmful bending and twisting motions.
Carts utilize tension springs which can be adjusted in order to fit each particular application
All steel construction with removable handle.
Polyurethane casters are 5" x 2", (2) rigid and (2) swivel with brake casters.
Stationary Kit [set of 4 legs] available [DS-SCSC-SL5-RF] $176
DS-SCSC-SL5-RF Stationary Kit [set of 4 legs] $172
Options
No options available for this product.
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Drawings:
DS-SCSC-500-2040
DS-SCSC-500-4242
DS-SCSC-750-2040
DS-SCSC-1000-4242
DS-SCSC-1000-4848
DS-SCSC-2000-4242
DS-SCSC-2000-4848
DS-SCSC-SL5-RF
Videos:
Auto-Hite Cart
Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
