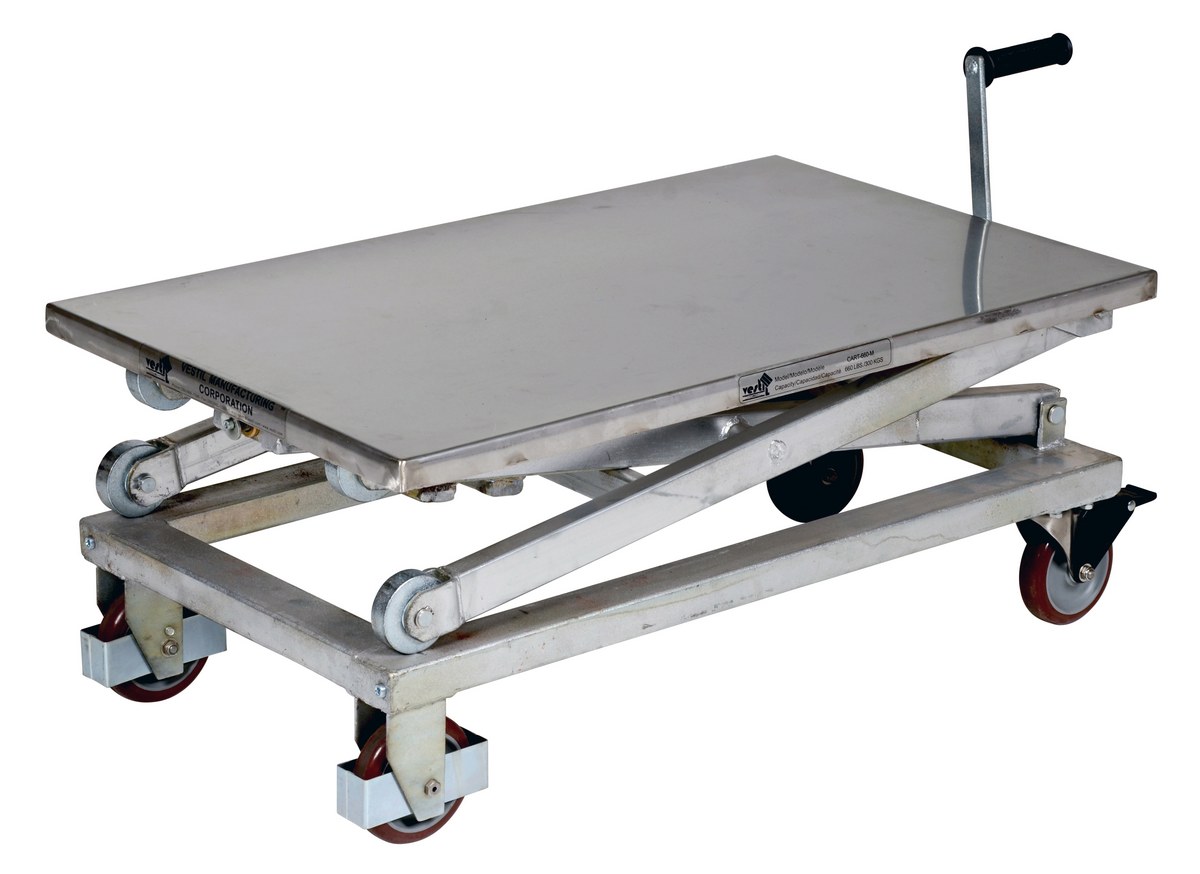

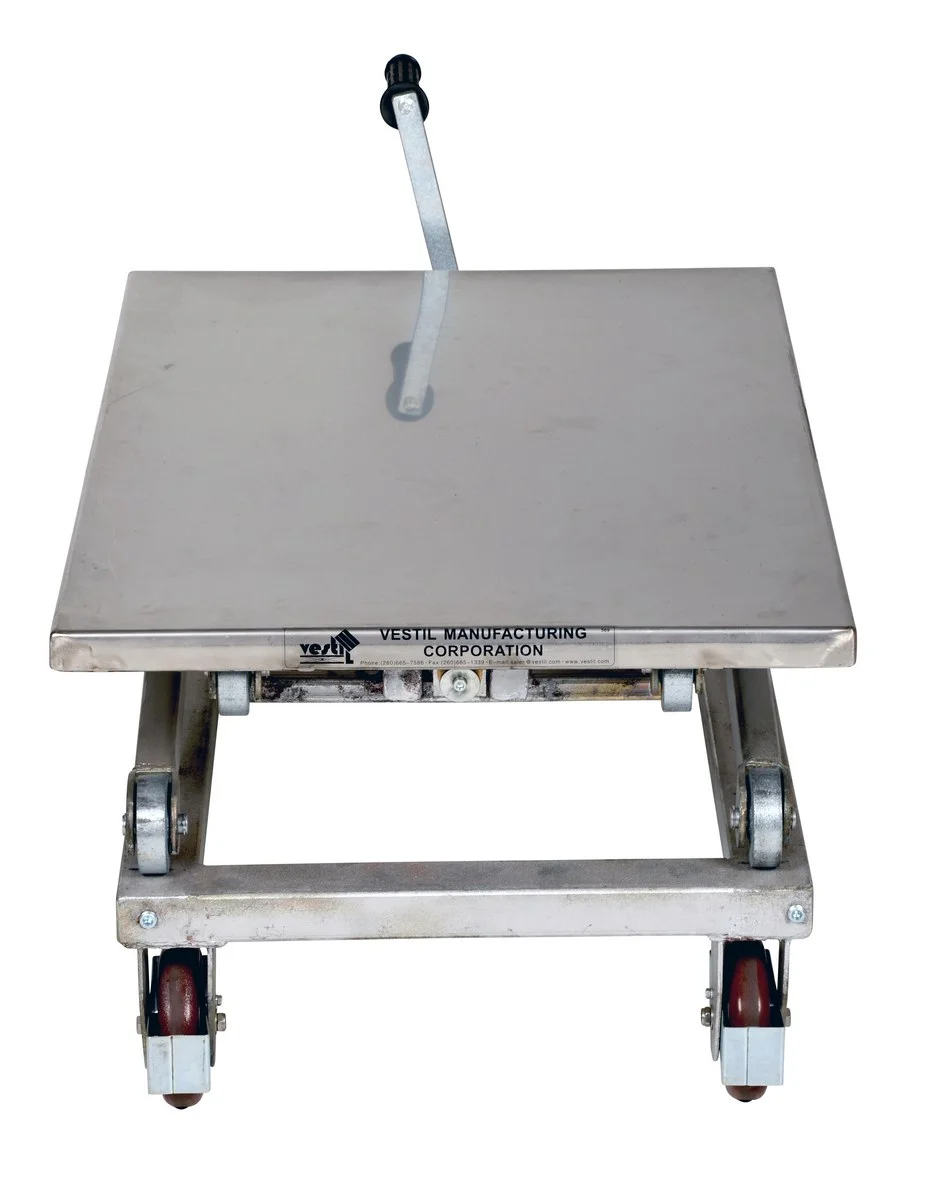

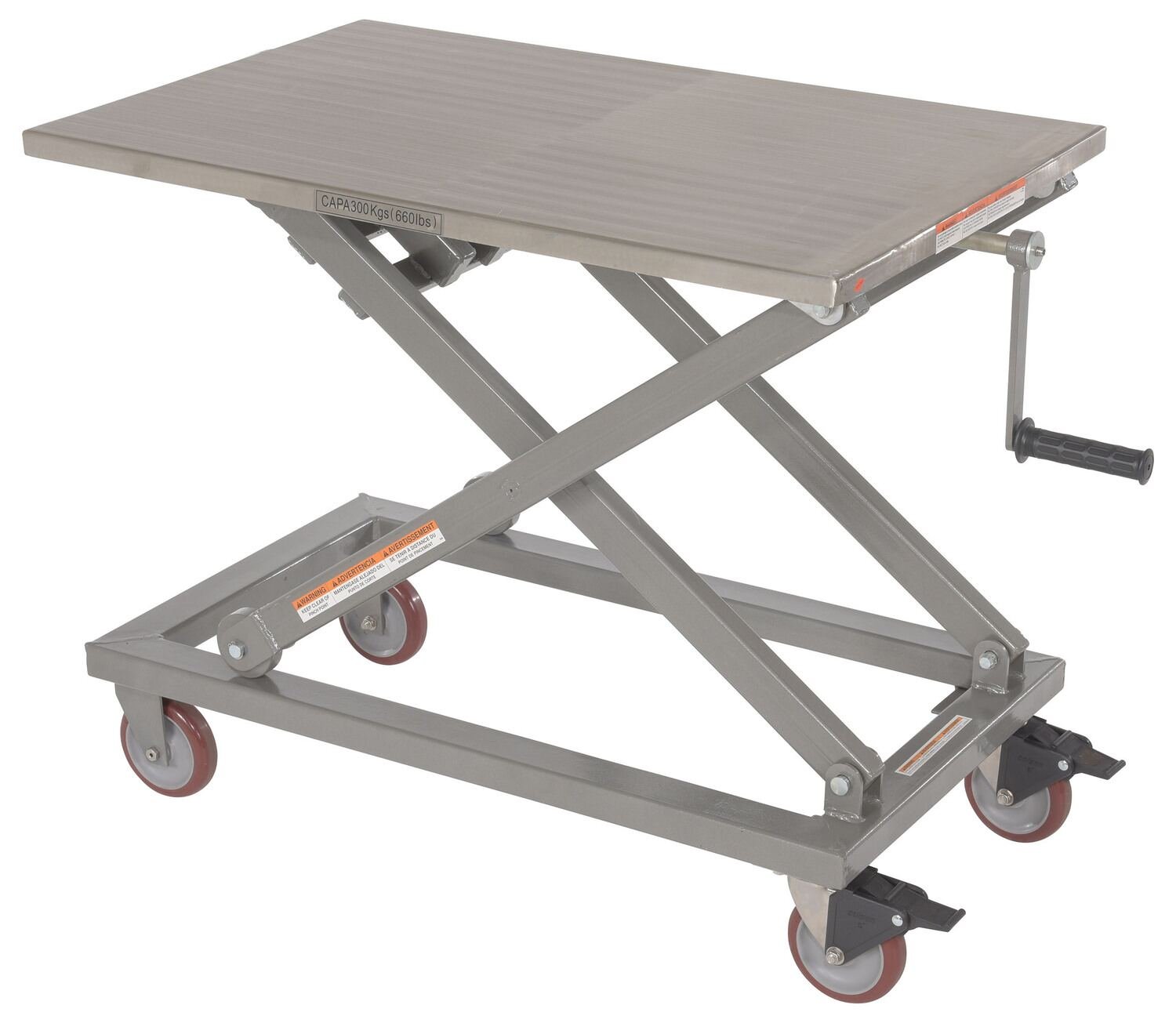

Mechanical Scissor Carts
Mechanical Scissor Carts
Raise and lower material quickly and easily with Mechanical Scissor Carts that roll on two rigid and two swivel poly-on-ploy casters.
Mechanical screw drive provides precise positioning with no downward drift. The partially stainless steel cart features a stainless steel platform, frame, handle, caster rigs and hardware. Crank assembly and scissor legs are zinc plated/painted.
Pricing
| Mechanical Scissor - Cart | ||||||
|---|---|---|---|---|---|---|
| Model Number | Platform (W x L) | Service Range | Material | Capacity (lbs.) | Weight (lbs.) | Price |
| DS-CART-660-M | 23-1/2" x 73" | 18" to 39-1/2" | Steel | 660 | 190 | $546 |
| DS-CART-660-M-PSS | 23-1/2" x 73" | 17-1/4" to 39-1/4" | Partially Stainless Steel | 660 | 148 | $1,298 |
| All dimensions are in inches / Typical shipping time is 2-5 days | ||||||
Features
Standard Features:
Increase efficiency while reducing potentially harmful bending and twisting motions.
Zinc plated steel removable handle.
Vertical travel per handle revolution 5/16" - 3/8"
Force required to raise max capacity load is 25 lb - 30 lb
Polyurethane casters are 4" x 2", (2) rigid and (2) swivel with brake casters.
Stationary Kit [set of 4 legs] available [DS-SCSC-SL5-RF] $176
DS-SCSC-SL5-RF Stationary Kit [set of 4 legs] $172
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
No options available for this product
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Manual:
DS-CART-660-M-MANUAL
Drawings:
DS-CART-660-M
Videos:
Mechanical Scissor Cart
Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
