U Design Unsupported Cantilever Ladder

U Design Unsupported Cantilever Ladder

$2,584.00

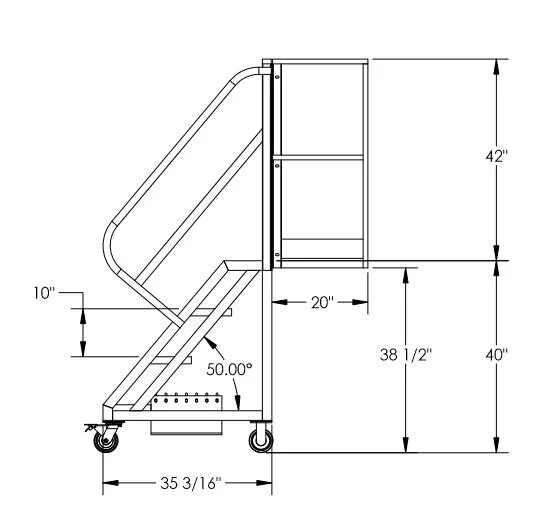

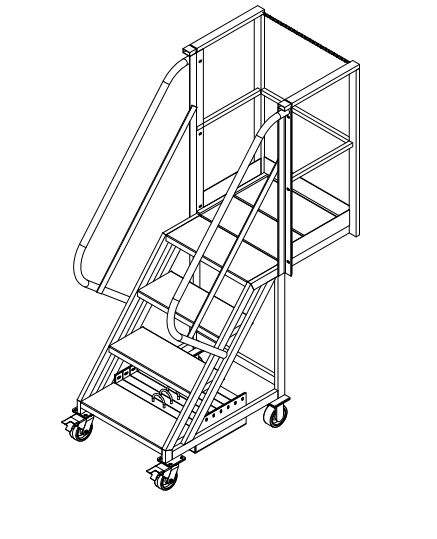

The Unsupported Cantilever allows access to hard to reach areas over obstacles by allowing the platform to cantilever beyond the back of the ladder.

The Unsupported Cantilever model is counter weighted for capacity. This ladder provides access to hard to reach areas and has bottom support legs that can roll under the obstacle.

Add To Cart

Pricing

U Design - Unsupported Cantilever Ladder - Perforated Tread

Model #	# Of Steps	Plat. Height	Clear Height To Floor	Platform W x L	Cap. Lbs.	Overhang	Perforated
DS-UCU500520246	5	50	48	24x20	300	20	$3,289
DS-UCU500620246	6	60	58	24x20	300	20	$3,144
DS-UCU500720246	7	70	68	24x20	300	20	$3,305
DS-UCU500820246	8	80	78	24x20	300	20	$3,167
DS-UCU500920246	9	90	88	24x20	300	20	$3,318
DS-UCU500530246	5	50	48	24x30	300	30	$3,967
DS-UCU500630246	6	60	58	24x30	300	30	$3,537
DS-UCU500730246	7	70	68	24x30	300	30	$3,697
DS-UCU500830246	8	80	78	24x30	300	30	$3,557
DS-UCU500930246	9	90	88	24x30	300	30	$3,711
DS-UCU500540246	5	50	48	24x40	300	40	$4,378
DS-UCU500640246	6	60	58	24x40	300	40	$4,234
DS-UCU500740246	7	70	68	24x40	300	40	$4,101
DS-UCU500840246	8	80	78	24x40	300	40	$3,982
DS-UCU500940246	9	90	88	24x40	300	40	$4,122

All dimensions are in inches. Rear chain option is $652. Chain at top of stairs is $162.

U Design - Unsupported Cantilever Ladder - Serrated Tread

Model #	# Of Steps	Plat. Height	Clear Height To Floor	Platform W x L	Cap. Lbs.	Overhang	Serrated
DS-UCU500520242	5	50	48	24x20	300	20	$3,613
DS-UCU500620242	6	60	58	24x20	300	20	$3,340
DS-UCU500720242	7	70	68	24x20	300	20	$3,553
DS-UCU500820242	8	80	78	24x20	300	20	$3,255
DS-UCU500920242	9	90	88	24x20	300	20	$3,400
DS-UCU500530242	5	50	48	24x30	300	30	$4,569
DS-UCU500630242	6	60	58	24x30	300	30	$3,861
DS-UCU500730242	7	70	68	24x30	300	30	$4,075
DS-UCU500830242	8	80	78	24x30	300	30	$3,774
DS-UCU500930242	9	90	88	24x30	300	30	$3,920
DS-UCU500540242	5	50	48	24x40	300	40	$5,088
DS-UCU500640242	6	60	58	24x40	300	40	$4,816
DS-UCU500740242	7	70	68	24x40	300	40	$4,591
DS-UCU500840242	8	80	78	24x40	300	40	$4,293
DS-UCU500940242	9	90	88	24x40	300	40	$4,438

All dimensions are in inches. Rear chain option is $652. Chain at top of stairs is $162.

Features

Standard Features

300 lb capacity
24" wide x 7" deep stairs with a 50 degree easy angle for forward facing descent
42"/21" handrails
5" x 2" polyurethane casters
Yellow powder coated finish
OSHA and ANSI special use compliant

Options

Image	Model Number	Description	Price	Drawing
	DS-UCCWU	Counter Balance 80 Lbs Weight	$432	NA
	DS-SGR-UAG-GATE	U-Gate	$425

Parts

Note: All parts are replaceable so if you bend or destroy any piece of this platform ladder we can replace the part.

Tread Types

Documentation / Videos

Videos

U Design Unsupported Cantilever Ladder

Model Number:

Contact Name:

First Name

Last Name

Email Address:

Contact Number:

(###)

###

####

Ship To Zip Code:

Message:

CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE

WHEN YOU PURCHASE A LADDER FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE LADDER.

Cantilever Series Rolling Ladder

$3,085.00

RollAStep C Series (Cantilever)

$8,844.00

Supported 4000 Series Cantilever Ladder

$2,791.00

U Design Supported Cantilever Ladder

$1,630.00

Tank Top Adjustable Height Work Platform

Tank Top Adjustable Height Cantilever Work Platform

$9,881.00

Rolling Ladder Safety

Rolling ladders can be extremely helpful in an industrial setting, come with sturdy handrails, and are very safe to use as long as you and your employees follow these guidelines:

Perform Regular Inspections. Before climbing on the ladder, test the brakes. They should maintain a locked position behind the casters. Inspect rubber attachments that touch the floor, and make sure they’re intact. Shake the handrail to confirm that screws stay secure.

Stick to the Rules. Only one person at a time should use a rolling ladder unless it’s designed for two. Ensure that the total amount of your body weight plus tools and equipment you carry won’t exceed the maximum load. Follow the manufacturer's instructions.

Rely on a Helper. Don’t carry a full load up the ladder. First, reach the top, then a buddy should hand you things from the floor. When you need to get off the ladder and push it somewhere, your buddy can stand in front to make sure the path is clear.

Maintain a Stable Position. Your body should have three points of contact on a rolling ladder. Keep your two hands on the railings and one foot on the stairs. Or keep one hand on the railing and two feet on the stairs. For stability, wear dry, slip-proof shoes.

Call today and speak with one of our knowledgeable, well trained staff members for answers to your product questions, obtain a freight quote, purchase a Rolling Ladder or get a quote on a custom design Rolling Ladder to fit your application.

OSHA and ANSI Compliant

Platformsandladders.com is committed to safety in every element of our ladders. Because of this, they conform to OSHA and ANSI standards. All of our ladders are equipped with rungs and steps that are flat and evenly spaced, and the steps are all made from or coated with a slip-proof material.

Popular Models of Rolling Ladder

One of our aims is to provide a wide range of options for every use. Each ladder is available with multiple options for the best fit. The M-2000 is a good example of how many variants can be available. This rolling ladder has options for 16” and 24” inch widths, multiple options for 14”, 21”, and 28” deep top steps. Each of these has four different types of tread and between 5 and 15 stairs resulting in almost 50 different variations to choose from.

Many of our rolling ladders have a list of additional options for accessories such as signs, exits for the right, left, or rear, and fold down rails. Each ladder can be customized to fit the exact needs of any customer.

One of the most versatile ladders is the stock-picking rolling ladder. With up to 12 steps, the ladder comes with shelving underneath the ladder to load and transport items. They are easy to transport, but lock in place to ensure safety while using the ladder. The system can have up to 3 shelves and has a total weight capacity of up to 600 pounds.

50-degree ladders are the perfect solution for use in transporting items up and down. This is because the tilt of the steps allows for workers to safely descend the ladder while facing forwards. The lift table ladder makes transporting stock up and down even easier by using a lift table that can carry up to 300 pounds and be operated with the push of a button. This promotes the health and safety of workers while getting the job done faster.

For environments that require workers to access multiple heights with one ladder, we often recommend The G Series which is easily adjustable for height and self-leveling. This ladder is sturdy with a large workspace but is also built on casters that allow it to be moved easily by just one person. The ladder can be used indoors and outdoors with safety with a tread that makes it safe in any weather.

Our rolling ladders are built with the customer in mind. There are many different customizations and options to choose from and they are all built for safety and ease of use. Contact us today to find the option that best fits your company’s needs.
