Partially Stainless Steel Hydraulic Elevating Carts
Partially Stainless Steel Hydraulic Elevating Carts
A Stainless Steel Hydraulic Elevating Cart is partially stainless steel cart and can solve movement of cargo issues in a restrictive environment.
Pricing
| Partially Stainless Steel Hydraulic Elevating - Cart | ||||||
|---|---|---|---|---|---|---|
| Model Number | Platform (W x L) | Service Range | Foot Pump Speed | Uniform Capacity (lbs.) | Weight (lbs.) | Price |

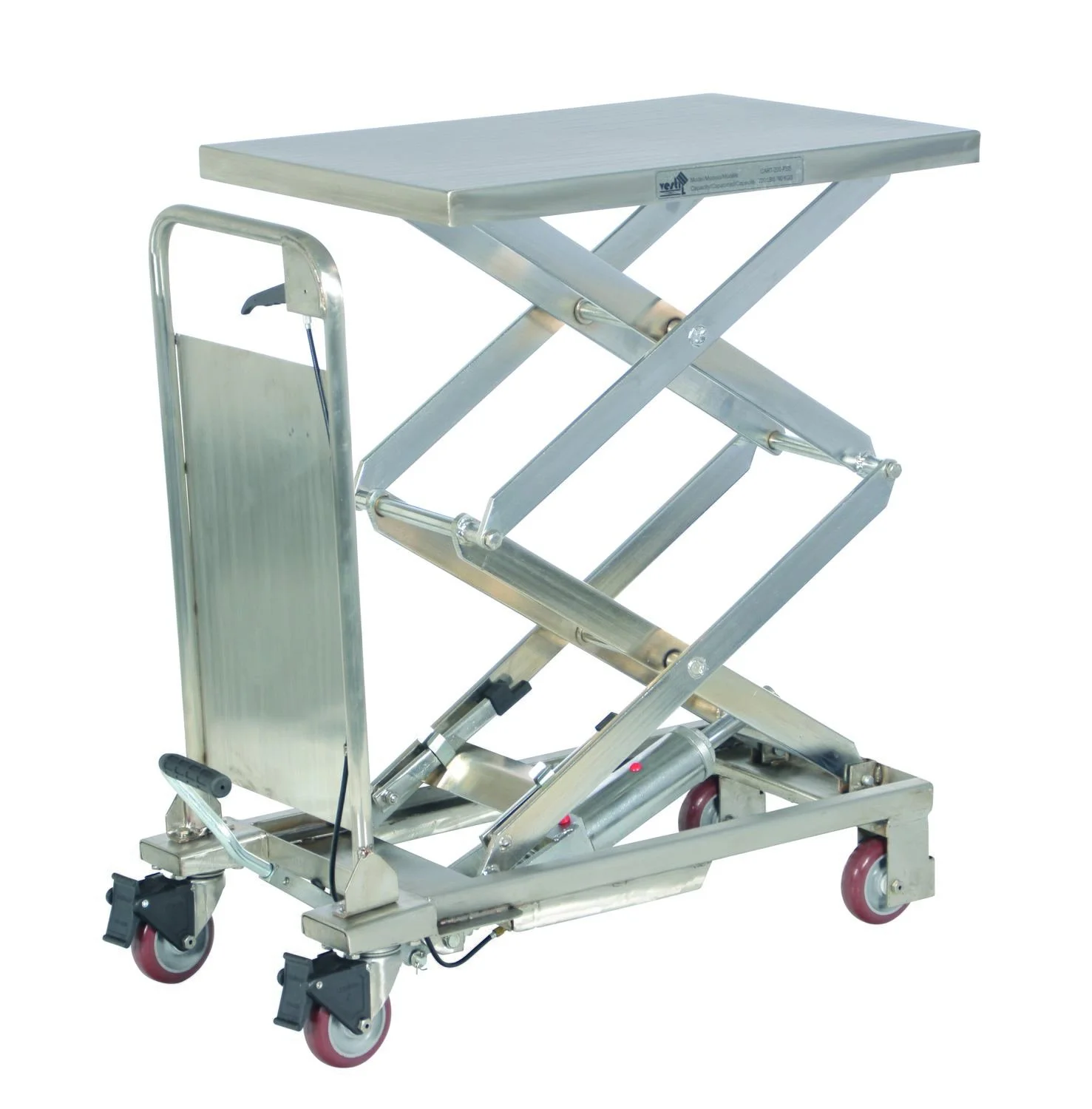

| DS-CART-200-D-PSS | 17-1/2" x 27-1/2" | 10" to 51" | Single | 220 | 158 | $1,126 |

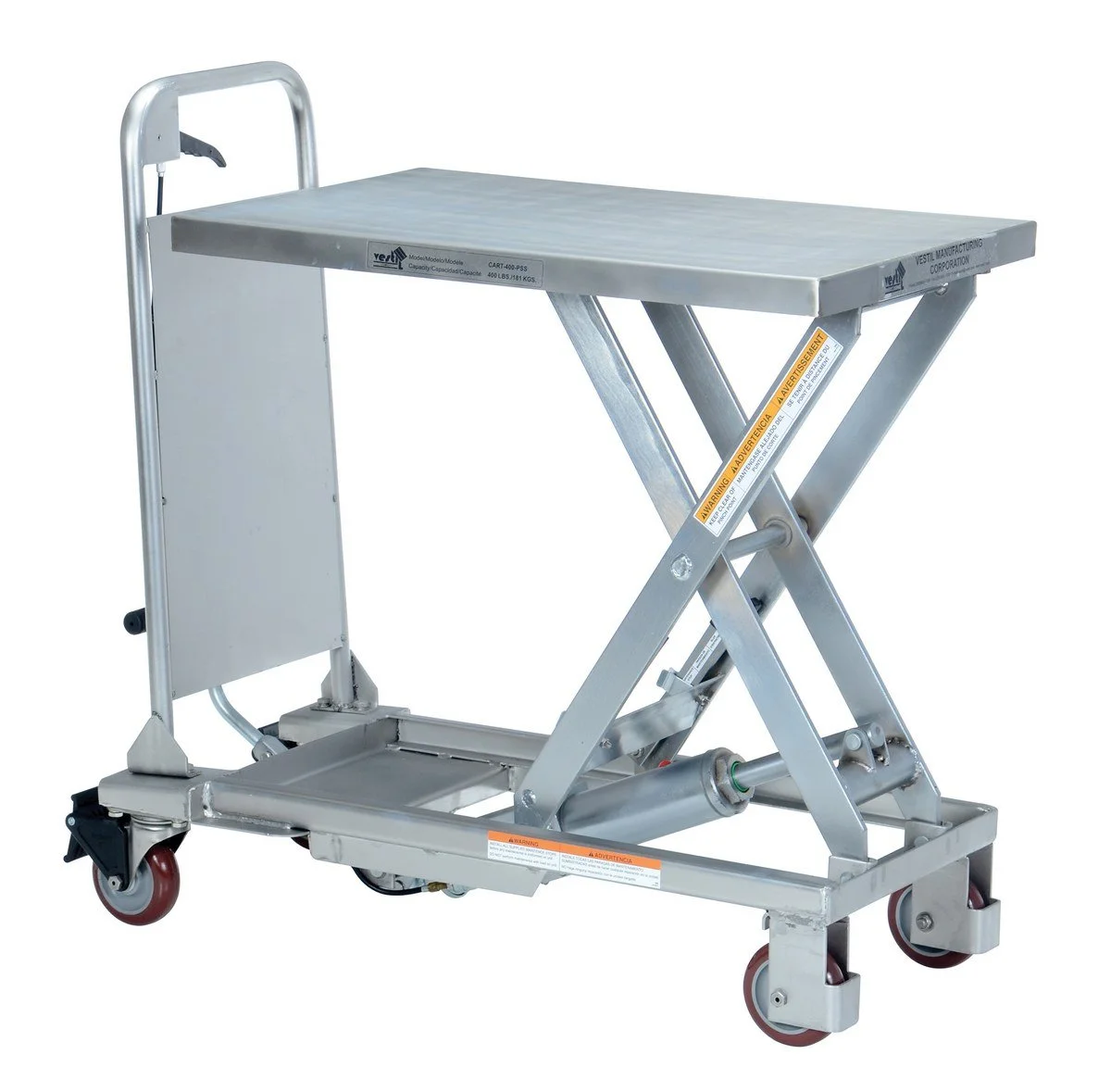

| DS-CART-400-PSS | 17-1/2" x 27-1/2" | 8-3/4" to 29" | Single | 400 | 149 | $1,249 |

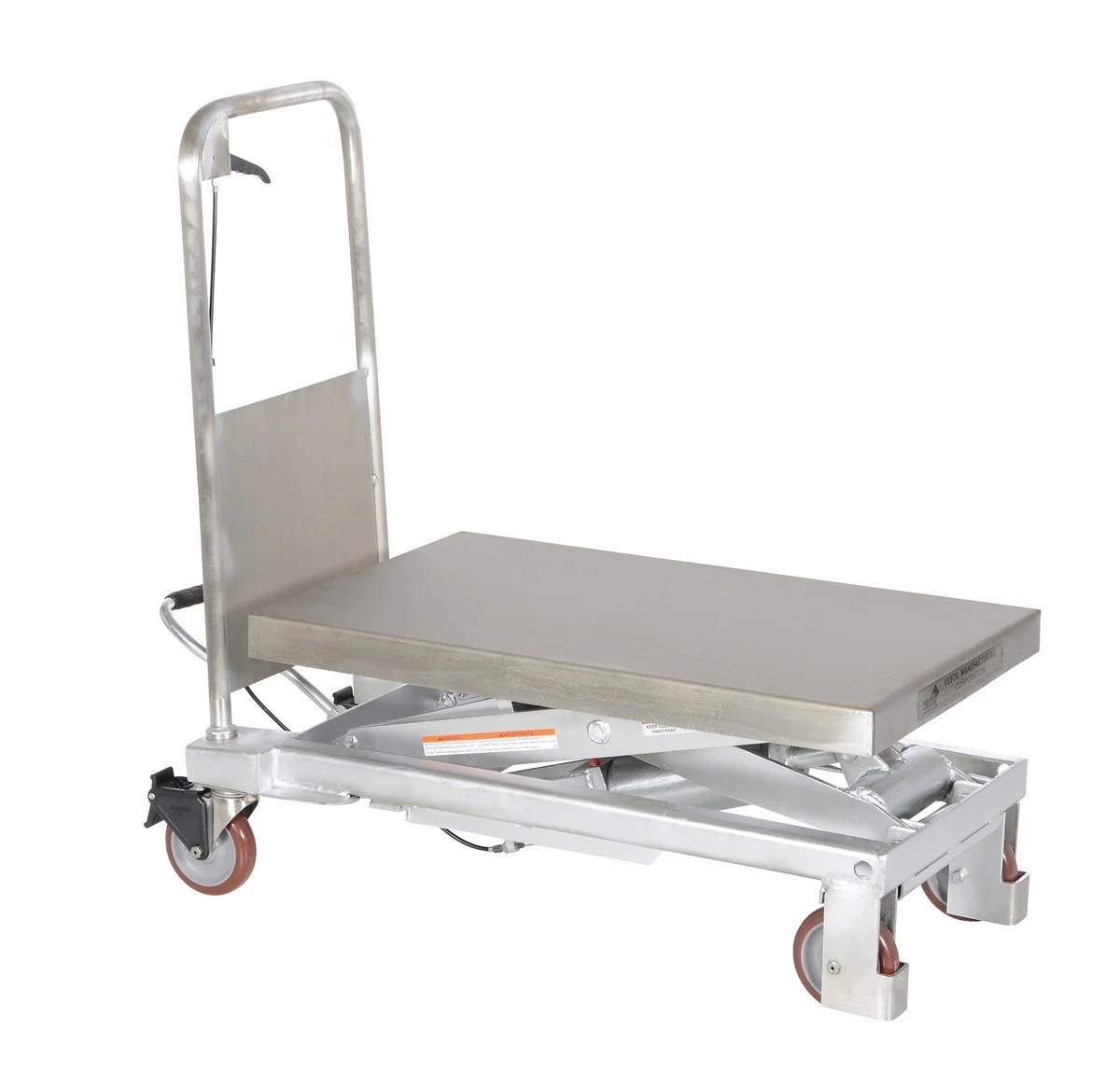

| DS-CART-750-PSS | 19-3/4" x 32-1/2" | 15-1/2" to 35-1/2" | Single | 750 | 202 | $1,623 |

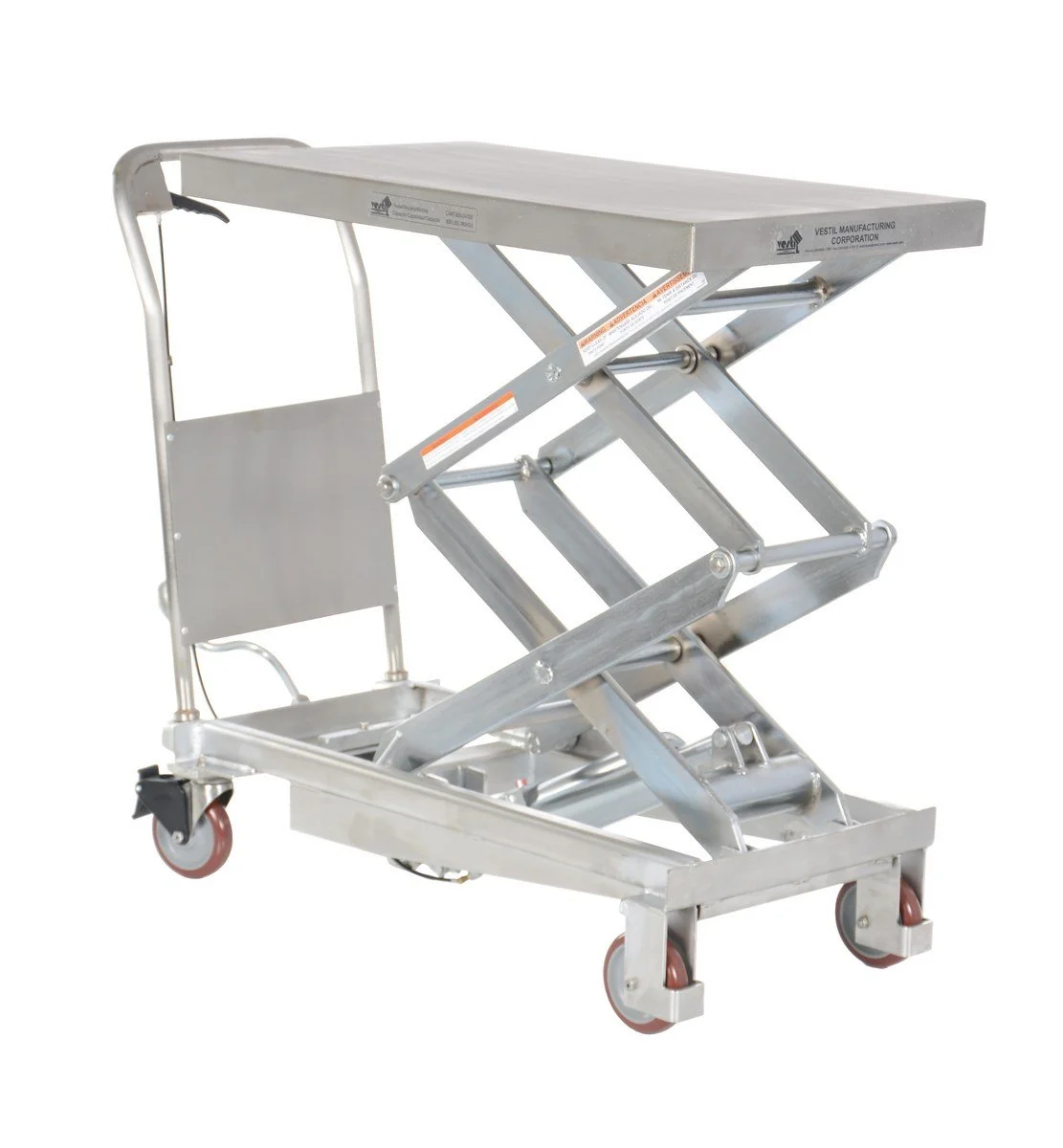

| DS-CART-800-D-PSS | 20" x 35-1/2" | 15-1/2" to 50-3/4" | Single | 800 | 275 | $2,329 |
| DS-CART-1000-PSS | 19-3/4" x 32-1/2" | 15-1/2" to 35-1/2" | Single | 1000 | 222 | $1,719 |

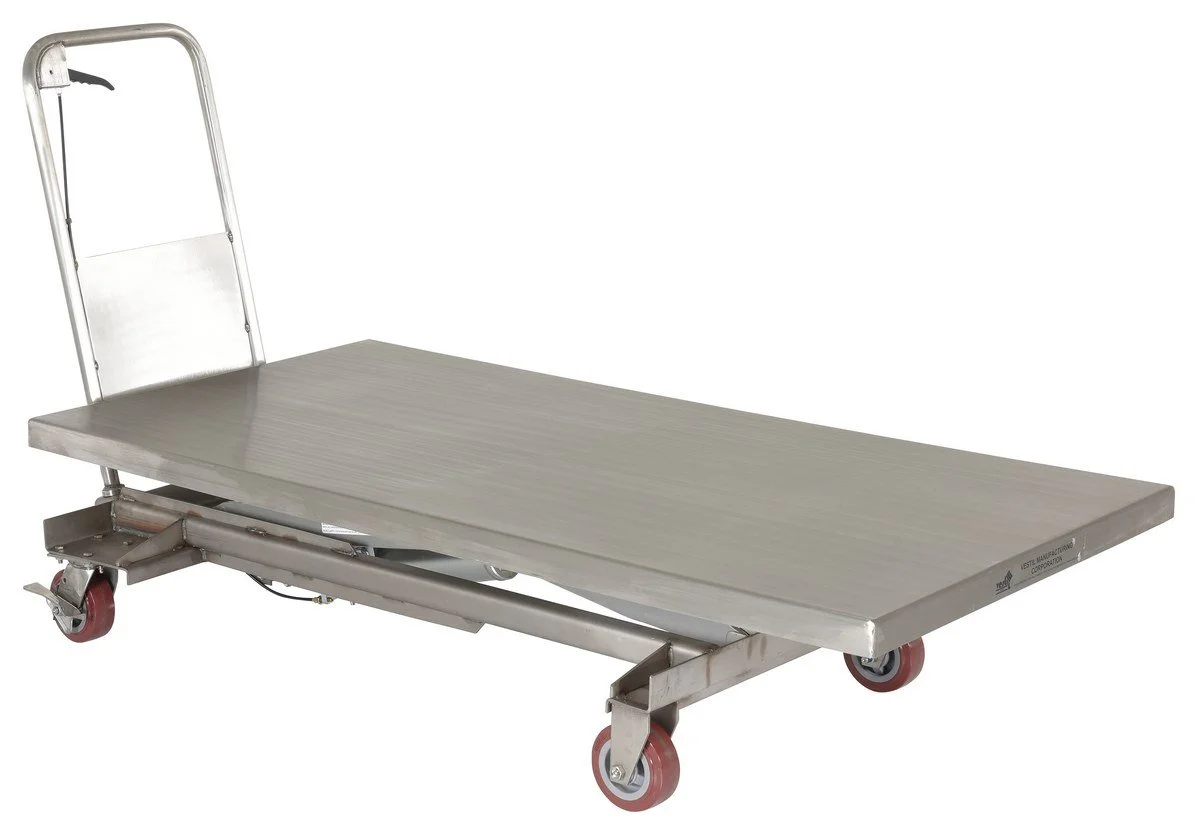

| DS-CART-1000-LD-PSS | 31-1/2" x 63" | 15" to 36" | Single | 1000 | 314 | $2,612 |

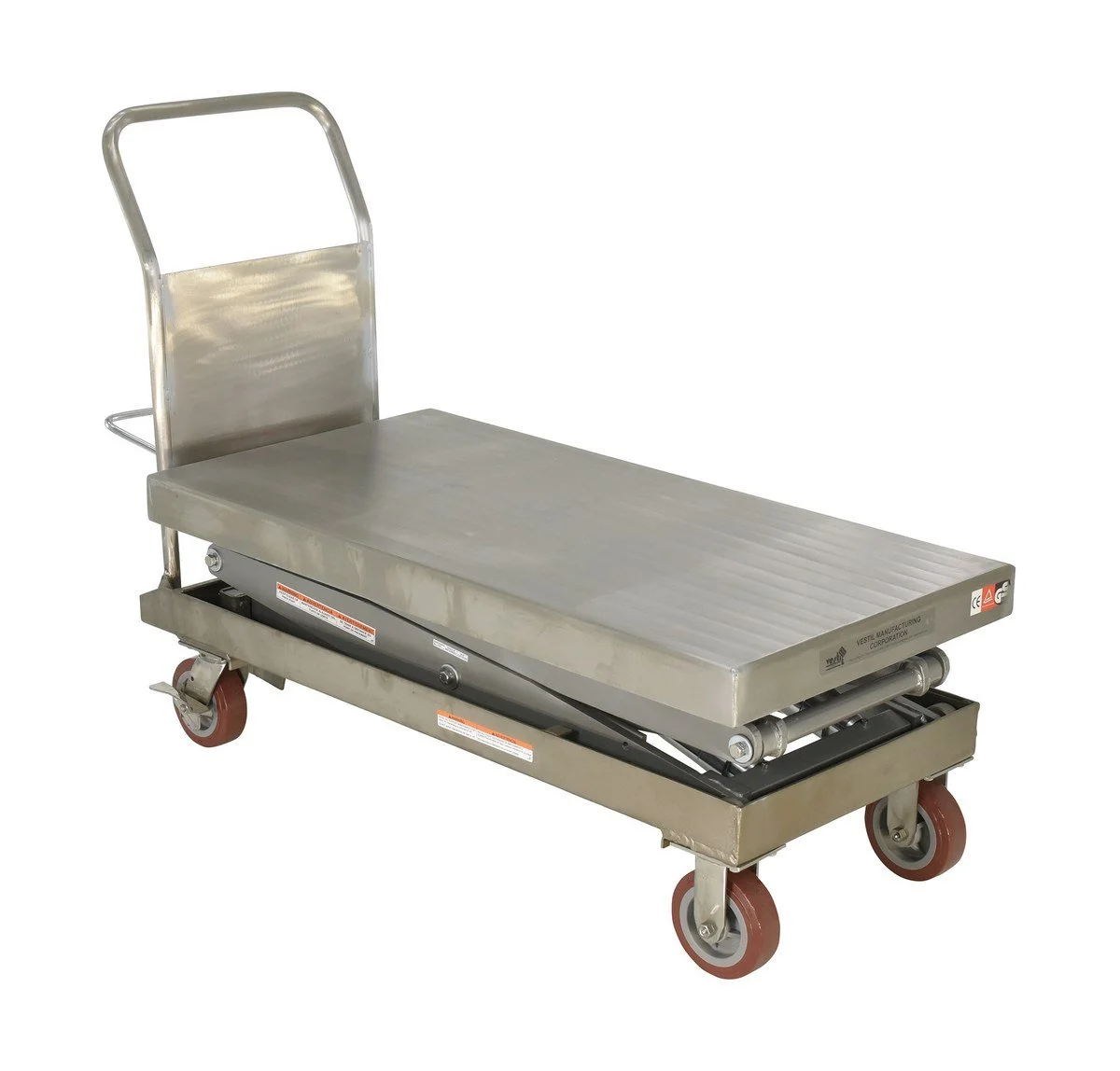

| DS-CART-1500-D-TS-PSS | 24" x 47-1/2" | 19" to 68" | Two | 1500 | 540 | $3,996 |

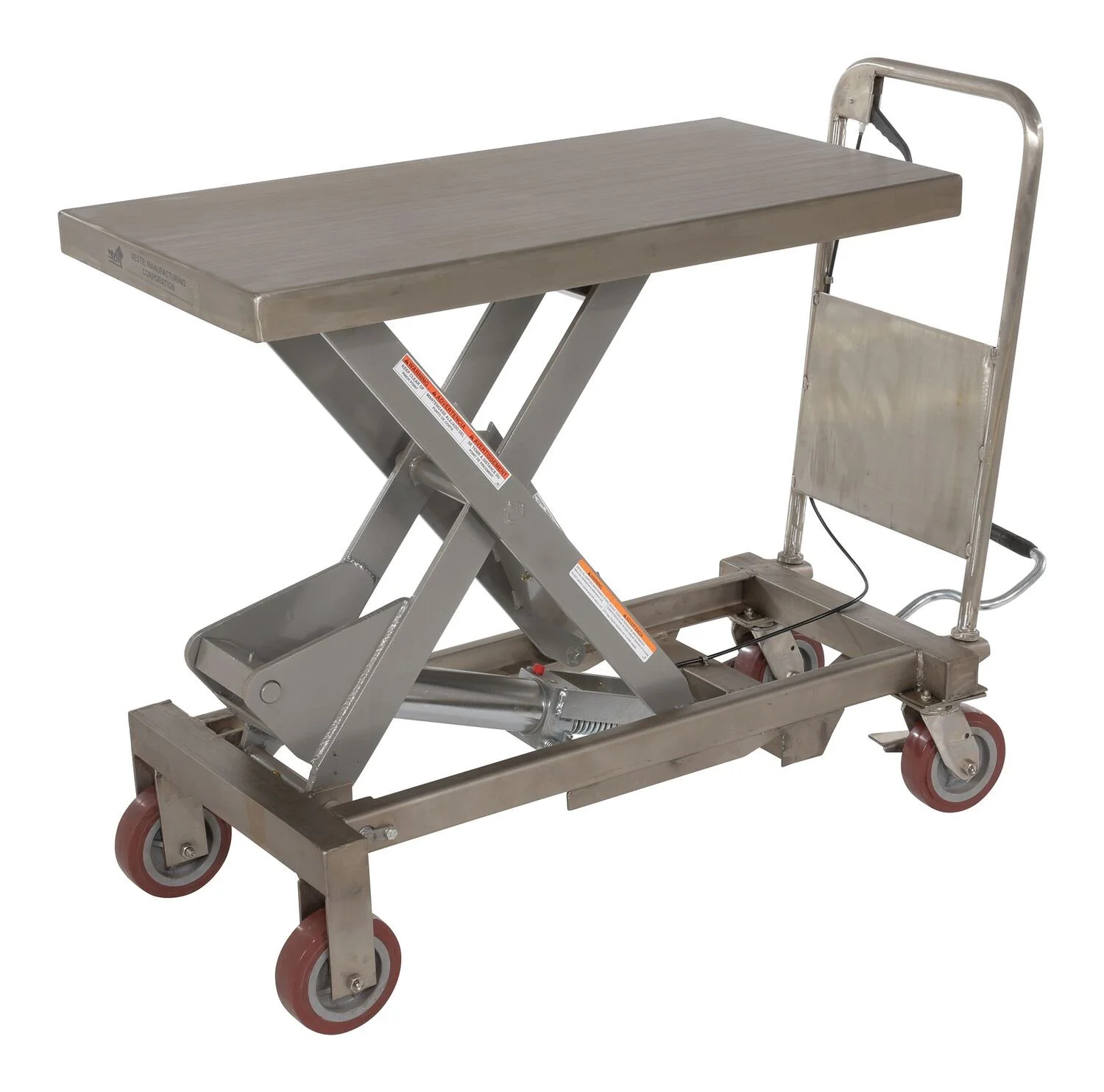

| DS-CART-1750-PSS | 20" x 39-1/2" | 17" to 40" | Single | 1750 | 288 | $2,583 |

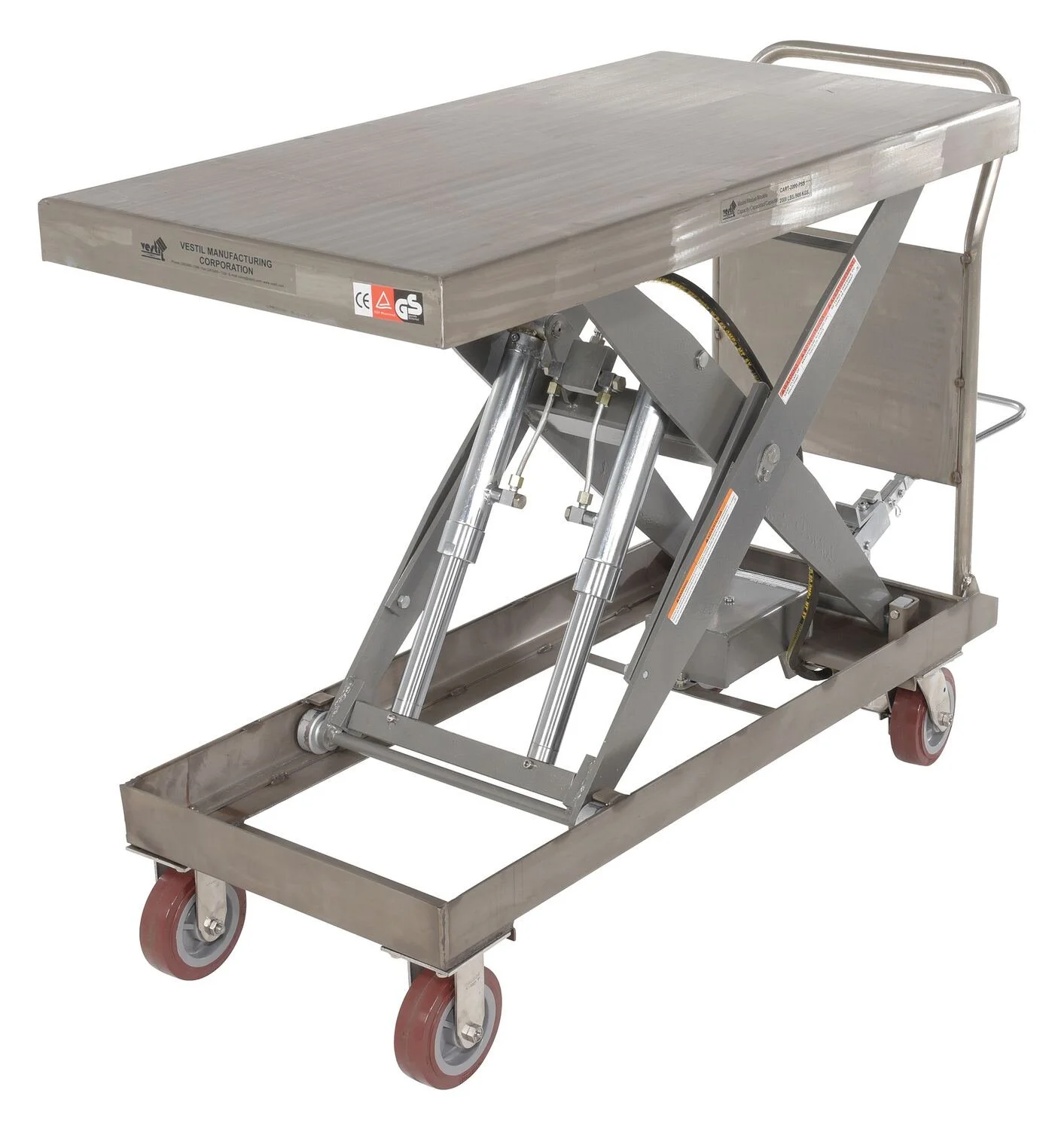

| DS-CART-2000-PSS | 24" x 472" | 15" to 39" | Two | 2000 | 395 | $2,896 |
| All dimensions are in inches | ||||||
Features
Standard Features:
The platform, frame, handle, caster rigs, and hardware are all stainless steel
Scissor legs, pump assembly, and hydraulic cylinders are zinc plated
Wheels are poly-on-poly
Single speed foot pump - about 20 pumps to completely raise
2 speed foot pump with manual release valve on 1500 and 2000 Carts
Raises 3" per pump [not loaded]
Accordion skirting available
Quickship in most cases less than a week
Options
No options available for this product.
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Drawings:
DS-CART-200-D-PSS
DS-CART-800-D-PSS
DS-CART-1000-PSS
DS-CART-1500-D-TS-PSS
Videos:
Partially Stainless Steel Hydraulic Elevating Cart
Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
