Fifth Wheel Steer Trailers
Fifth Wheel Steer Trailers
The Fifth Wheel and Caster Steer carts are heavy duty for your heavy loads.
Pricing
| Steering - Trailers | |||||||
|---|---|---|---|---|---|---|---|
| Model Number | Description | Platform [WxL] | Deck Type | Capacity (lbs.) | Wheels | Weight (lbs.) | Price |
| DS-FWST-36-4P | Fifth Wheel | 36" x 72" | Smooth 12 gauge | 5,000 | Polyerethane | 375 | $4,502 |
| DS-FWST-36-4PNU | Fifth Wheel | 36" x 72" | Smooth 12 gauge | 4,500 | Pneumatic | 385 | $4,491 |
| DS-FWST-48-4P | Fifth Wheel | 48" x 96" | Smooth 12 gauge | 5,000 | Polyerethane | 480 | $5,790 |
| DS-FWST-48-4PNU | Fifth Wheel | 48" x 96" | Smooth 12 gauge | 4,500 | Pneumatic | 480 | $5,780 |
| DS-FWST-48-10P | Fifth Wheel | 48" x 96" | Smooth 7 gauge | 10,000 | Polyerethane | 850 | $7,483 |
| DS-FWST-48-10PNU | Fifth Wheel | 48" x 96" | Smooth 7 gauge | 10,000 | Solid Pneumatic | 850 | $7,907 |
| DS-FWST-512-10P | Fifth Wheel | 60" x 144" | Smooth 7 gauge | 10,000 | Polyerethane | 1,200 | $9,072 |
| DS-FWST-512-10PNU | Fifth Wheel | 60" x 144" | Smooth 7 gauge | 10,000 | Solid Pneumatic | 1,200 | $9,497 |
| All dimensions are in inches | |||||||
| Caster Steer - Towable Trailers | |||||||
|---|---|---|---|---|---|---|---|
| Model Number | Description | Platform [WxL] | Deck Type | Capacity (lbs.) | Wheels | Weight (lbs.) | Price |
| DS-CSTT-36-4MR | Caster Steer | 36" x 72" | Smooth 12 gauge | 3,000 | Mold on Rubber | 427 | $5,246 |
| DS-CSTT-36-4P | Caster Steer | 36" x 72" | Smooth 12 gauge | 4,000 | Polyurethanoe on Iron | 425 | $5,431 |
| DS-CSTT-48-4MR | Caster Steer | 48" x 96" | Smooth 12 gauge | 3,000 | Mold on Rubber | 595 | $5,739 |
| DS-CSTT-48-4P | Caster Steer | 48" x 96" | Smooth 12 gauge | 4,000 | Polyurethane on Iron | 595 | $5,974 |
| All dimensions are in inches | |||||||
Features

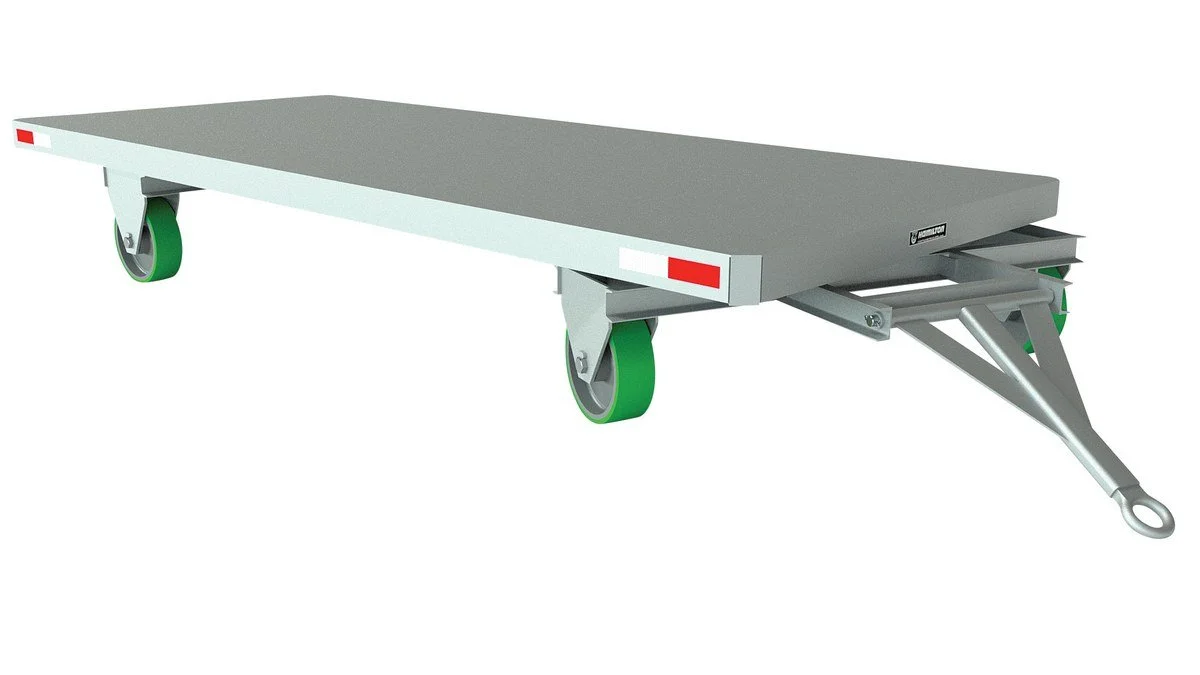

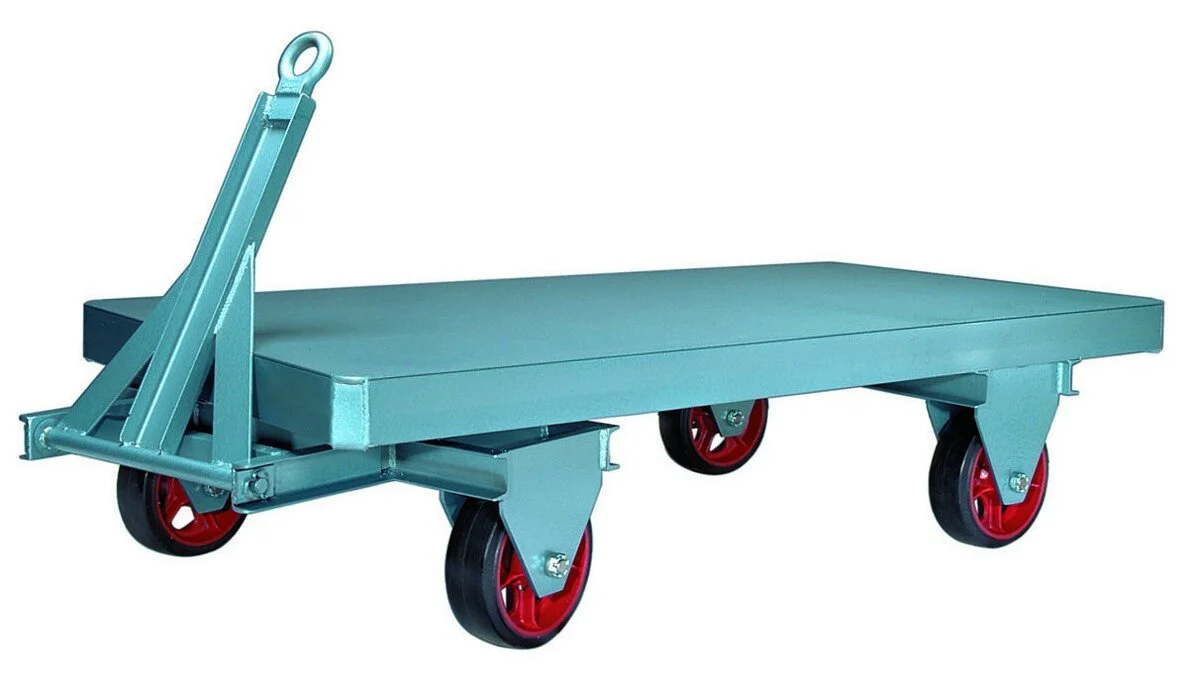

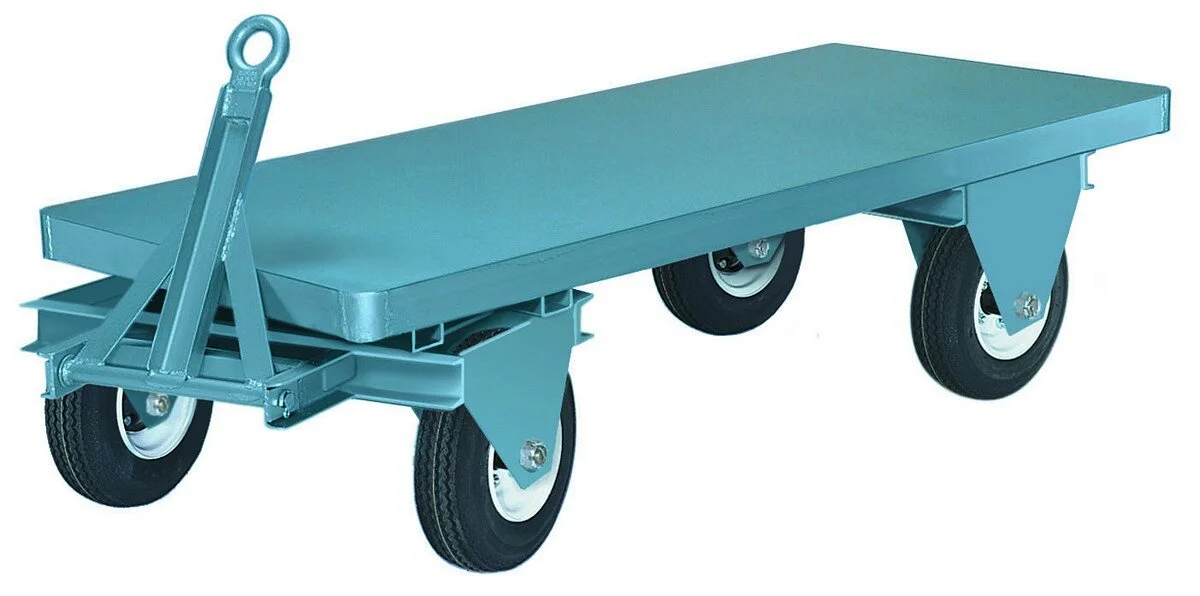

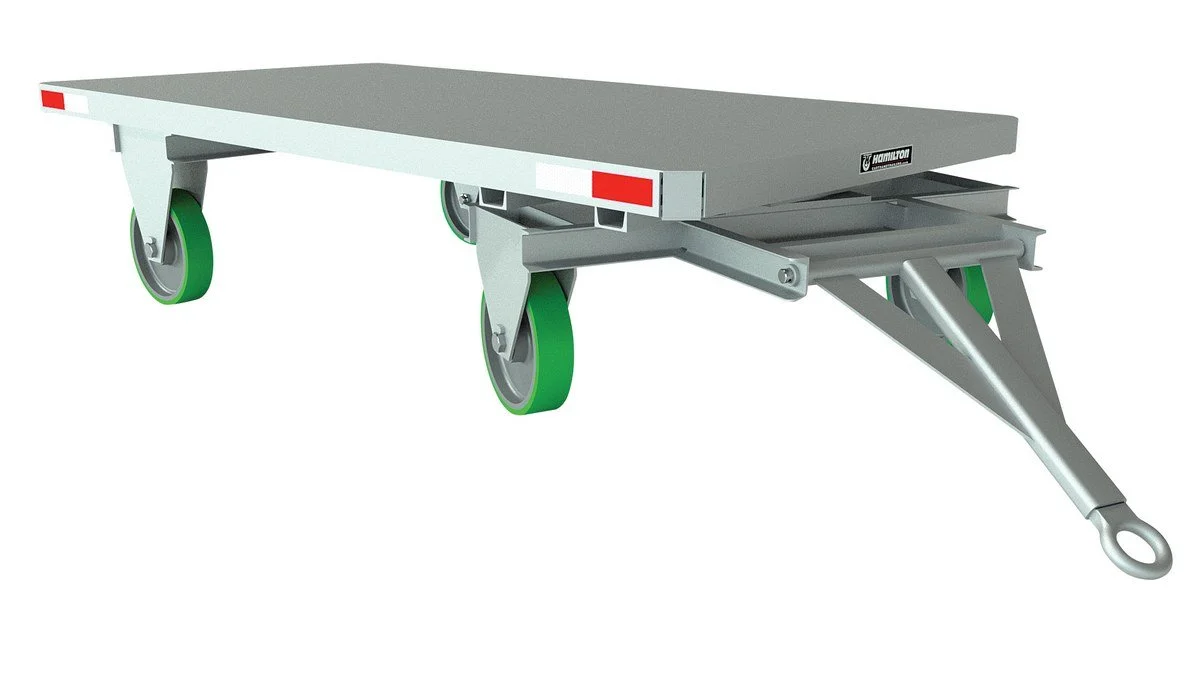

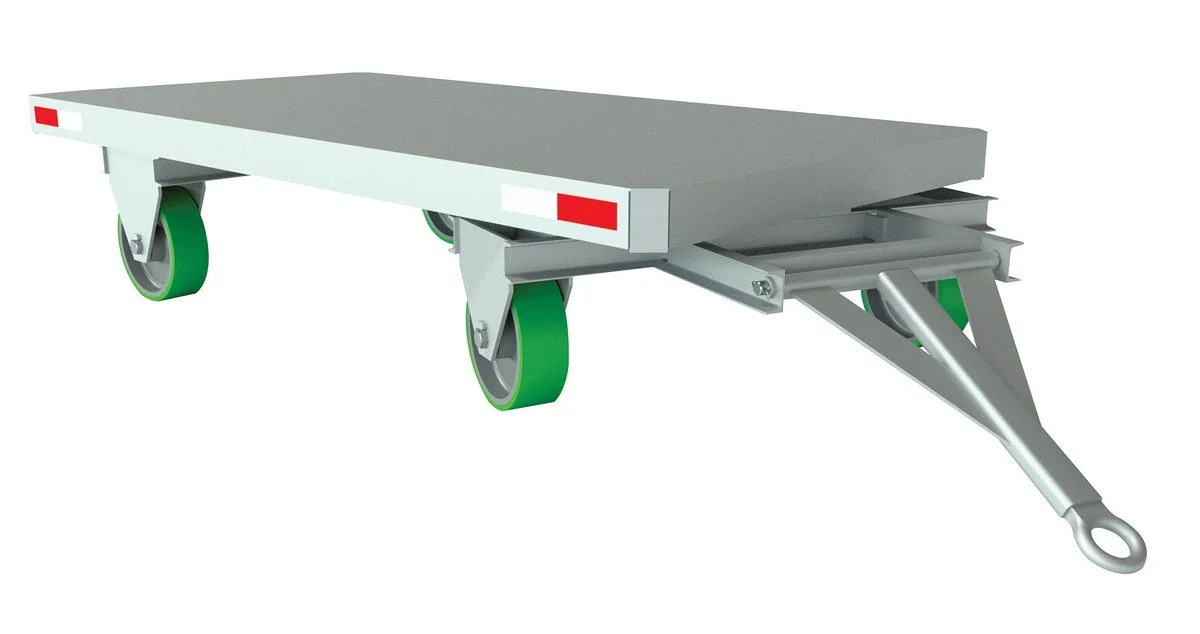

Fifth Wheel Steer Trailers
Feature steering that resembles children’s little red wagons. These industrial workhorses move heavy loads around plants and distribution centers. 14” square steel plates sandwich a UHMW disk, secured by a 1-1/4” kingpin, comprising the massive fifth-wheel assembly. Equipped with proper couplers, fifth wheel steer trailers can be connected into “trains” to move even larger loads of merchandise. Front and rear axles are precisely located for optimal steering and load accommodation.

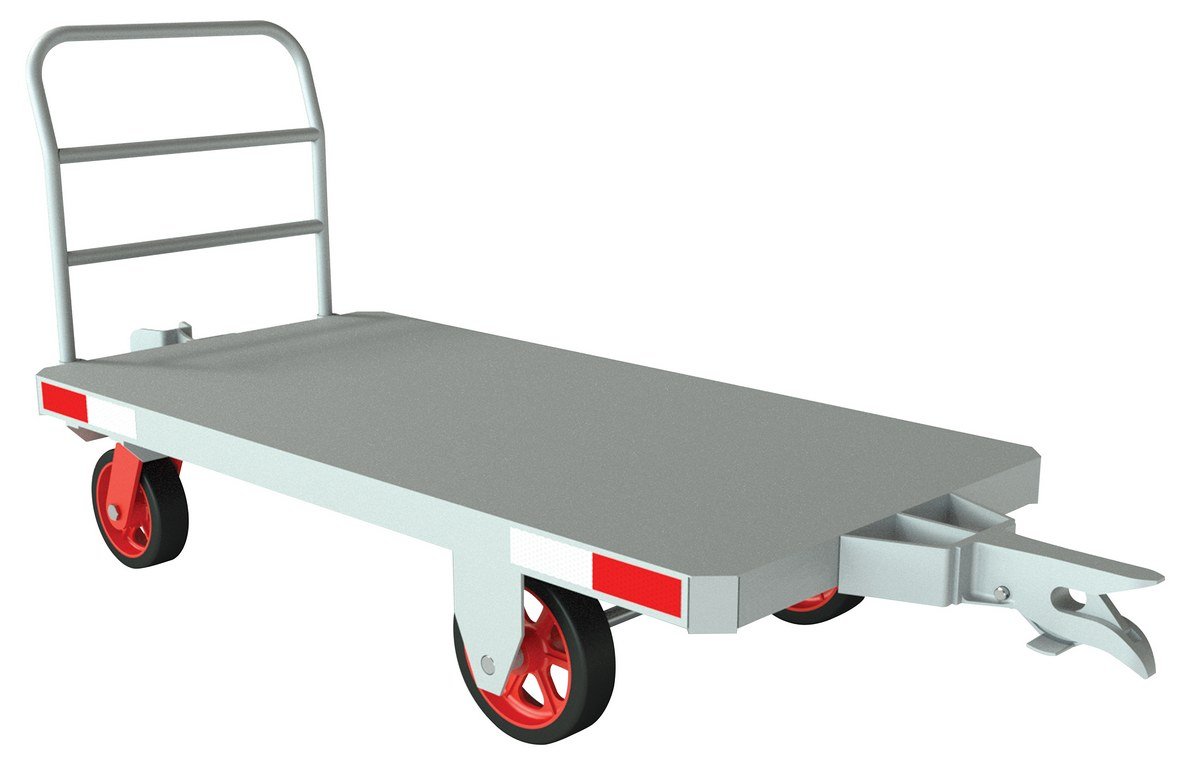

Caster Steer Towable Trailers - DS-CSTT series
Caster Steer Trailers are engineered for power towing. Units are standard with heavy duty couplers and swivel casters drop-forged steel construction with integrally forged kingpin and precision thrust bearing. Standard wheels are 10”x3” swivel casters in the front, and 12”x3” polyurethane or mold on rubber casters in the back of the trailer (to make it easier to maneuver). Handle is 26” high above deck and channel reinforced pipe sockets at swivel end.
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
No options available for this product
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Drawings:
DS-FWST-36-4PNU
