Vertical Crossover - Space Saving

Pricing

Vertical Crossover -  Space Saving


      Model Number
      Steps
      A
      B
      C
      D
      E
      F
      Weight (lbs.)
      Price

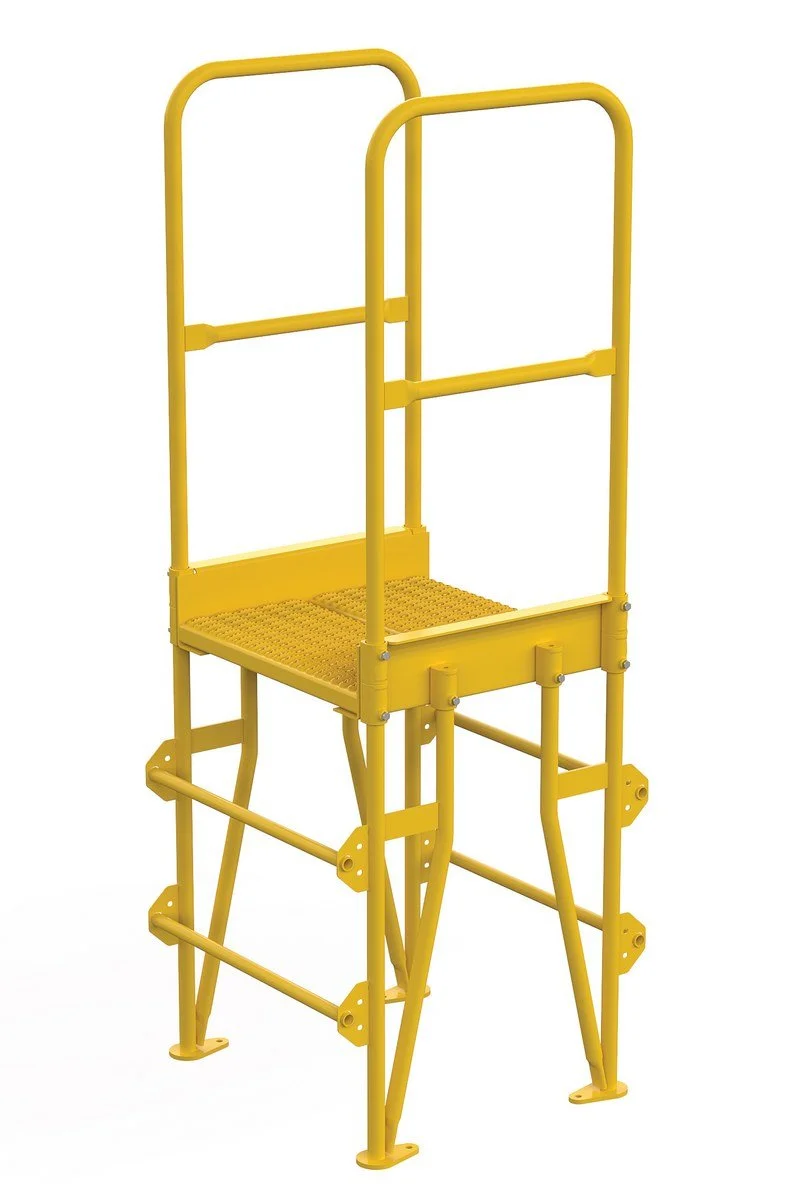

      DS-COLV-3-34-8
      3
      34-3/16"
      8"
      29"
      78-5/8"
      36"
      24"
      198
      $1,229

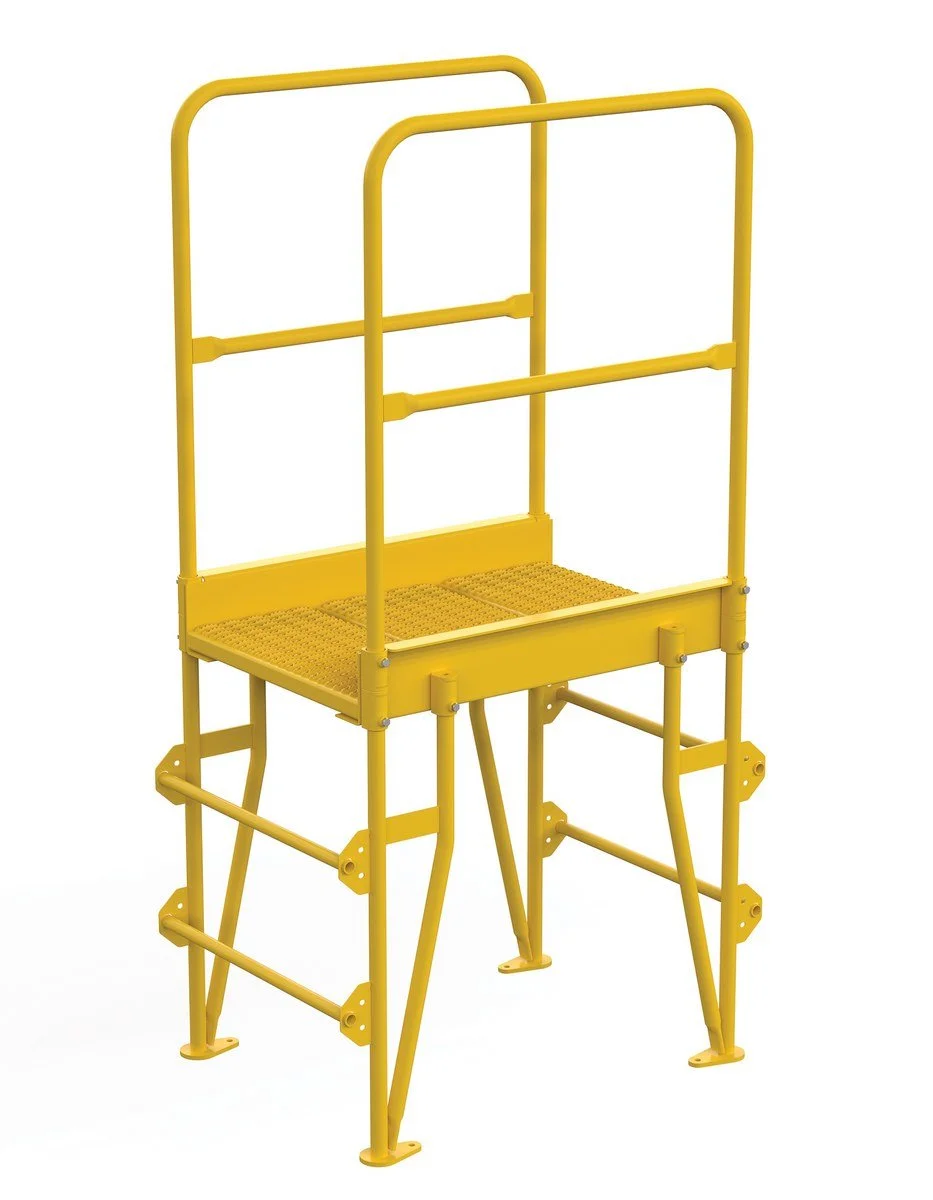

      DS-COLV-3-34-20
      3
      34-3/16"
      20"
      41"
      78-5/8"
      36"
      36"
      235
      $1,269

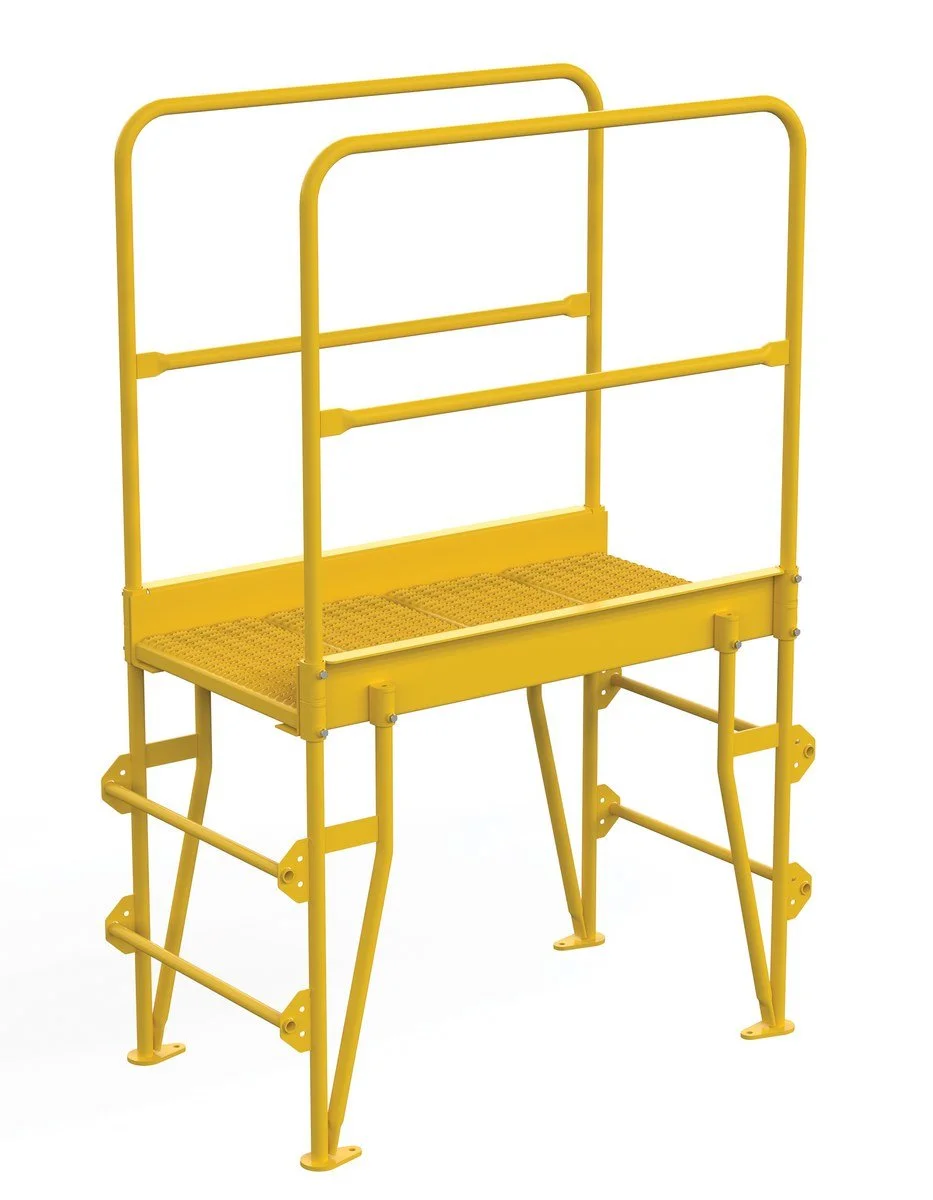

      DS-COLV-3-34-32
      3
      34-3/16"
      32"
      53"
      78-5/8"
      36"
      48"
      267
      $1,329

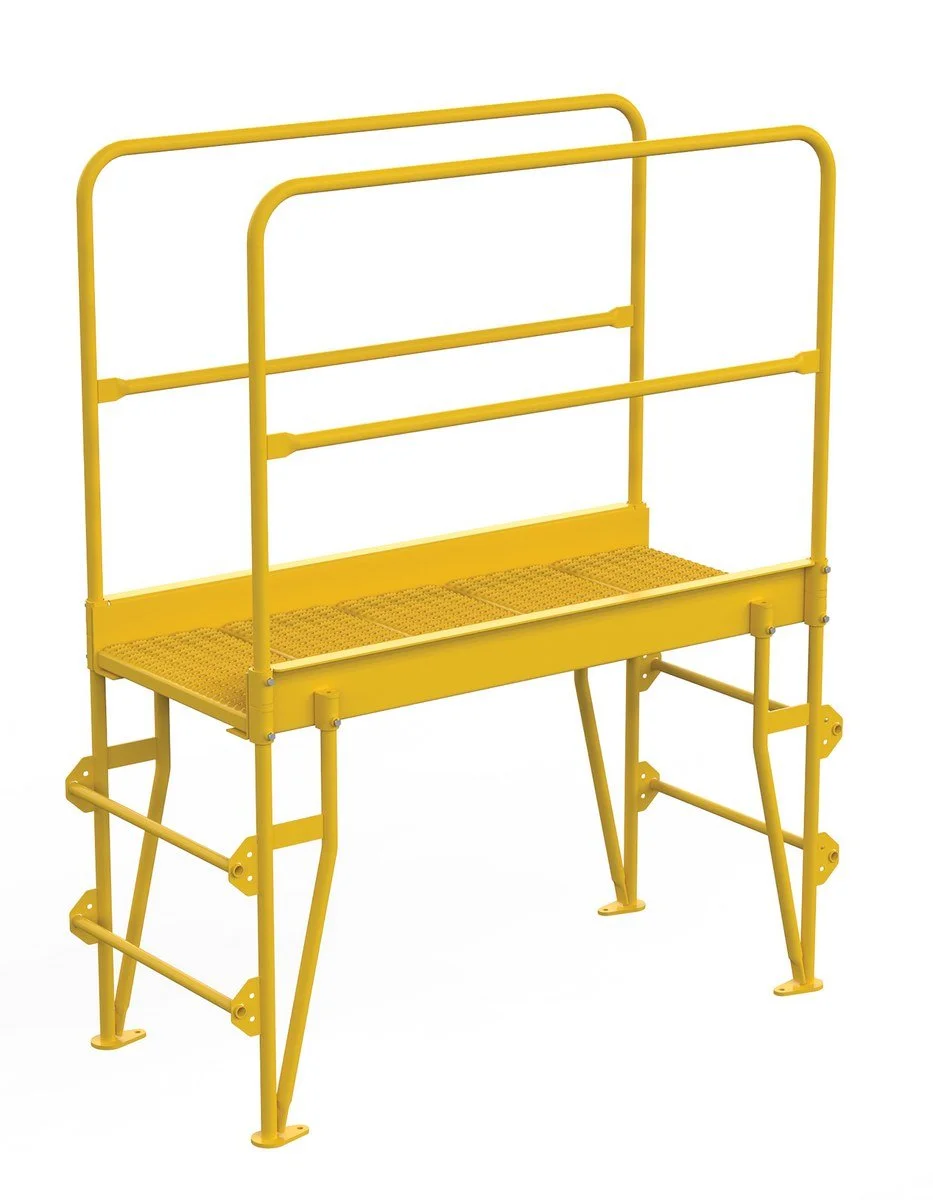

      DS-COLV-3-34-44
      3
      34-3/16"
      44"
      65"
      78-5/8"
      36"
      60"
      301
      $1,407

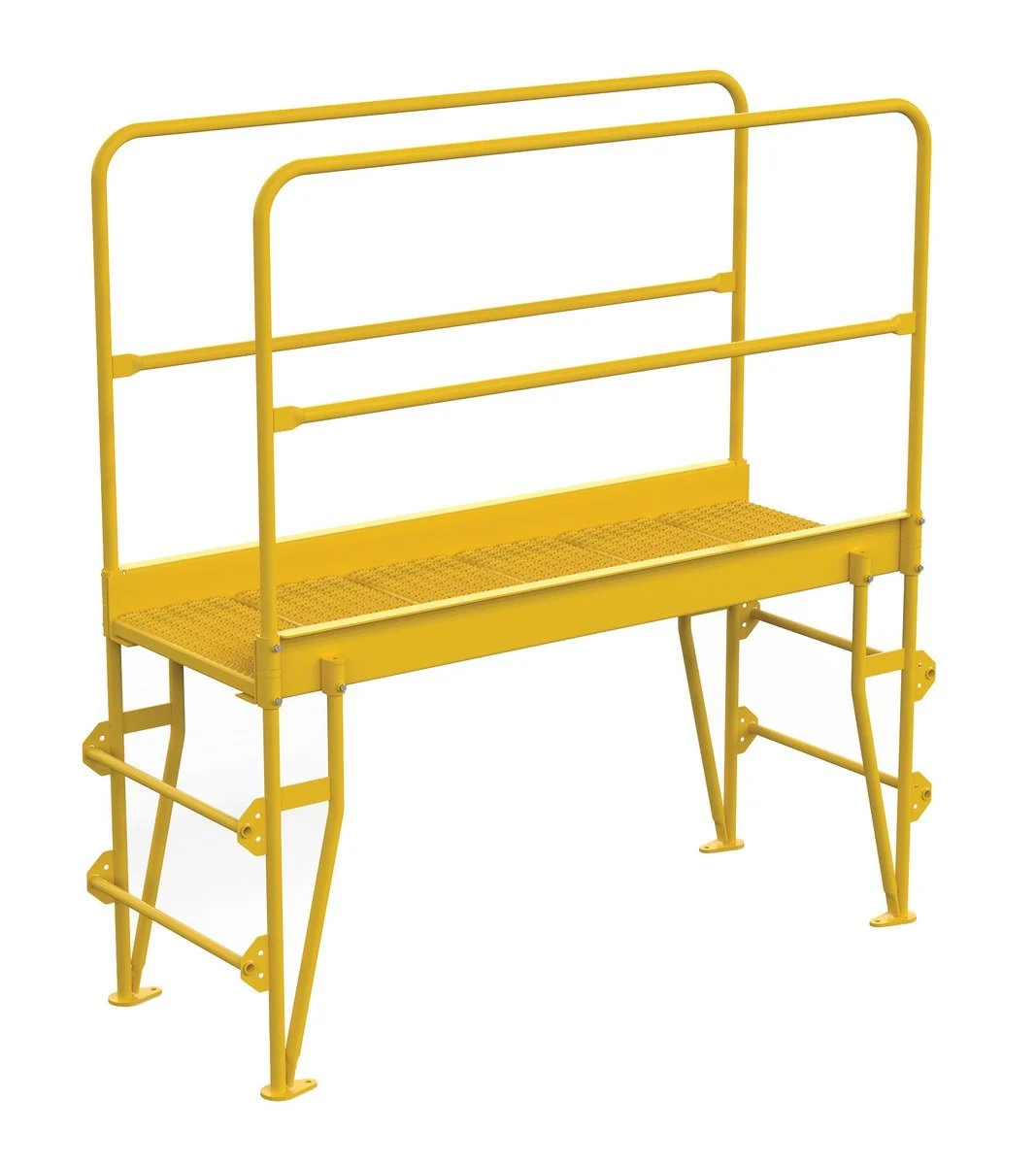

      DS-COLV-3-34-56
      3
      34-3/16"
      56"
      77"
      78-5/8"
      36"
      72"
      363
      $1,482

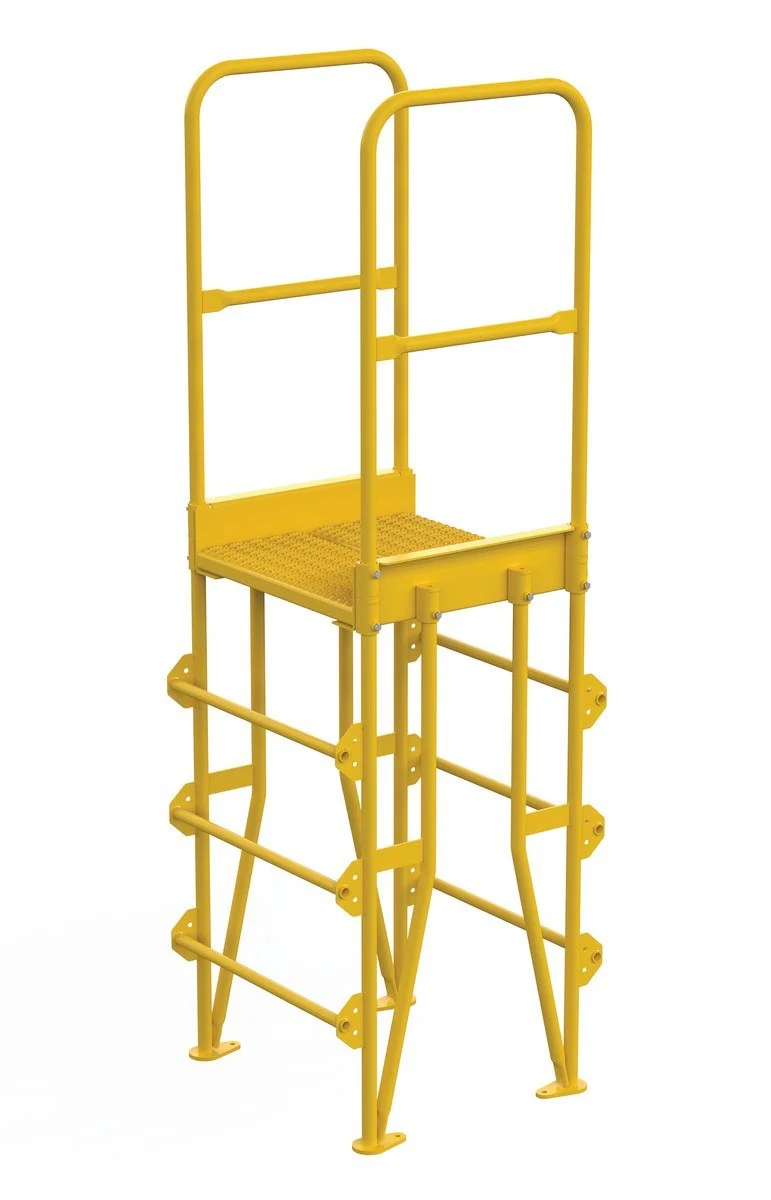

      DS-COLV-4-46-8
      4
      46-3/16"
      8"
      29"
      90-5/8"
      48"
      24"
      183
      $1,329


      DS-COLV-4-46-20
      4
      46-3/16"
      20"
      41"
      90-5/8"
      48"
      36"
      217
      $1,367

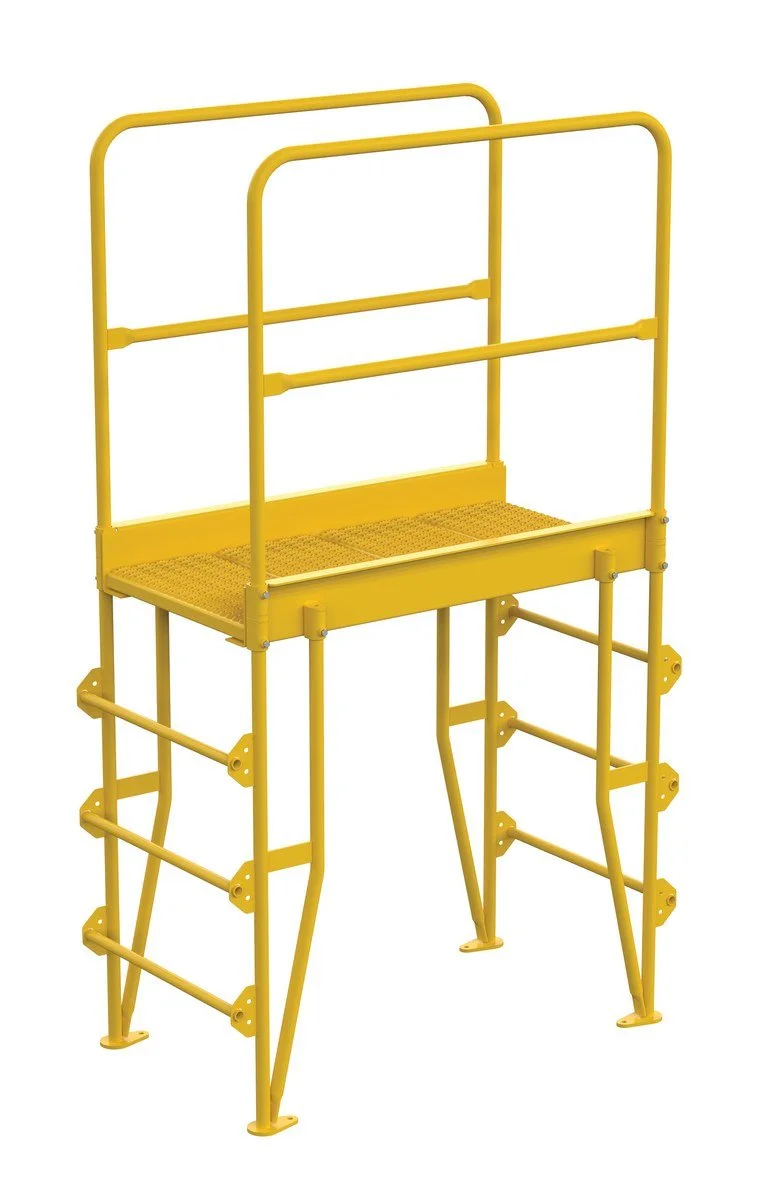

      DS-COLV-4-46-32
      4
      46-3/16"
      32"
      53"
      90-5/8"
      48"
      48"
      252
      $1,407

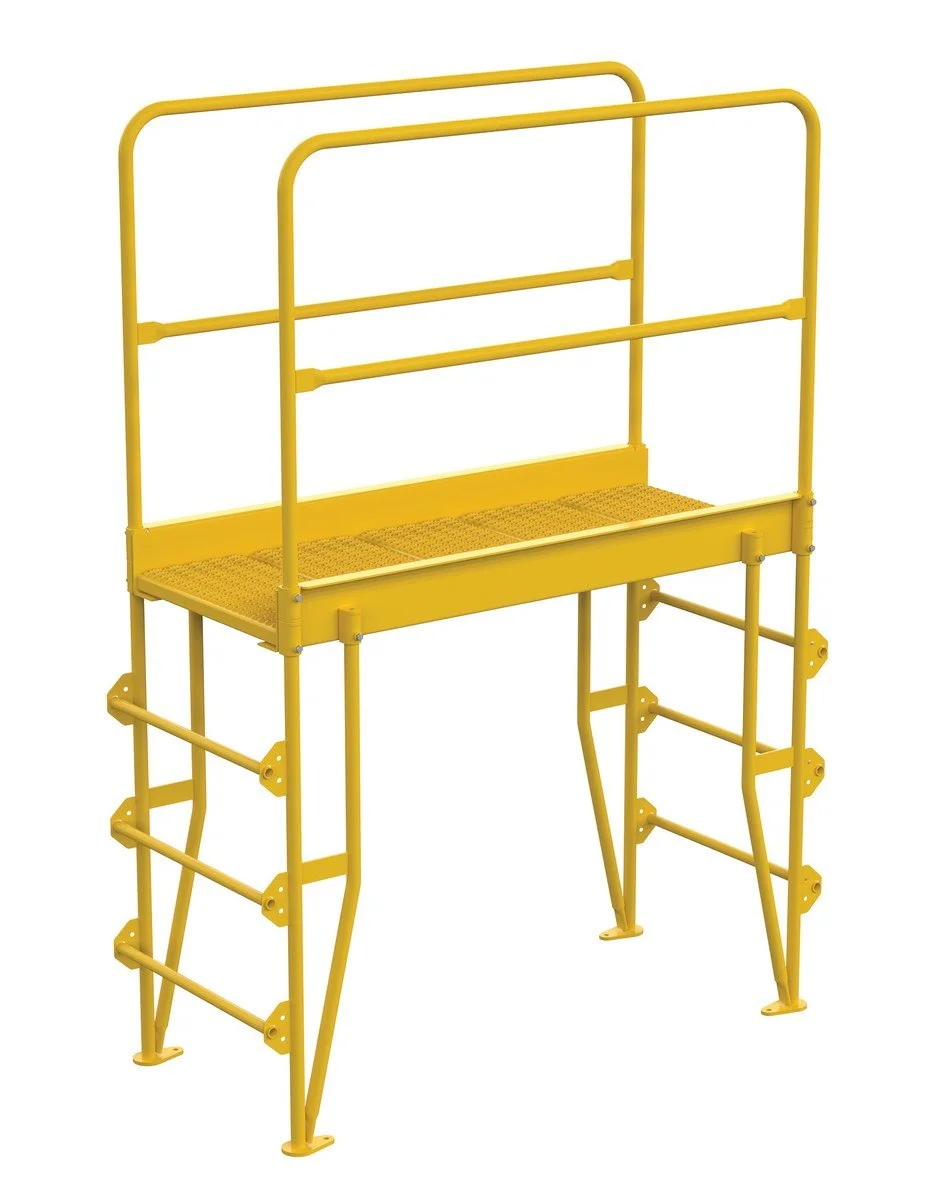

      DS-COLV-4-46-44
      4
      46-3/16"
      44"
      65"
      90-5/8"
      48"
      60"
      286
      $1,542

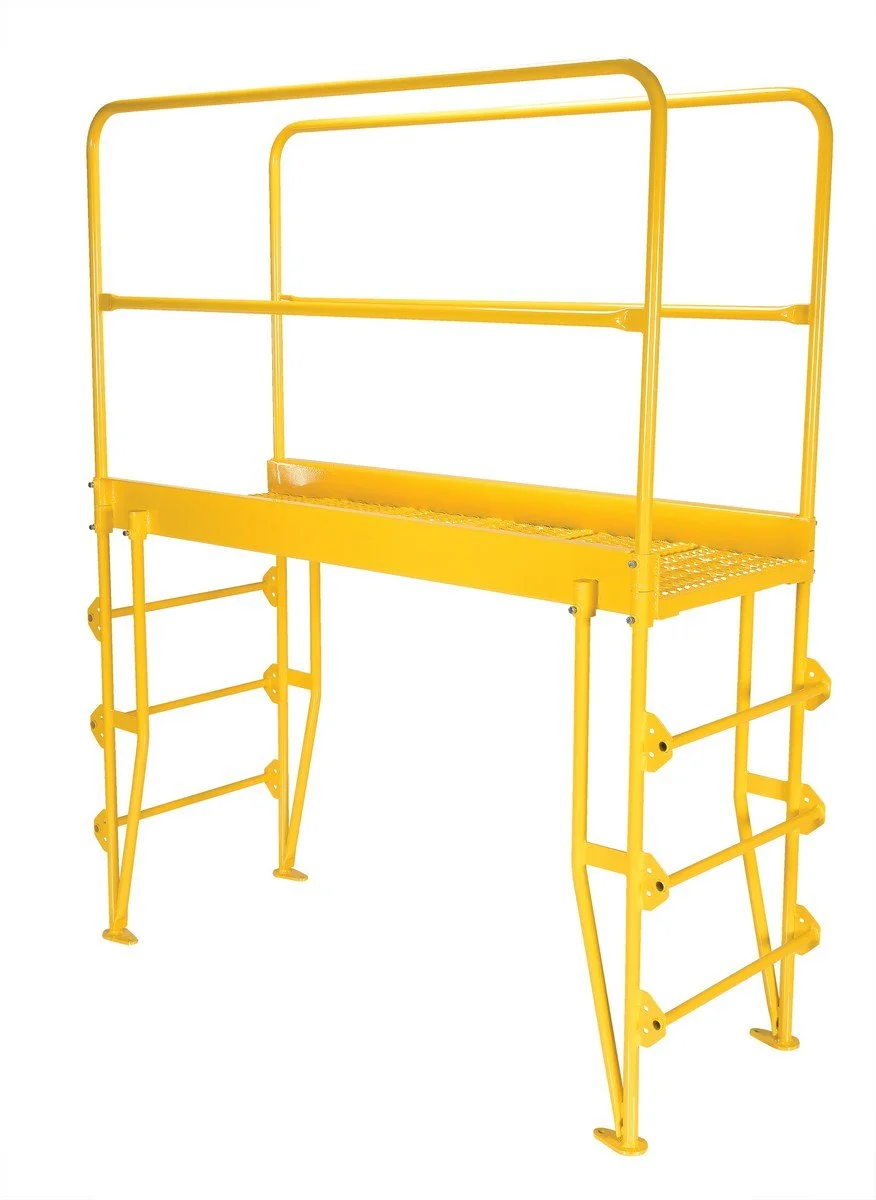

      DS-COLV-4-46-56
      4
      46-3/16"
      56"
      77"
      90-5/8"
      48"
      72"
      321
      $1,596

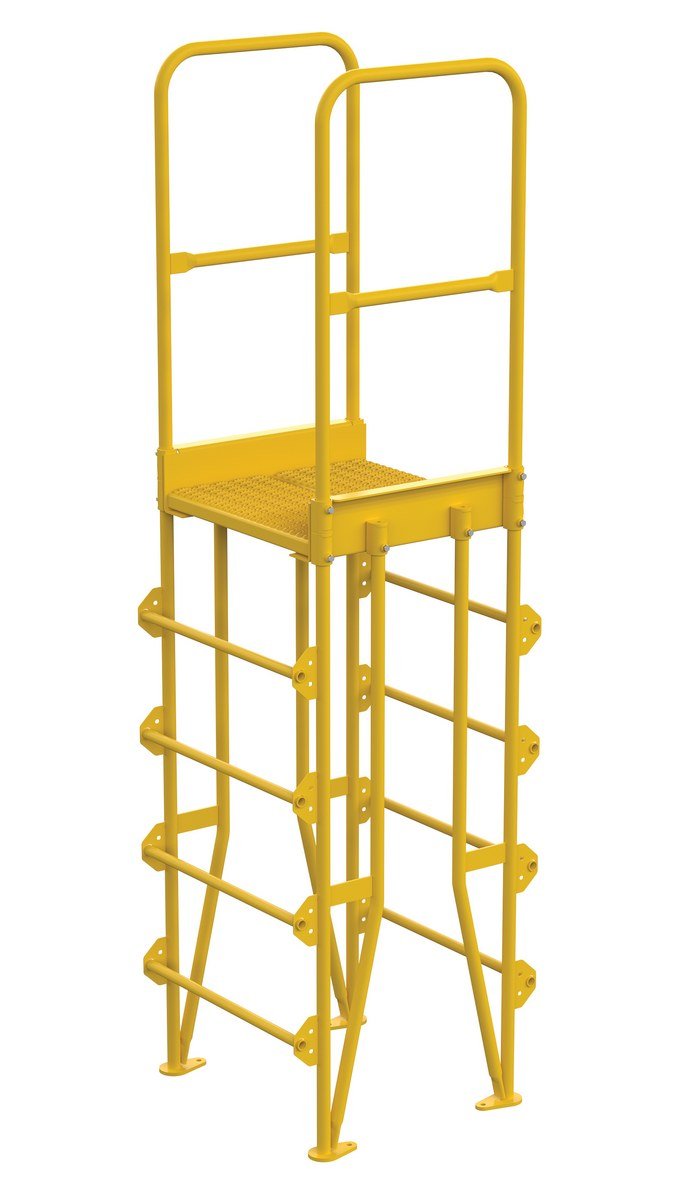

      DS-COLV-5-58-8
      5
      58-3/16"
      8"
      29"
      102-5/8"
      60"
      24"
      202
      $1,450


      DS-COLV-5-58-20
      5
      58-3/16"
      20"
      41"
      102-5/8"
      60"
      36"
      237
      $1,509


      DS-COLV-5-58-32
      5
      58-3/16"
      32"
      53"
      102-5/8"
      60"
      48"
      271
      $1,558

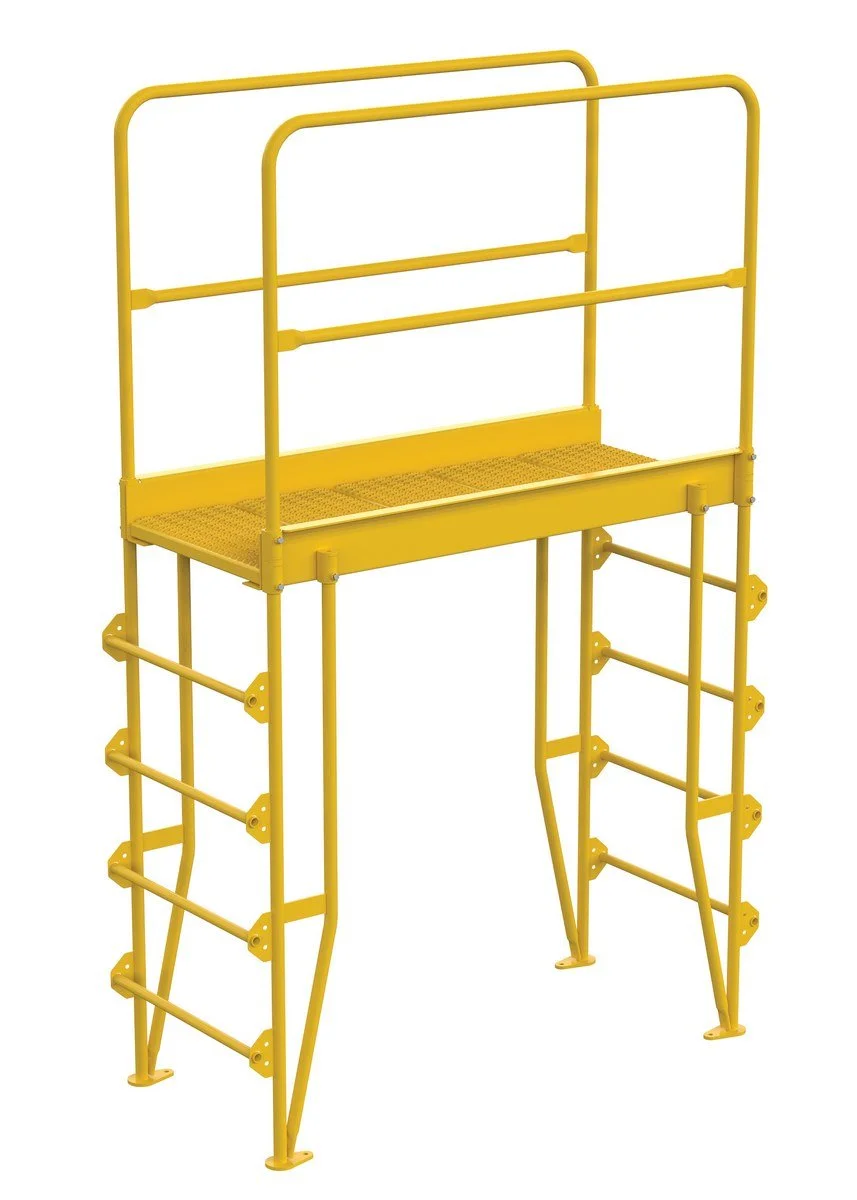

      DS-COLV-5-58-44
      5
      58-3/16"
      44"
      65"
      102-5/8"
      60"
      60"
      306
      $1,631

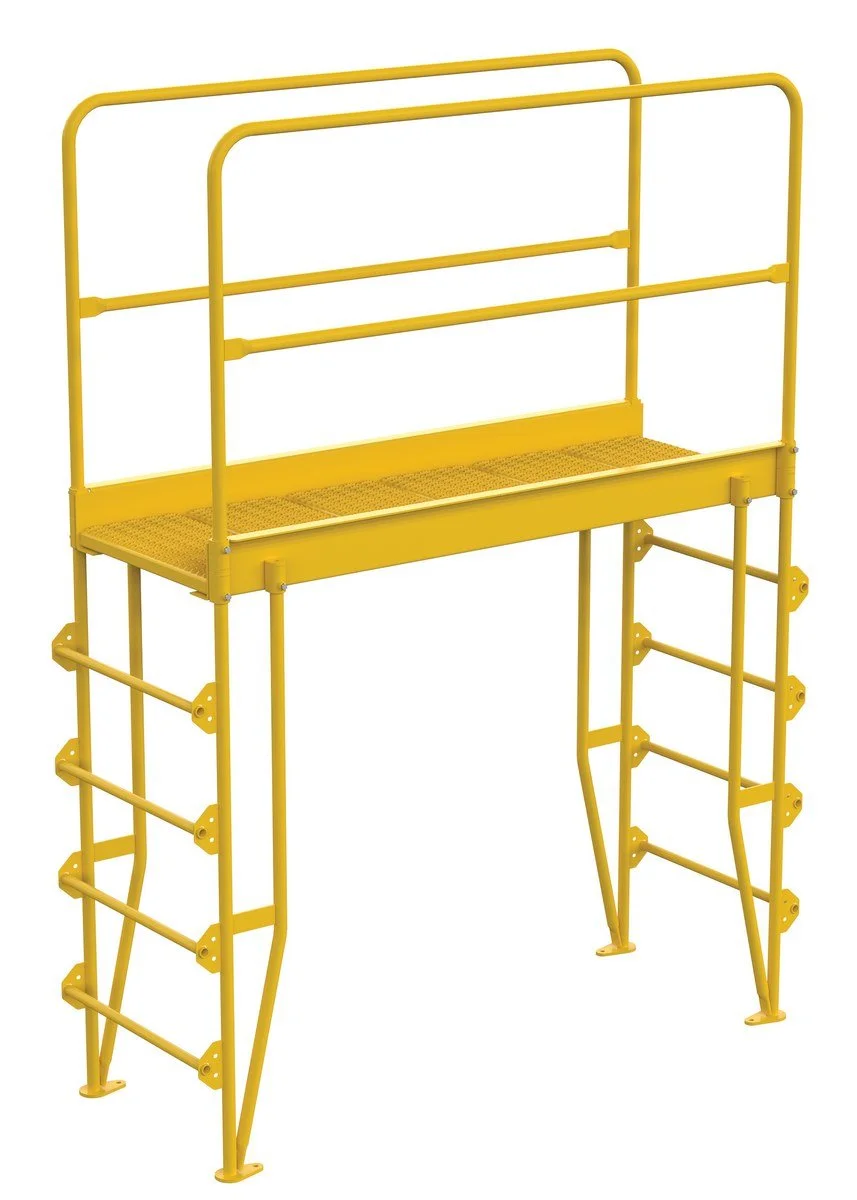

      DS-COLV-5-58-56
      5
      58-3/16"
      56"
      77"
      102-5/8"
      60"
      72"
      340
      $1,770

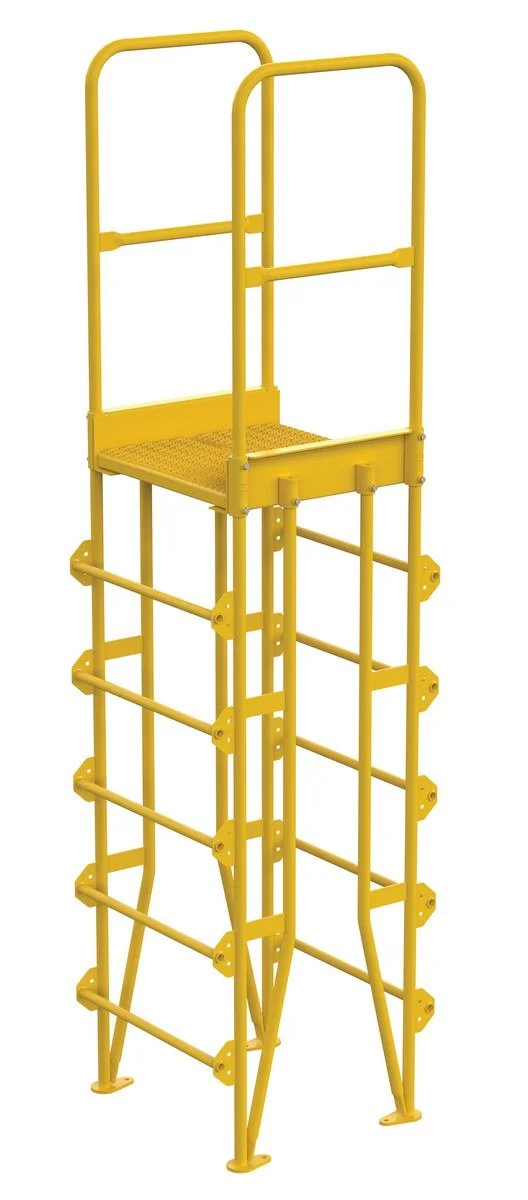

      DS-COLV-6-70-8
      6
      70-3/16"
      8"
      29"
      114-5/8"
      72"
      24"
      222
      $1,528

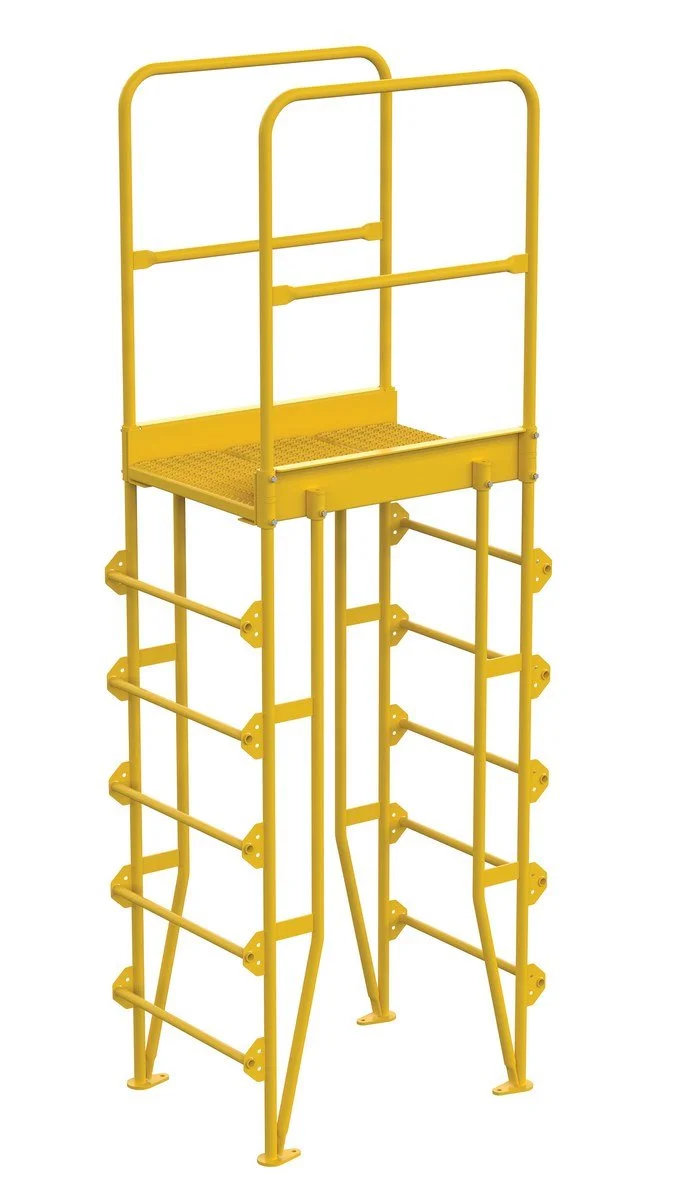

      DS-COLV-6-70-20
      6
      70-3/16"
      20"
      41"
      114-5/8"
      72"
      36"
      256
      $1,479

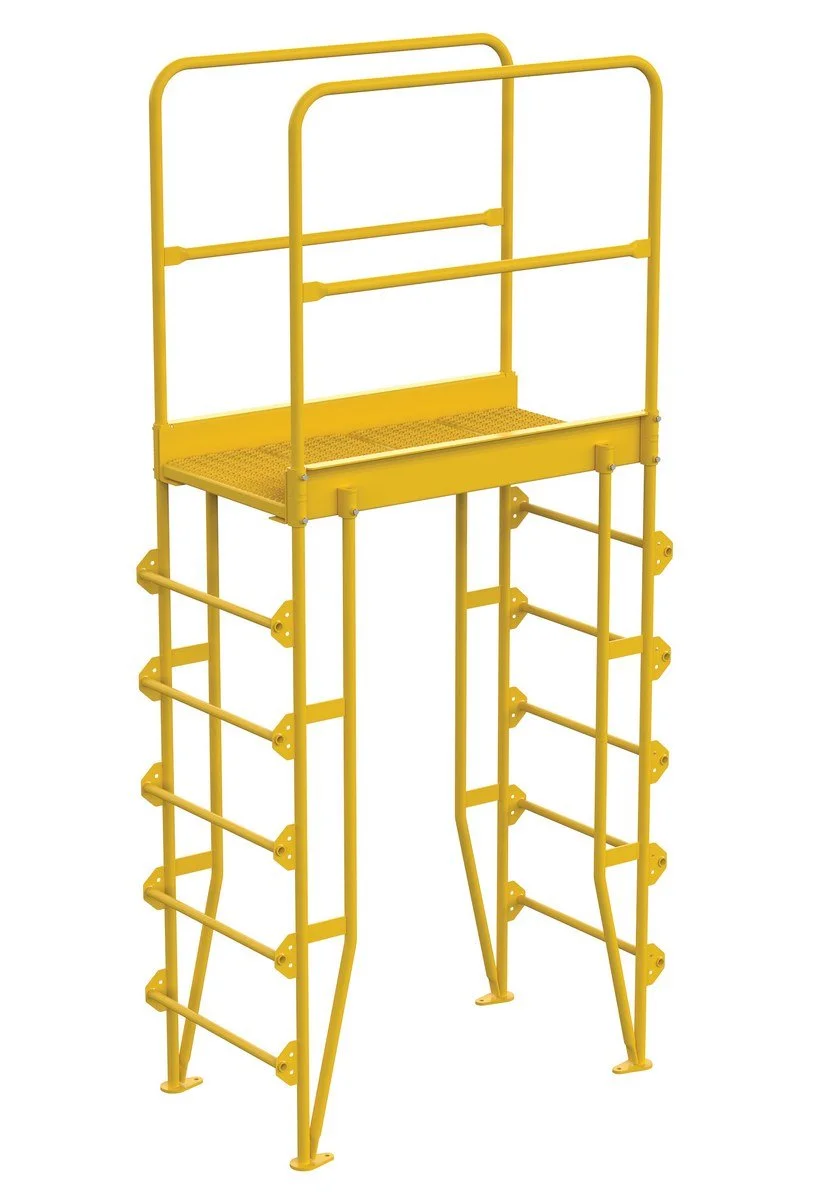

      DS-COLV-6-70-32
      6
      70-3/16"
      32"
      53"
      114-5/8"
      36"
      72"
      291
      $1,664

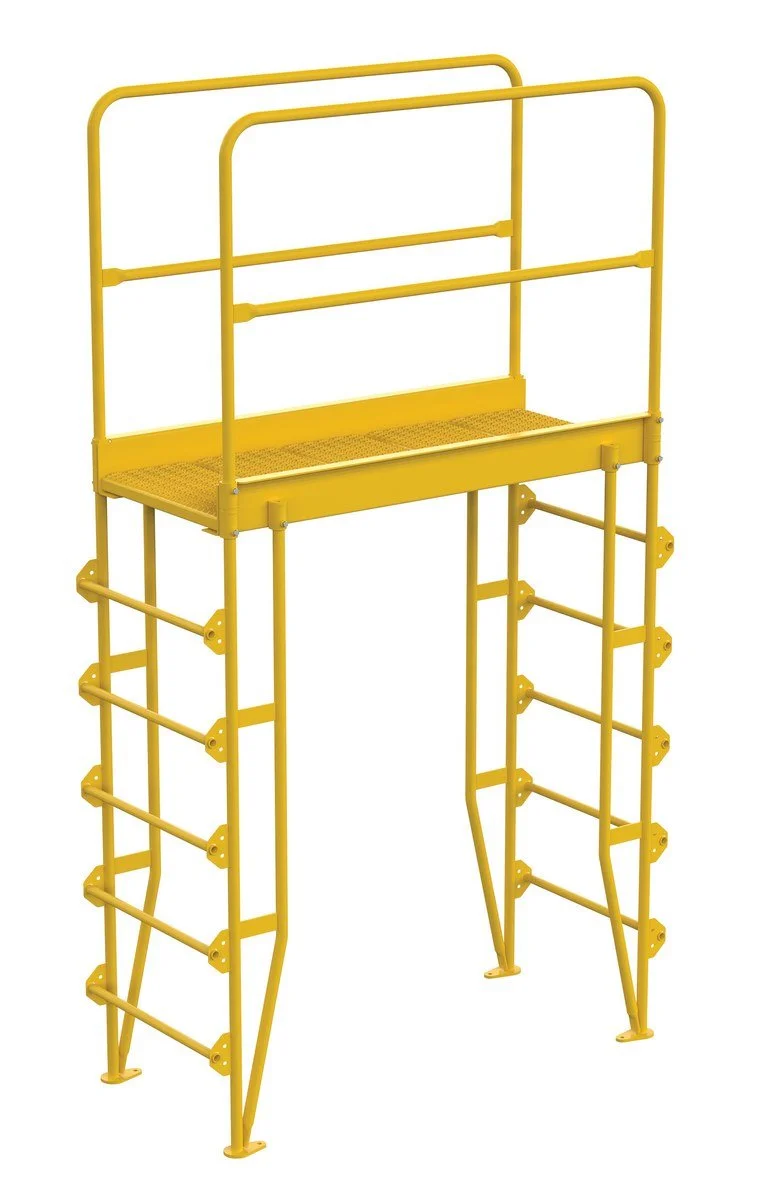

      DS-COLV-6-70-44
      6
      70-3/16"
      44"
      65"
      114-5/8"
      72"
      60"
      323
      $1,755

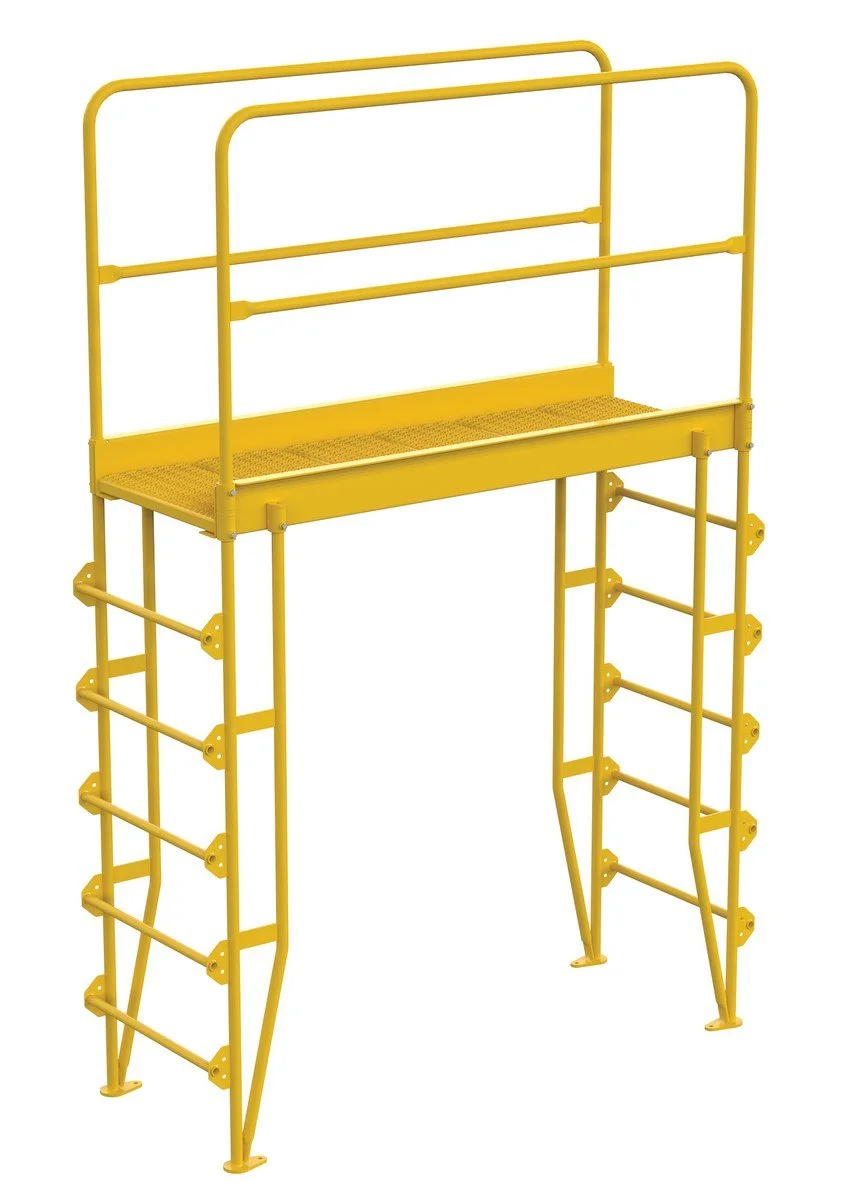

      DS-COLV-6-70-56
      6
      70-3/16"
      56"
      77"
      114-5/8"
      72"
      72"
      363
      $1,863

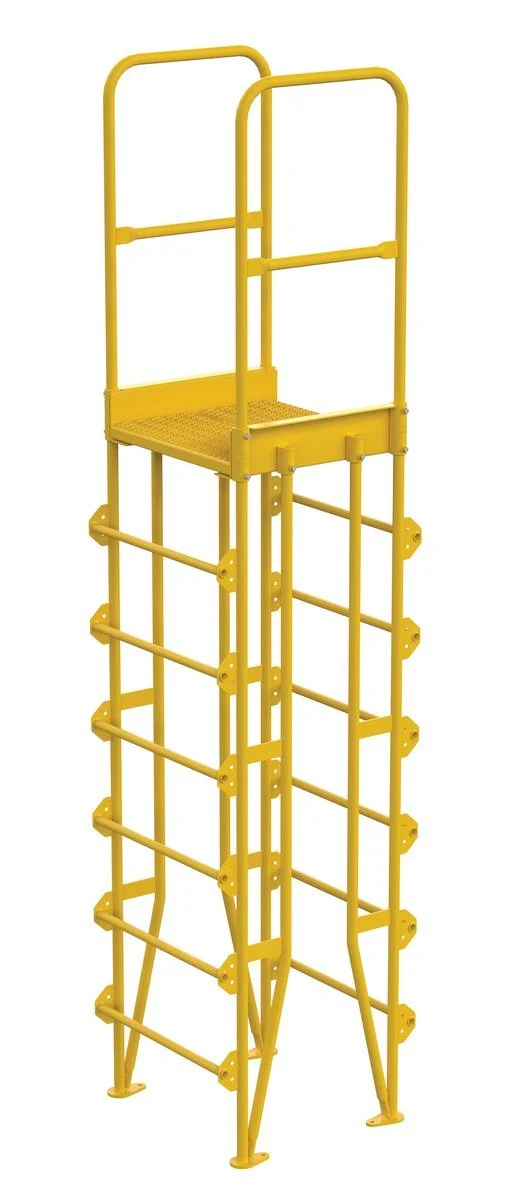

      DS-COLV-7-82-8
      7
      82-3/16"
      8"
      29"
      126-5/8"
      84"
      24"
      244
      $1,632


      DS-COLV-7-82-20
      7
      82-3/16"
      20"
      41"
      126-5/8"
      84"
      36"
      279
      $1,630


      DS-COLV-7-82-32
      7
      82-3/16"
      32"
      53"
      126-5/8"
      84"
      48"
      313
      $1,817

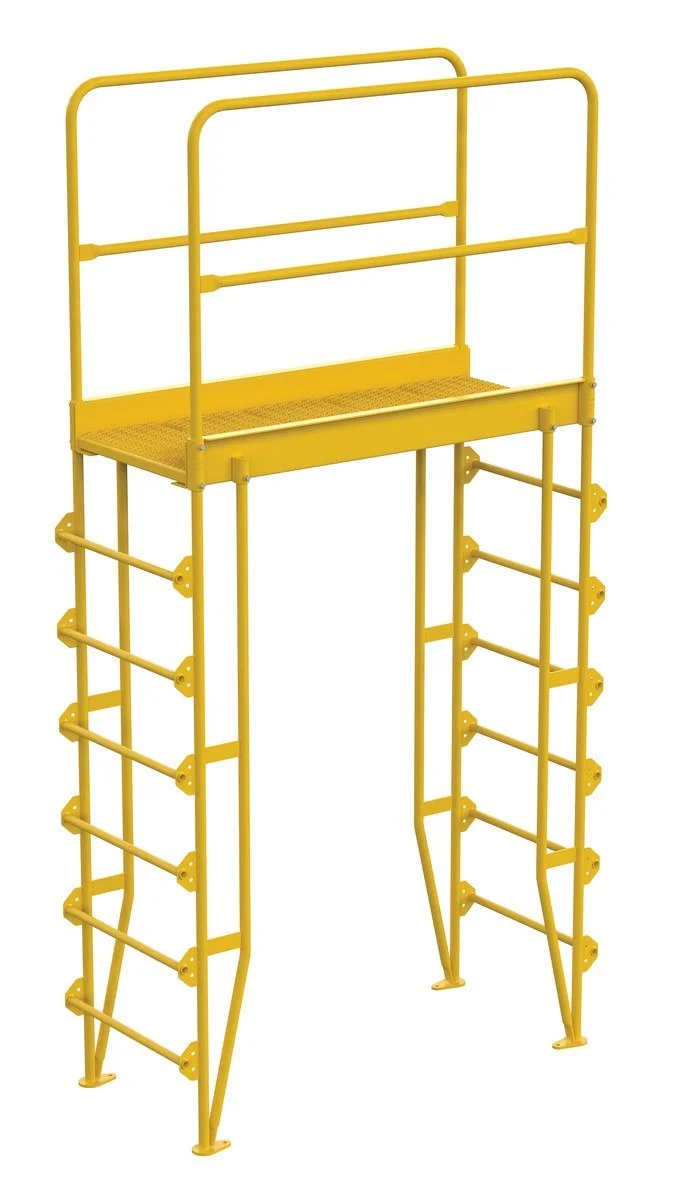

      DS-COLV-7-82-44
      7
      82-3/16"
      44"
      65"
      126-5/8"
      84"
      60"
      348
      $1,797

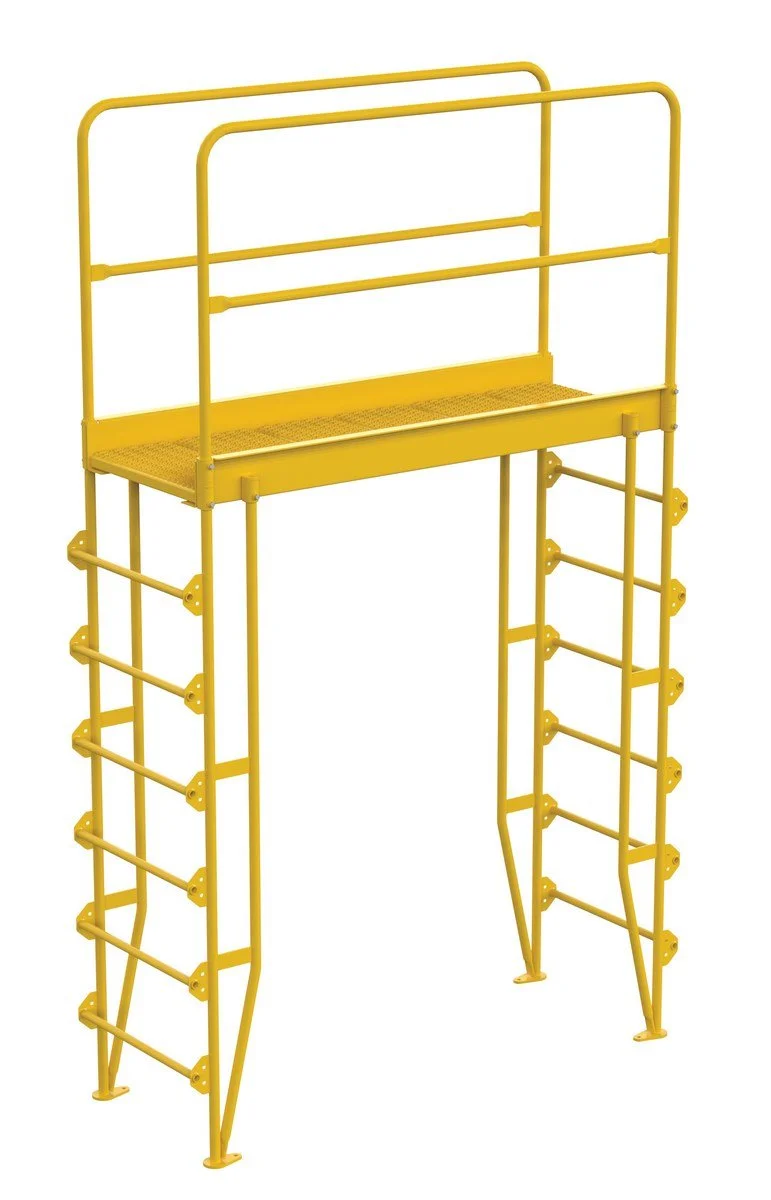

      DS-COLV-7-82-56
      7
      82-3/16"
      56"
      77"
      126-5/8"
      84"
      72"
      382
      $2,015


Features

Standard Features:

23-9/16" wide stairs and platforms
Serrated treads for extra grip
42/21" handrails with a 4" toeboard on platform
500 lb capacity
Ground legs include floor mounting pads
Steel construction
Powder coated
Knocked down for storage and shipping
Meets OSHA 29 CFR 1910.27 standards
4-5 Week Lead Time

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.

Options

No options available for this product.

Parts

Please call 1-888-802-3651 for replacement parts

Documentation / Videos

Manuals:

DS-COLV-3 MANUAL

DS-COLV-4 MANUAL

DS-COLV-5 MANUAL

DS-COLV-6 MANUAL

DS-COLV-7 MANUAL

Drawings:

DS-COLV-3-34-8

DS-COLV-3-34-20

DS-COLV-3-34-32

DS-COLV-3-34-44

DS-COLV-3-34-56

DS-COLV-4-46-8

DS-COLV-4-46-20

DS-COLV-4-46-32

DS-COLV-4-46-44

DS-COLV-4-46-56

DS-COLV-5-58-8

DS-COLV-5-58-20

DS-COLV-5-58-32

DS-COLV-5-58-44

DS-COLV-5-58-56

DS-COLV-6-70-8

DS-COLV-6-70-20

DS-COLV-6-70-32

DS-COLV-6-70-44

DS-COLV-6-70-56

DS-COLV-7-82-8

DS-COLV-7-82-20

DS-COLV-7-82-32

DS-COLV-7-82-44

DS-COLV-7-82-56

CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE

WHEN YOU PURCHASE A CROSSOVER LADDER OR PLATFORM FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE CROSSOVER LADDER OR PLATFORM.

Crossover Ladder 60 Degrees

$942.00

Steel Crossover Ladder

$2,056.00

Build the Perfect Crossover

$867.00

Alternating Step Cross-Over Ladders

$2,173.00

Mini Crossover

$0.00

Frequently Asked Questions About Crossover Ladders

A crossover ladder(or crossover platform) is a fixed or mobile structure that allows workers to safely pass over obstacles such as conveyor belts, assembly lines, pipes, or machinery.
It typically consists of:
- Two stairways (ascent and descent sides)
- A central platform or bridge
- Handrails and guardrails for fall protection
Crossover ladders are designed for continuous, safe access between areas that would otherwise require workers to walk around or step over obstructions — reducing travel time and trip hazards.
They’re used across a wide range of facilities, including:
- Manufacturing and production plants (over machinery or lines)
- Warehouses and logistics centers (crossing conveyors or storage lanes)
- Maintenance areas (access over piping, ducts, or equipment)
- Chemical and food processing (separating walkways from sensitive zones)
- Energy and utilities (crossing cables, pumps, or pipelines)
Essentially, anywhere workers need safe passage over obstacles that can’t be moved.
Are crossover ladders considered permanent or portable equipment?
They can be either, depending on the model:
- Permanent (fixed): Bolted to the floor for long-term installation over machinery or walkways.
- Mobile (modular): Mounted on locking casters and moved as needed, often made of lightweight aluminum.
Permanent models are more common in manufacturing environments, while modular or portable crossovers are used in maintenance and flexible layouts.
Because walking around machinery or conveyors often means:
- Longer travel routes (lost productivity)
- Crossing into unsafe zones (risk of injury)
- Stepping over hazards (risk of tripping or falling)
Crossover ladders provide a designated safe path that:
- Reduces travel time
- Improves safety compliance
- Keeps foot traffic away from moving parts or floor-level hazards
They’re a safety and efficiency upgrade rolled into one.
- Fixed models: Anchored to the floor with bolts or base plates.
- Mobile models: Use locking casters, floor brakes, or spring-loaded wheels that automatically lock under weight.
  Before each use, verify that all locking mechanisms engage properly.

PlatformsandLadders.com is committed to being your source for Crossover Ladders (aka Crossover Platforms). Our products are designed to fit a wide variety of industries and applications. Our Crossover Ladder product line includes Aluminum Crossover Ladders and Stainless Steel Crossovers as well as Space Saver models. We also offer "off the shelf" Custom Crossover Ladders that can be used in low height Crossover applications.

Aluminum Crossover Ladders are manufactured with ease of mobility in mind and are a top choice with customers needing to cross over conveyor belts and other hazardous areas. Our Crossover Ladders can be mounted at the legs for a more permanent solution or used with the non-marring rubber legs for easy mobility.

Stainless Steel Crossover Ladders are available as a special order custom product and can be used when wash down, corrosive or heavy duty applications are needed.

Custom Crossover Ladders can be ideal to cross over low trip hazards such as water lines and electrical conduit.

Crossover Ladders may be ideal for the following applications:

Traversing conveyor belts
Avoiding trip hazards
Access to controls and/or gauges
Elevated platform for supervisors
Crossing over pipelines
Improved time and motion

All of our Crossover Ladders are OSHA compliant.
