Alternating Step Cross-Over Ladders
Alternating Step Cross-Over Ladders
Mount where you need permanent access at crossover points. Alternating step design for shorter overall span than other units.
Wherever you have space issues this crossover has a shorter overall footprint for a more compact fit. If you do not see the size you need, please call and we will make it to your specifications.
Pricing
| Alernating Step Steel Crossover | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model # | Steps | Clearance Height | Clearance Span | Overall Length | Overall Height | Step Angle Degree | Weight [Lbs] | Price |

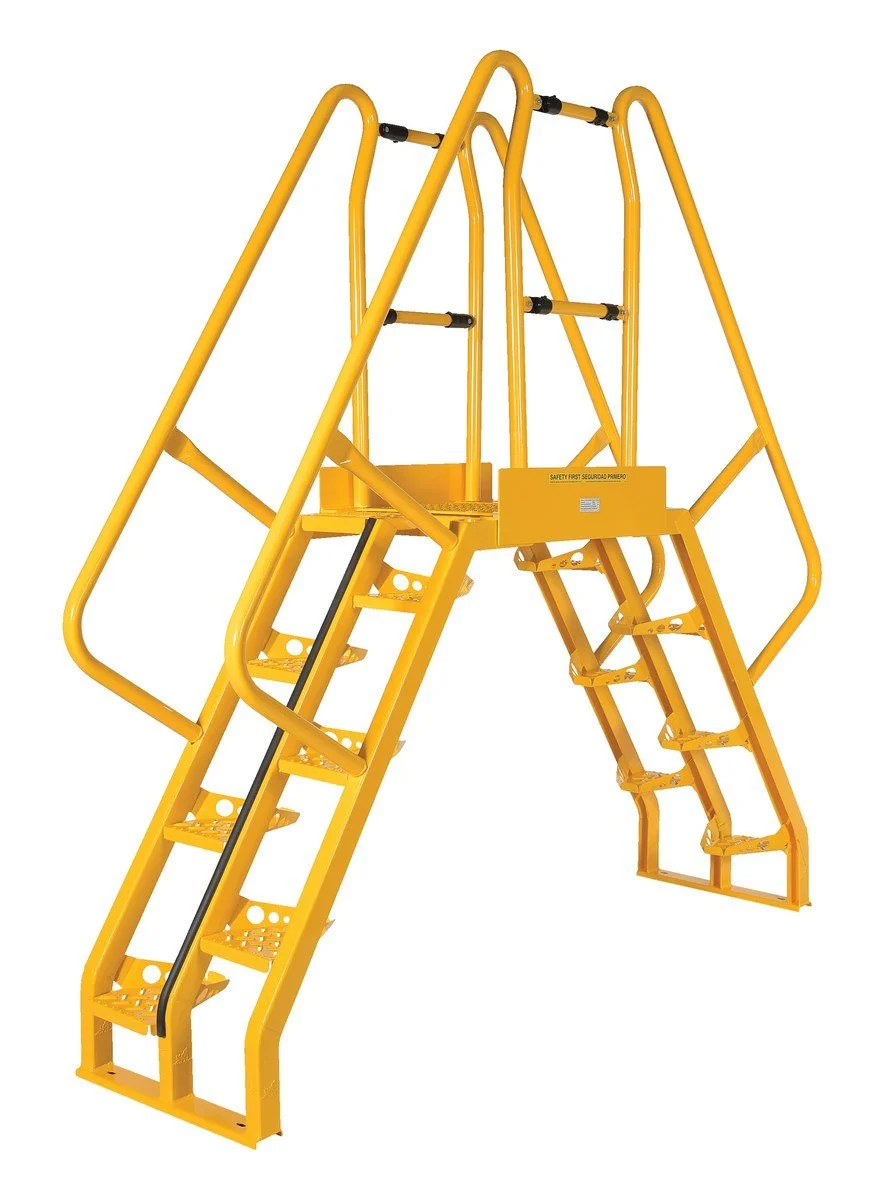

| DS-COLA-2-56-20 | 4 | 27" | 21-1/4" | 78-1/8" | 72" | 56 | 324 | $2,121 |

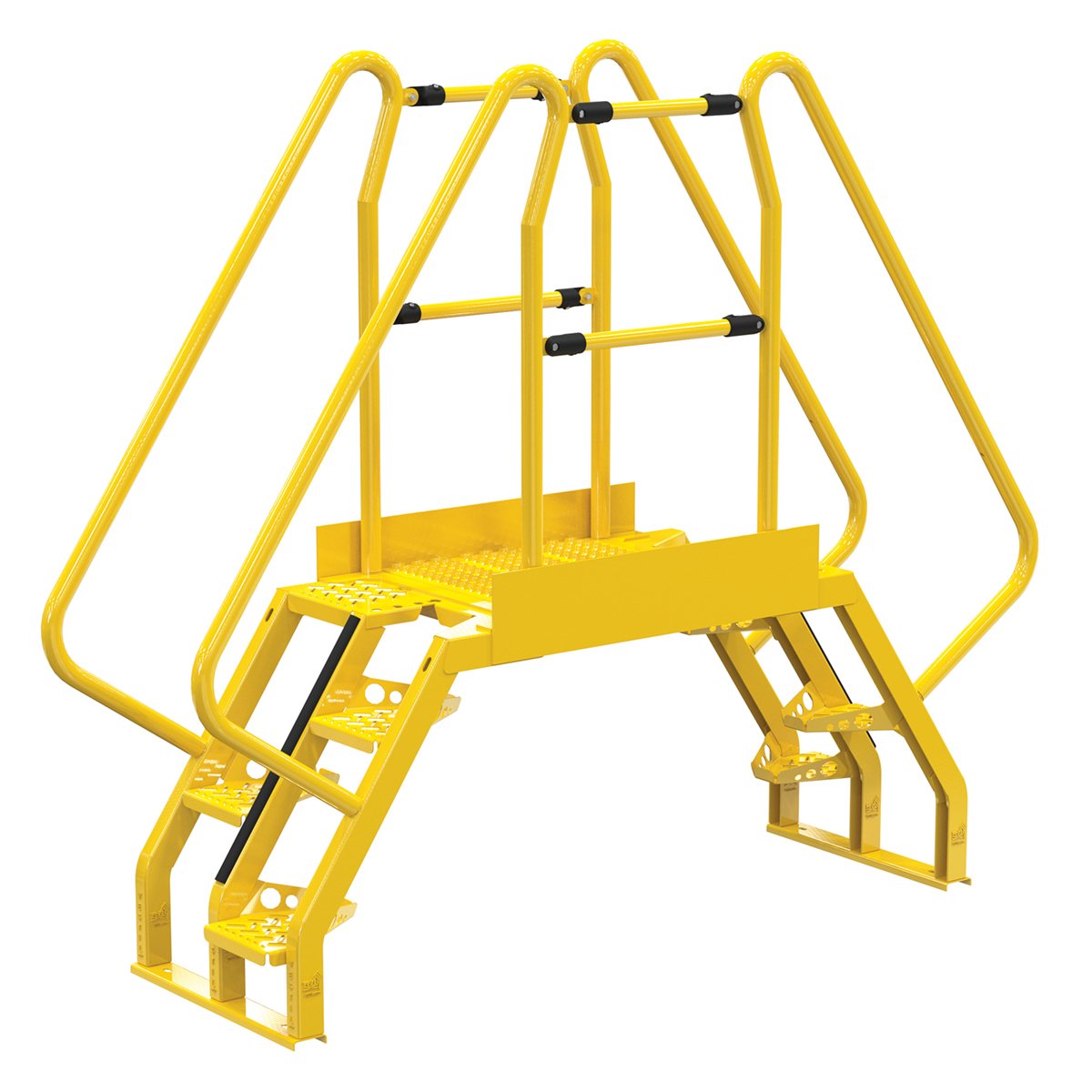

| DS-COLA-2-56-32 | 4 | 27" | 29-1/4" | 85-1/4" | 72" | 56 | 357 | $2,183 |

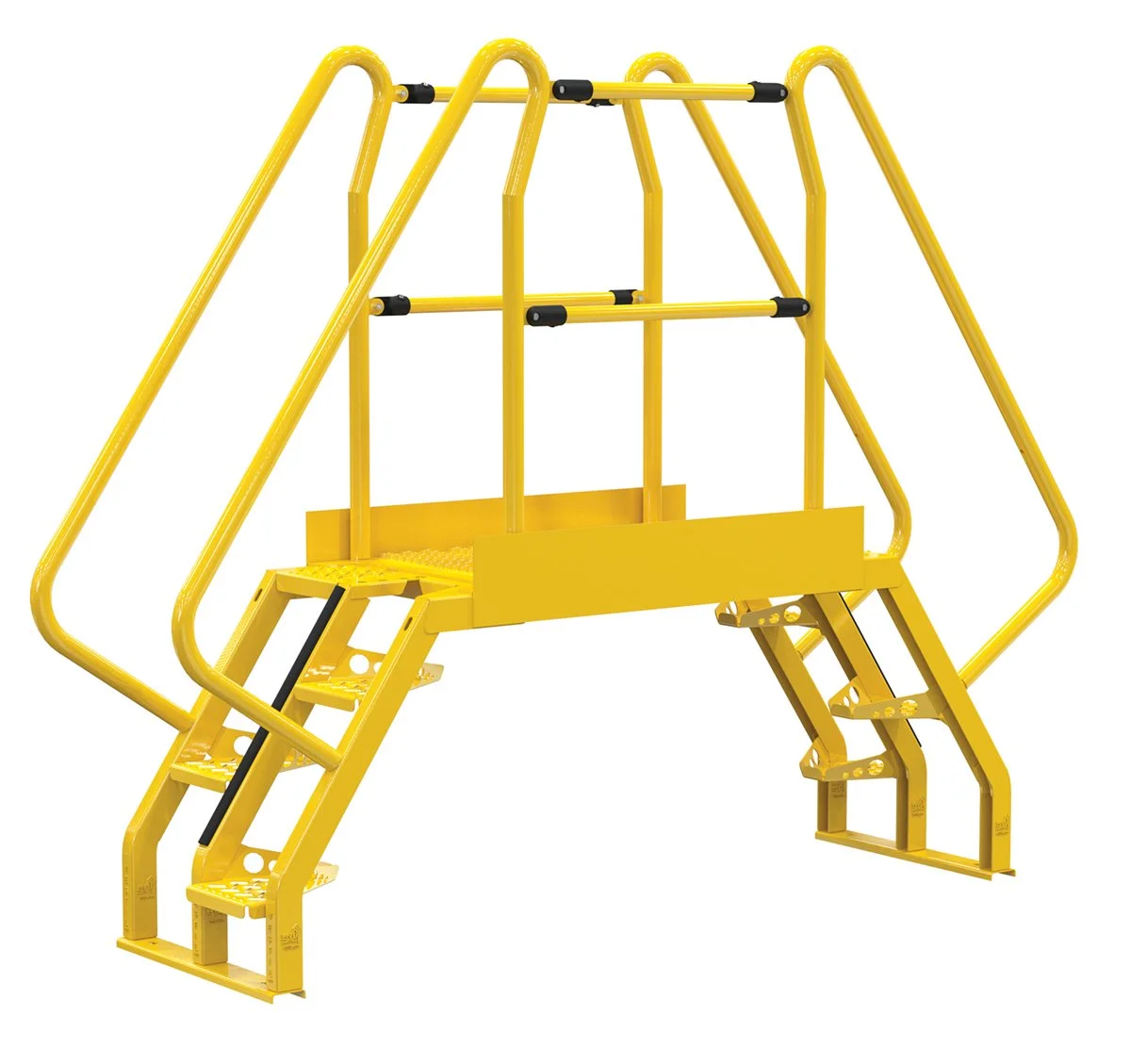

| DS-COLA-2-56-44 | 4 | 27" | 36-1/4" | 92-1/8" | 72" | 56 | 390 | $2,258 |

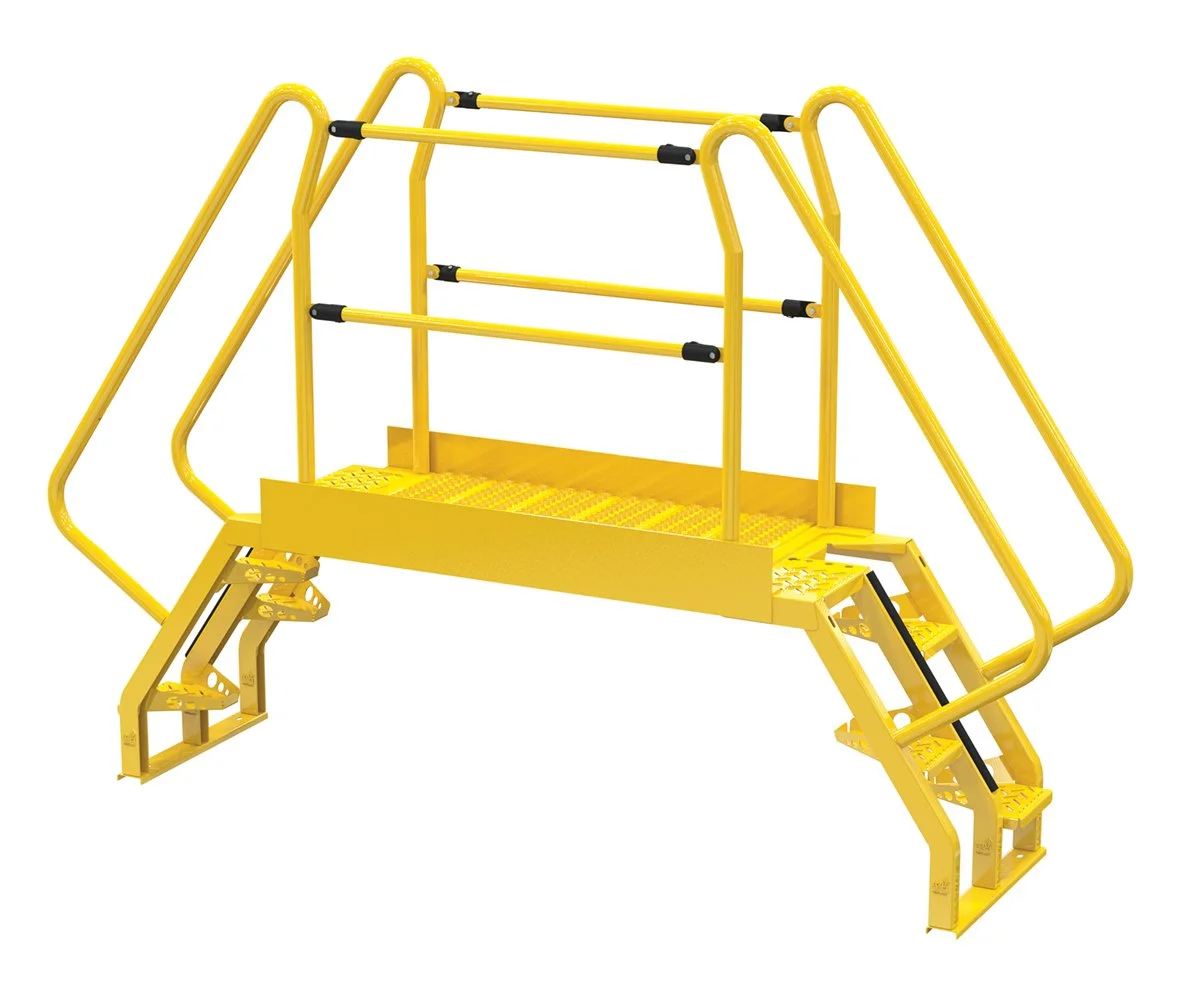

| DS-COLA-2-56-56 | 4 | 27" | 50-1/4" | 106-1/8" | 72" | 56 | 423 | $2,324 |

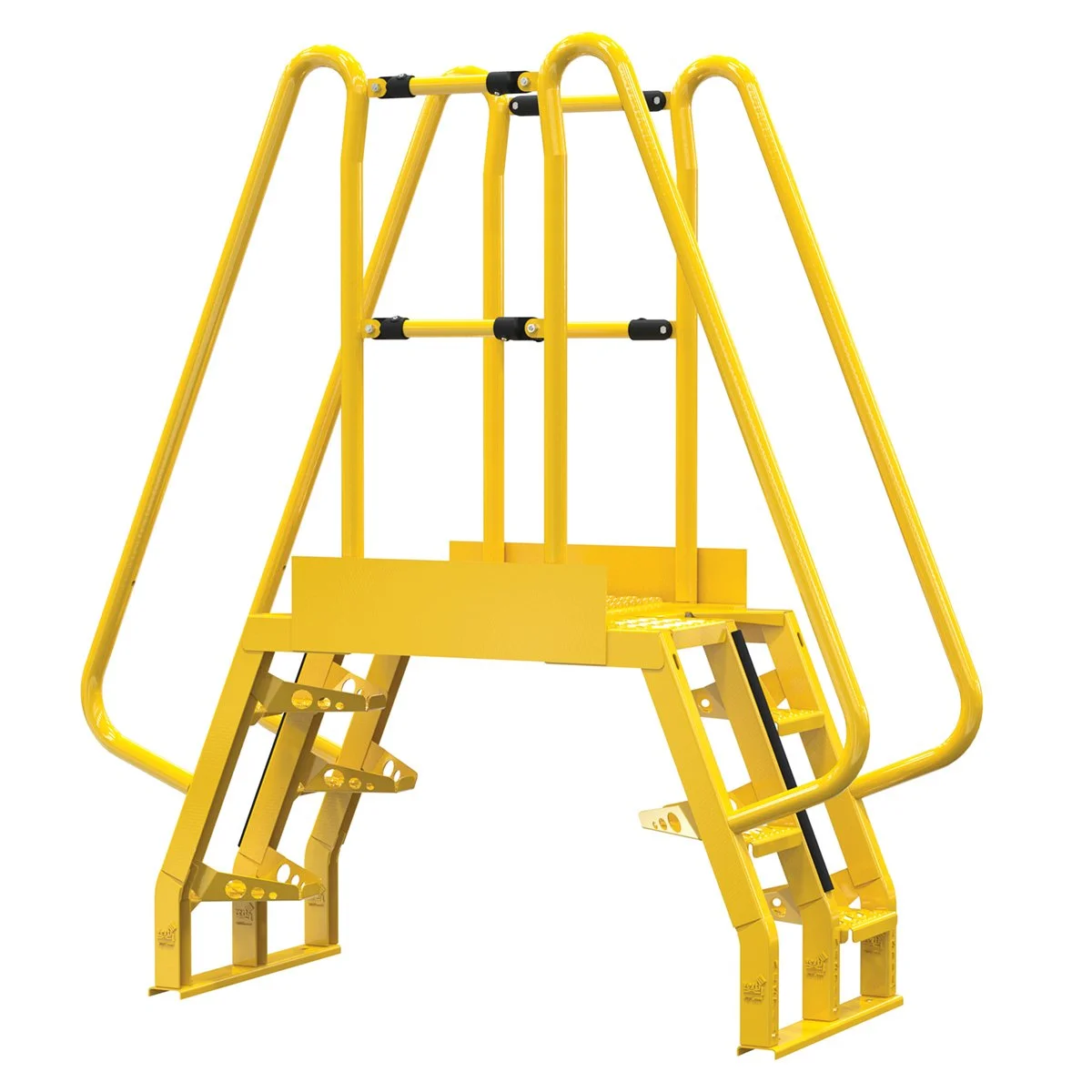

| DS-COLA-2-68-20 | 4 | 27" | 20" | 65" | 72-1/2" | 68 | 296 | $2,121 |

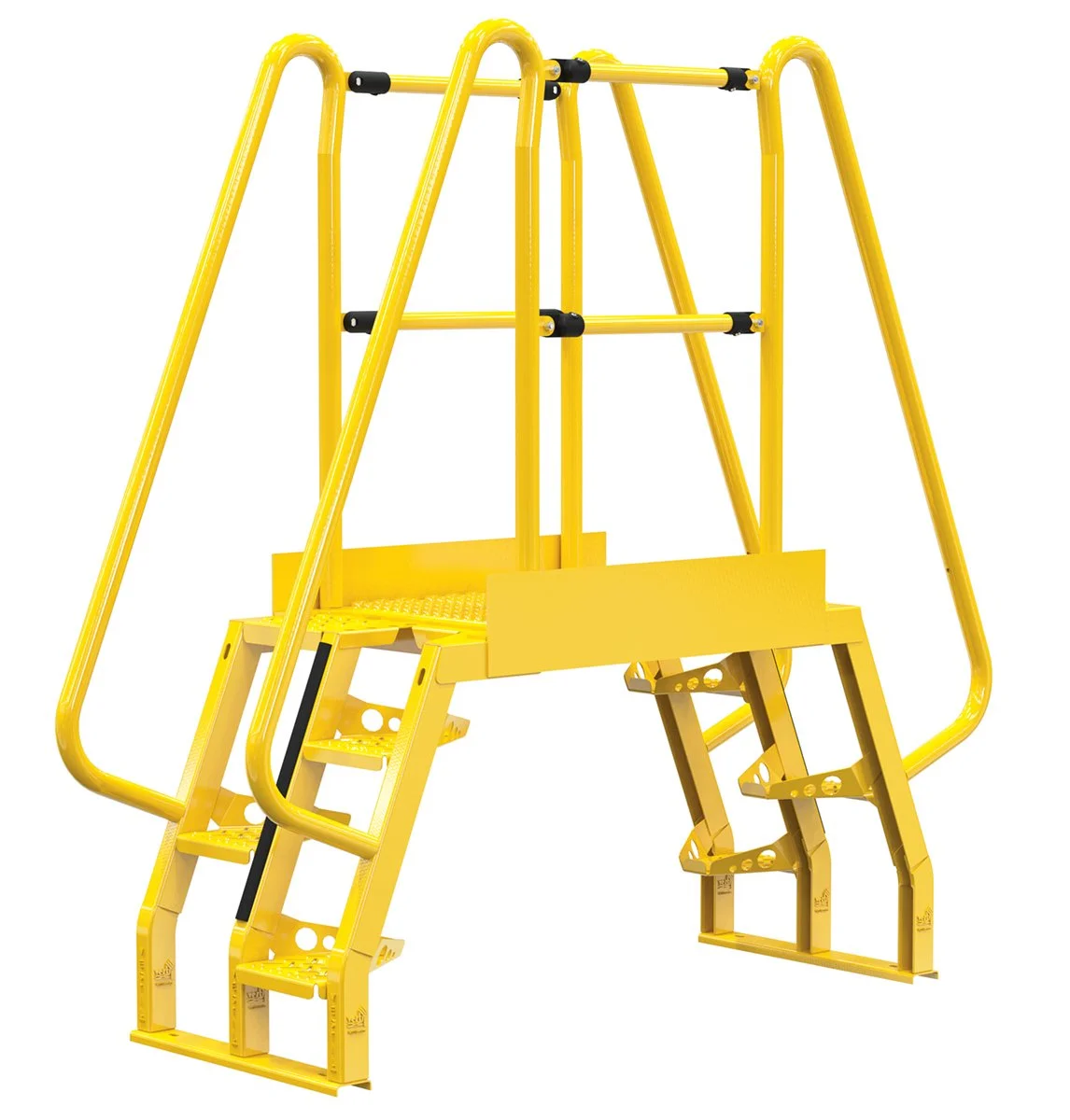

| DS-COLA-2-68-32 | 4 | 27" | 27" | 72" | 72-1/2" | 68 | 329 | $2,183 |

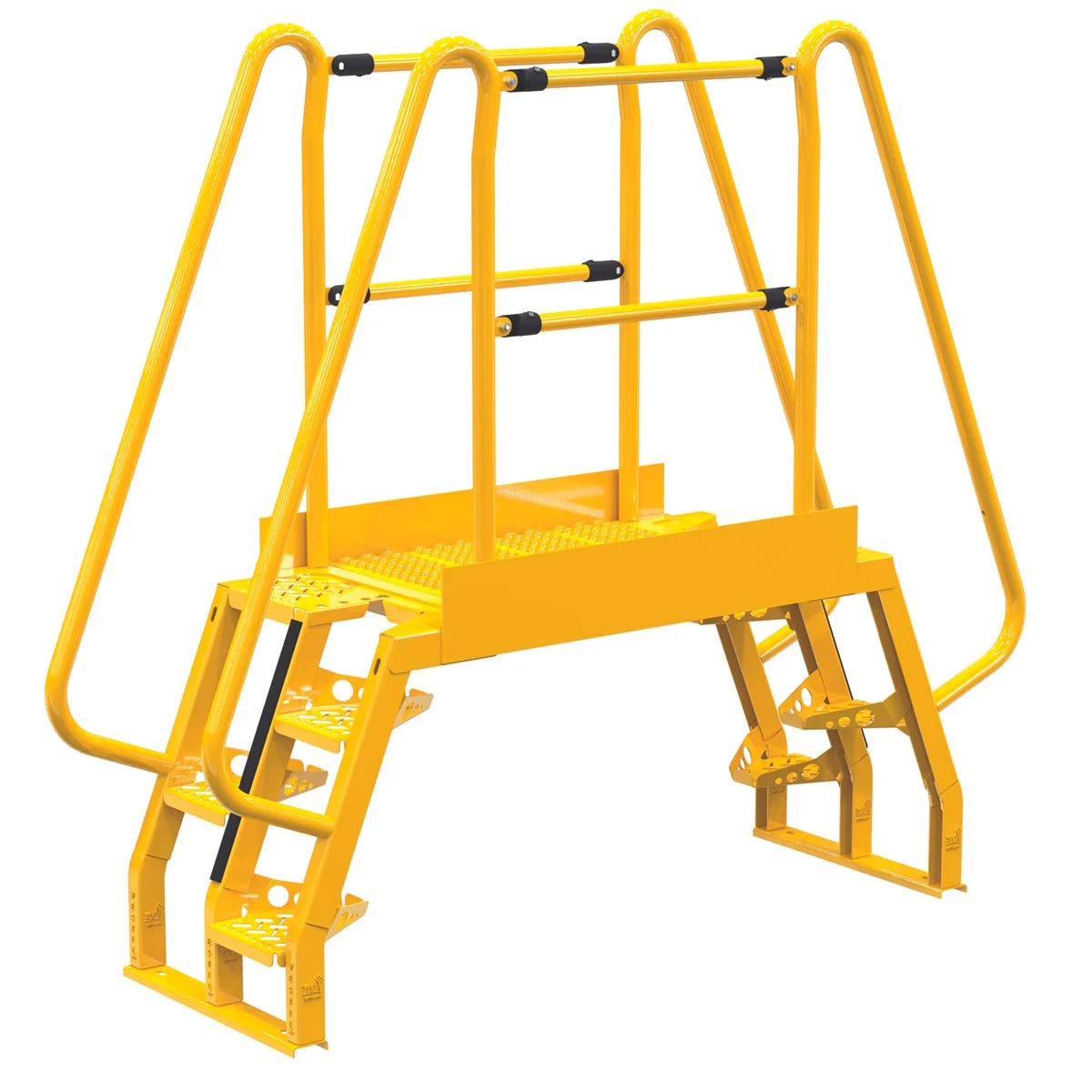

| DS-COLA-2-68-44 | 4 | 27" | 34" | 79" | 72-1/2" | 68 | 362 | $2,258 |
| DS-COLA-2-68-56 | 4 | 27" | 48" | 93" | 72-1/2" | 68 | 396 | $2,324 |

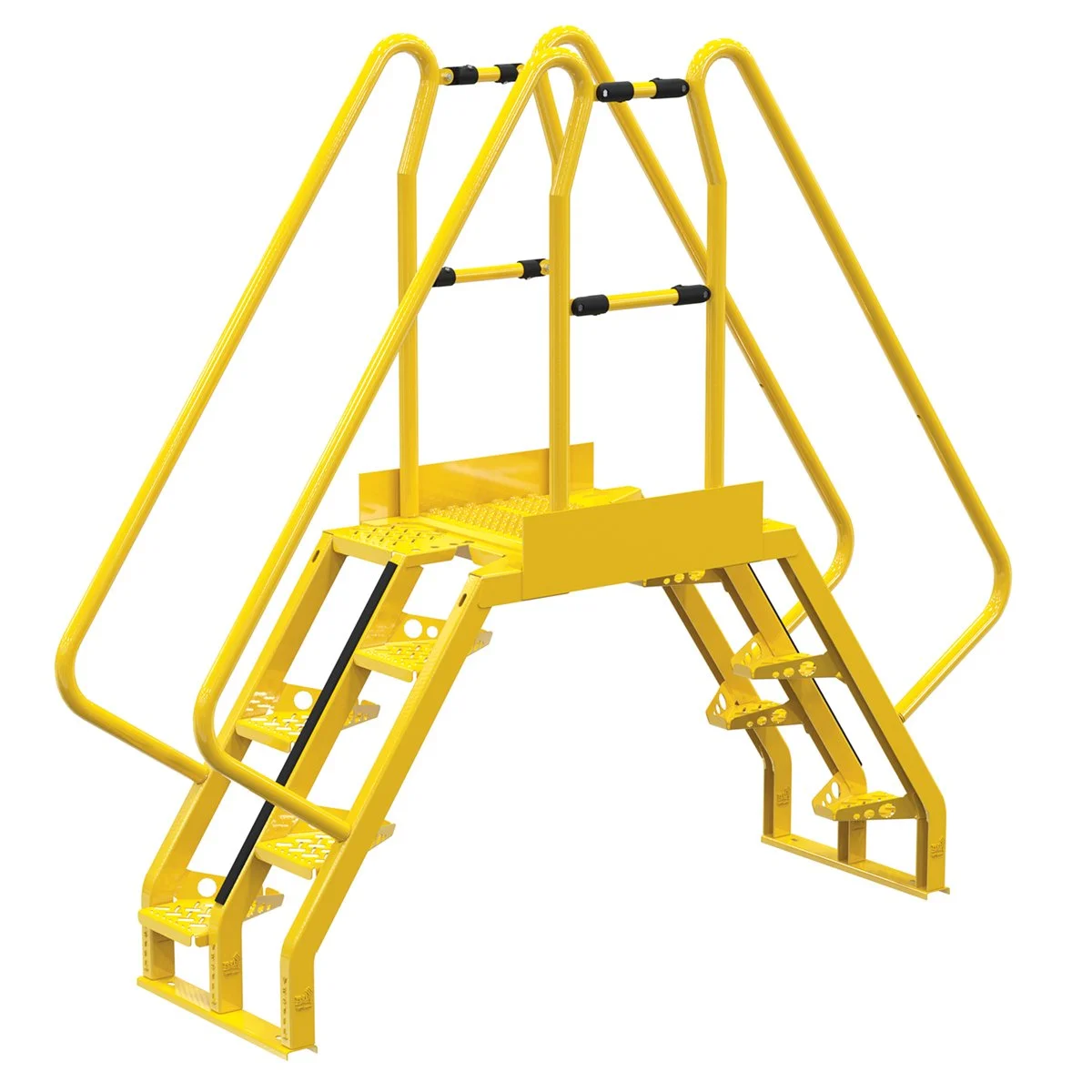

| DS-COLA-3-56-20 | 5 | 35" | 22-1/2" | 88" | 80" | 56 | 324 | $2,121 |
| DS-COLA-3-56-32 | 5 | 35" | 29-1/2" | 95" | 80" | 56 | 357 | $2,183 |
| DS-COLA-3-56-44 | 5 | 35" | 36-1/2" | 102" | 80" | 56 | 390 | $2,258 |
| DS-COLA-3-56-56 | 5 | 35" | 50-1/2" | 116" | 80" | 56 | 423 | $2,324 |

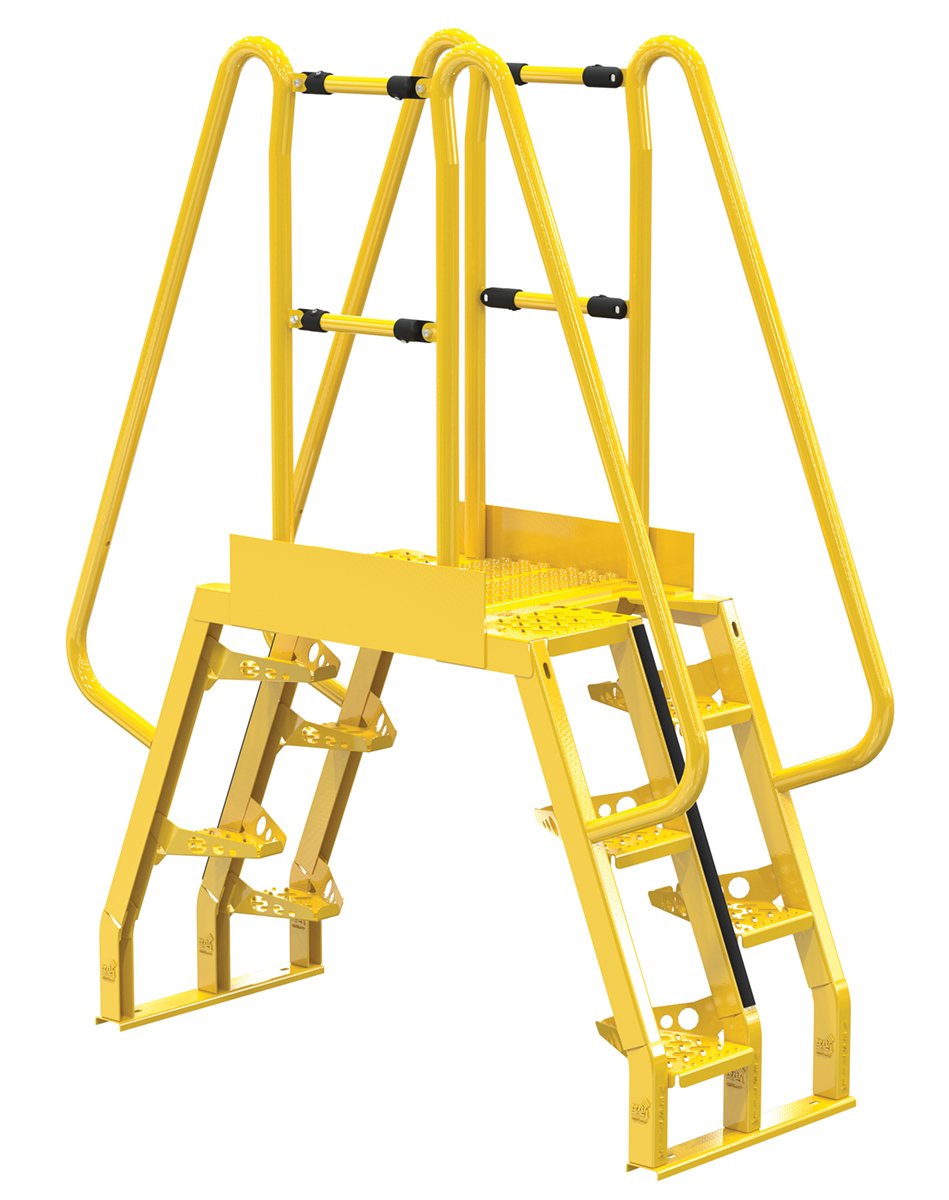

| DS-COLA-3-68-20 | 5 | 35" | 20" | 116" | 80-1/2" | 68 | 296 | $2,121 |

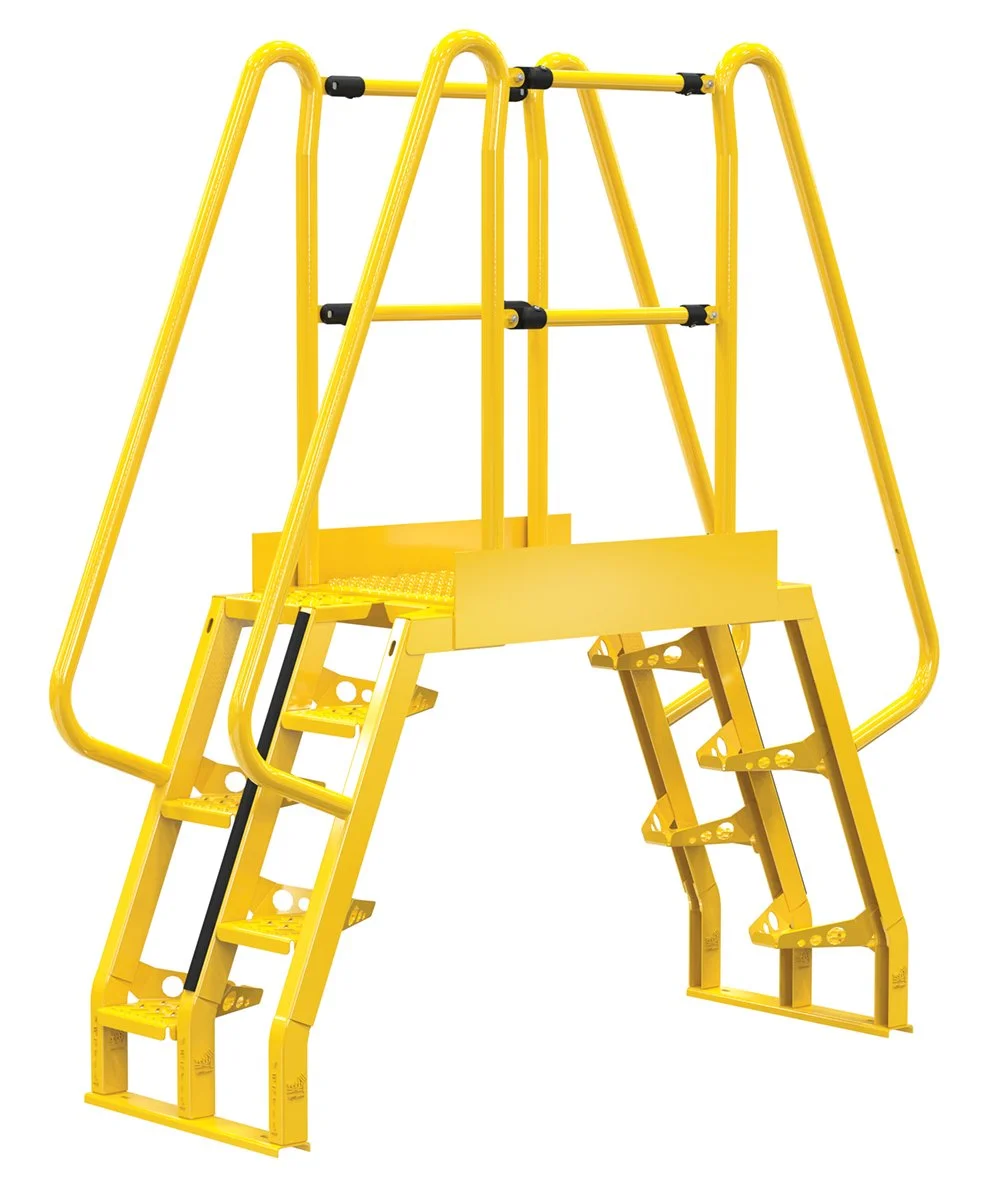

| DS-COLA-3-68-32 | 5 | 35" | 27" | 72" | 80-1/2" | 68 | 329 | $2,183 |

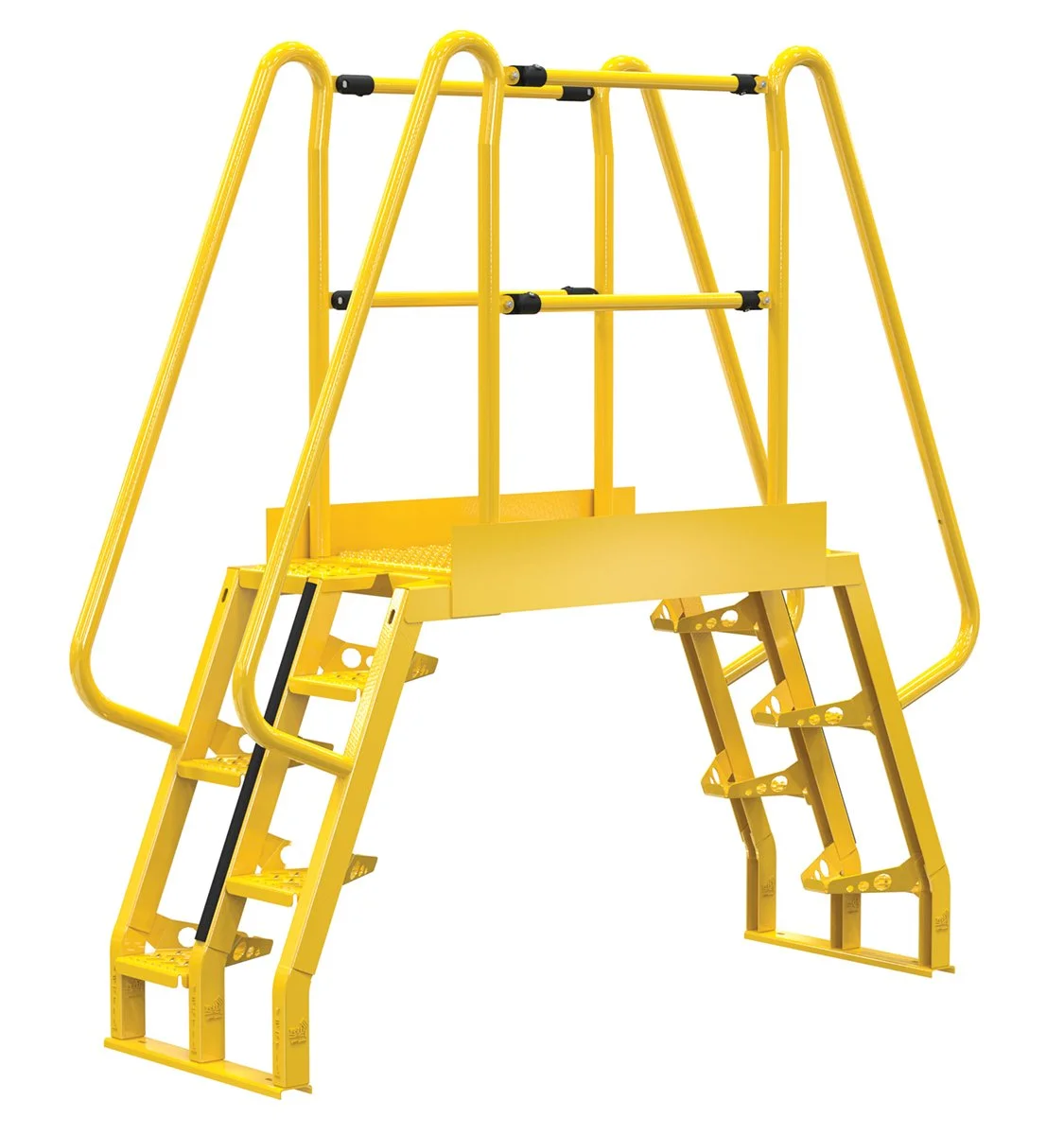

| DS-COLA-3-68-44 | 5 | 35" | 34" | 79" | 80-1/2" | 68 | 362 | $2,258 |

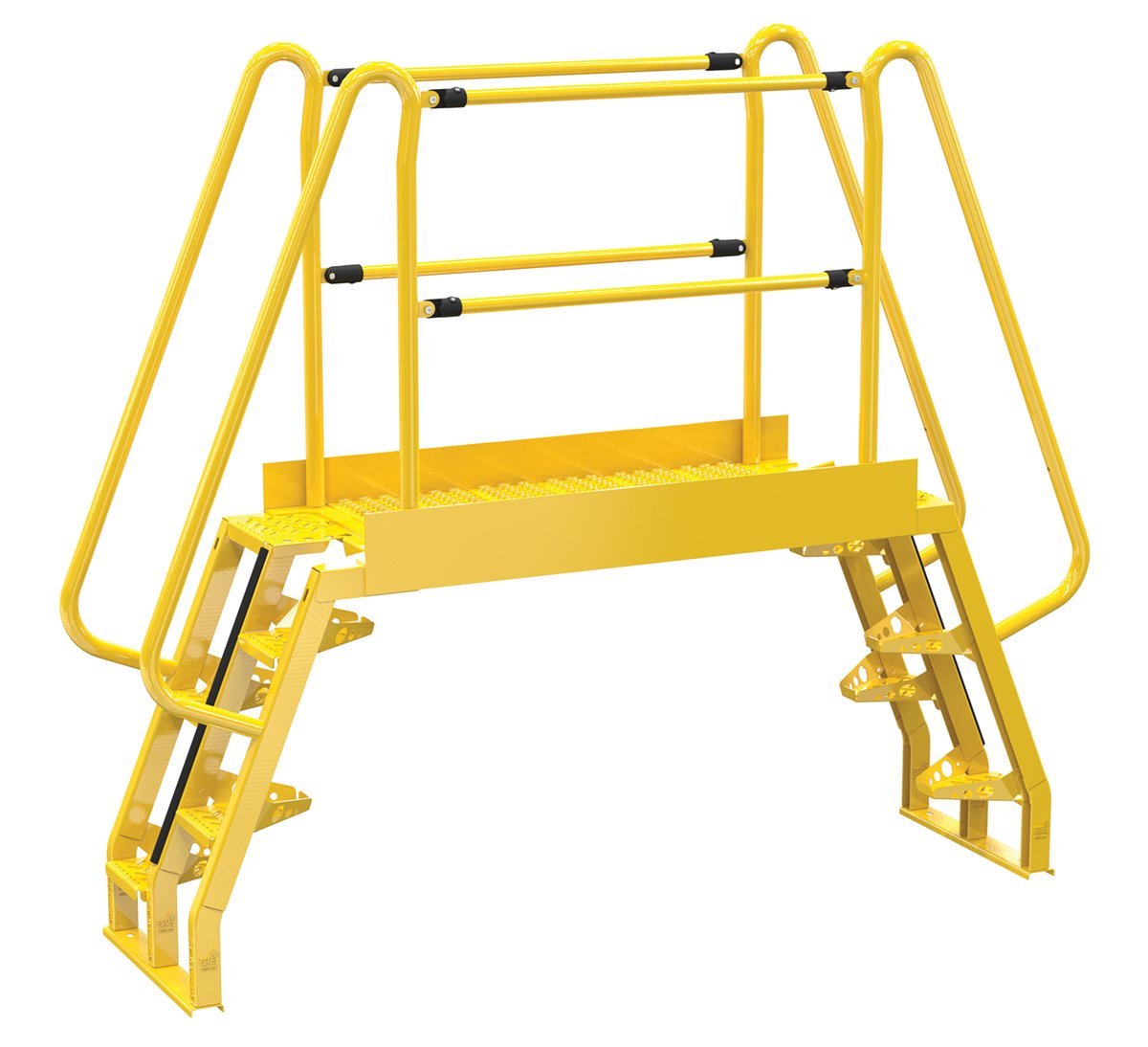

| DS-COLA-3-68-56 | 5 | 35" | 48" | 93" | 80-1/2" | 68 | 396 | $2,324 |
| DS-COLA-4-56-20 | 7 | 45" | 21-3/4" | 96-1/4" | 90-1/2" | 56 | 324 | $2,361 |

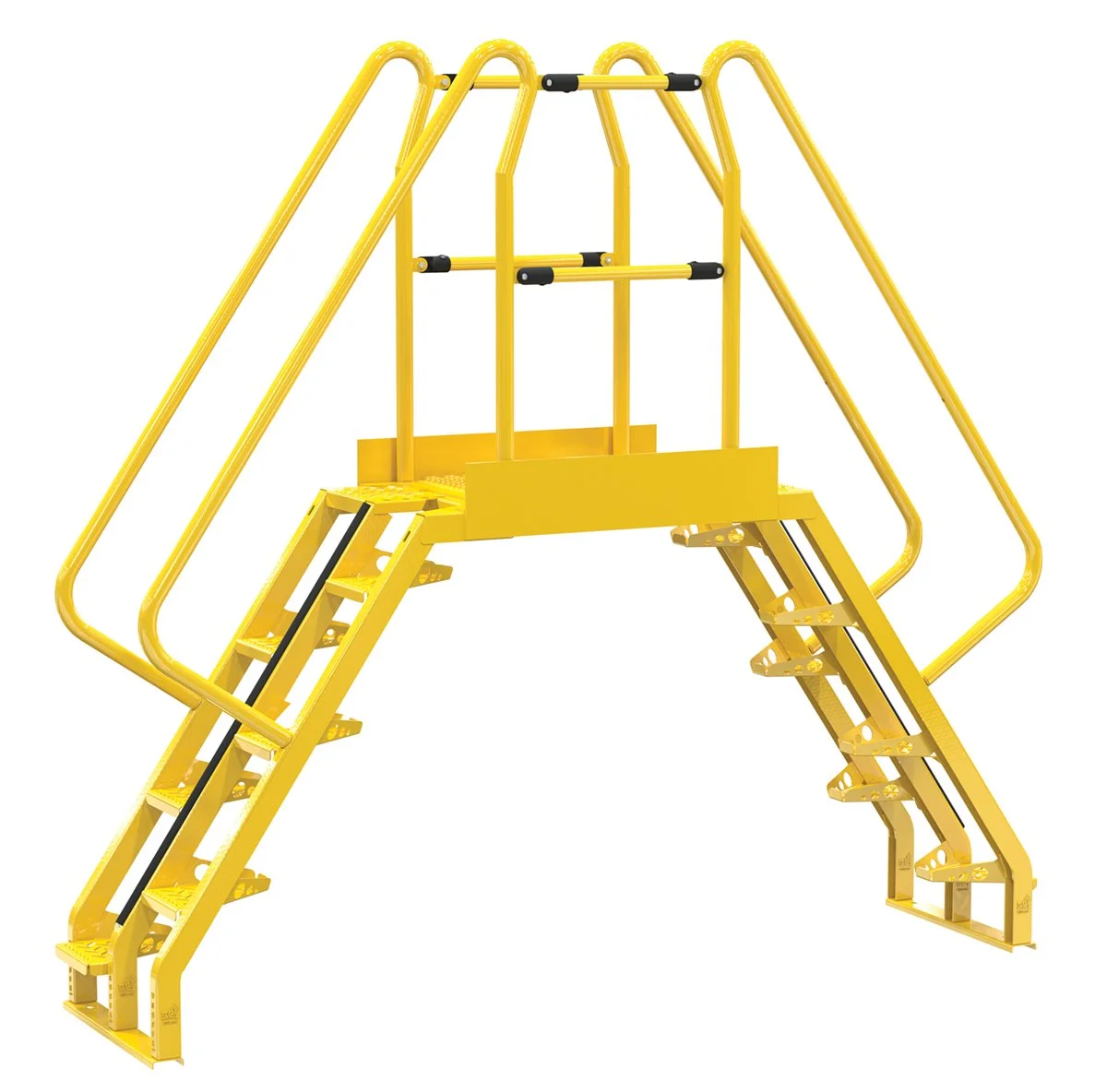

| DS-COLA-4-56-32 | 7 | 45" | 28-3/4" | 95" | 96-1/4" | 56 | 357 | $2,391 |

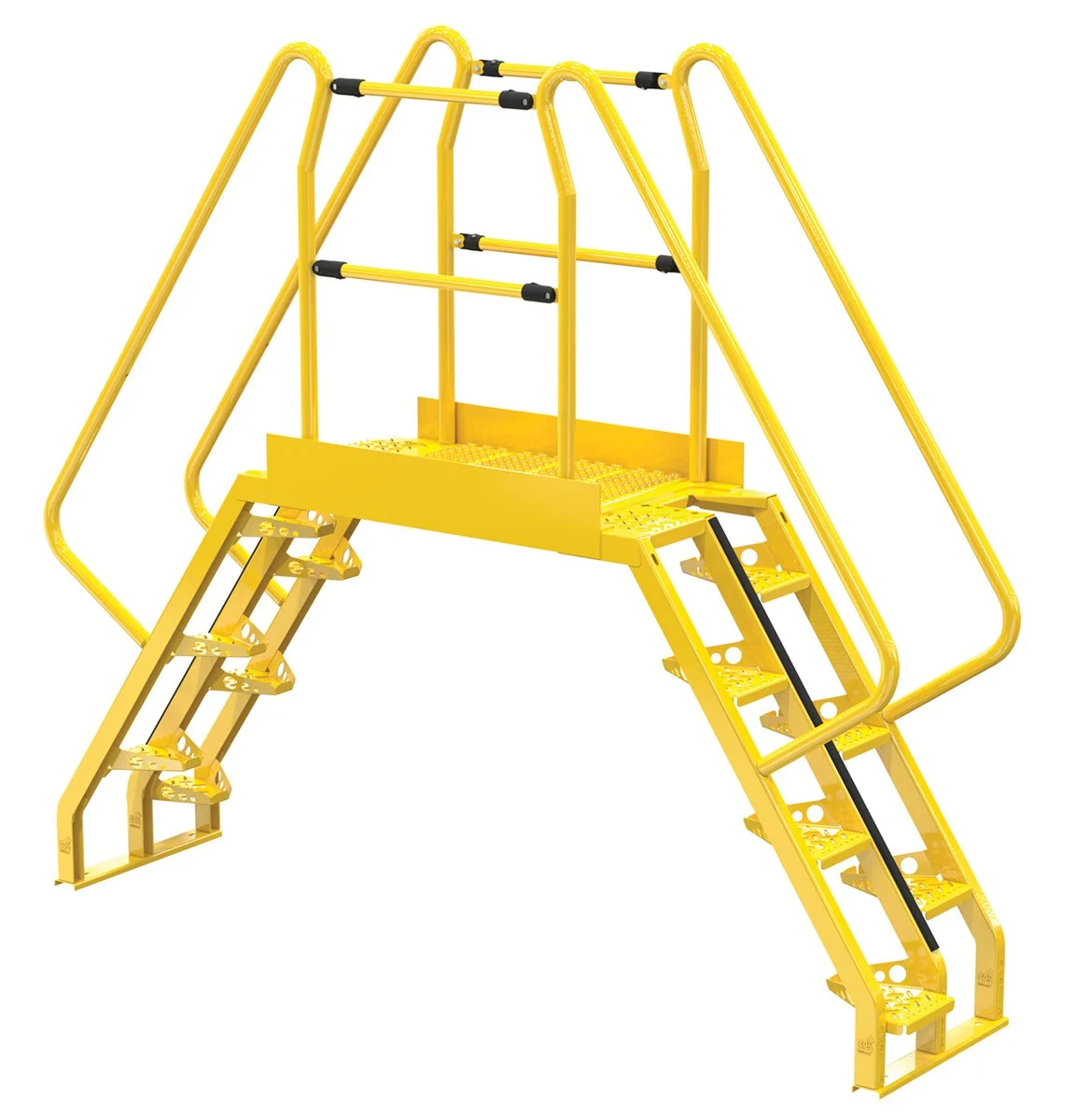

| DS-COLA-4-56-44 | 7 | 45" | 35-3/4" | 103-1/4" | 90-1/2" | 56 | 390 | $2,740 |

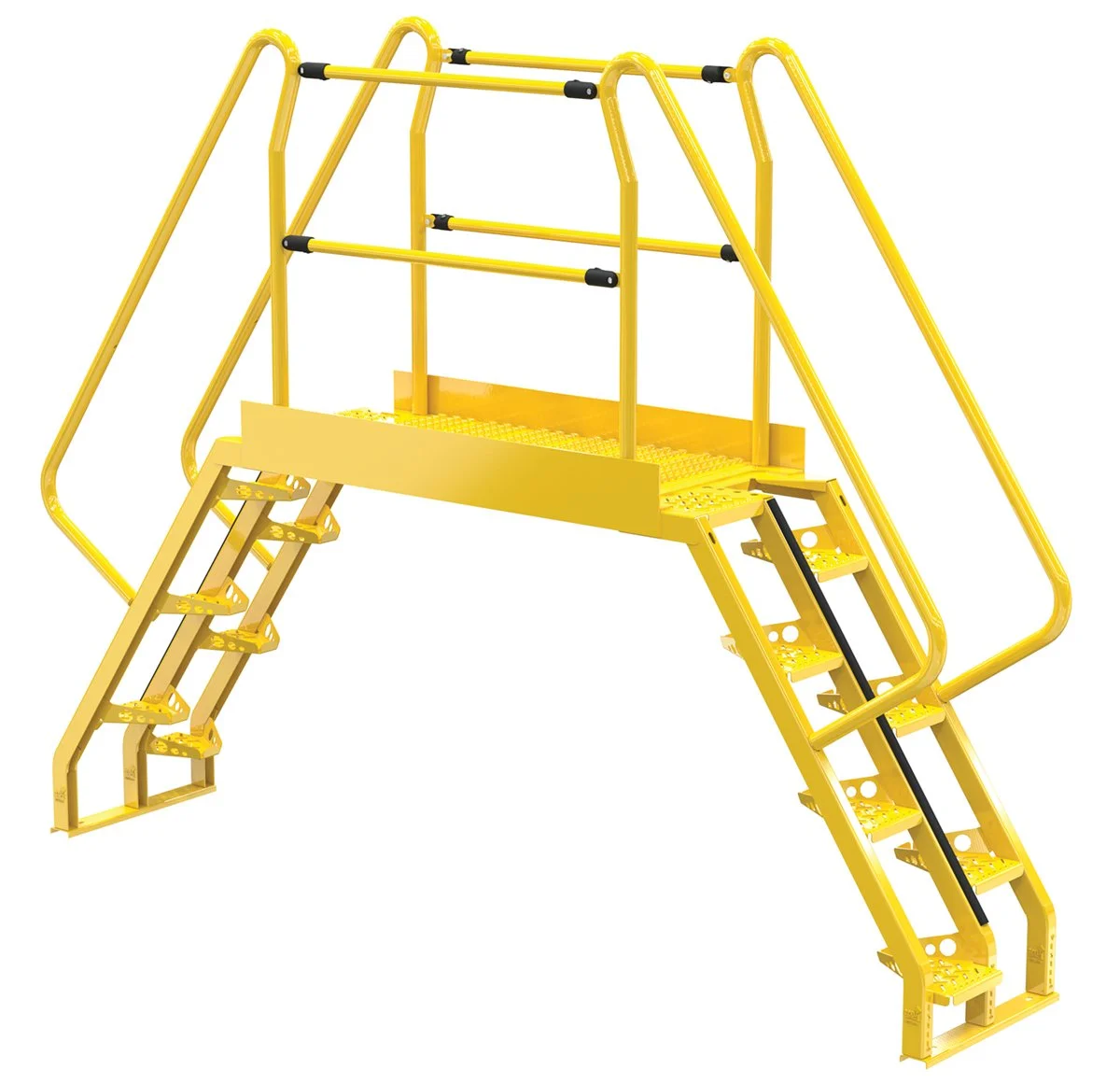

| DS-COLA-4-56-56 | 7 | 45" | 49-3/4" | 117-1/4" | 90-1/2" | 56 | 423 | $2,770 |

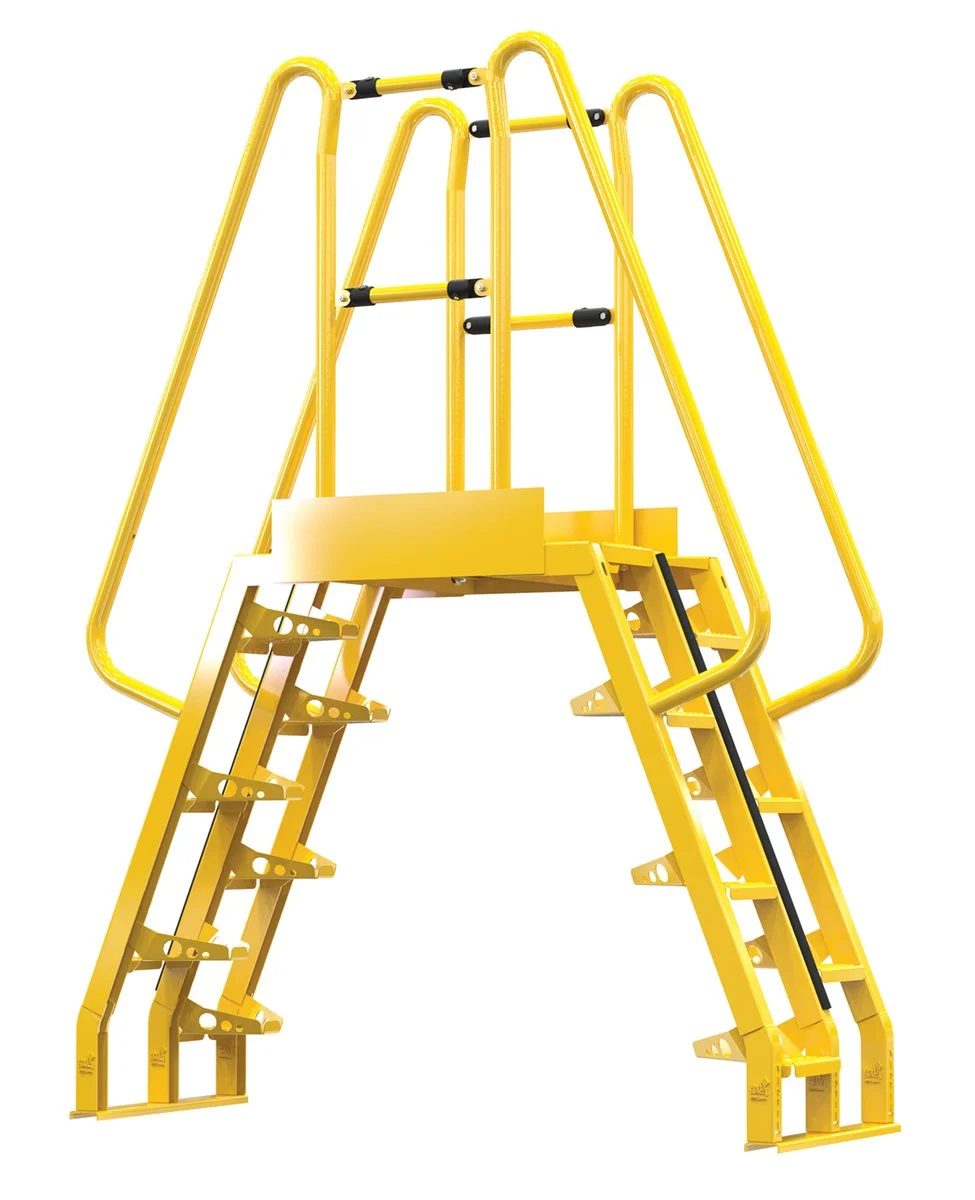

| DS-COLA-4-68-20 | 7 | 45" | 19-1/2" | 68-1/2" | 91" | 68 | 296 | $3,156 |

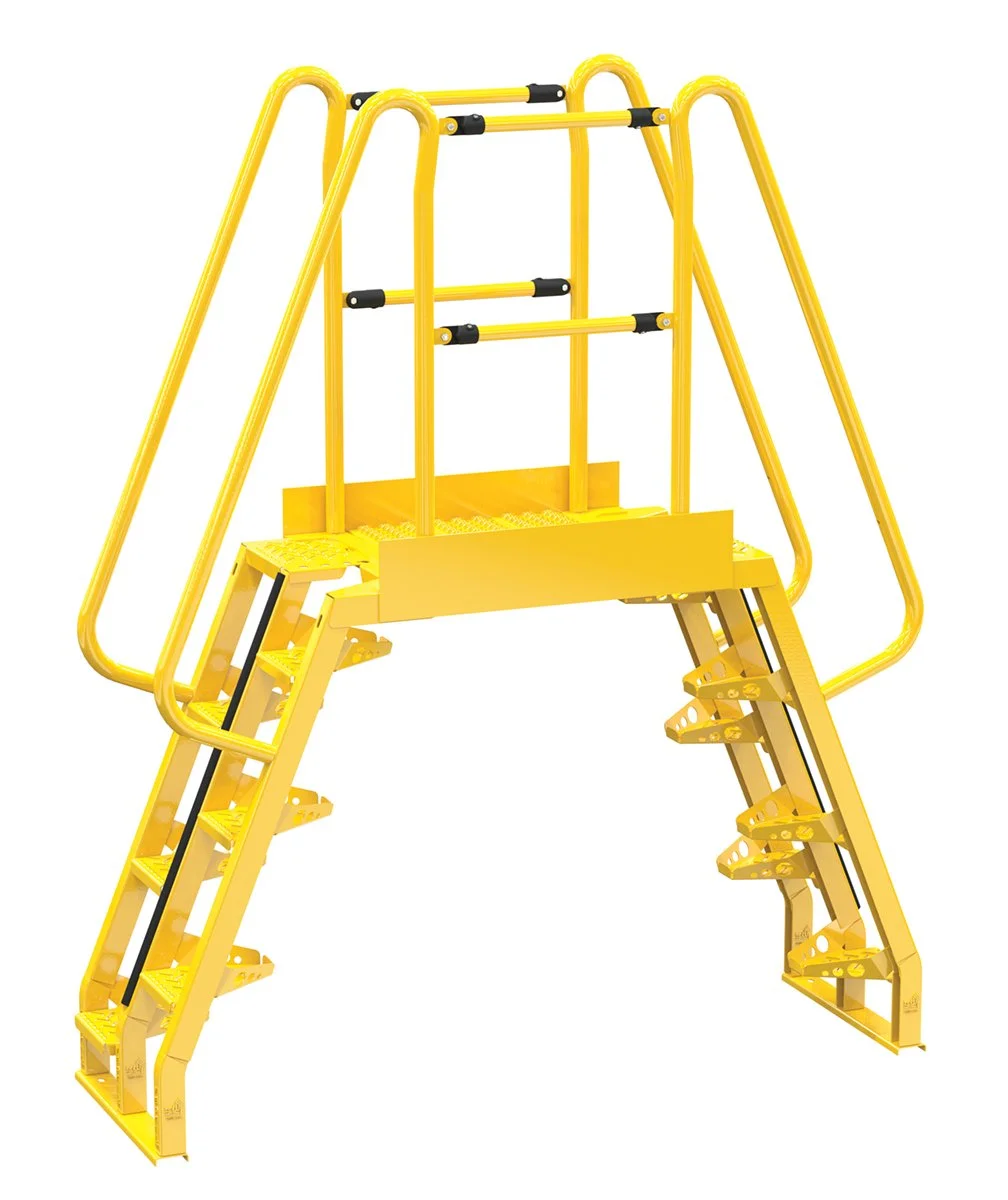

| DS-COLA-4-68-32 | 7 | 45" | 26-1/2" | 75-1/2" | 91" | 68 | 329 | $3,185 |

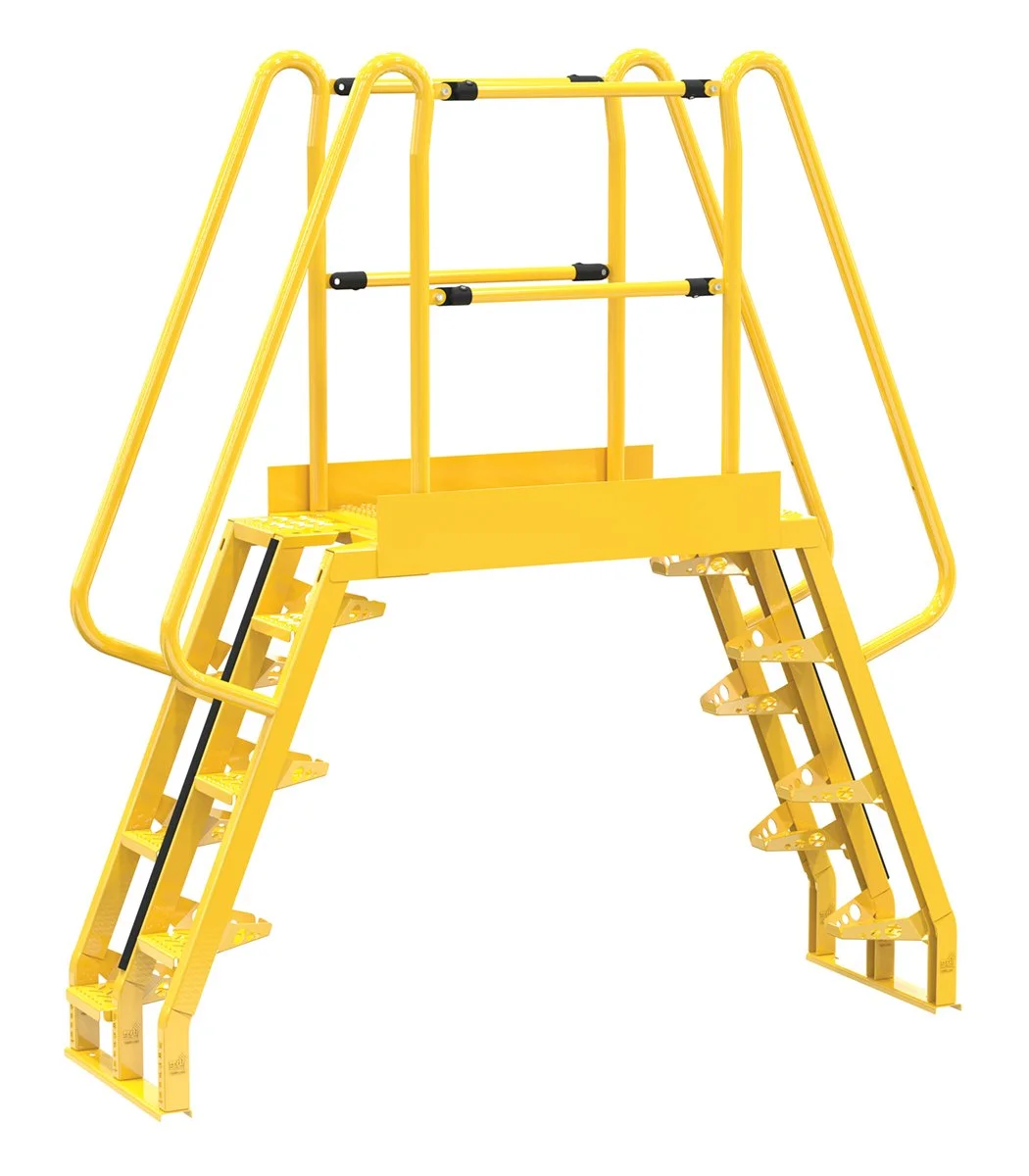

| DS-COLA-4-68-44 | 7 | 45" | 33-1/2" | 82-1/2" | 91" | 68 | 362 | $3,565 |

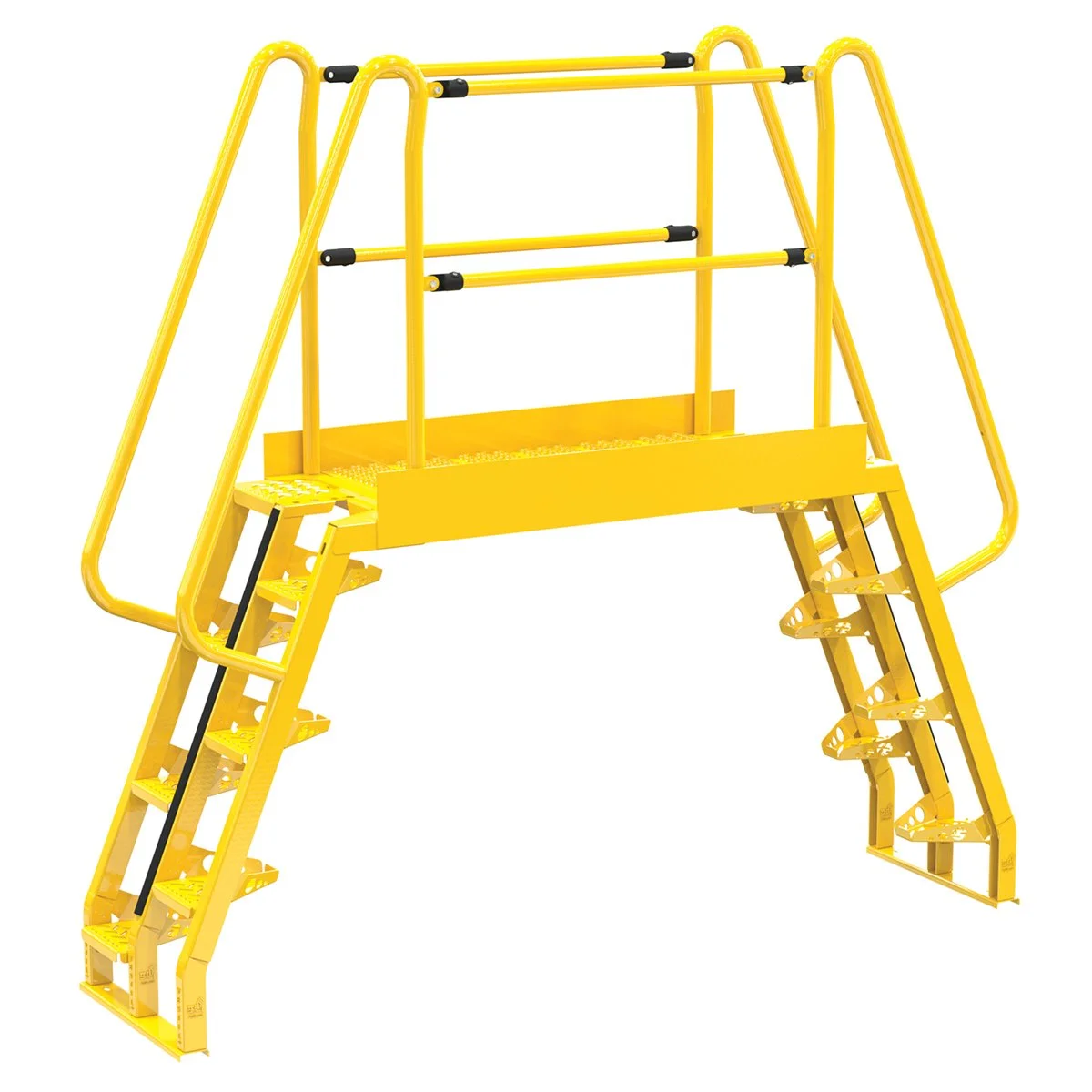

| DS-COLA-4-68-56 | 7 | 45" | 47-1/2" | 96-1/2" | 91" | 68 | 396 | $3,595 |

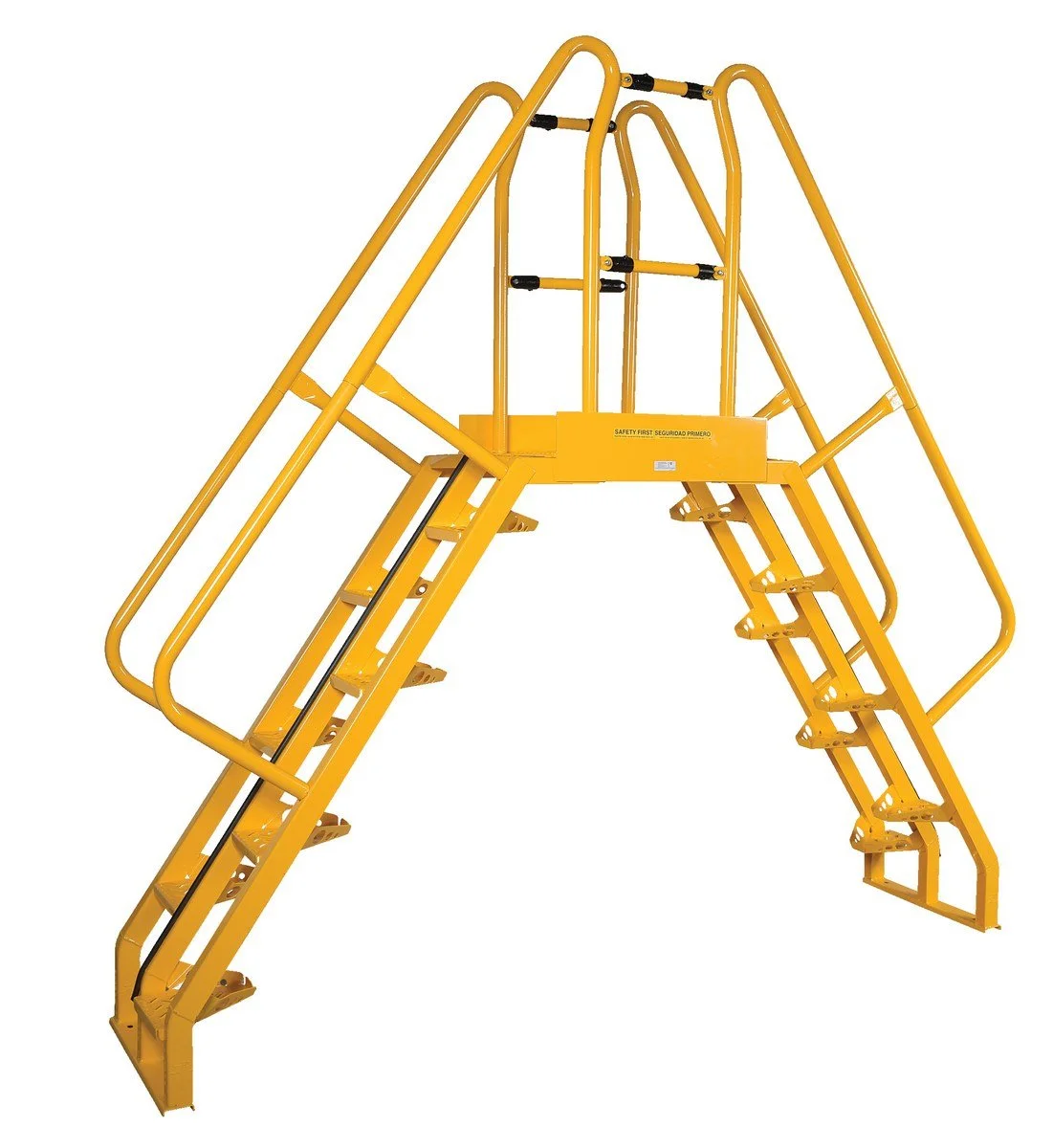

| DS-COLA-5-56-20 | 8 | 57-1/2" | 22-1/2" | 104-1/2" | 102-1/2" | 56 | 358 | $2,740 |

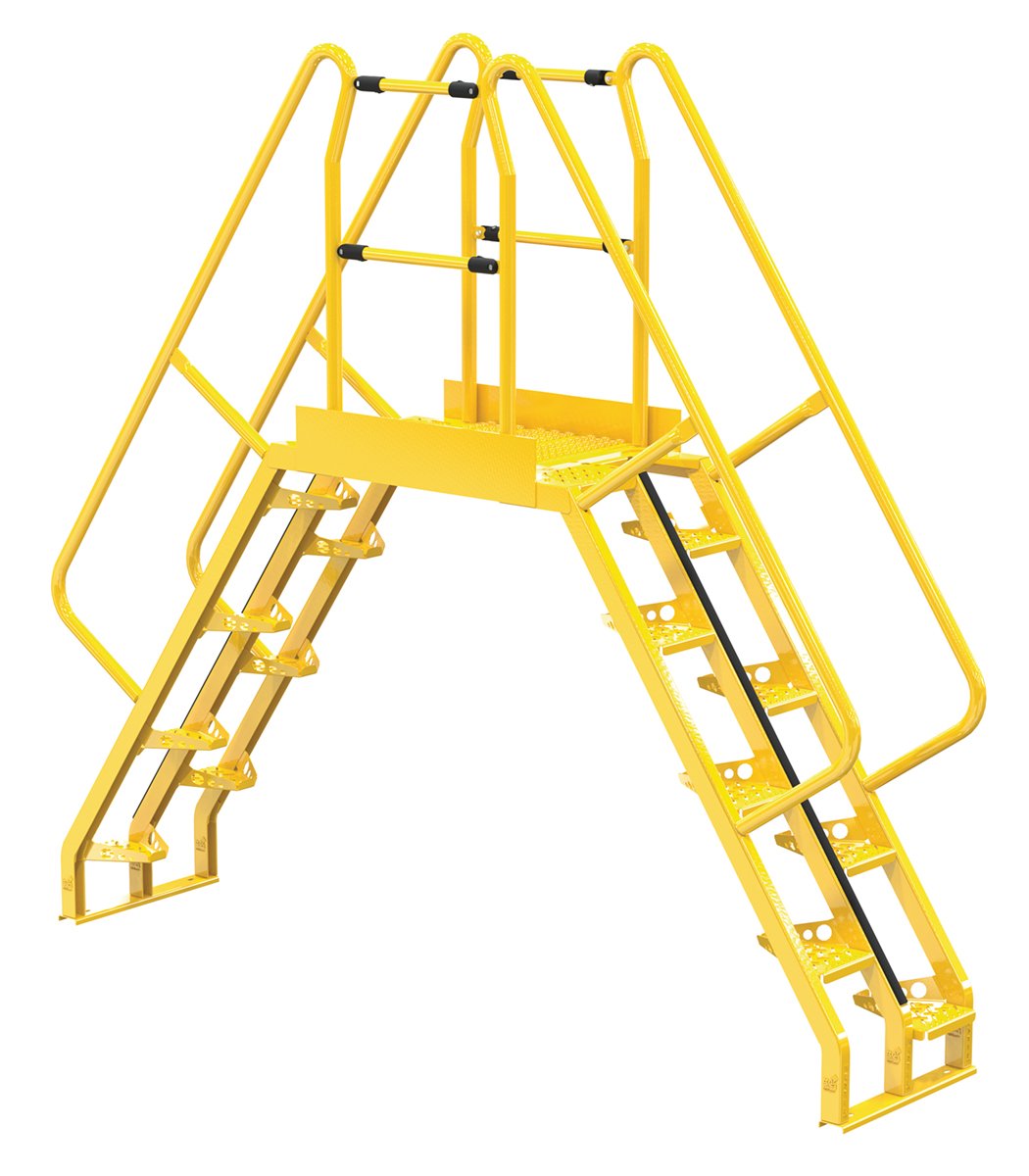

| DS-COLA-5-56-32 | 8 | 57-1/2" | 29-1/2" | 111-1/2" | 102-1/2" | 56 | 390 | $2,760 |

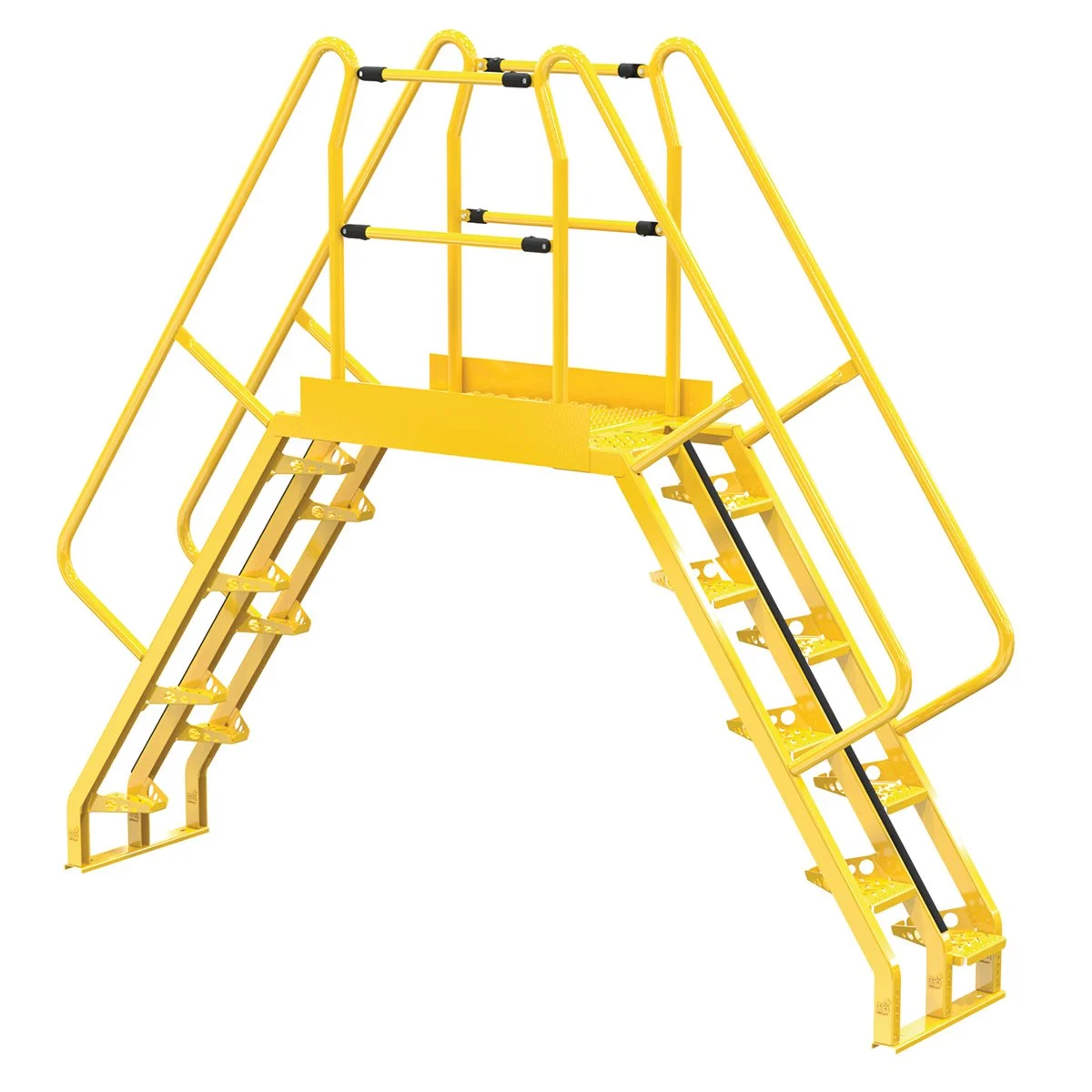

| DS-COLA-5-56-44 | 8 | 57-1/2" | 36-1/2" | 118-1/2" | 102-1/2" | 56 | 424 | $3,155 |

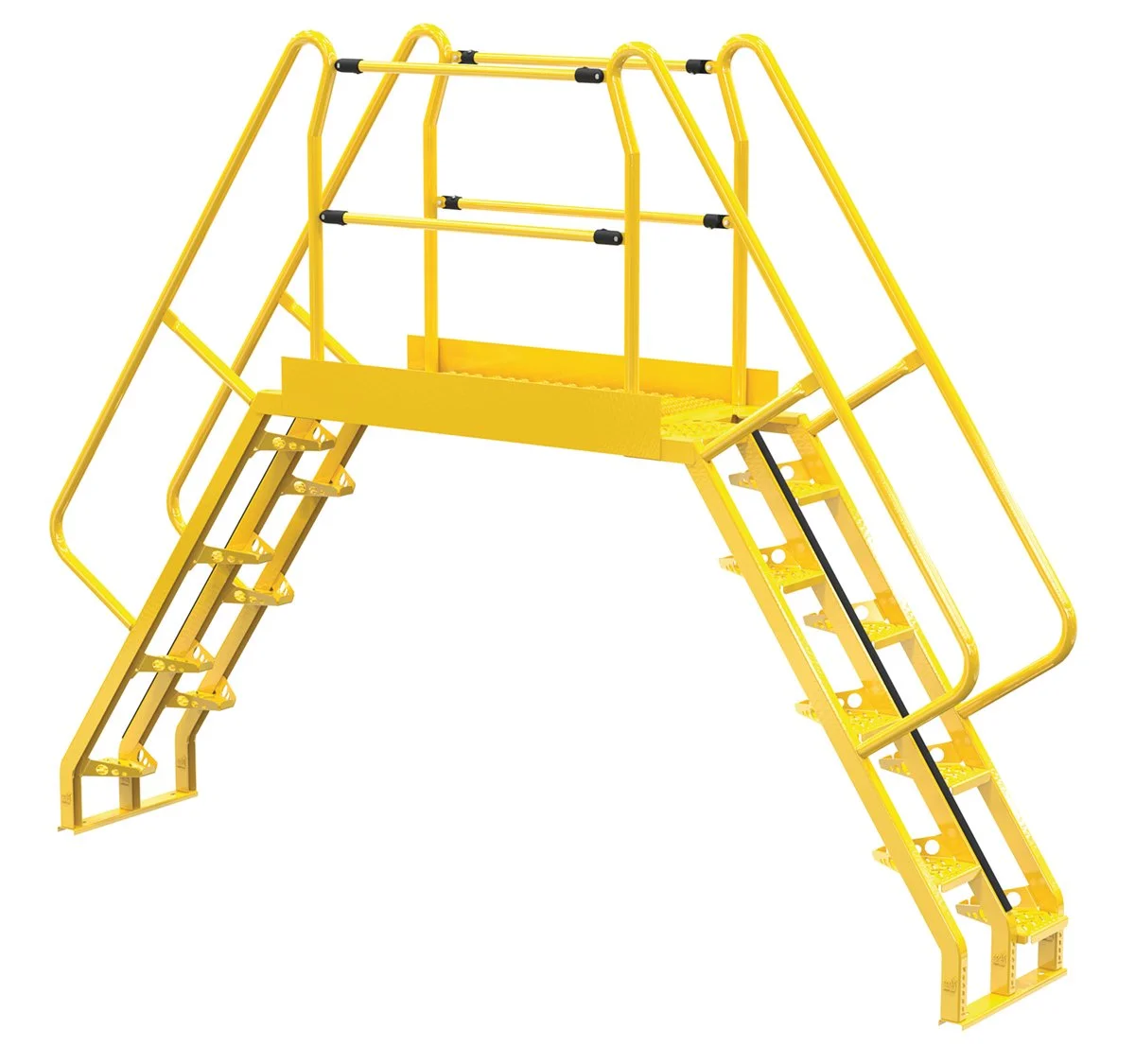

| DS-COLA-5-56-56 | 8 | 57-1/2" | 50-1/2" | 133-1/2" | 102-1/2" | 56 | 456 | $3,185 |

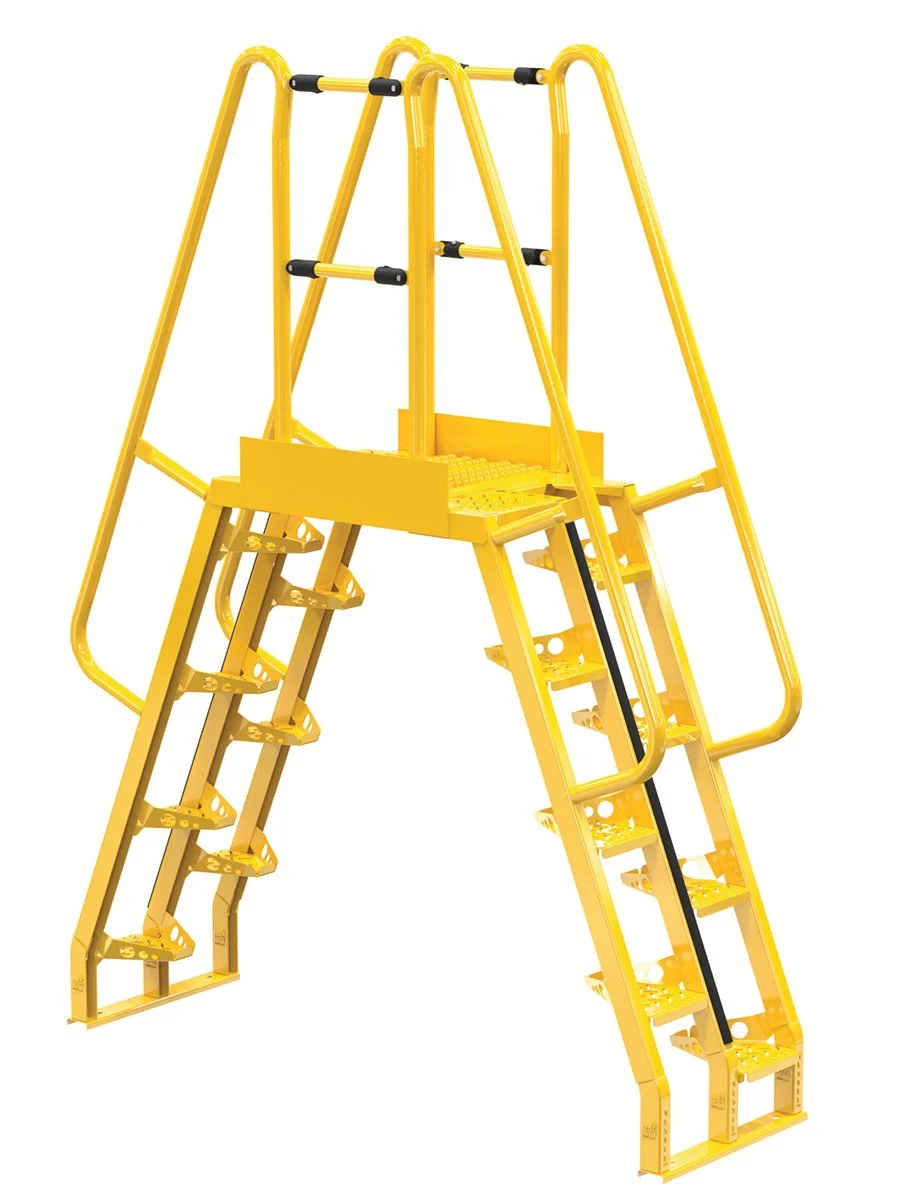

| DS-COLA-5-68-20 | 8 | 57-3/8" | 20" | 77-1/2" | 103" | 68 | 330 | $3,564 |

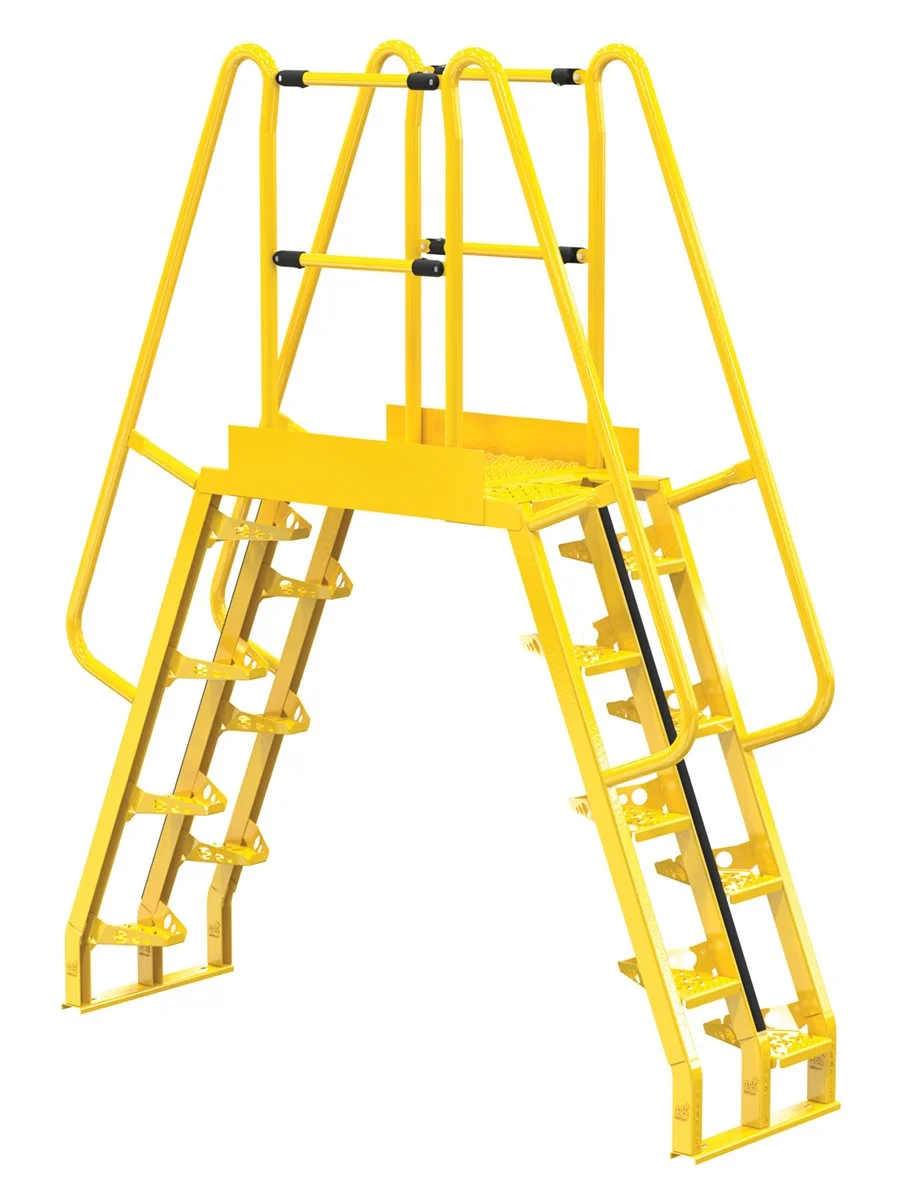

| DS-COLA-5-68-32 | 8 | 57-3/8" | 27" | 84-/1/2 | 1032" | 68 | 363 | $3,594 |

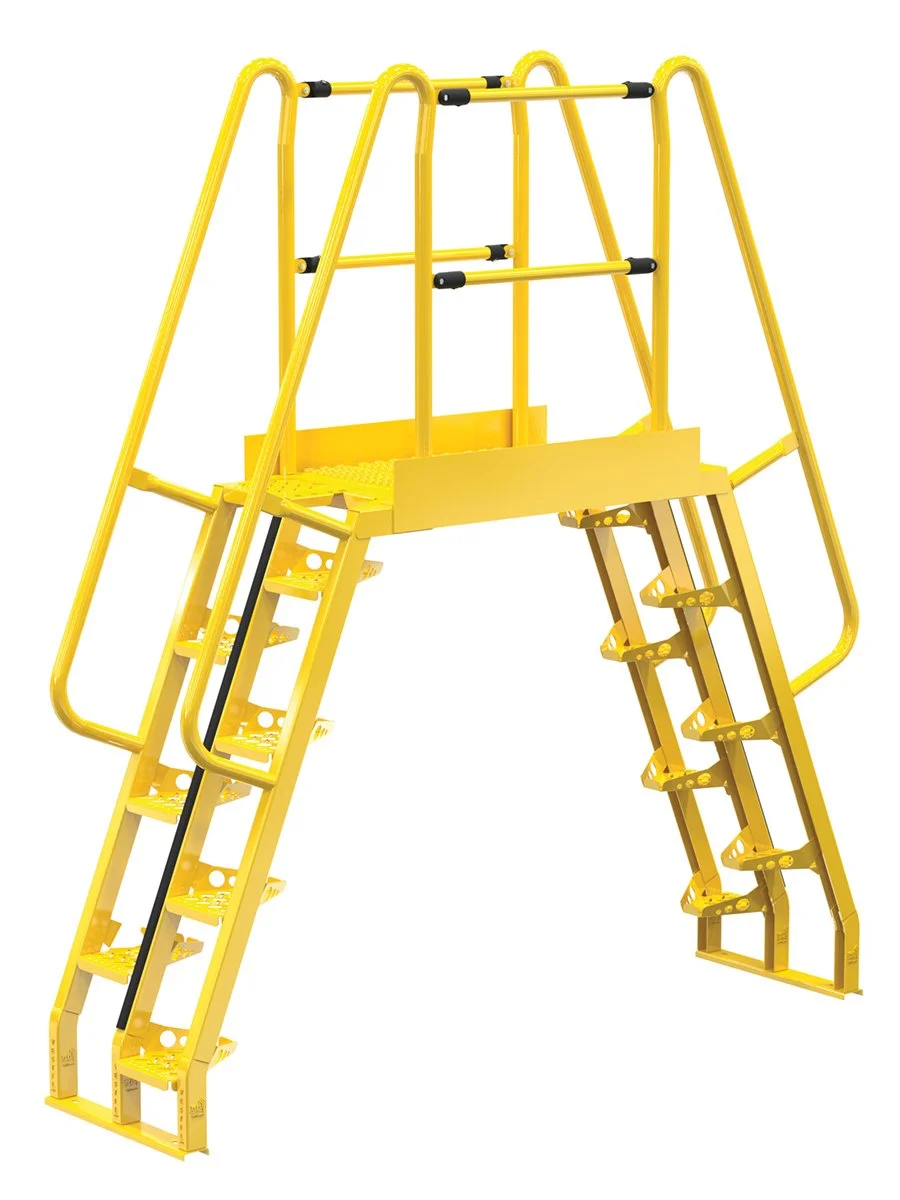

| DS-COLA-5-68-44 | 8 | 57-3/8" | 34" | 91-1/2" | 103" | 68 | 396 | $3,945 |

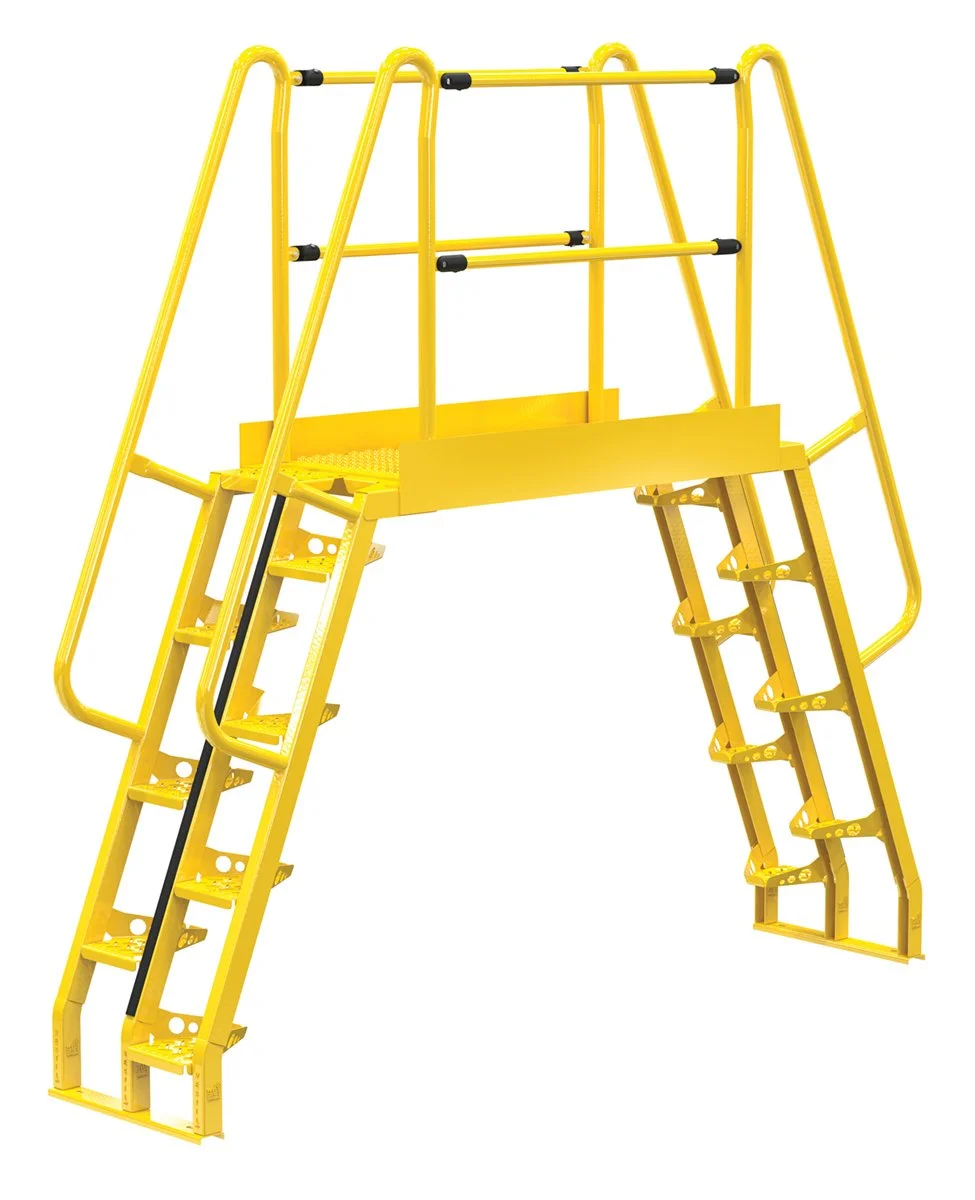

| DS-COLA-5-68-56 | 54 | 57-3/8" | 48" | 105-1/2 | 103" | 68 | 430 | $3,975 |

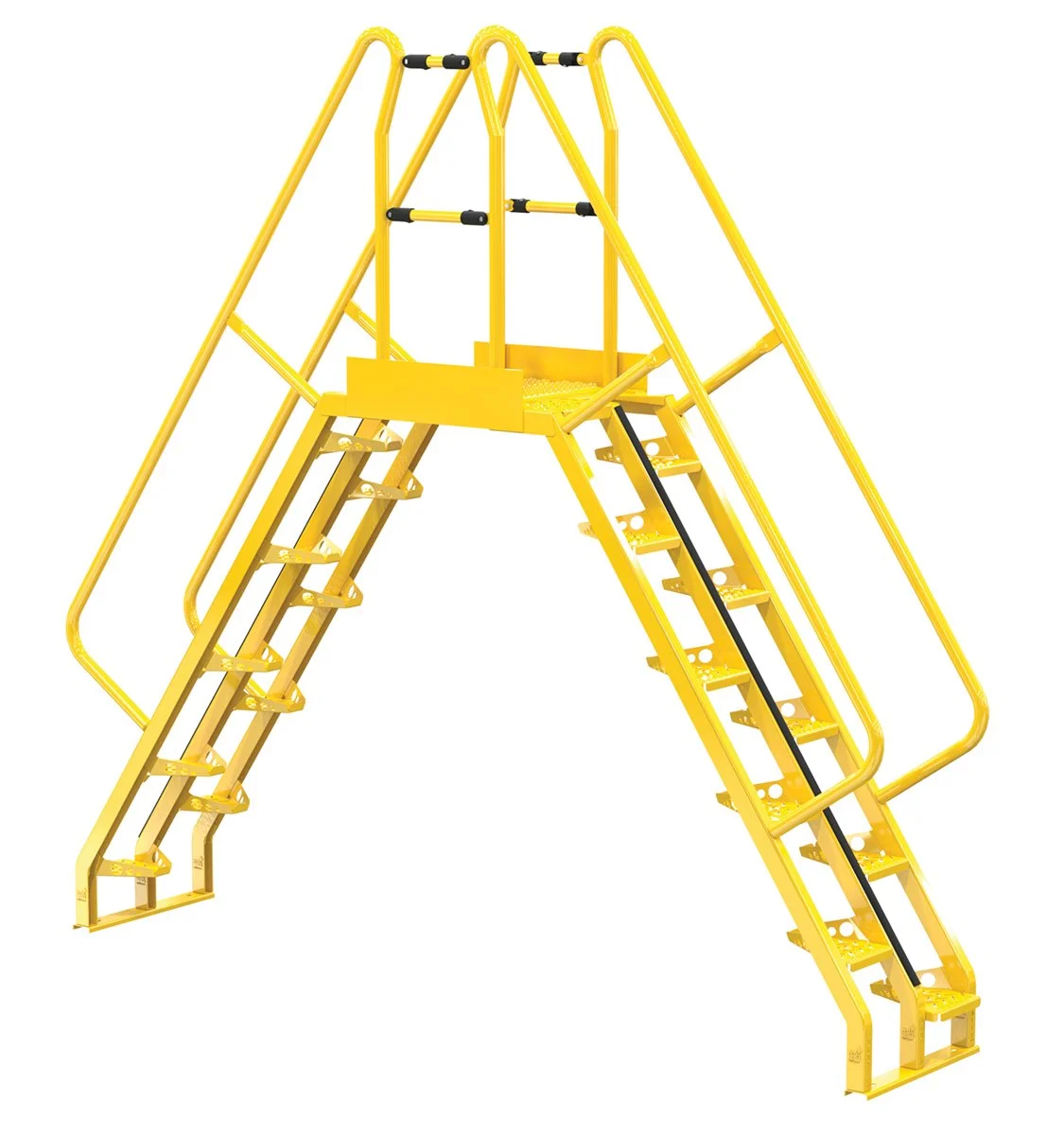

| DS-COLA-6-56-20 | 10 | 69-1/2" | 22" | 122" | 114-1/2" | 56 | 396 | $3,155 |

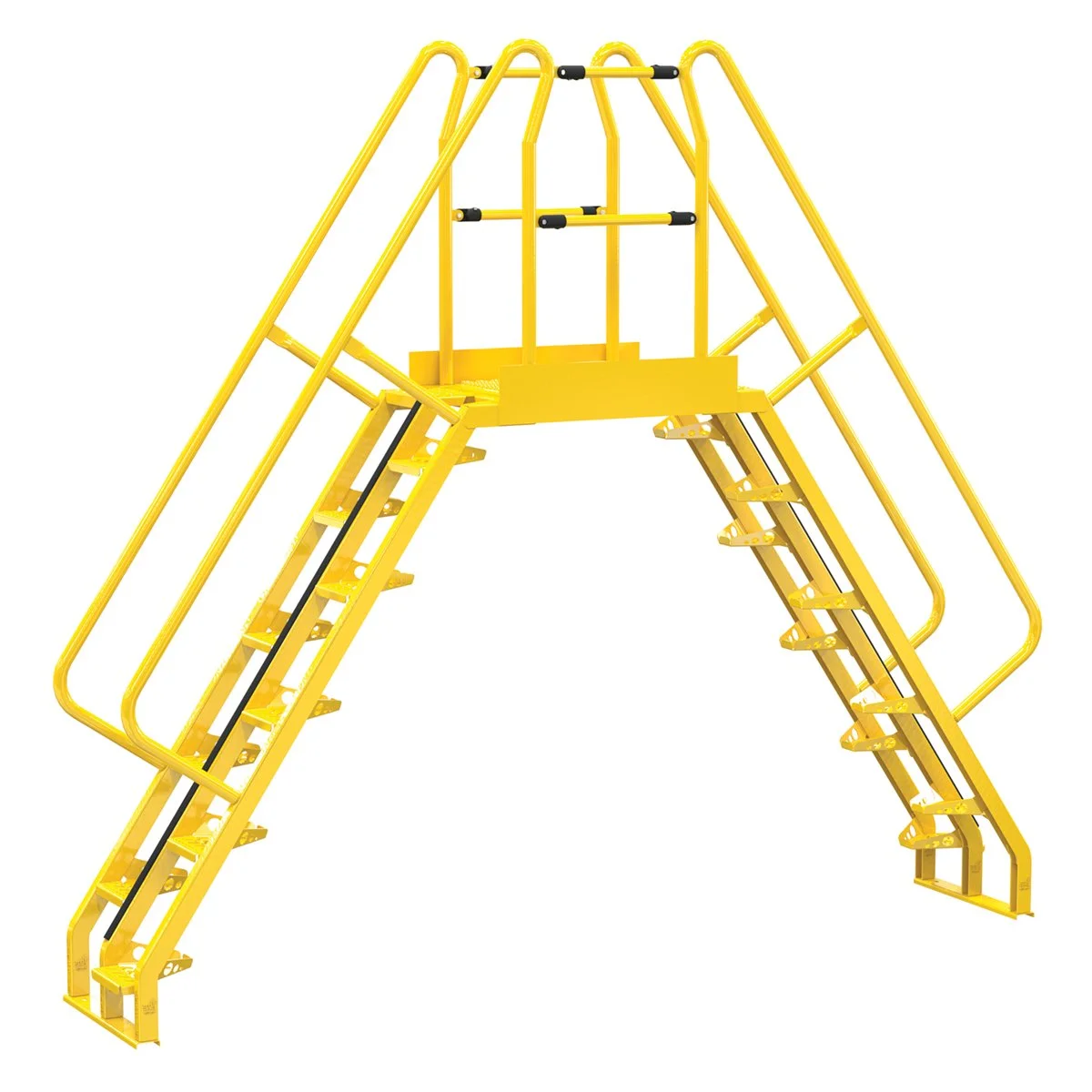

| DS-COLA-6-56-32 | 10 | 69-1/2" | 29" | 129" | 114-1/2" | 56 | 429 | $3,185 |

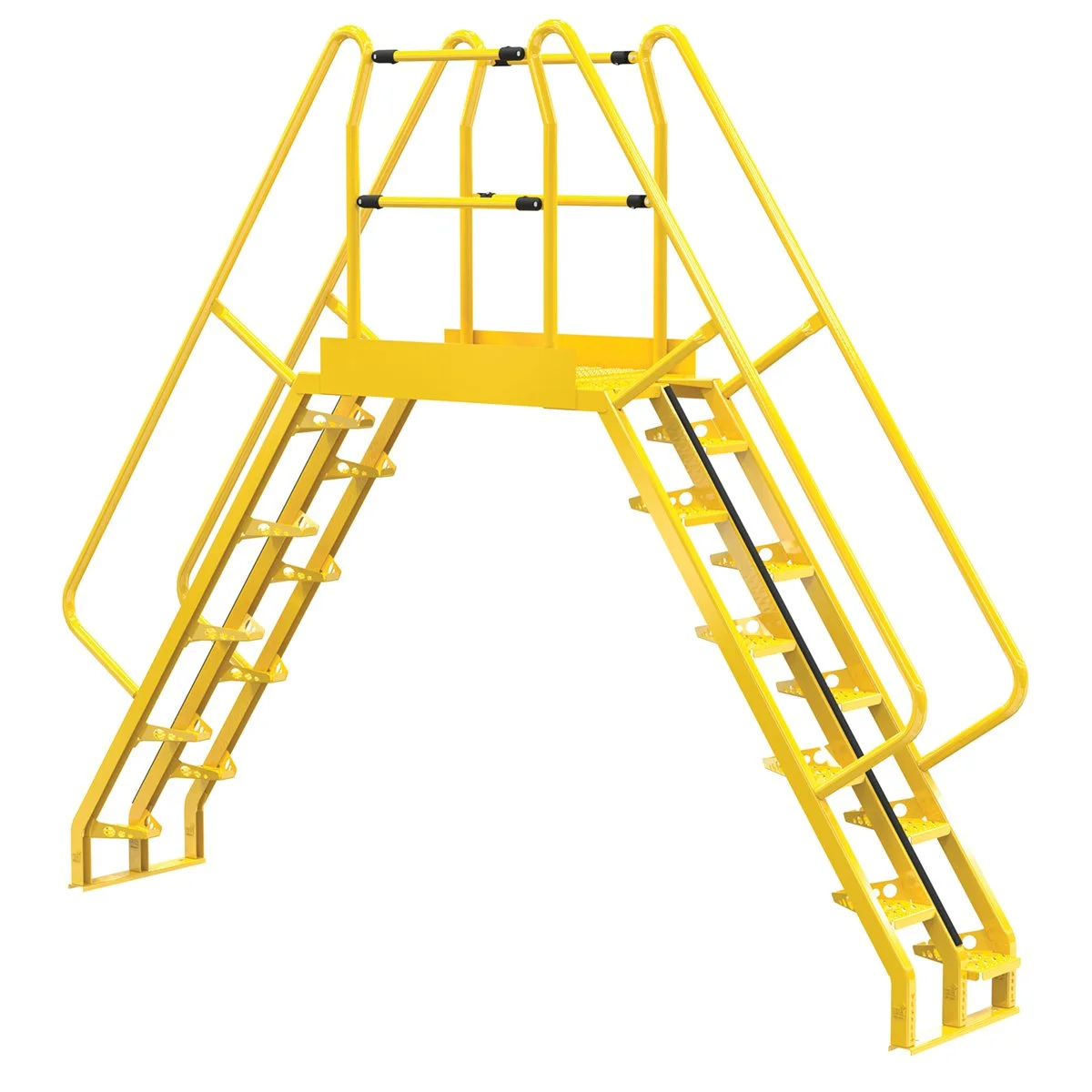

| DS-COLA-6-56-44 | 10 | 69-1/2" | 36" | 136" | 114-1/2" | 56 | 418 | $3,565 |

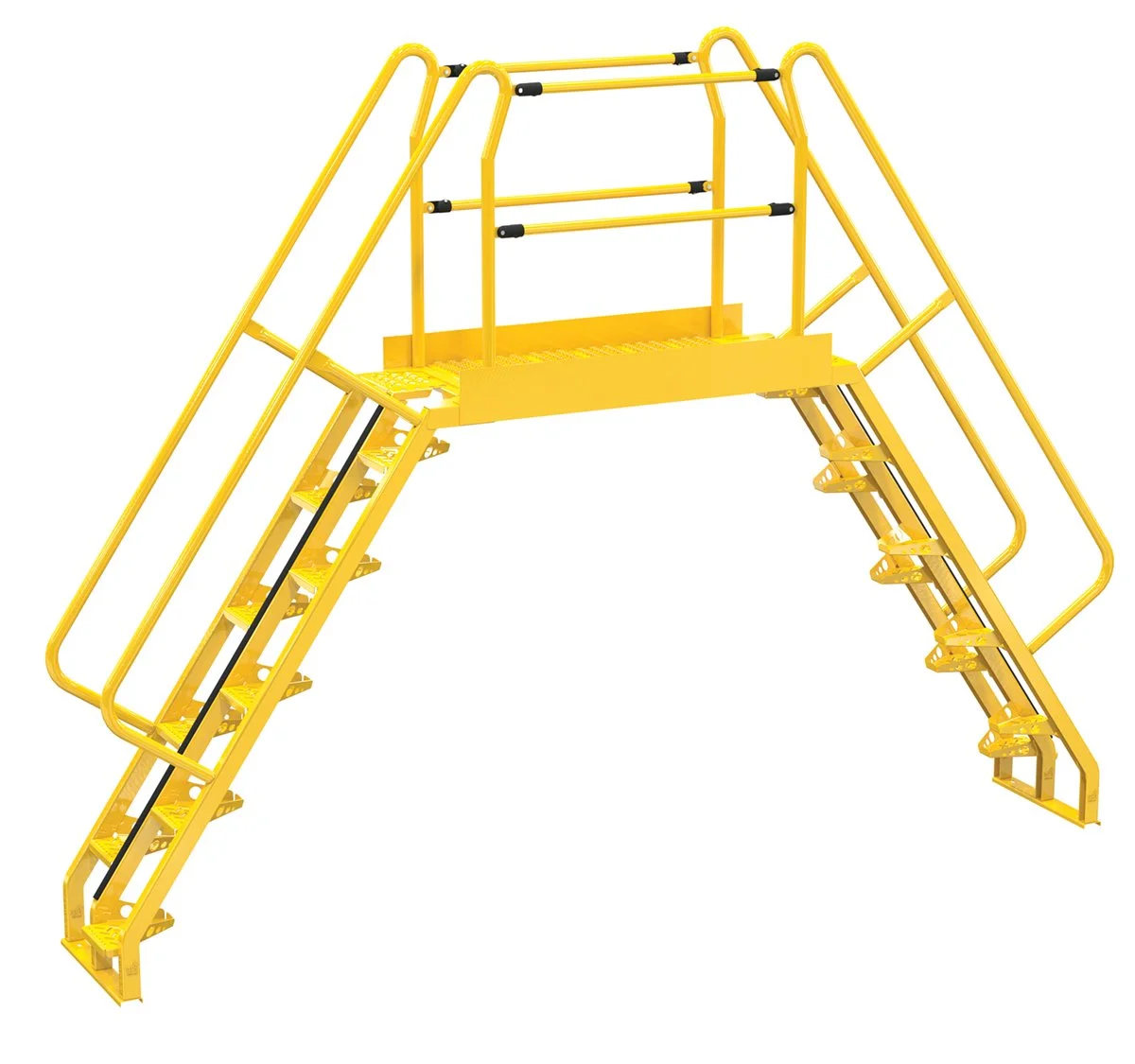

| DS-COLA-6-56-56 | 10 | 69-1/2" | 50" | 150" | 114-1/2" | 56 | 429 | $3,595 |

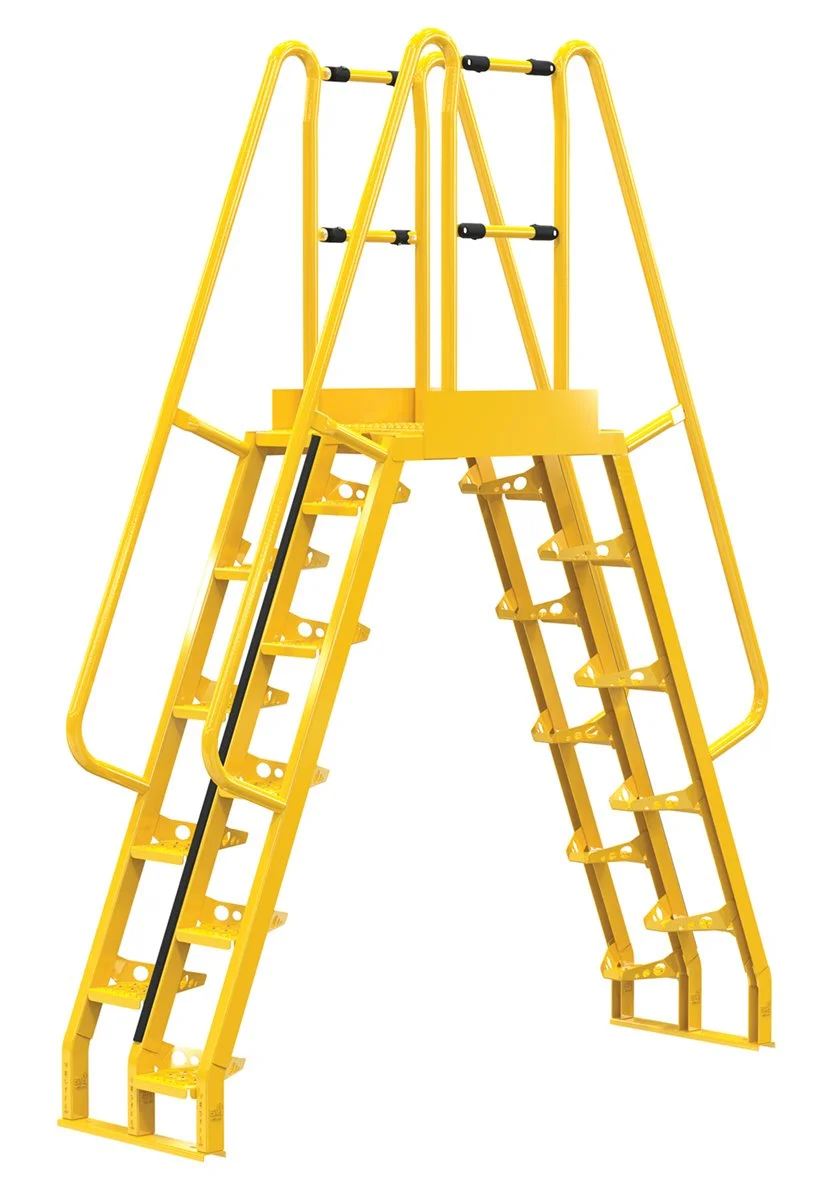

| DS-COLA-6-68-20 | 10 | 69-3/8" | 19-3/4" | 87-1/2" | 115" | 68 | 402 | $3,945 |

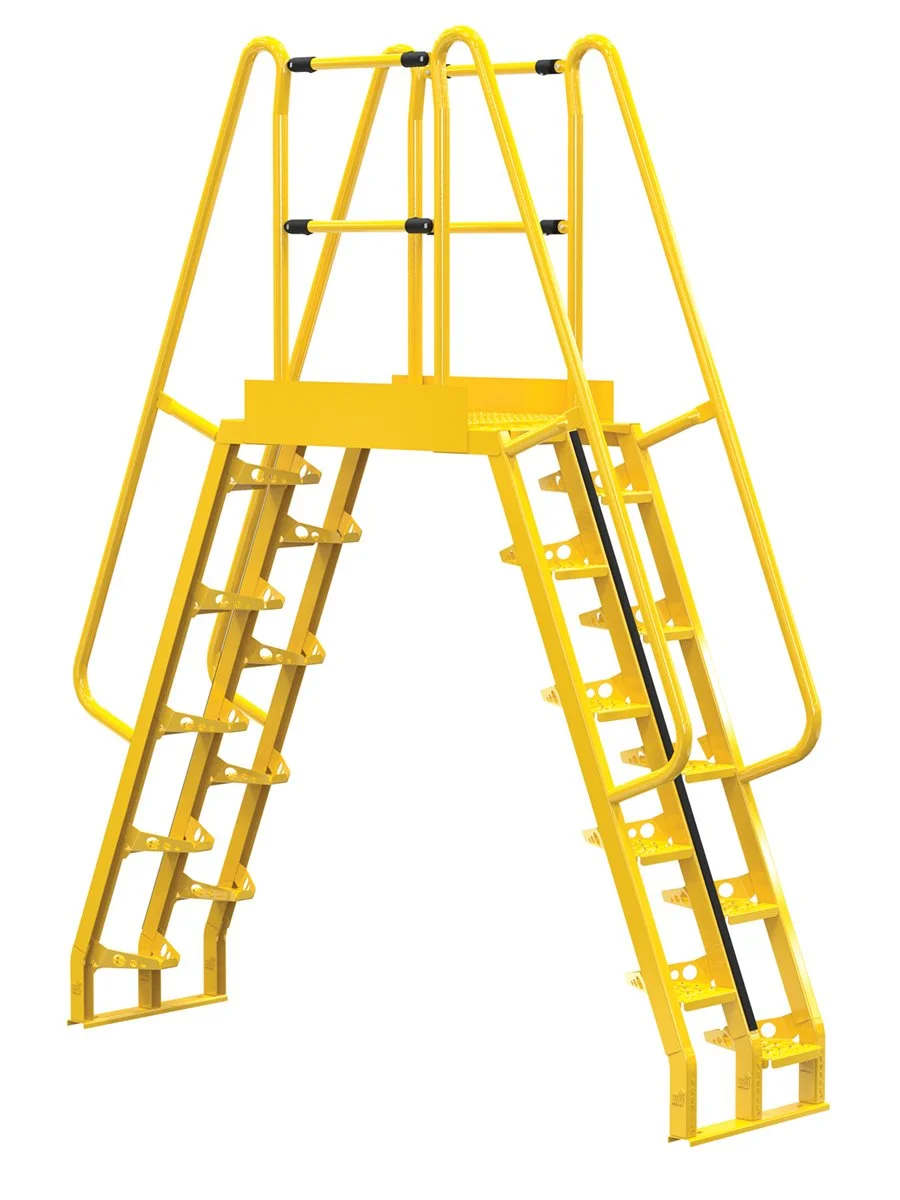

| DS-COLA-6-68-32 | 10 | 69-1/2" | 26-3/4" | 87-1/2" | 115" | 68 | 413 | $3,975 |

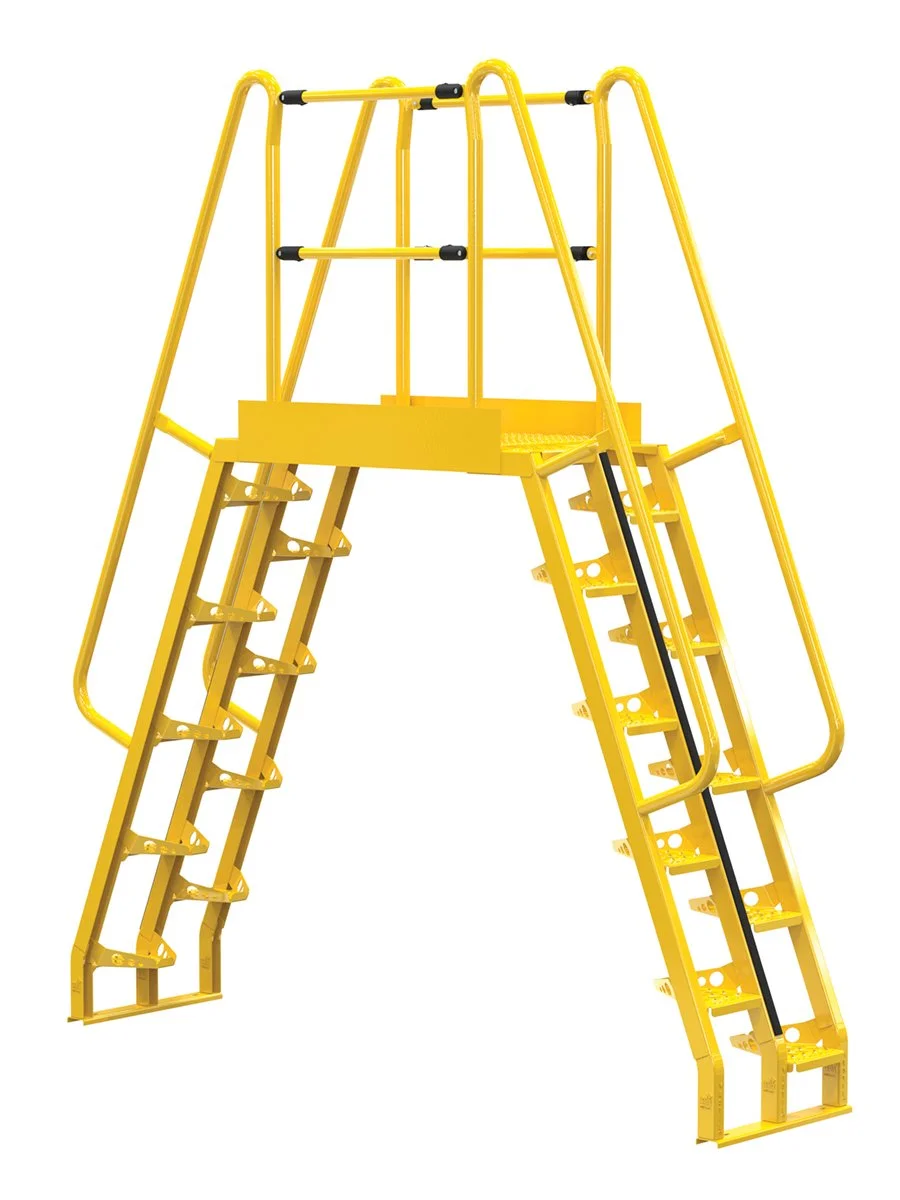

| DS-COLA-6-68-44 | 10 | 69-3/8" | 33-3/4" | 101-1/2" | 80-1/2" | 68 | 431 | $4,361 |

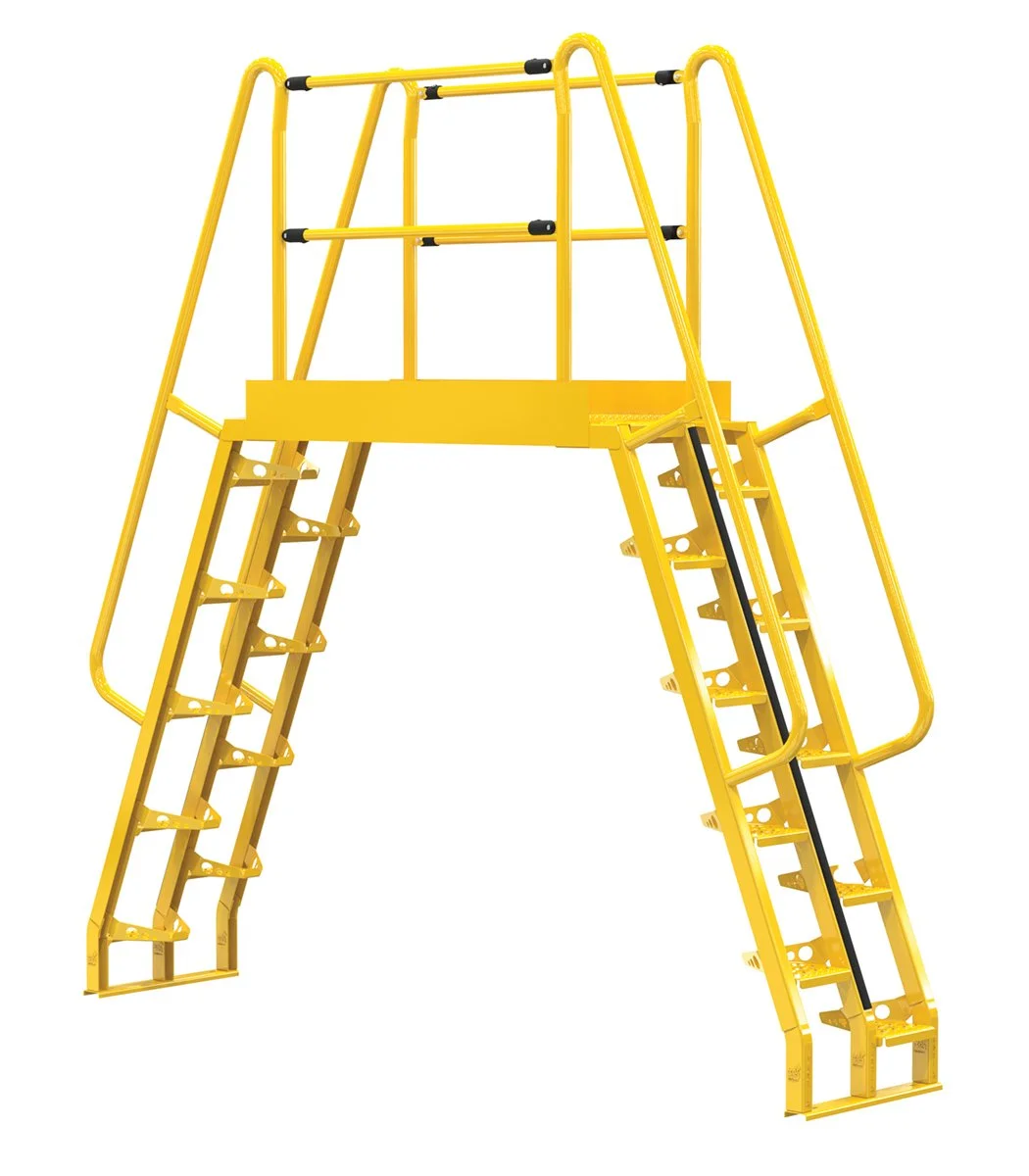

| DS-COLA-6-68-56 | 10 | 69-3/8" | 47-3/4" | 115-1/2" | 1152" | 68 | 464 | $4,391 |

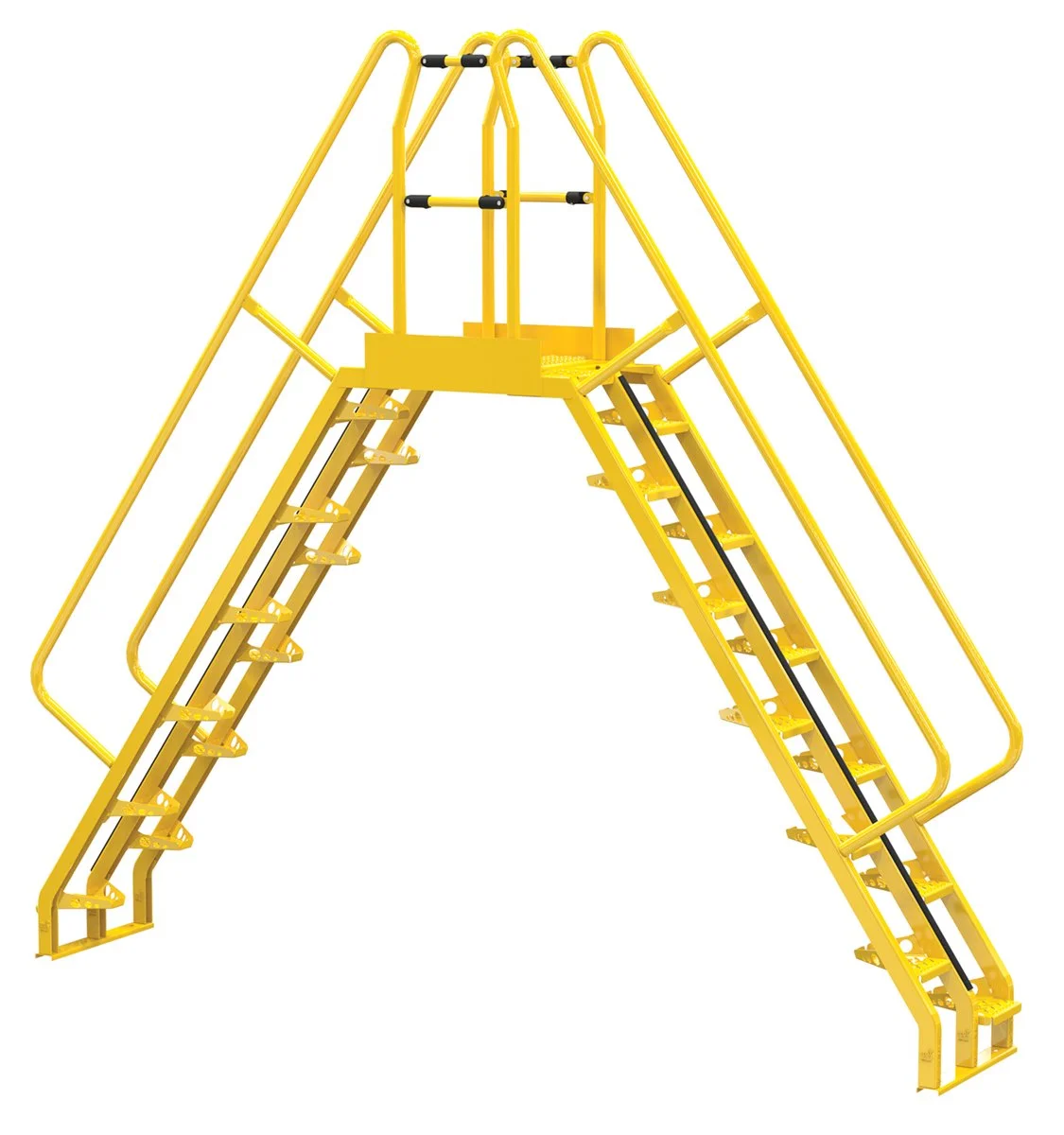

| DS-COLA-7-56-20 | 12 | 81-3/8" | 21-3/4" | 137-1/2" | 126-1/2" | 56 | 433 | $3,565 |

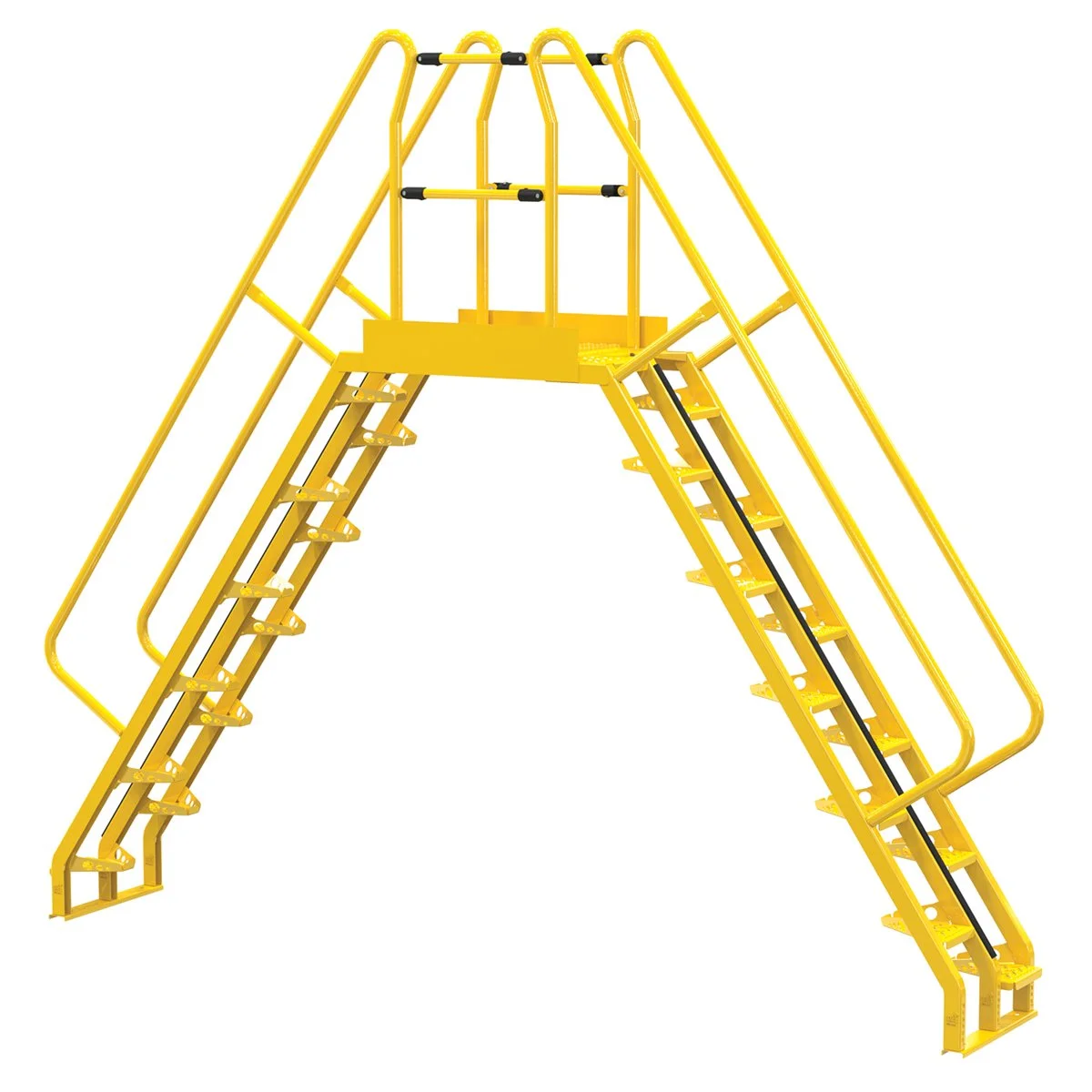

| DS-COLA-7-56-32 | 12 | 81-3/8" | 28-3/4" | 144-1/2" | 126-1/2" | 56 | 466 | $3,595 |

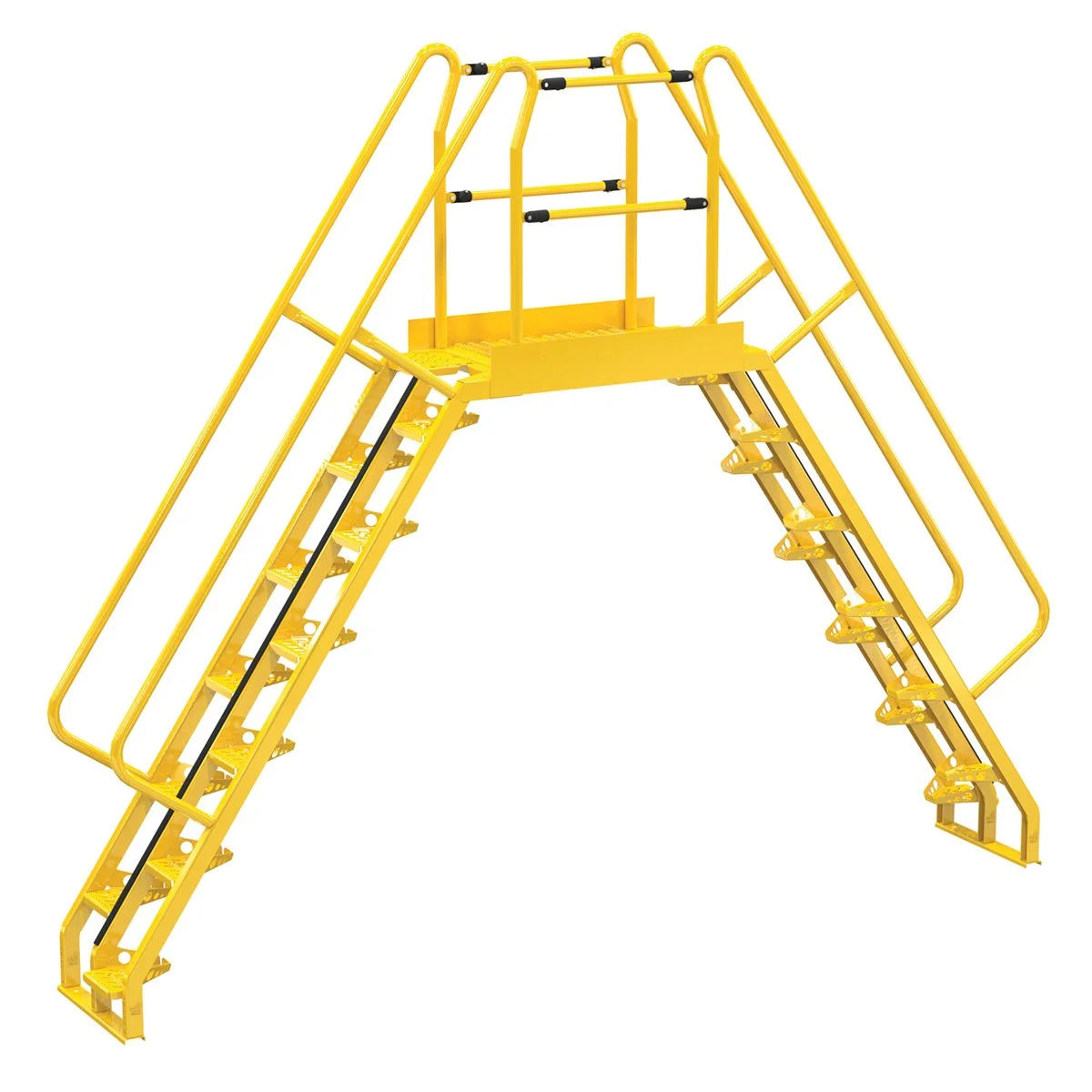

| DS-COLA-7-56-44 | 12 | 81-3/8" | 35-3/4" | 151-1/2" | 126-1/2" | 56 | 499 | $3,944 |

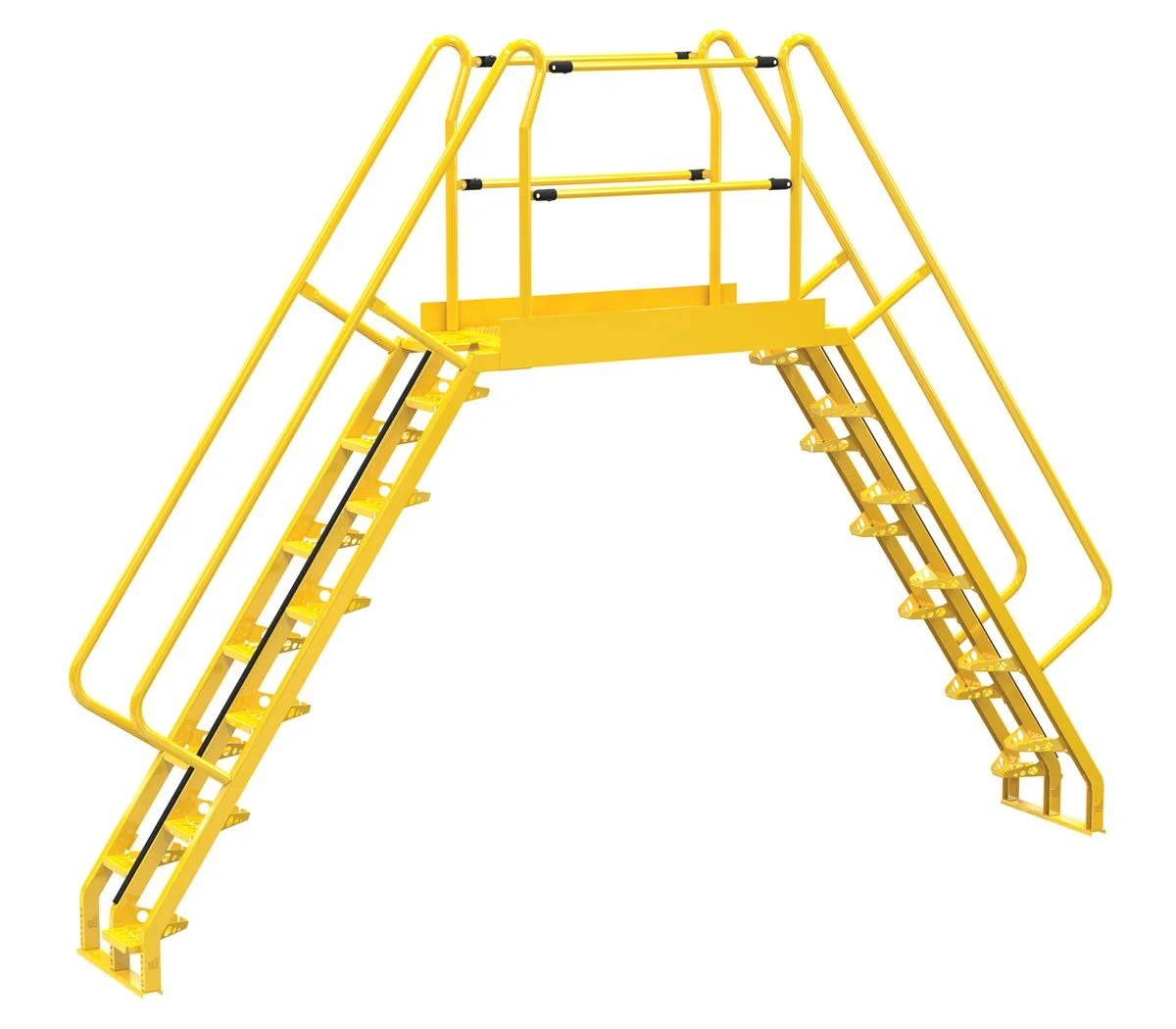

| DS-COLA-7-56-56 | 12 | 81-3/8" | 49-3/4" | 165-1/2" | 126-1/2" | 56 | 532 | $3,974 |
| DS-COLA-7-68-20 | 12 | 81-3/8" | 19-3/4" | 97-3/8" | 1272" | 68 | 400 | $4,361 |
| DS-COLA-7-68-32 | 12 | 81-1/2" | 293/47" | 104-3/8" | 127" | 68 | 444 | $4,391 |

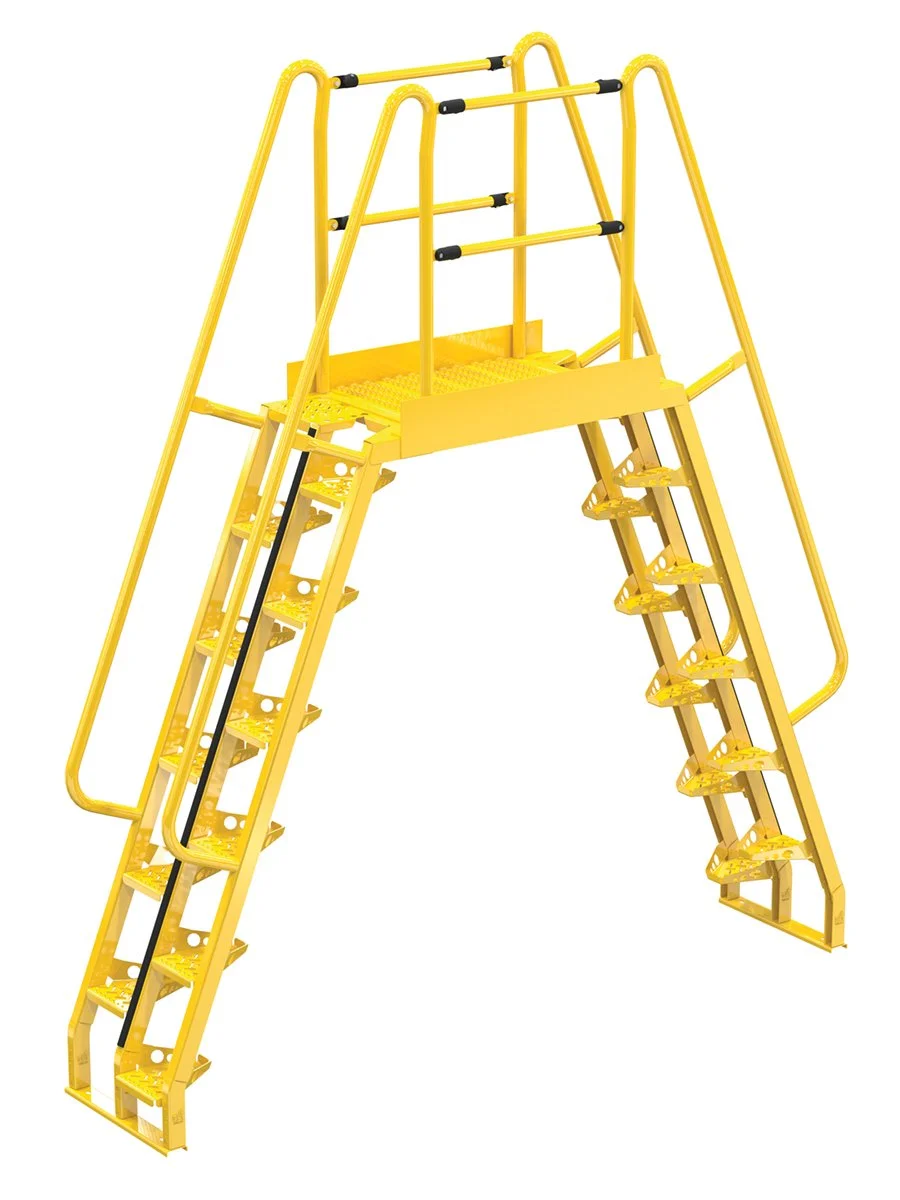

| DS-COLA-7-68-44 | 12 | 81-1/2" | 33-3/4" | 111-3/8" | 127" | 68 | 475 | $4,761 |
| DS-COLA-7-68-56 | 12 | 81-1/2" | 47-3/4" | 125-3/8" | 127" | 68 | 499 | $4,791 |
| All Dimensions are in inches | ||||||||
Features
Standard Features:
Removable handrails 39" high with 21" mid-rail
4" toe boards to prevent objects from falling
Usable platform width is 19-5/16"
Serrated treads
Floor lag-down points (units must be anchored) [mounting hardware not included]
Steel construction
350 pound uniform capacity
Knocked down for shipping and storage
Powder-coated yellow
OSHA 29 STD01-01-011 and ANSI A14.7 compliant
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
