Maintenance / Mechanics Rolling Ladder
Maintenance / Mechanics Rolling Ladder

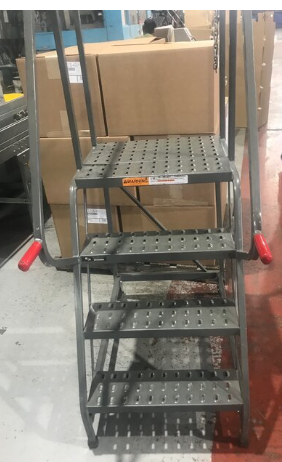

The Maintenance / Mechanics Rolling Ladders are easy to move and then lock in place.
The Mechanics / Maintenance Rolling Ladder is perfect for workers on the go around the shop and require a ladder at various locations.
Maintenance ladders are for any situation where you need to move from the ladder onto another surface. Use these ladders for trucks and other areas where you need access.
Pricing
Model # | # of Steps | Top Step Height |
Step Width |
Overall Height |
Hand Rails |
Open Dimensions W x L |
Weight Lbs. | EZY Tread |
---|---|---|---|---|---|---|---|---|

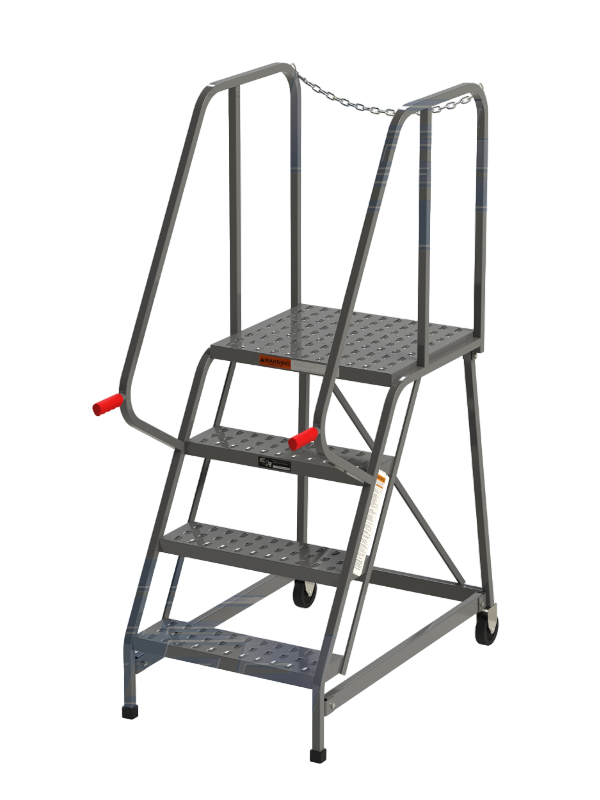

DS-M001 | 4 | 40 | 24 | 70 | Y | 28x49 | 63 | $914 |

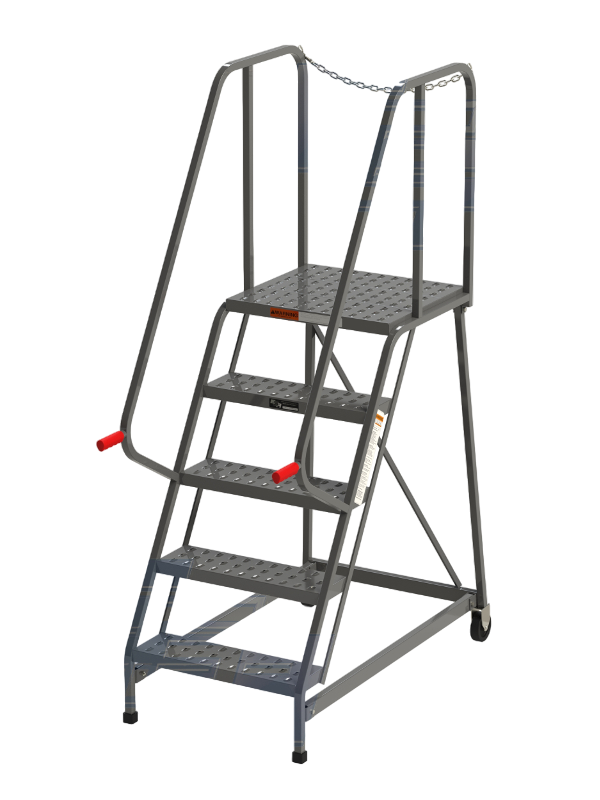

DS-M002 | 5 | 50 | 24 | 80 | Y | 29x55 | 78 | $1,029 |
DS-M003 | 6 | 60 | 24 | 90 | Y | 30x62 | 88 | $1,080 |
DS-M004 | 7 | 70 | 24 | 100 | Y | 31x69 | 101 | $1,223 |
Model # | # of Steps | Top Step Height |
Step Width |
Overall Height |
Hand Rails |
Open Dimensions W x L |
Weight Lbs. | Grip Strut |
---|---|---|---|---|---|---|---|---|

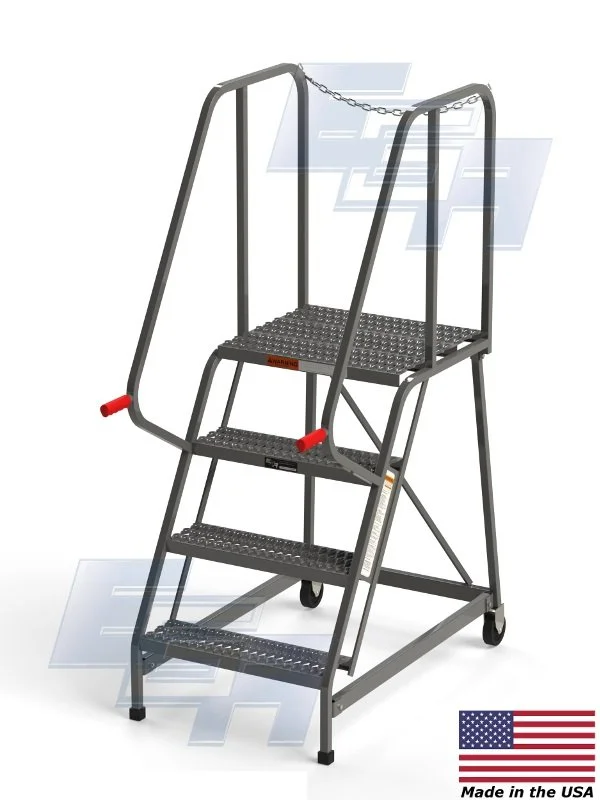

DS-M005 | 4 | 40 | 24 | 70 | Y | 28x49 | 63 | $1,011 |

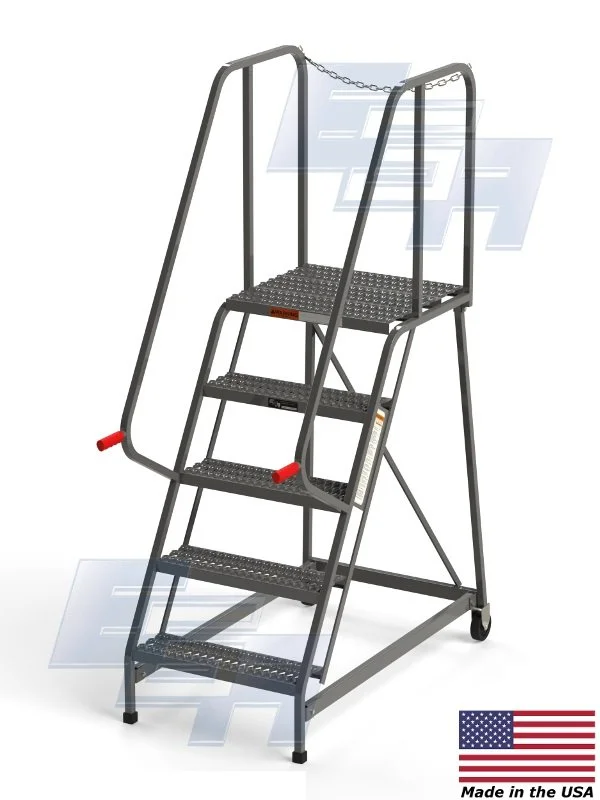

DS-M006 | 5 | 50 | 24 | 80 | Y | 29x55 | 78 | $1,118 |
DS-M007 | 6 | 60 | 24 | 90 | Y | 30x62 | 88 | $1,355 |
DS-M008 | 7 | 70 | 24 | 100 | Y | 31x69 | 101 | $1,628 |
Features
Standard Features
21" deep top platform
Rear detachable chain
24" wide steps which are 7" deep
Lift and roll wheelbarrow design
4" rear casters
450 lb. capacity
Meets or exceeds OSHA standards
Options
Options
Parts
Parts
Tread Types
Perforated - EZY Tread (perforated) is the most affordable option for rolling ladder treads. However, it does not perform well in certain work environments. It enables just the right amount of grip for most work environments. It is not the most or the least aggressive tread
Optimal for clean or standard duty areas
Formed from a solid steel sheet
Affected by dirt, dust, snow, and other hazards
Eliminates sagging metal and front edge wear common with inferior products
Economical
Serrated - Grip Strut (serrated) provides the best grip and tread for more demanding work environments. A more premium option than traditional perforated tread. A slip-resistant tread design is a must when oily or wet surfaces can be a foot in the work world. A serrated tooth surface formed from a solid sheet of steel give Grip Strut a tough, long-lasting super surface for grip. Aggressive, strong, sure-footed, and self-cleaning, Grip Strut is hard to beat.
Great for environments that may be dusty, oily, or wet
Formed from a solid steel sheet
Allows for a safer solution when dirt, snow, dust, or oil are present
More grip compared to perforated treads
Aggressive sure-footed design
Documentation / Videos
Documentation / Videos
