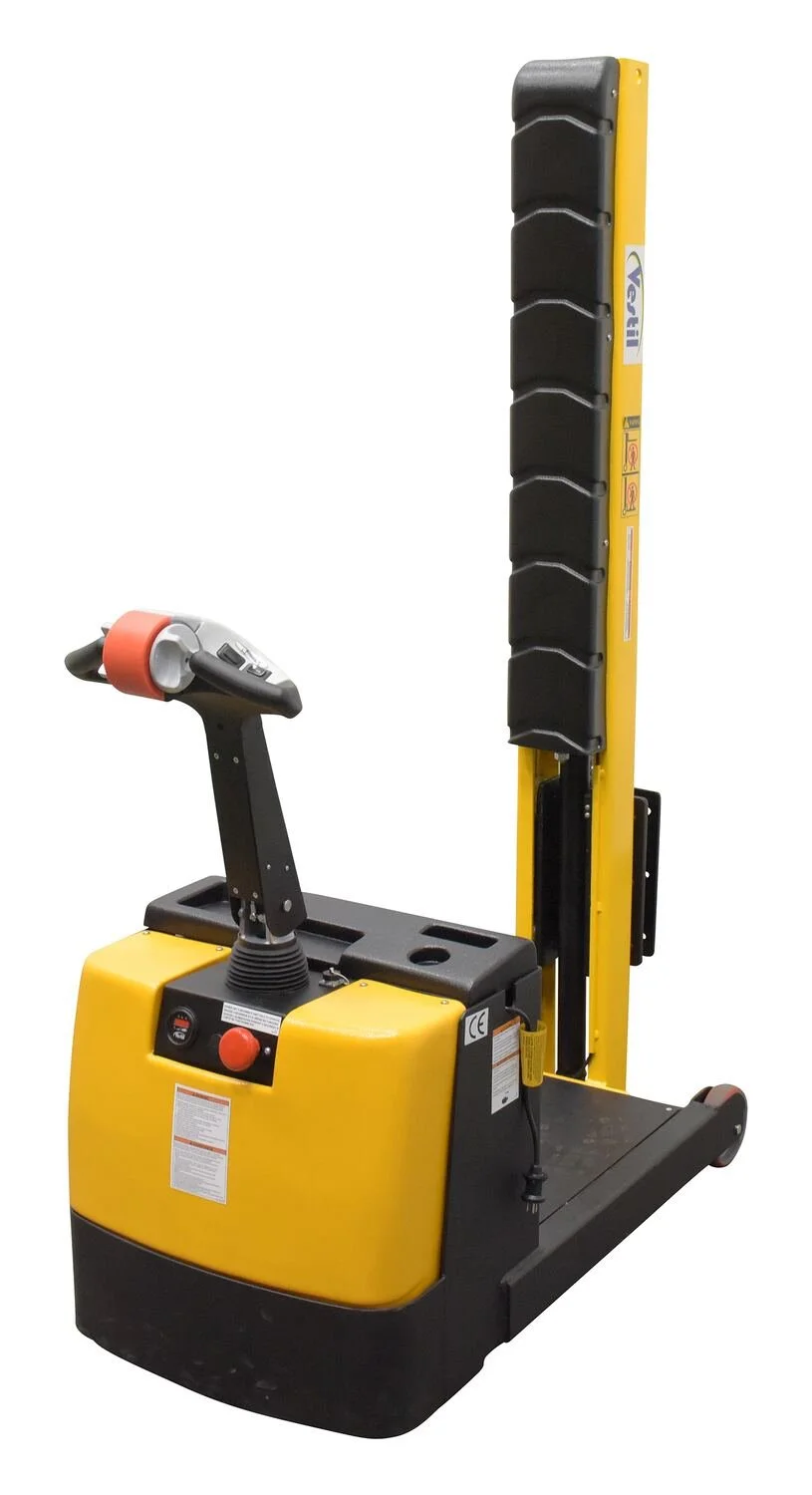

Counter Balanced Narrow Stacker with Multi-Use Attachments

$7,977.00

Counter balance stacker with a narrow mast design is ideal for die loading, machine feeding, and for loading and unloading trucks in confined areas. An ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, and emergency reverse function. Multiple attachments available. Includes an automatic dead-man feature that activates when the user releases the handle.

Add To Cart

STANDARD FEATURES:

  • Simple controls for quick movement

  • Walk behind style for ergonomic posture

  • Poly-on-steel steer and load wheels

  • Ability to raise to high levels of workspace

  • Multiple attachments available.

  • Includes an automatic dead-man feature that activates when the user releases the handle.

  • Also included are batteries, an integral battery charger, and battery level gauge. Easy access battery compartment simplifies battery maintenance.

  • Counter Balance has simple controls for quick movement

  • Quick attachment for immediate use

  • Durable steel construction

  • Low maintenance design

  • Capacity: 660 lbs

  • Lift Height: 60"

  • Lowered Height: Depends on the attachment

  • Drive Motor: 24V/0.5Kw

  • Lift Motor: 24V/0.8Kw

  • Battery: 2x12V/55Ah

  • Battery Charger: 24V/10amp

  • Lift Speed w/o Load: 4"/sec Lift Speed w/load:2.95"/sec

  • Lower down speed w/o load: 3.34"/sec

  • Lower down speed w/load: 3.75"/sec

  • Travel Speed w/o load: 2.7 m/h Travel speed w/load: 1.8 m/h

  • Swivel Casters: (1) 10"dia. x 3.125"W Rigid Casters: (2) 6.25"dia. x 2.5"W Type: Red Poly On Steel

  • 600 lb capacity

  • Battery Voltage: 24VBattery Type: Lead AcidNumber Of Batteries: 2 Spillable

  • Handle Height (In.): 54.125Handle Diameter (In.): 1.25

Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.

CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE

WHEN YOU PURCHASE A LOAD STACKER FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE LOAD STACKER.

Steel Counter Balanced Powered Drive Narrow Mast Stacker
Model Number Raised
Height		 Lowered
Height		 Lift
Speed		 Capacity
[lbs]		 Weight
[lbs]		 Price
DS-S-CB-NM-60 60" 8.5" 1.8 m/h 600 815 $7,977
Typically a Quick Ship

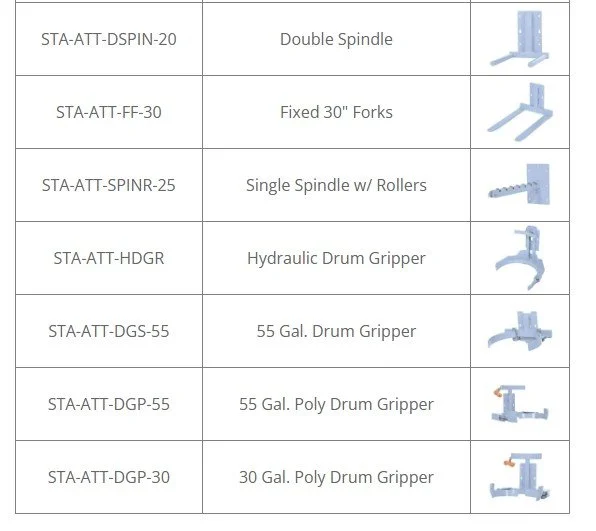

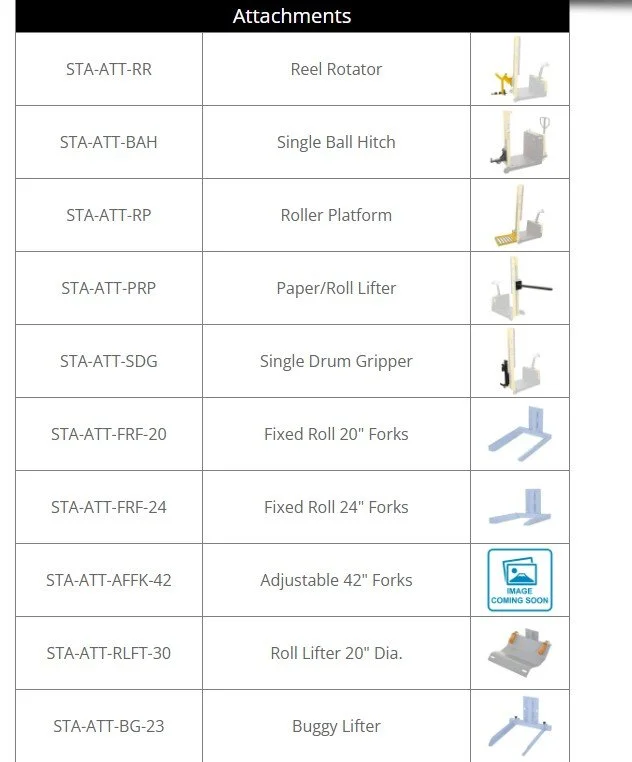

Attachments - Steel Counter Balanced Narrow Mast Stacker
Model Number Description
 Available? Price
DS-STA-ATT-RR Reel Rotator Out of stock $477
DS-STA-ATT-BAH Single Ball Hitch Out of stock $147
DS-STA-ATT-RP Roller Platform Out of stock $667

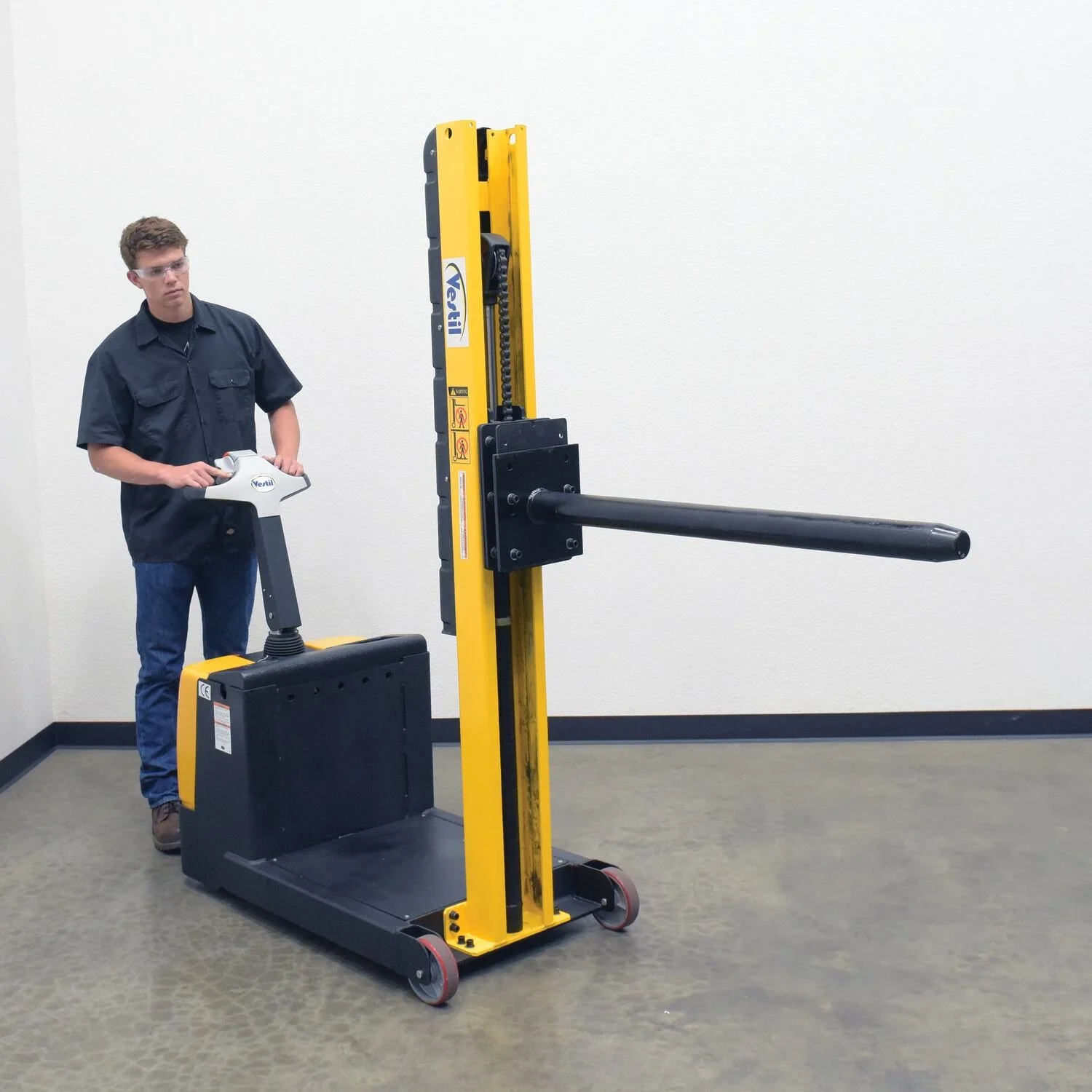

DS-STA-ATT-PRP Paper/Roll Lifter Available $357

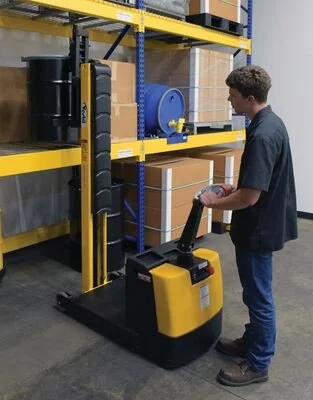

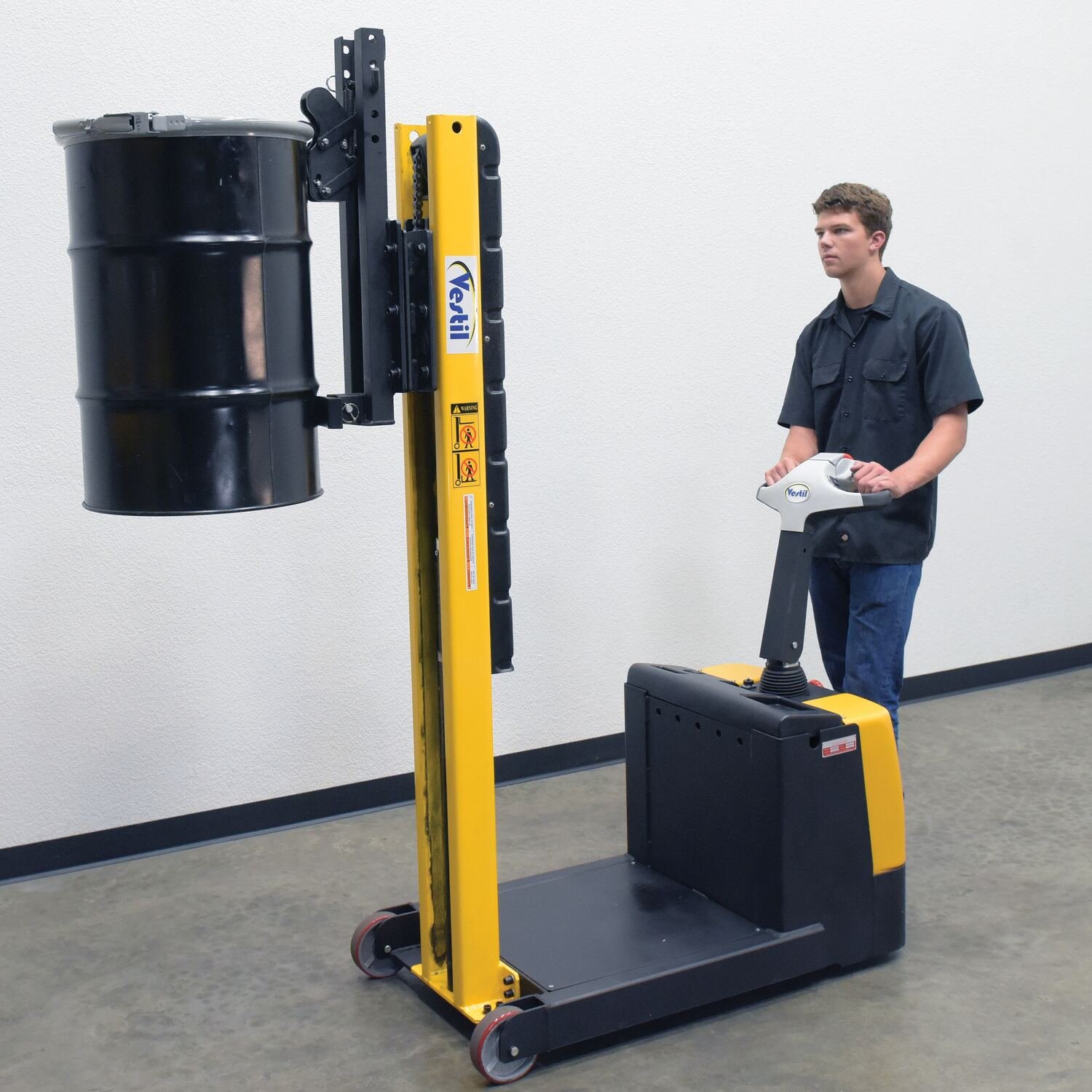

DS-STA-ATT-SDG Single Drum Gripper Available $477

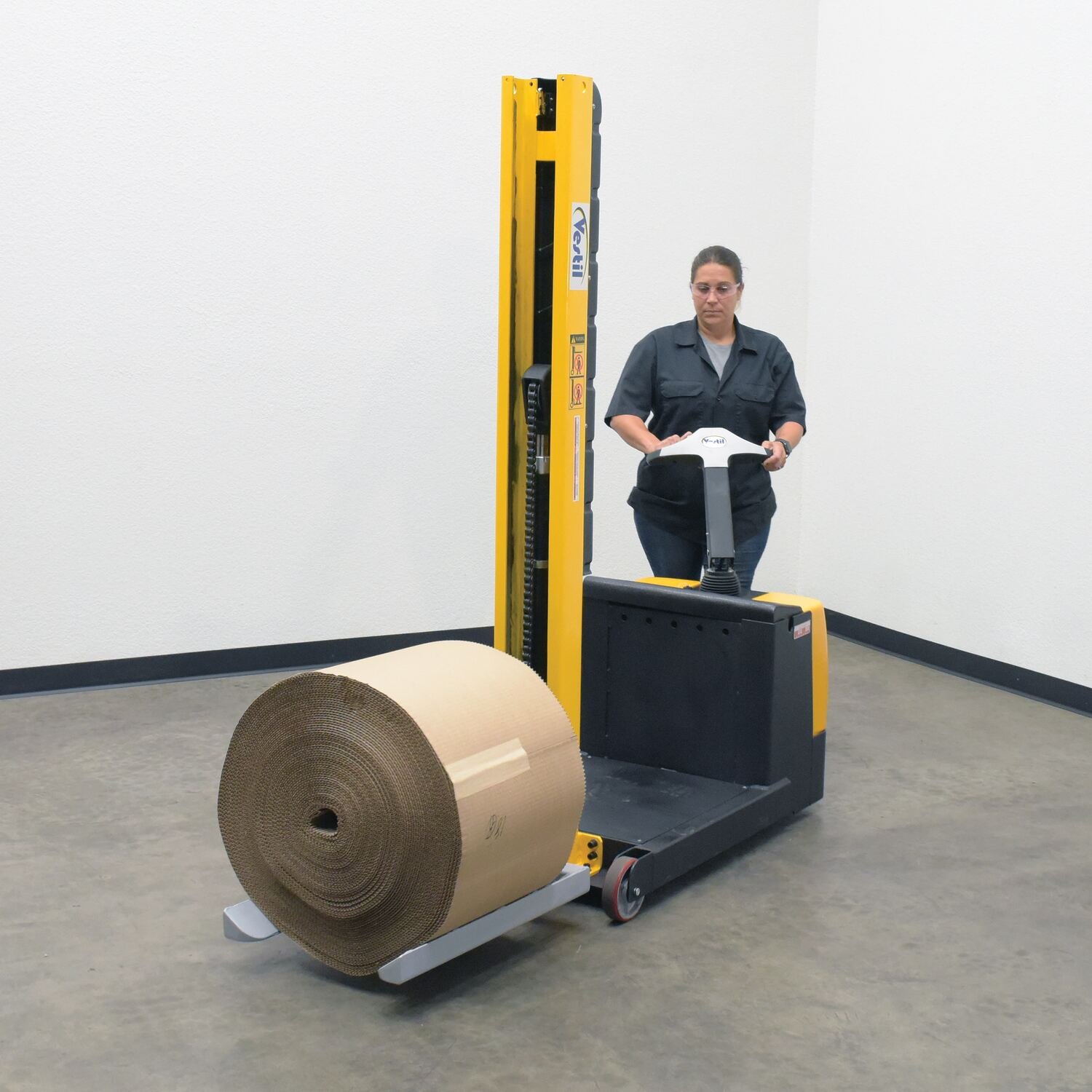

DS-STA-ATT-FRF-20 Fixed Roll 20" Forks Available $527
DS-STA-ATT-AFFK-42 Adjustable 42" Forks Available $1,169
DS-STA-ATT-FRF24 Fixed Roll 24" Forks Available $659
DS-STA-ATT-RLFT-30 Roll Lifter 20" Diameter Available $699
DS-STA-ATT-BG-23 Buggy Lifter Out of Stock $338
DS-STA-ATT-DSPIN-20 Double Spindle Available $299
DS-STA-ATT-FF-30 Fixed 30" Forks Available $577
DS-STA-ATT-SPINR-25 Single Spindle with Rollers Available $577
DS-STA-ATT-HDGR Hydraulic Drum Gripper Out of Stock $839
DS-STA-ATT-DGS-55 55 Gallon Drum Gripper Available $617
DS-STA-ATT-DGP-55 55 Gallon Poly Drum Gripper Available $796
DS-STA-ATT-DGP-30 30 Gallon Poly Drum Gripper Available $611
Typically a Quick Ship



Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
