Brandon 6 Mini Crane
Brandon 6 Mini Crane
The Brandon 6 has the capability to lift glass and other materials such as metals, granite, quartz and building panels.
This has significantly more reach than the competition.
24 Feet (7.33M) of Vertical Reach
16 Feet (4.88M) of Horizontal Reach
5,500 Lbs + Attachment
Woods Power Grip system
2 Wheel Drive, 2 Wheel Brakes
24 Volt Battery Powered
Made in the USA
Specifications

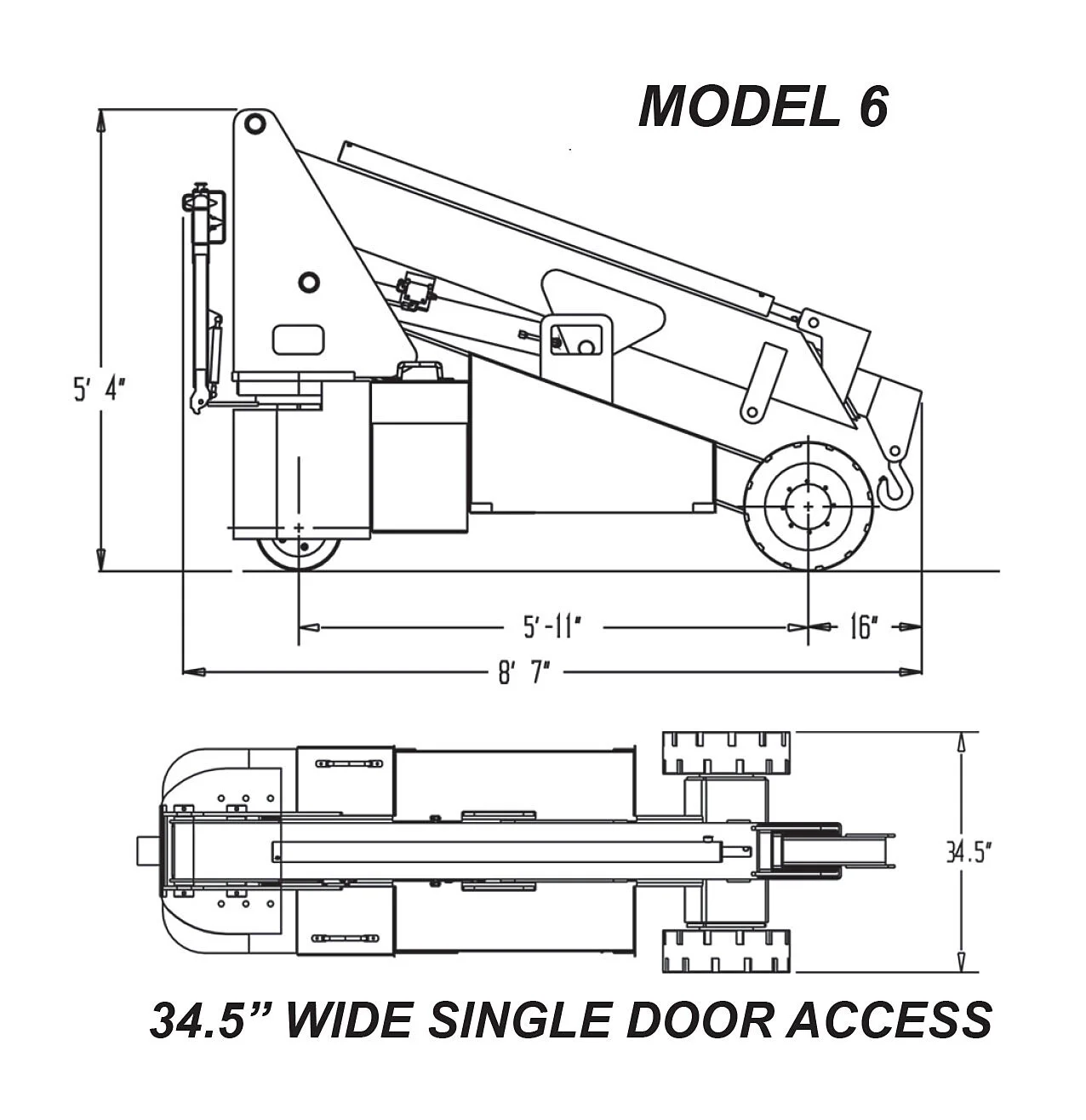

Model: Brandon 6

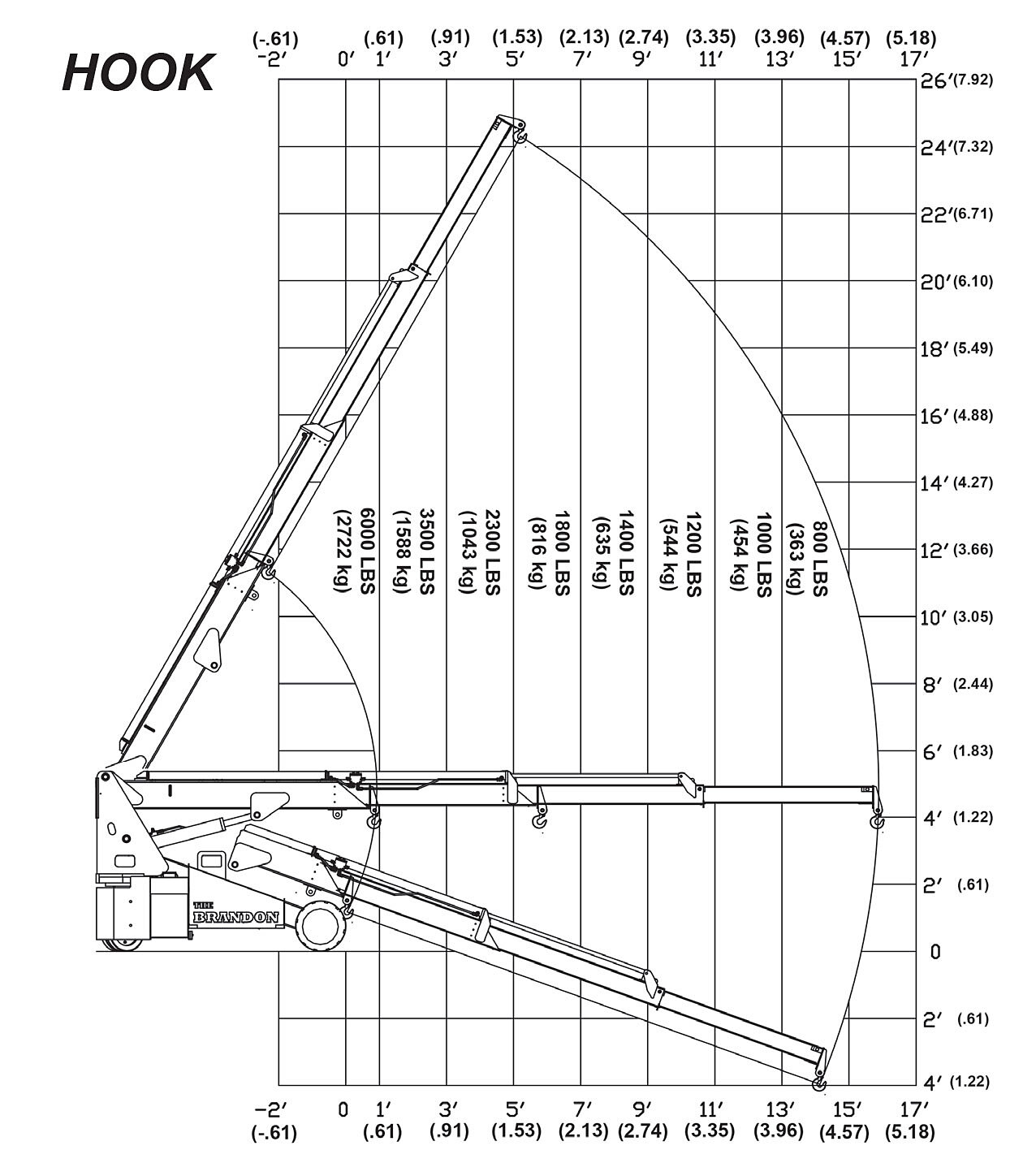

Hook Capacity: 6,000 lbs

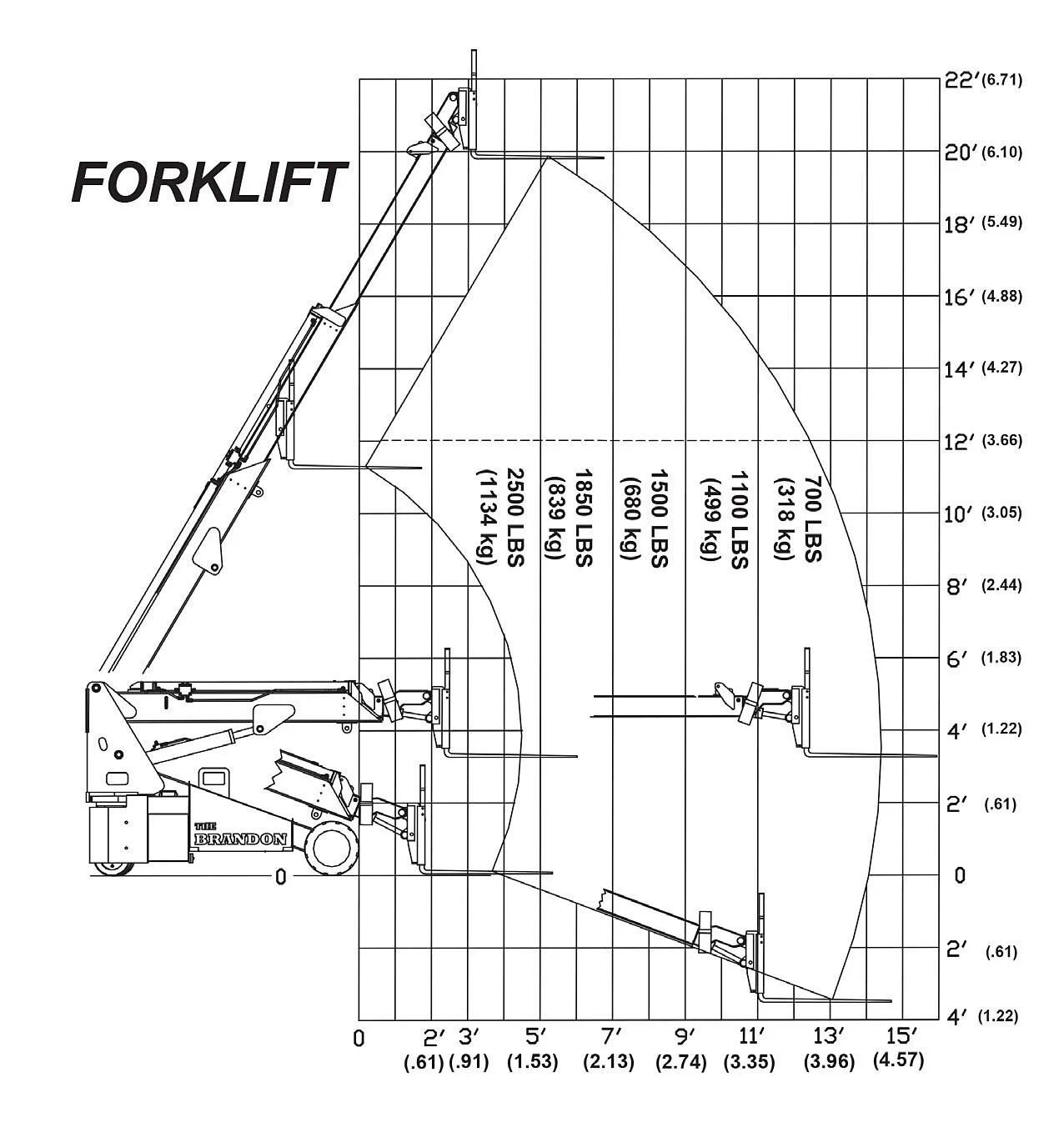

Fork Capacity: 2,500 lbs

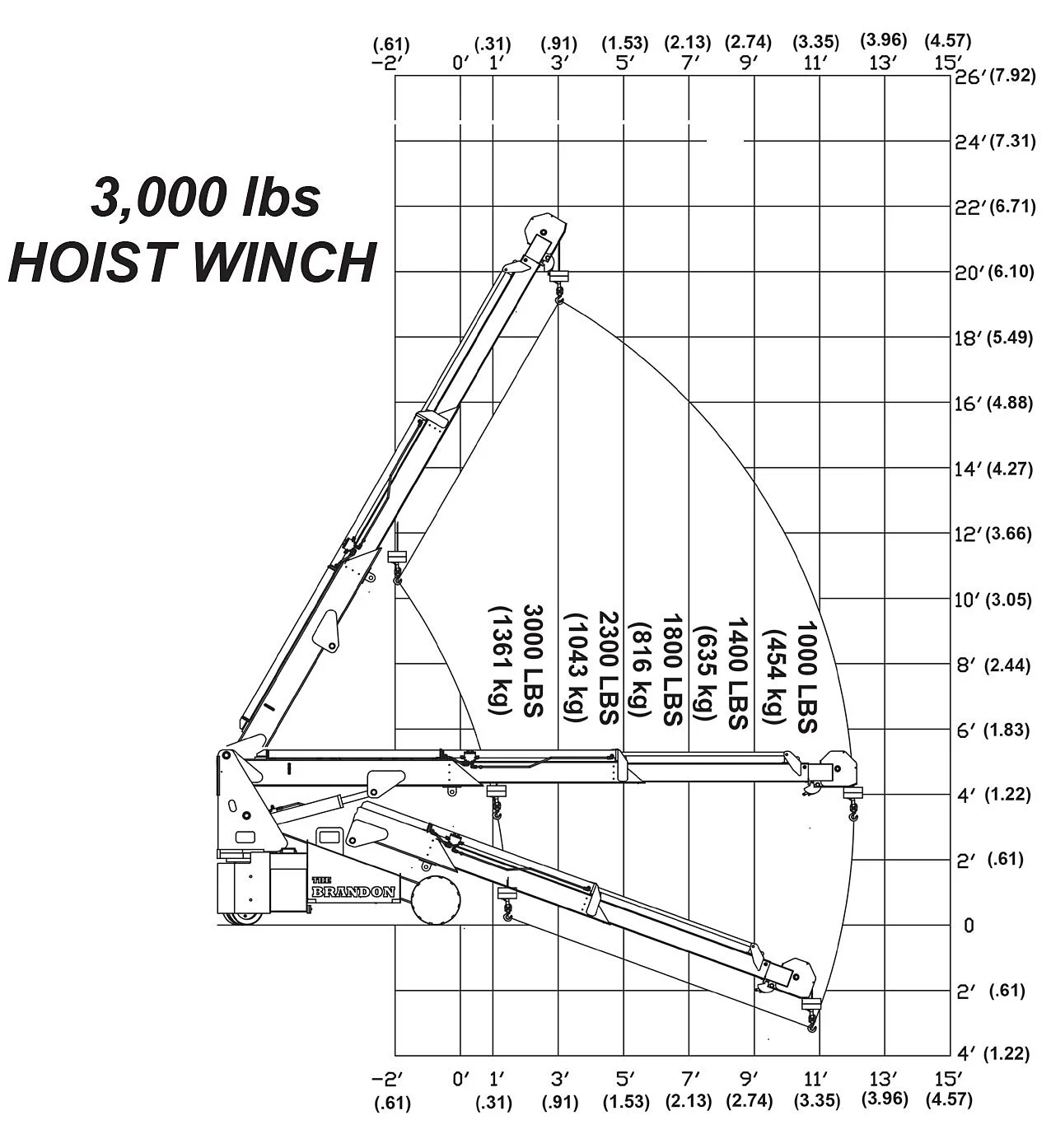

Winch Capacity: 3,000 lbs

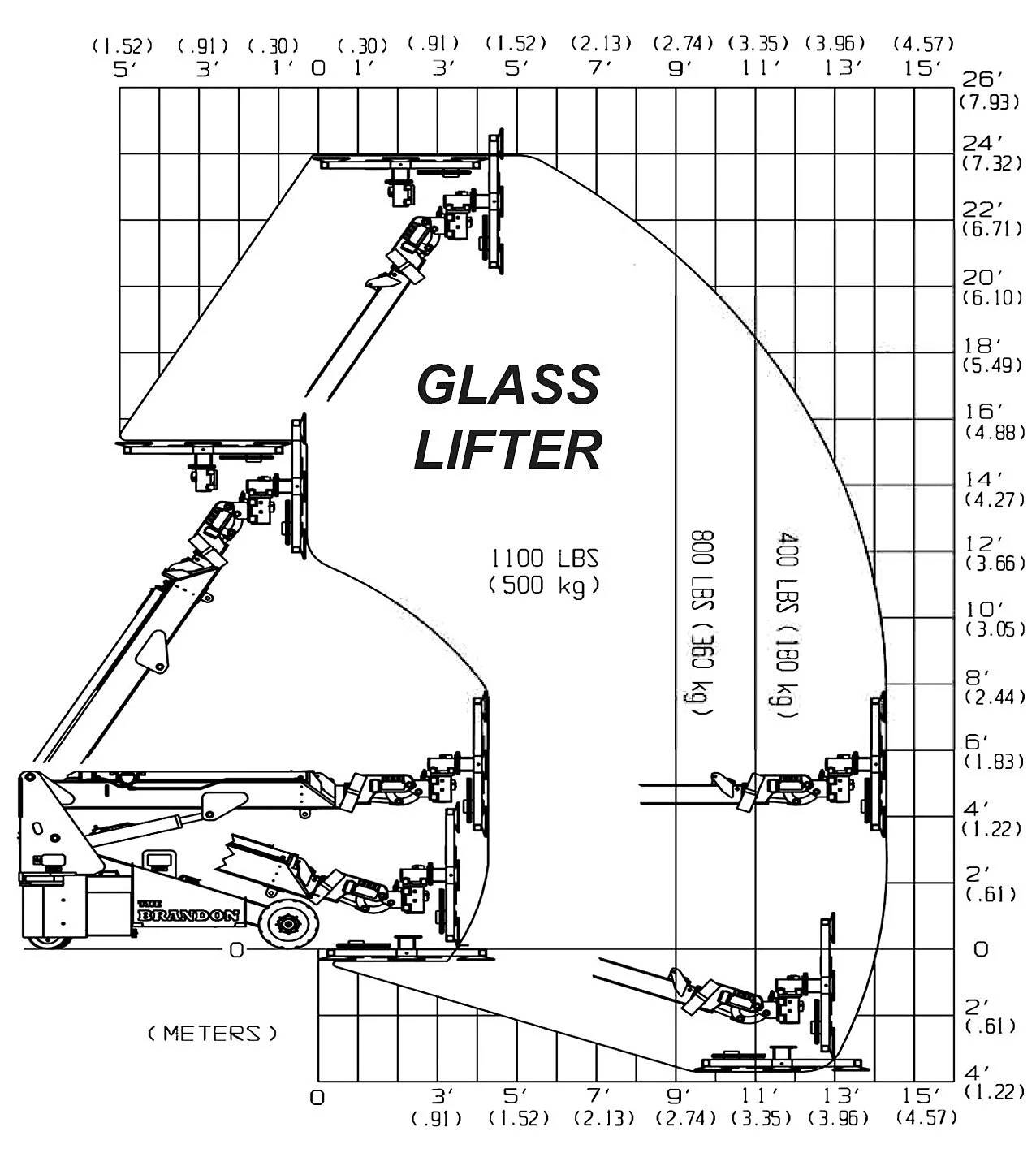

Glazier Capacity: 1,100 lbs

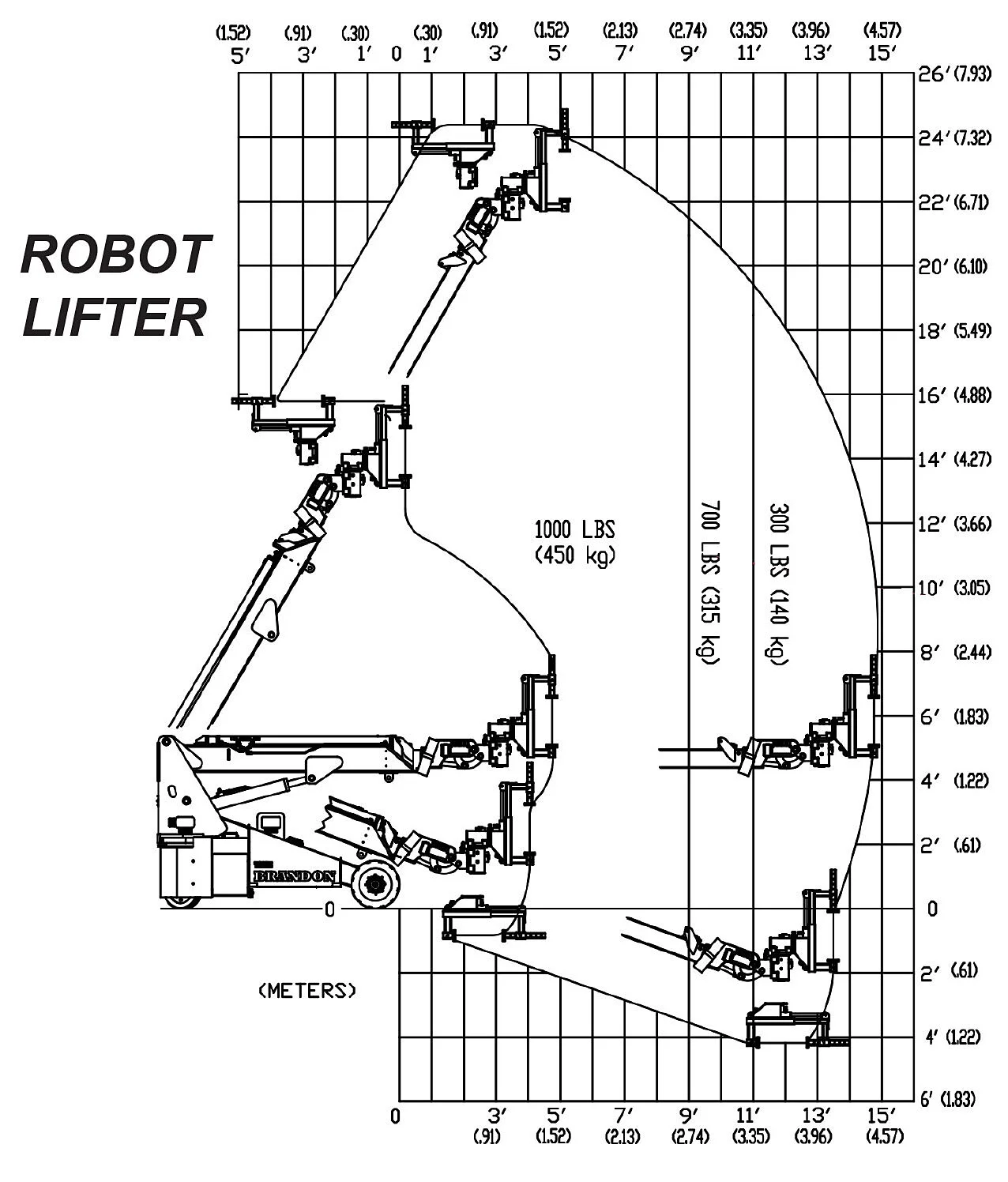

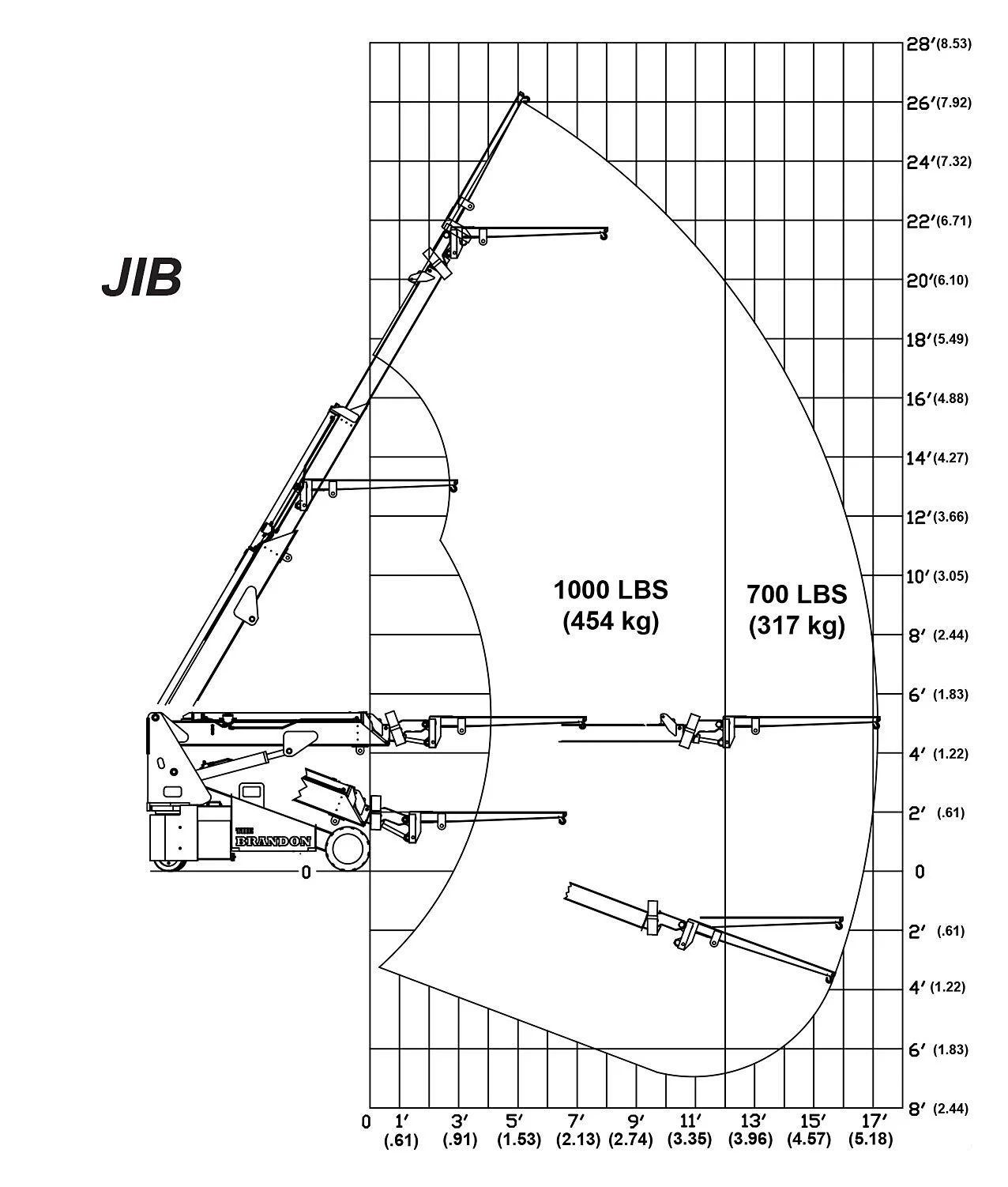

Robot or Jib Capacity: 1,000 lbs
Reach: Industry leading reach with
below grade capability.
Battery Power: 24V 435Amp-Hour
Electric Motor: 6HP Fan Cooled DC
Weight: 5,500 Lbs + Attachment
Steering: Rear Wheel
Charger: On-board 110 Volts AC
Proportional Controls: Electric Joystick for Proportional Lift and Extend. Includes 2-Speed HI/LOW switch for precise slow speed control.

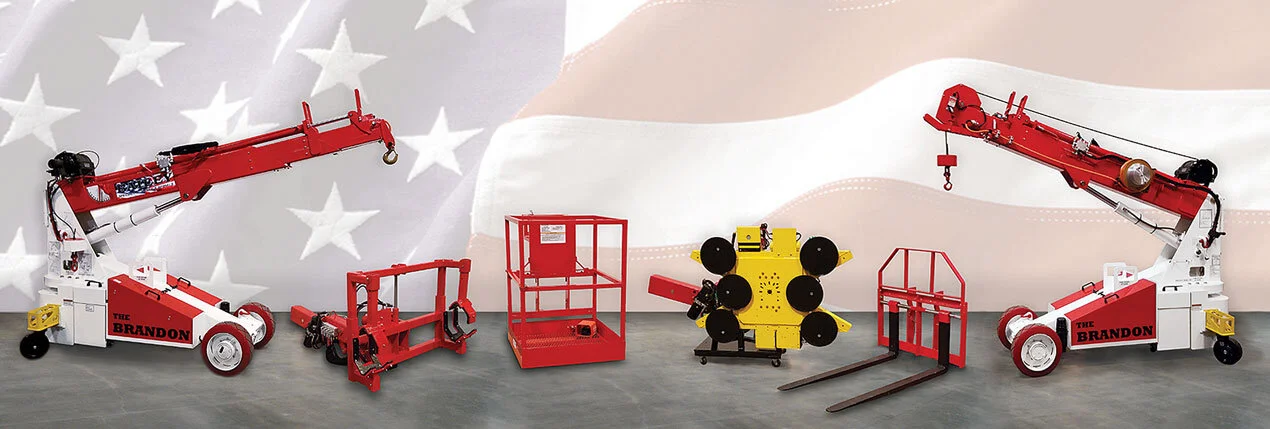

Boom: Base unit, 2 telescoping booms and one manual pull-out boom. Attachments replace pull-out boom.
Hydraulics: Gear Pump with Load Sense Dump.
Drive: 2 Wheel Drive and Braking with Joystick and Speed Dial to best provide inching control.
Rated Load Limiter: Displays rated load and actual load. Stops when rated load is reached. Detects which attachment is installed and automatically adjusts load parameters.
Progressive Function Control: Adjusts the maximum drive and lift speeds to limit unsafe operation based on the following:
Steering Angle (Drive slow with tight radius)
Boom Height and Reach
Lifted Load (Slow when closer to limit)
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A TELEHANDLER FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE TELEHANDLER.
| Model Number | Weight Capacity [Lbs] |
Power | Price |
|---|---|---|---|
| DS-BC10 | 3,000 | Electric Motor: 6HP Fan Cooled DC | $159,950 |
***PRICES SUBJECT TO CHANGE WITHOUT NOTICE***
| Model Number | Description | Capacity [lbs] |
Price |
|---|---|---|---|
| DS-TPTA | Powered Tip Assembly* | n/a | $8,594 |
| DS-TRO | Robot Lifter[Includes 3 Axis Manipulator] | 1,000 | $19,465 |
| DS-TGL | Glass Lifter w/side Shift [Includes 3 Axis Manipulator] | 1,100 | $28,532 |
| DS-FK* | Forks [requires powered tip assembly] | 1,500 | $3,456 |
| DS-MB* | Man Basket [requires powered tip assembly] | 500 | $6,375 |
| DS-WN | Winch 90' of cable | 3,000 | $13,125 |
| DS-WN-1995 | Winch 230' of cable | 3,000 | $13,525 |
| DS-3708 | Hook Brandon 6 - 4th stage pull-out boom | 5,000 | $2,200 |
SO 9001 REGISTERED MANUFACTURING COMPANY
***PRICES SUBJECT TO CHANGE WITHOUT NOTICE***
