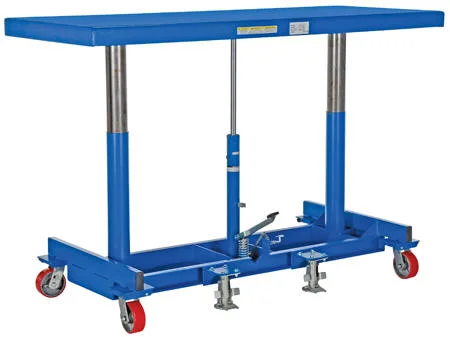

Long Deck Cart
Long Deck Cart

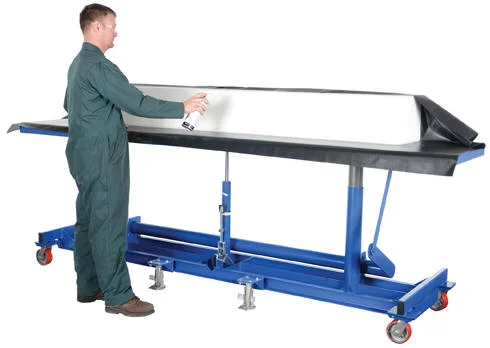

A Long Deck Cart may be perfect for sheet and strip handling, ergonomic load positioning or handling awkward material loads.
Platform height is adjusted with manual hydraulic foot pump. Structural steel base helps to distribute the load evenly.
Pricing
| Long Deck - Cart | |||||
|---|---|---|---|---|---|
| Model Number | Platform Size [WxL] | Raised/Lowered Height | Uniform Capacity (lbs.) | Weight (lbs.) | Price |
| DS-LDLT-3060 | 30" x 60" | 49"/31" | 2,000 | 568 | $2,089 |
| DS-LDLT-3072 | 30" x 72" | 49"/31" | 2,000 | 588 | $2,136 |
| DS-LDLT-3096 | 30" x 96" | 49"/31" | 2,000 | 784 | $2,348 |
| DS-LDLT-30120 | 30" x 120" | 49"/31" | 2,000 | 961 | $2,584 |
| DS-LDLT-3060-4 | 30" x 60" | 49"/31" | 4,000 | 613 | $2,260 |
| DS-LDLT-3072-4 | 30" x 72" | 49"/31" | 4,000 | 633 | $2,283 |
| DS-LDLT-3096-4 | 30" x 96" | 49"/31" | 4,000 | 829 | $2,779 |
| All dimensions are in inches | |||||
Features
Standard Features:
[4] swivel 5" x 2" poly-on-steel casters
Dual floor locks
Manual foot pump operation
Painted blue enamel
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
Options:
AC Power 115, 208-230, 460V-1 or 3 Phase[DS-LDLT-AC] $1,168
DC Power [1] 12V battery [battery charger included] [DS-LDLT-DC] $1,180
Air Power long deck cart option-rotary air/oil power [DS-LDLT-AIR] $2,269
Reciprocating Air/Oil Power with Foot Treadle Control [DS-LDLT-RECIPR] $567
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Drawings:
DS-LDLT-3060
DS-LDLT-3072
DS-LDLT-3096
DS-LDLT-30120
DS-LDLT-3060-4
DS-LDLT-3072-4
DS-LDLT-3096-4
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A CART FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE CART.
