Fully Stainless Steel Scissor Carts
Fully Stainless Steel Scissor Carts
Our fully welded Stainless Steel Carts resist corrosion with parts made from 304 grade stainless steel including the pump and foot pedal.
These carts are suitable for most food, medical, pharmaceutical and other cleanroom industry settings. Also suitable for wash-down applications. 2 rigid and 2 swivel polyurethane wheels with brakes standard. Units feature a high quality actuated, single-speed hydraulic pump, Models CART-550-SS and CART-1100-SS, two speed hydraulic pump.
Pricing
| Fully Stainless Steel Hydraulic Elevating - Cart | |||||
|---|---|---|---|---|---|
| Model Number | Platform (W x L) | Service Range | Uniform Capacity (lbs.) | Weight (lbs.) | Price |

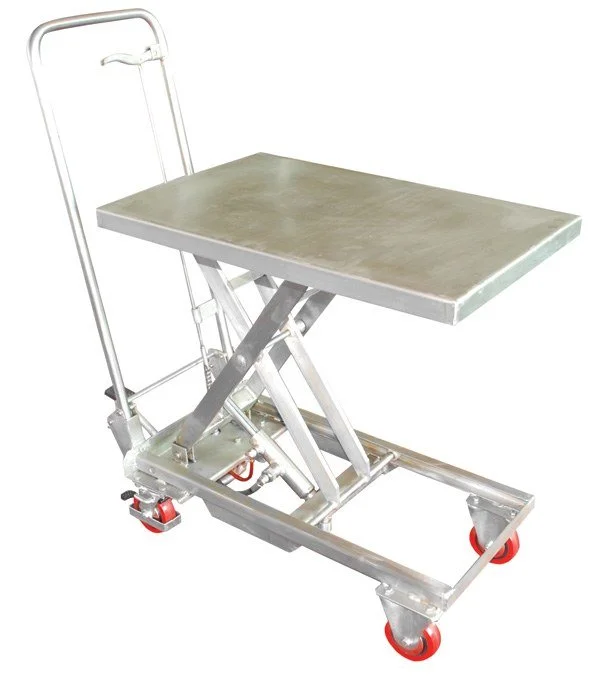

| DS-SSSC-200 | 17-3/4" x 27-1/2" | 10" to 30-1/2" | 200 | 135 | $3,639 |

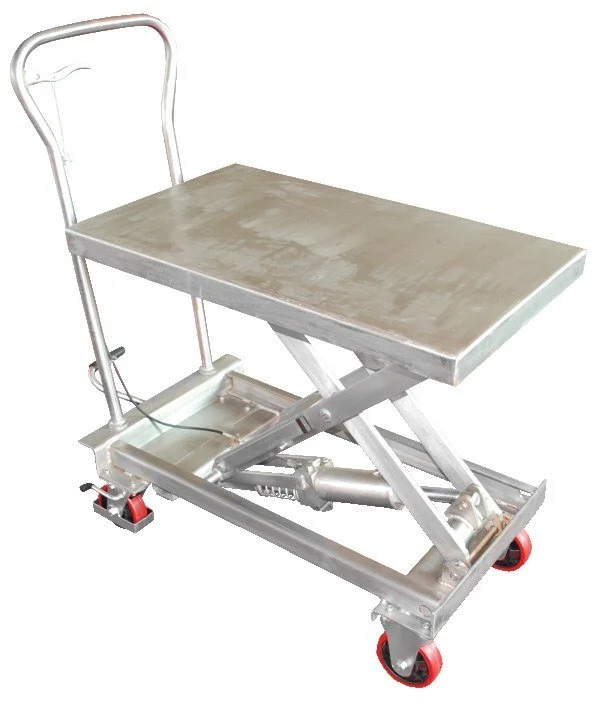

| DS-SSSC-400 | 19-1/2" x 32-3/4" | 12-3/4" to 36-1/2" | 400 | 209 | $4,441 |

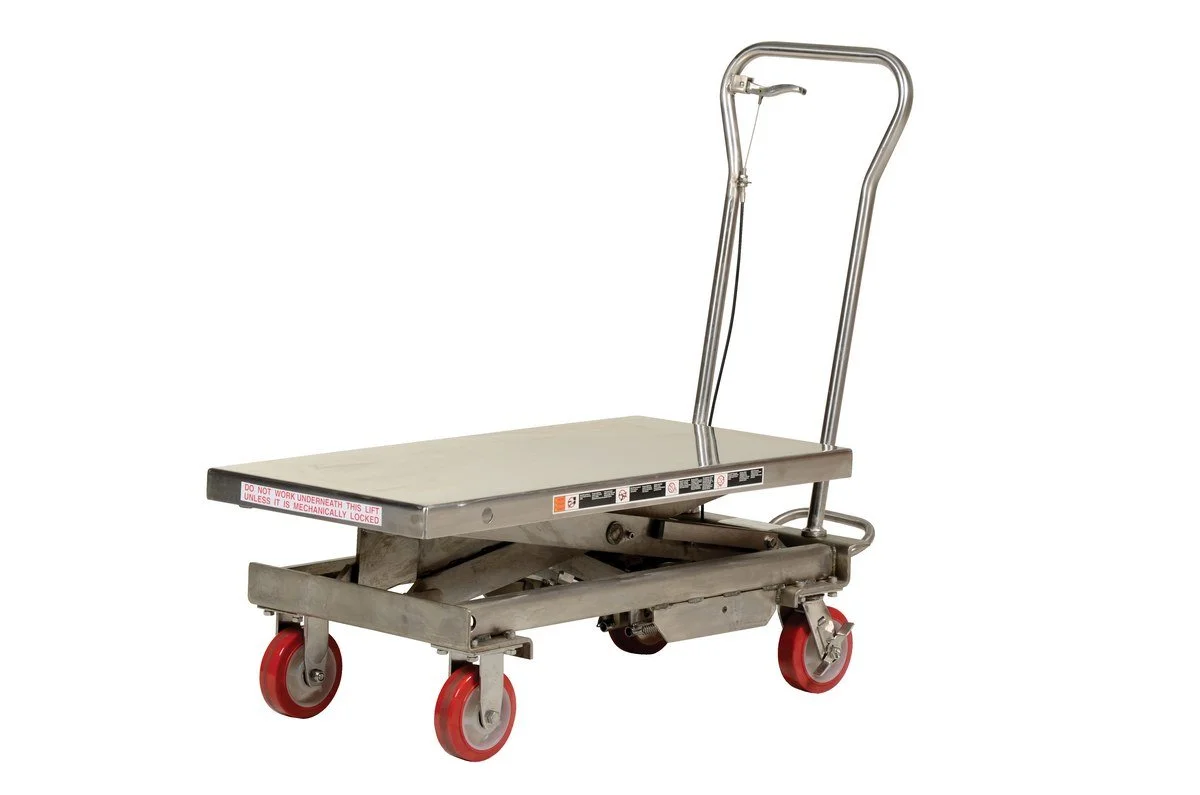

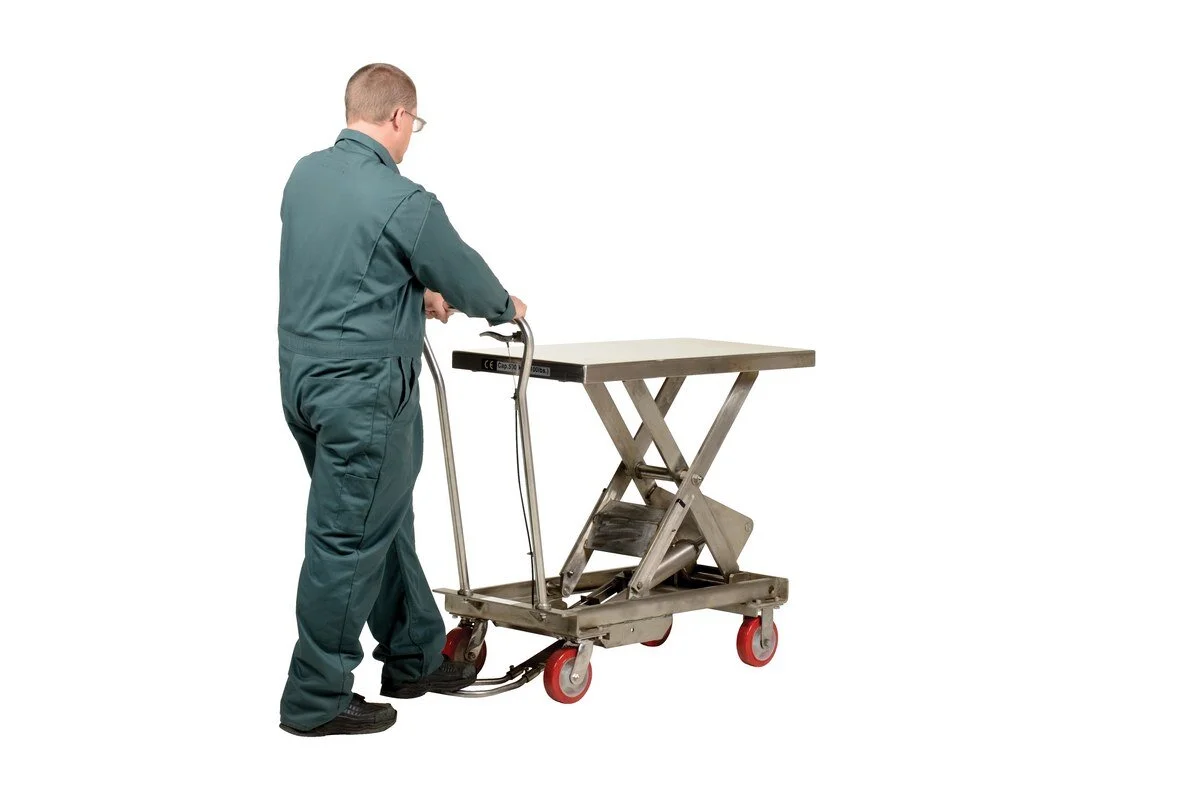

| DS-SSSC-1000 | 20-1/2" x 40" | 17" to 40" | 1,000 | 313 | $5,351 |

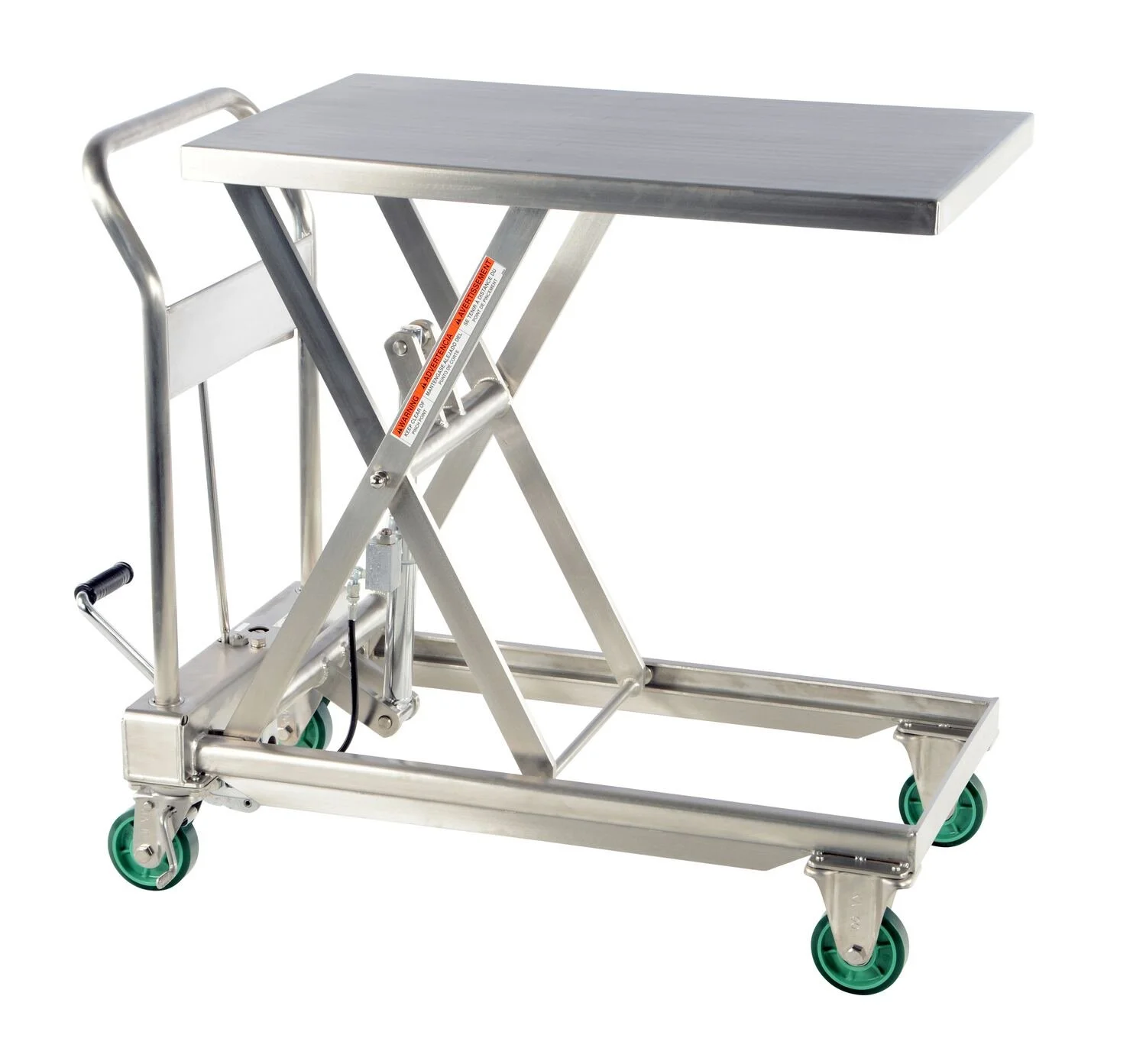

| DS-CART-550-SS | 19-1/2" x 31-1/2" | 9-3/4" to 33-1/2" | 550 | 179 | $6,354 |
| DS-CART-500-SS3 | 32-1/2" x 19-3/8" | 11" to 35-7/8"" | 500 | 198 | $3,460 |

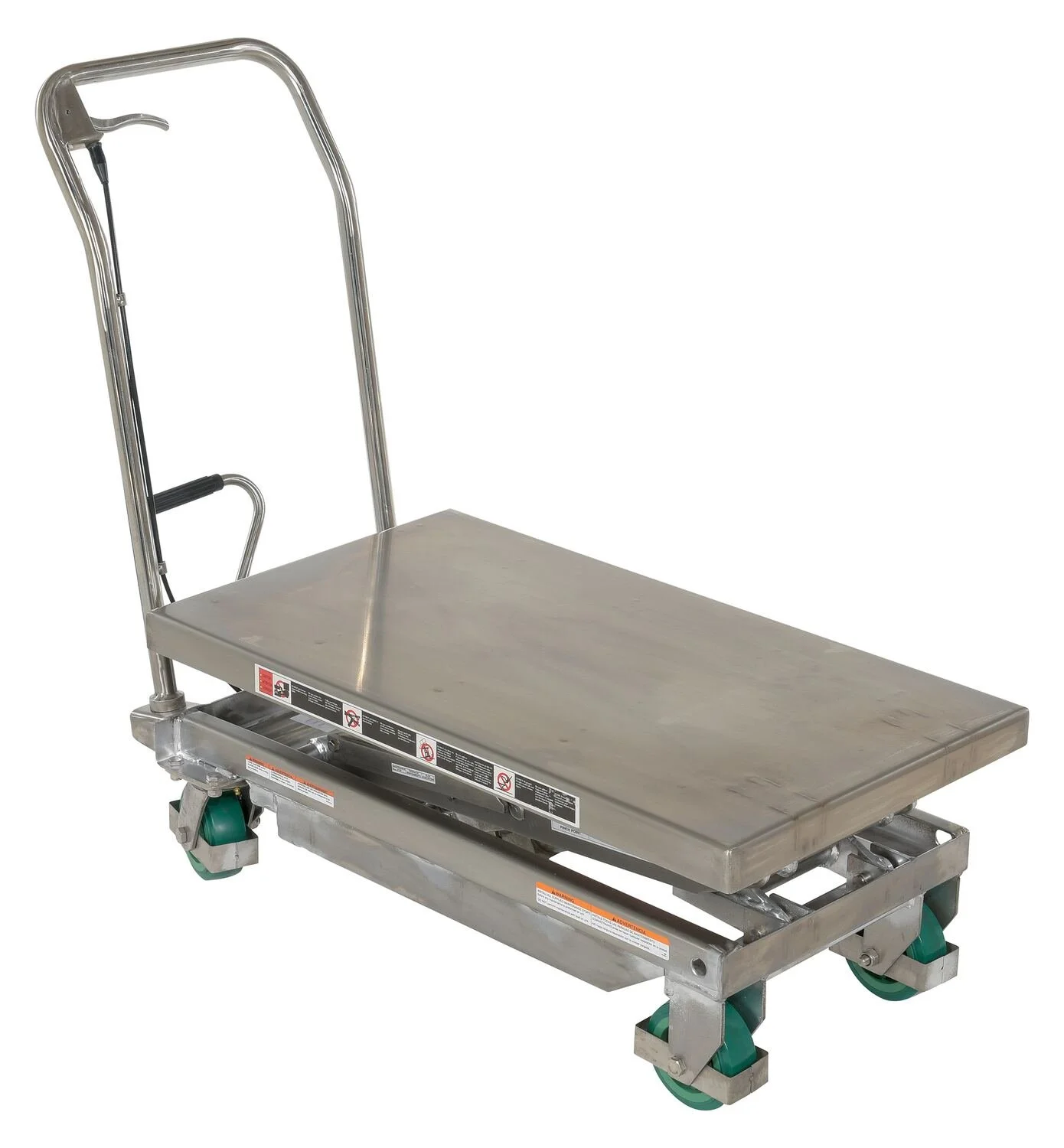

| DS-CART-600-D-SS2 | 36-1/4" x 19-3/8" | 13-3/4" to 51" | 600 | 255 | $5,395 |

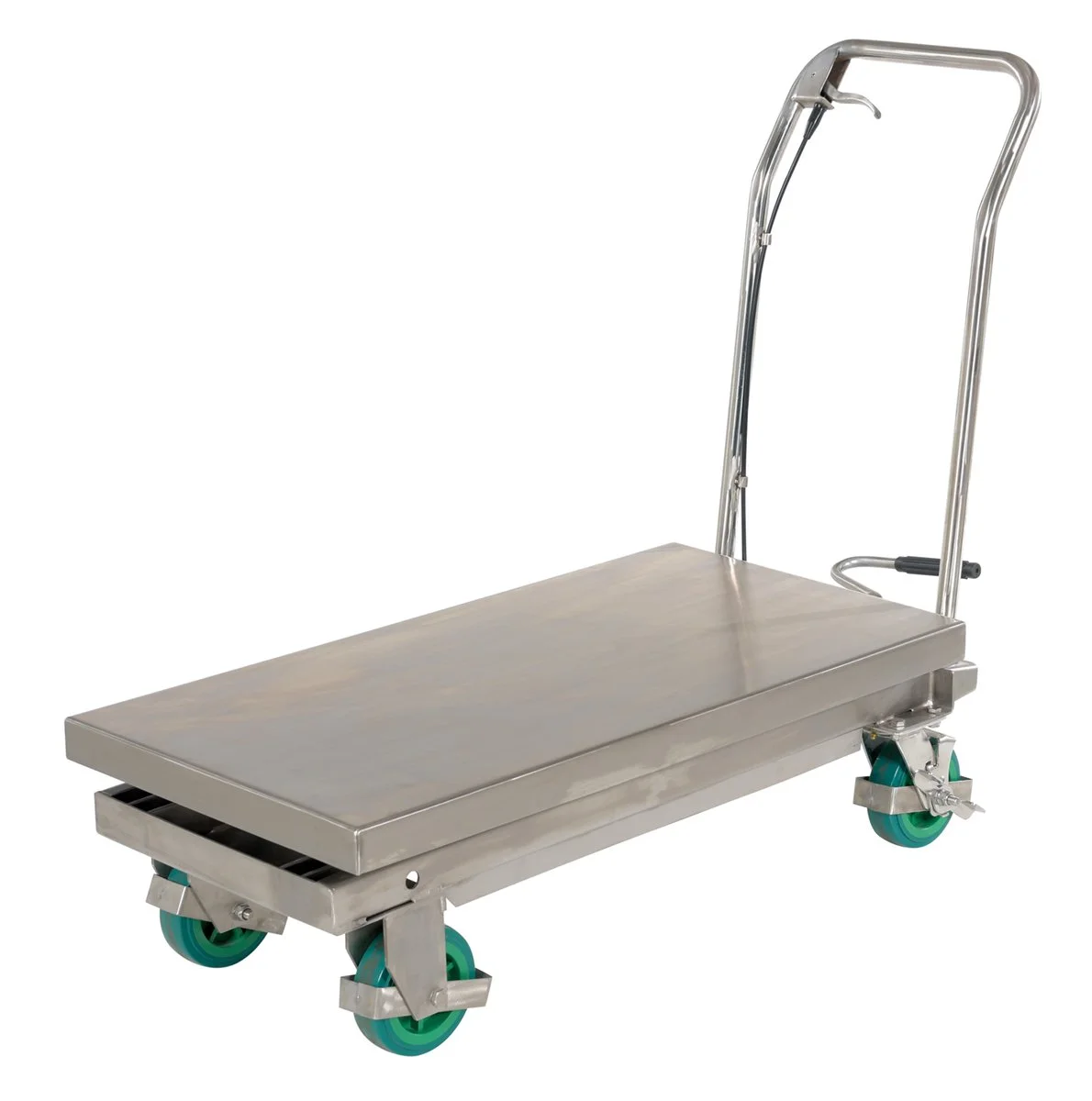

| DS-CART-1000-SS2 | 39-3/8" x 19-3/8" | 12-1/2" to 38-1/2" | 1,000 | 208 | $4,471 |

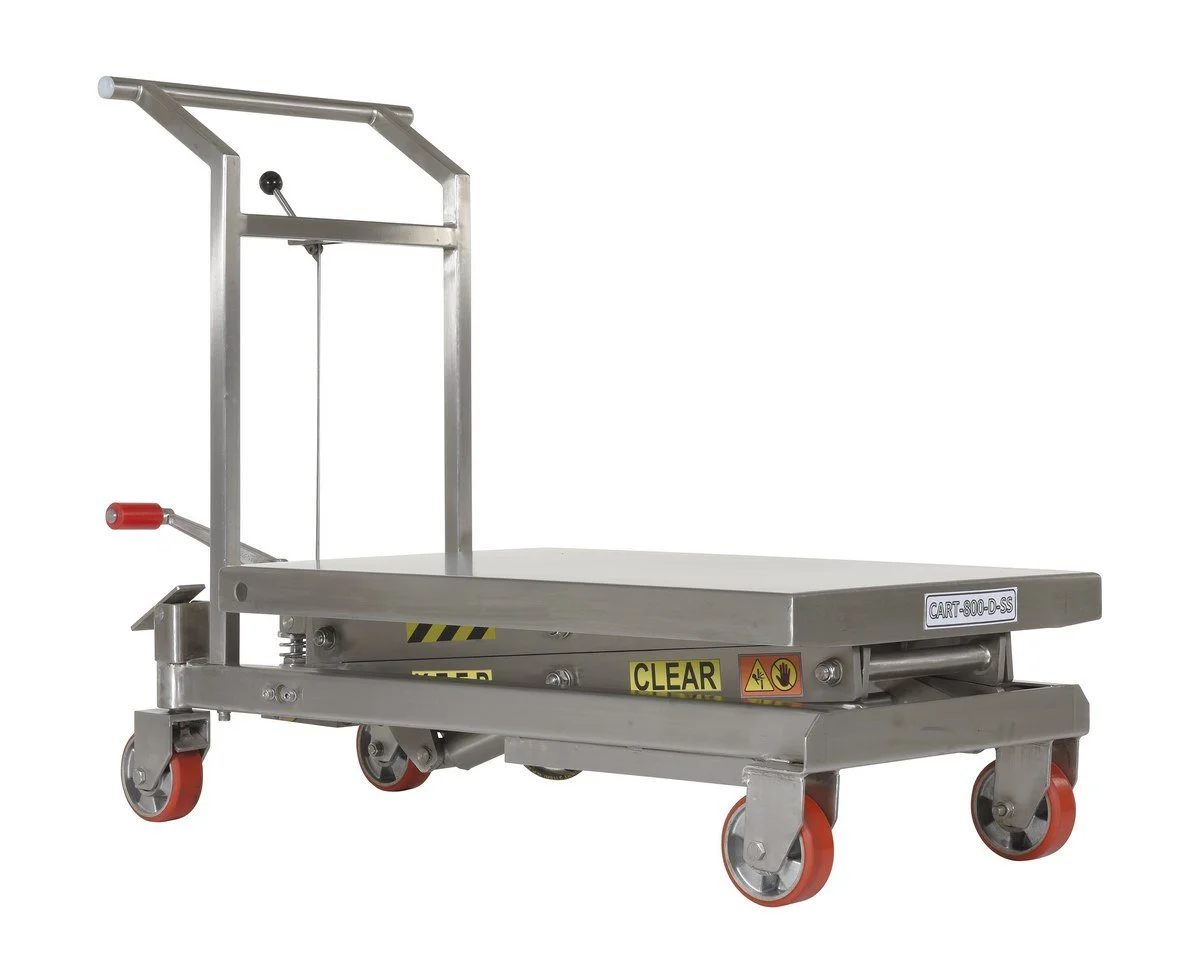

| DS-CART-800-D-SS | 23-5/8" x 35-1/2" | 13-3/8" to 48-7/16" | 800 | 335 | $8,174 |

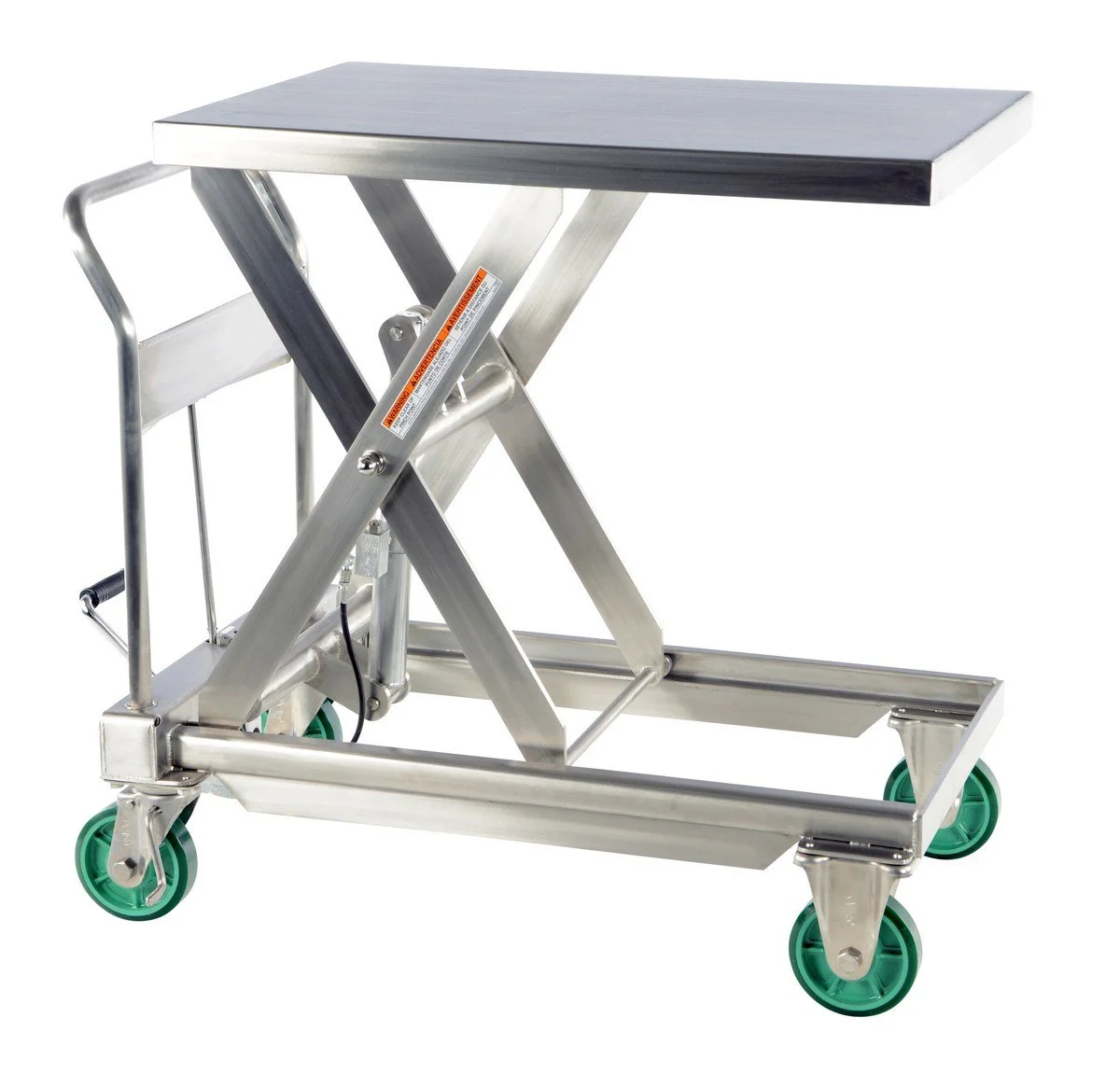

| DS-CART-1100-SS | 23-1/2" x 35-1/2" | 13" to 38-1/2 | 1,100 | 249 | $8,538 |

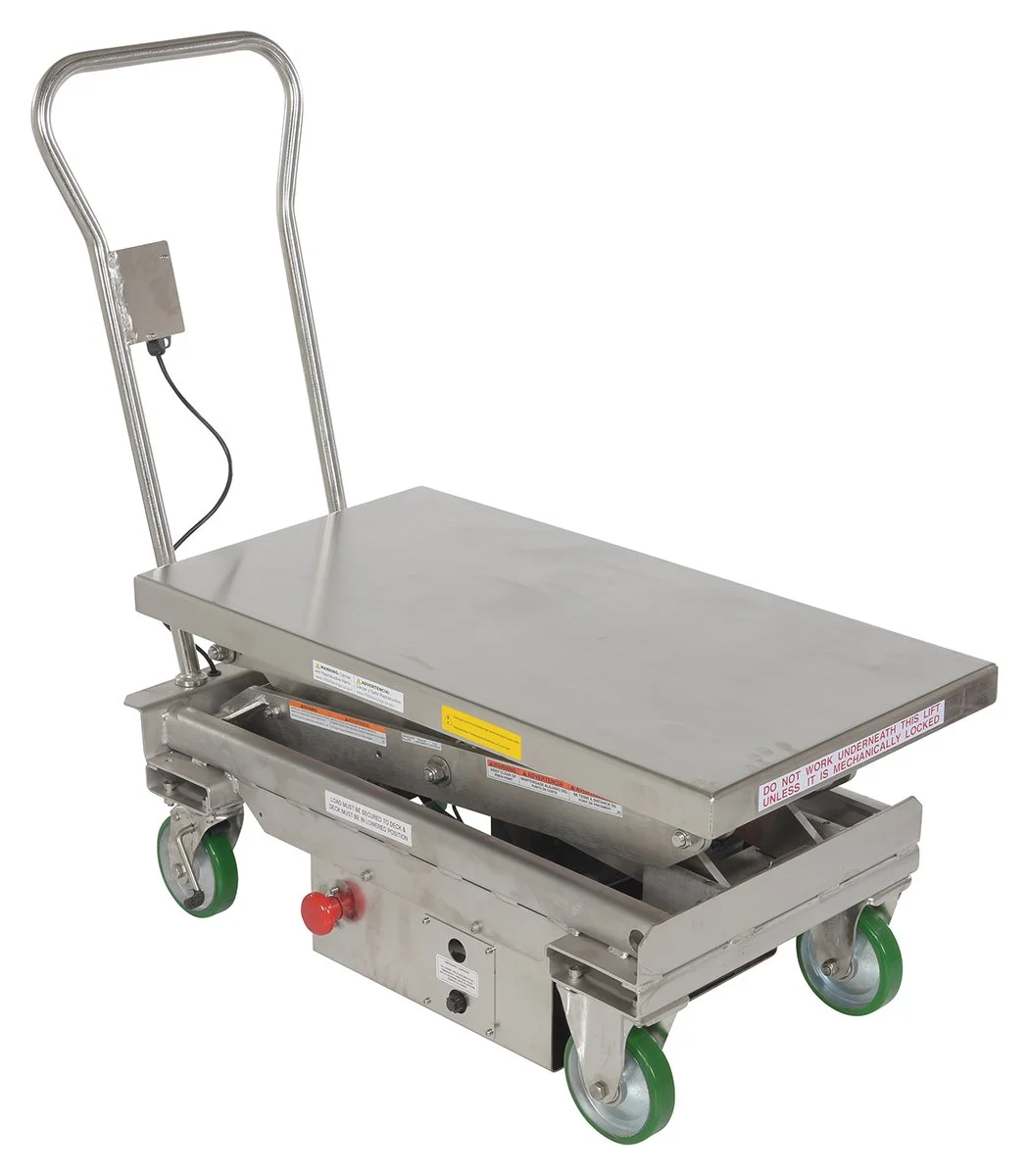

| DS-CART-1000D-DC-SS | 20-1/2" x 39-3/4" | 19-1/2"x63-3/4" | 1,000 | 595 | $9,760 |

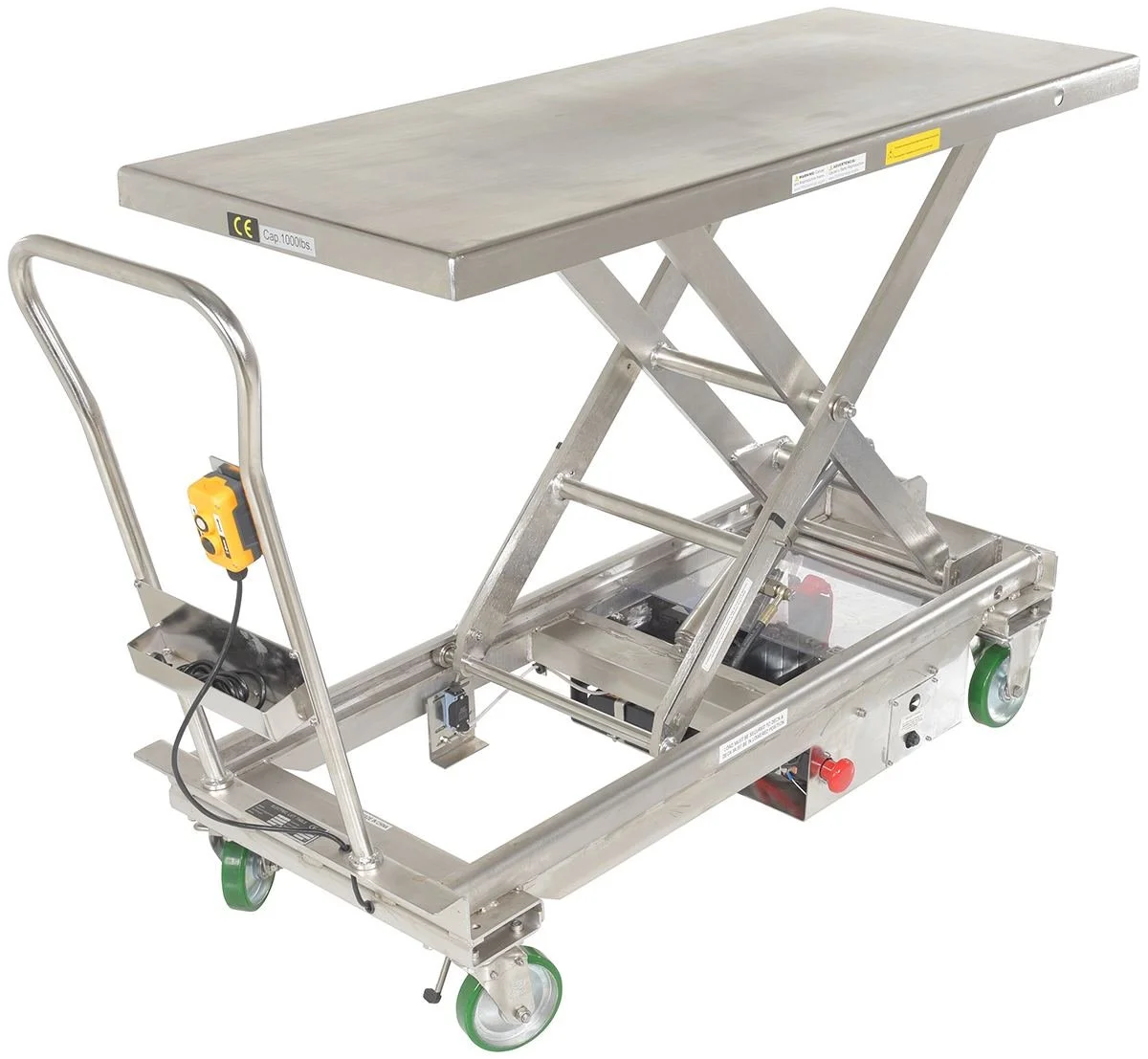

| DS-CART-1000-LD-DC-SS | 68"x24-1/2" x 46-3/4" | 17-1/2"x60" | 1,000 | 610 | $11,042 |
| All dimensions are in inches / Quickship 48-72 hours | |||||
Features
Standard Features:
High handle to minimize slouching during transportation
Smooth rolling on [4] 4” x 1-1/4” polyurethane casters
Robust capacity is great for handling products both large and small
Unique lift design quickly raises & lowers material
Ergonomic cart design improves user safety
Caster construction provides easy portability when loaded
Stainless Steel construction offers long lasting rugged use

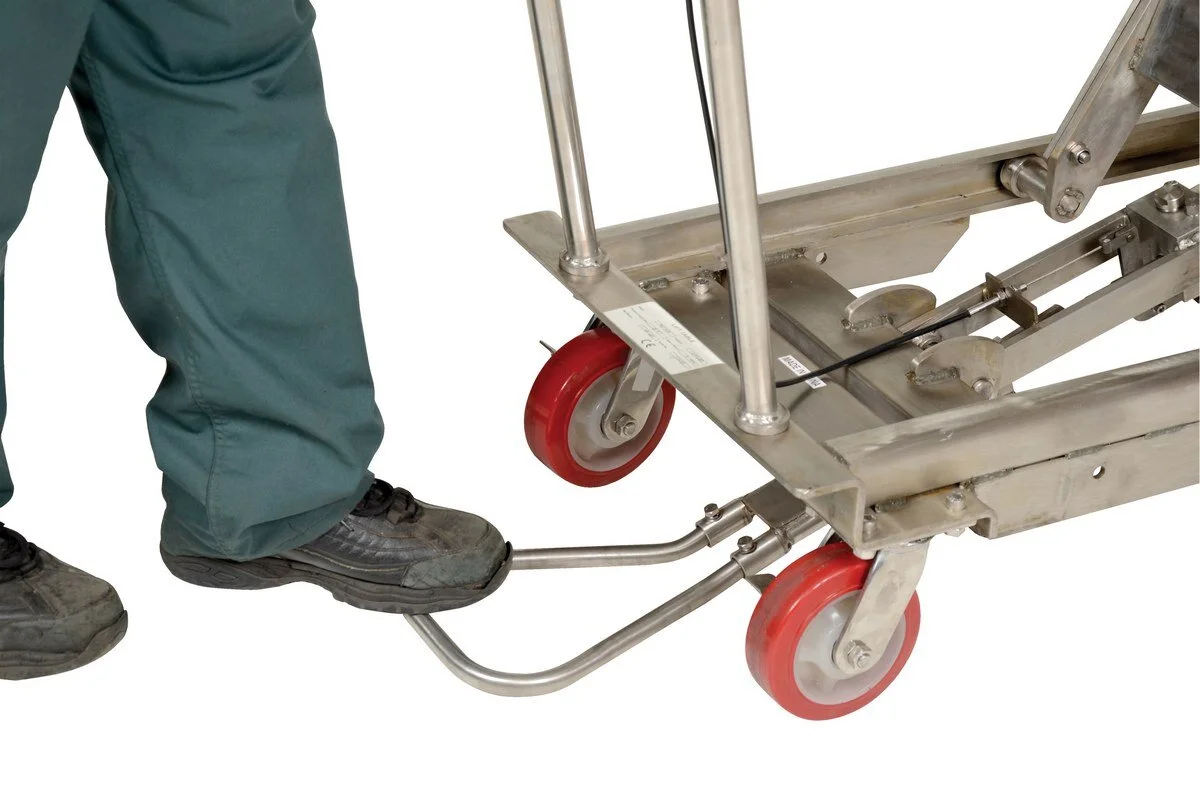

Two speed foot pump - about 12 pumps to completely raise on fast speed - 27 pumps on slow speed
2 speed foot pump with manual release valve on 1500 and 2000 Carts
Elevation per stroke [in] 3/4"
Accordion skirting available
Quickship in most cases less than a week
Model DS-CART-1100-SS and DS-CART-550-SSFoot pump pedal, pump assembly, and hydraulic cylinder are chrome plated. Rest of the unit is fully stainless steel.
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
No options available for this product
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Manual:
DS-SSSC-MANUAL
DS-CART-550-SS-MANUAL
DS-CART-1100-SS-Manual
DS-CART-1000D-DC-MANUAL
Drawings:
DS-CART-550-SS
DS-CART-600-D-SS2
DS-CART-1000D-DC-SS
DS-CART-1100-SS
Videos:
Fully Stainless Steel Scissor Cart
Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
