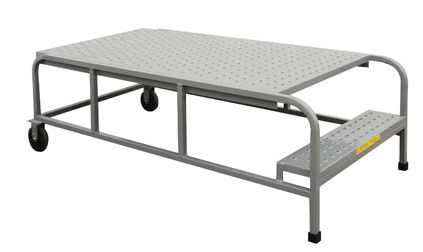

Mobile Work Platform
Mobile Work Platform
$240.00
Our mobile work platform utilizes a tilt and roll design for quick and easy placement to the areas you need them.
These platforms provide a safe and stable elevated working surface for hard to reach tasks in your shop or factory.
Pricing
| Mobile Work Platforms - 2 To 5 Steps - Perforated | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Number | # Of Steps | Platform Height | Platform Width | Platform Depth | Base W x D | Hand Rails | Lbs. | Perforated | |
| DS-2SWP2421-P | 2 | 20" | 24" | 21" | 26"x27" | No | 46 | $360 | |
| DS-2SWP2428-P | 2 | 20" | 24" | 28" | 26"x34" | No | 52 | $450 | |
| DS-2SWP2435-P | 2 | 20" | 24" | 35" | 26"x41" | No | 58 | $480 | |
| DS-2SWP2442-P | 2 | 20" | 24" | 42" | 26"x48" | No | 64 | $540 | |
| DS-2SWP2449-P | 2 | 20" | 24" | 49" | 26"x55" | No | 69 | $570 | |
| DS-2SWP2456-P | 2 | 20" | 24" | 56" | 26"x62" | No | 76 | $630 | |
| DS-2SWP3021-P | 2 | 20" | 30" | 21" | 32"x27" | No | 59 | $450 | |
| DS-2SWP3028-P | 2 | 20" | 30" | 28" | 32"x34" | No | 68 | $540 | |
| DS-2SWP3035-P | 2 | 20" | 30" | 35" | 32"x41" | No | 77 | $600 | |
| DS-2SWP3042-P | 2 | 20" | 30" | 42" | 32"x48" | No | 85 | $660 | |
| DS-2SWP3049-P | 2 | 20" | 30" | 49" | 32"x55" | No | 92 | $690 | |
| DS-2SWP3056-P | 2 | 20" | 30" | 56" | 32"x62" | No | 102 | $720 | |
| DS-3SWP2421-P | 3 | 30" | 24" | 21" | 26"x33" | No | 59 | $480 | |
| DS-3SWP2428-P | 3 | 30" | 24" | 28" | 26"x40" | No | 66 | $540 | |
| DS-3SWP2435-P | 3 | 30" | 24" | 35" | 26"x47" | No | 73 | $570 | |
| DS-3SWP2442-P | 3 | 30" | 24" | 42" | 26"x54" | No | 78 | $630 | |
| DS-3SWP2449-P | 3 | 30" | 24" | 49" | 26"x61" | No | 84 | $690 | |
| DS-3SWP2456-P | 3 | 30" | 24" | 56" | 26"x68" | No | 91 | $720 | |
| DS-3SWP3021-P | 3 | 30" | 30" | 21" | 35"x33" | No | 67 | $540 | |
| DS-3SWP3028-P | 3 | 30" | 30" | 28" | 35"x40" | No | 76 | $600 | |
| DS-3SWP3035-P | 3 | 30" | 30" | 35" | 35"x47" | No | 84 | $660 | |
| DS-3SWP3042-P | 3 | 30" | 30" | 42" | 35"x54" | No | 90 | $720 | |
| DS-3SWP3049-P | 3 | 30" | 30" | 49" | 35"x61" | No | 97 | $750 | |
| DS-3SWP3056-P | 3 | 30" | 30" | 56" | 35"x68" | No | 106 | $780 | |
| DS-4SWP2421-P | 4 | 40" | 24" | 21" | 26"x39" | No | 73 | $570 | |
| DS-4SWP2428-P | 4 | 40" | 24" | 28" | 26"x46" | No | 80 | $630 | |
| DS-4SWP2435-P | 4 | 40" | 24" | 35" | 26"x53" | No | 87 | $690 | |
| DS-4SWP2442-P | 4 | 40" | 24" | 42" | 26"x60" | No | 93 | $750 | |
| DS-4SWP2449-P | 4 | 40" | 24" | 49" | 26"x67" | No | 98 | $810 | |
| DS-4SWP2456-P | 4 | 40" | 24" | 56" | 26"x74" | No | 110 | $840 | |
| DS-4SWP3021-P | 4 | 40" | 30" | 21" | 35"x39" | No | 82 | $660 | |
| DS-4SWP3028-P | 4 | 40" | 30" | 28" | 35"x46" | No | 90 | $720 | |
| DS-4SWP3035-P | 4 | 40" | 30" | 35" | 35"x53" | No | 99 | $780 | |
| DS-4SWP3042-P | 4 | 40" | 30" | 42" | 35"x60" | No | 106 | $840 | |
| DS-4SWP3049-P | 4 | 40" | 30" | 49" | 35"x67" | No | 113 | $900 | |
| DS-4SWP3056-P | 4 | 40" | 30" | 56" | 35"x74" | No | 126 | $960 | |
| DS-5SWP2421R-P | 5 | 50" | 24" | 21" | 26"x45" | Yes | 87 | $780 | |
| DS-5SWP2428R-P | 5 | 50" | 24" | 28" | 26"x52" | Yes | 94 | $810 | |
| DS-5SWP2435R-P | 5 | 50" | 24" | 35" | 26"x59" | Yes | 102 | $840 | |
| DS-5SWP2442R-P | 5 | 50" | 24" | 42" | 26"x66" | Yes | 108 | $900 | |
| DS-5SWP2449R-P | 5 | 50" | 24" | 49" | 26"x73" | Yes | 113 | $930 | |
| DS-5SWP2456R-P | 5 | 50" | 24" | 56" | 26"x80" | Yes | 125 | $960 | |
| DS-5SWP3021R-P | 5 | 50" | 30" | 21" | 35"x45" | Yes | 96 | $840 | |
| DS-5SWP3028R-P | 5 | 50" | 30" | 28" | 35"x52" | Yes | 105 | $900 | |
| DS-5SWP3035R-P | 5 | 50" | 30" | 35" | 35"x59" | Yes | 115 | $960 | |
| DS-5SWP3042R-P | 5 | 50" | 30" | 42" | 35"x66" | Yes | 121 | $1,050 | |
| DS-5SWP3049R-P | 5 | 50" | 30" | 49" | 35"x73" | Yes | 128 | $1,140 | |
| DS-5SWP3056R-P | 5 | 50" | 30" | 56" | 35"x80" | Yes | 142 | $1,230 | |
| Mobile Work Platforms - 2 To 5 Steps - Serrated | |||||||||
| Model Number | # Of Steps | Platform Height | Platform Width | Platform Depth | Base W x D | Hand Rails | Lbs. | Serrated | |
| DS-2SWP2421-S | 2 | 20" | 24" | 21" | 26"x27" | No | 46 | $540 | |
| DS-2SWP2428-S | 2 | 20" | 24" | 28" | 26"x34" | No | 52 | $600 | |
| DS-2SWP2435-S | 2 | 20" | 24" | 35" | 26"x41" | No | 58 | $660 | |
| DS-2SWP2442-S | 2 | 20" | 24" | 42" | 26"x48" | No | 64 | $720 | |
| DS-2SWP2449-S | 2 | 20" | 24" | 49" | 26"x55" | No | 69 | $780 | |
| DS-2SWP2456-S | 2 | 20" | 24" | 56" | 26"x62" | No | 76 | $840 | |
| DS-2SWP3021-S | 2 | 20" | 30" | 21" | 32"x27" | No | 59 | $600 | |
| DS-2SWP3028-S | 2 | 20" | 30" | 28" | 32"x34" | No | 68 | $660 | |
| DS-2SWP3035-S | 2 | 20" | 30" | 35" | 32"x41" | No | 77 | $720 | |
| DS-2SWP3042-S | 2 | 20" | 30" | 42" | 32"x48" | No | 85 | $780 | |
| DS-2SWP3049-S | 2 | 20" | 30" | 49" | 32"x55" | No | 92 | $840 | |
| DS-2SWP3056-S | 2 | 20" | 30" | 56" | 32"x62" | No | 102 | $900 | |
| DS-3SWP2421-S | 3 | 30" | 24" | 21" | 26"x33" | No | 59 | $660 | |
| DS-3SWP2428-S | 3 | 30" | 24" | 28" | 26"x40" | No | 66 | $720 | |
| DS-3SWP2435-S | 3 | 30" | 24" | 35" | 26"x47" | No | 73 | $780 | |
| DS-3SWP2442-S | 3 | 30" | 24" | 42" | 26"x54" | No | 78 | $840 | |
| DS-3SWP2449-S | 3 | 30" | 24" | 49" | 26"x61" | No | 84 | $900 | |
| DS-3SWP2456-S | 3 | 30" | 24" | 56" | 26"x68" | No | 91 | $960 | |
| DS-3SWP3021-S | 3 | 30" | 30" | 21" | 35"x33" | No | 67 | $720 | |
| DS-3SWP3028-S | 3 | 30" | 30" | 28" | 35"x40" | No | 76 | $780 | |
| DS-3SWP3035-S | 3 | 30" | 30" | 35" | 35"x47" | No | 84 | $840 | |
| DS-3SWP3042-S | 3 | 30" | 30" | 42" | 35"x54" | No | 90 | $900 | |
| DS-3SWP3049-S | 3 | 30" | 30" | 49" | 35"x61" | No | 97 | $960 | |
| DS-3SWP3056-S | 3 | 30" | 30" | 56" | 35"x68" | No | 106 | $1,020 | |
| DS-4SWP2421-S | 4 | 40" | 24" | 21" | 26"x39" | No | 73 | $720 | |
| DS-4SWP2428-S | 4 | 40" | 24" | 28" | 26"x46" | No | 80 | $780 | |
| DS-4SWP2435-S | 4 | 40" | 24" | 35" | 26"x53" | No | 87 | $840 | |
| DS-4SWP2442-S | 4 | 40" | 24" | 42" | 26"x60" | No | 93 | $900 | |
| DS-4SWP2449-S | 4 | 40" | 24" | 49" | 26"x67" | No | 98 | $960 | |
| DS-4SWP2456-S | 4 | 40" | 24" | 56" | 26"x74" | No | 110 | $1,020 | |
| DS-4SWP3021-S | 4 | 40" | 30" | 21" | 35"x39" | No | 82 | $840 | |
| DS-4SWP3028-S | 4 | 40" | 30" | 28" | 35"x46" | No | 90 | $900 | |
| DS-4SWP3035-S | 4 | 40" | 30" | 35" | 35"x53" | No | 99 | $960 | |
| DS-4SWP3042-S | 4 | 40" | 30" | 42" | 35"x60" | No | 106 | $1,050 | |
| DS-4SWP3049-S | 4 | 40" | 30" | 49" | 35"x67" | No | 113 | $1,140 | |
| DS-4SWP3056-S | 4 | 40" | 30" | 56" | 35"x74" | No | 126 | $1,230 | |
| DS-5SWP2421R-S | 5 | 50" | 24" | 21" | 26"x45" | Yes | 87 | $1,020 | |
| DS-5SWP2428R-S | 5 | 50" | 24" | 28" | 26"x52" | Yes | 94 | $1,080 | |
| DS-5SWP2435R-S | 5 | 50" | 24" | 35" | 26"x59" | Yes | 102 | $1,140 | |
| DS-5SWP2442R-S | 5 | 50" | 24" | 42" | 26"x66" | Yes | 108 | $1,200 | |
| DS-5SWP2449R-S | 5 | 50" | 24" | 49" | 26"x73" | Yes | 113 | $1,260 | |
| DS-5SWP2456R-S | 5 | 50" | 24" | 56" | 26"x80" | Yes | 125 | $1,320 | |
| DS-5SWP3021R-S | 5 | 50" | 30" | 21" | 35"x45" | Yes | 96 | $1,080 | |
| DS-5SWP3028R-S | 5 | 50" | 30" | 28" | 35"x52" | Yes | 105 | $1,140 | |
| DS-5SWP3035R-S | 5 | 50" | 30" | 35" | 35"x59" | Yes | 115 | $1,230 | |
| DS-5SWP3042R-S | 5 | 50" | 30" | 42" | 35"x66" | Yes | 121 | $1,320 | |
| DS-5SWP3049R-S | 5 | 50" | 30" | 49" | 35"x73" | Yes | 128 | $1,440 | |
| DS-5SWP3056R-S | 5 | 50" | 30" | 56" | 35"x80" | Yes | 142 | $1,530 | |
| All Dimensions are in inches | |||||||||
Features
Standard Features:
57 degree slope
24" or 30" wide steps
Tilt & Roll design
5" rigid casters
Non-marring rubber tips on the legs
Platform depths from 21" to 56" or longer if you need it
300 lb. load rating
1" square tube construction
Gray enamel finish
Options
Add handrails if not standard $145
CAL OSHA compliant $190
Rear chain option $143
Left or right side chain option $190
Left side, right side, and rear chain option $475
Work shelf $475
Deeper top platform [call for pricing]
Larger casters [call for pricing]
Painted yellow [call for pricing]
Replacement parts [call for pricing]
HEAVY duty 500 lb. capacity [call for pricing]
Parts
Parts:
Replacement 1” square rubber feet - DS-1RFeet are $7.50 each
