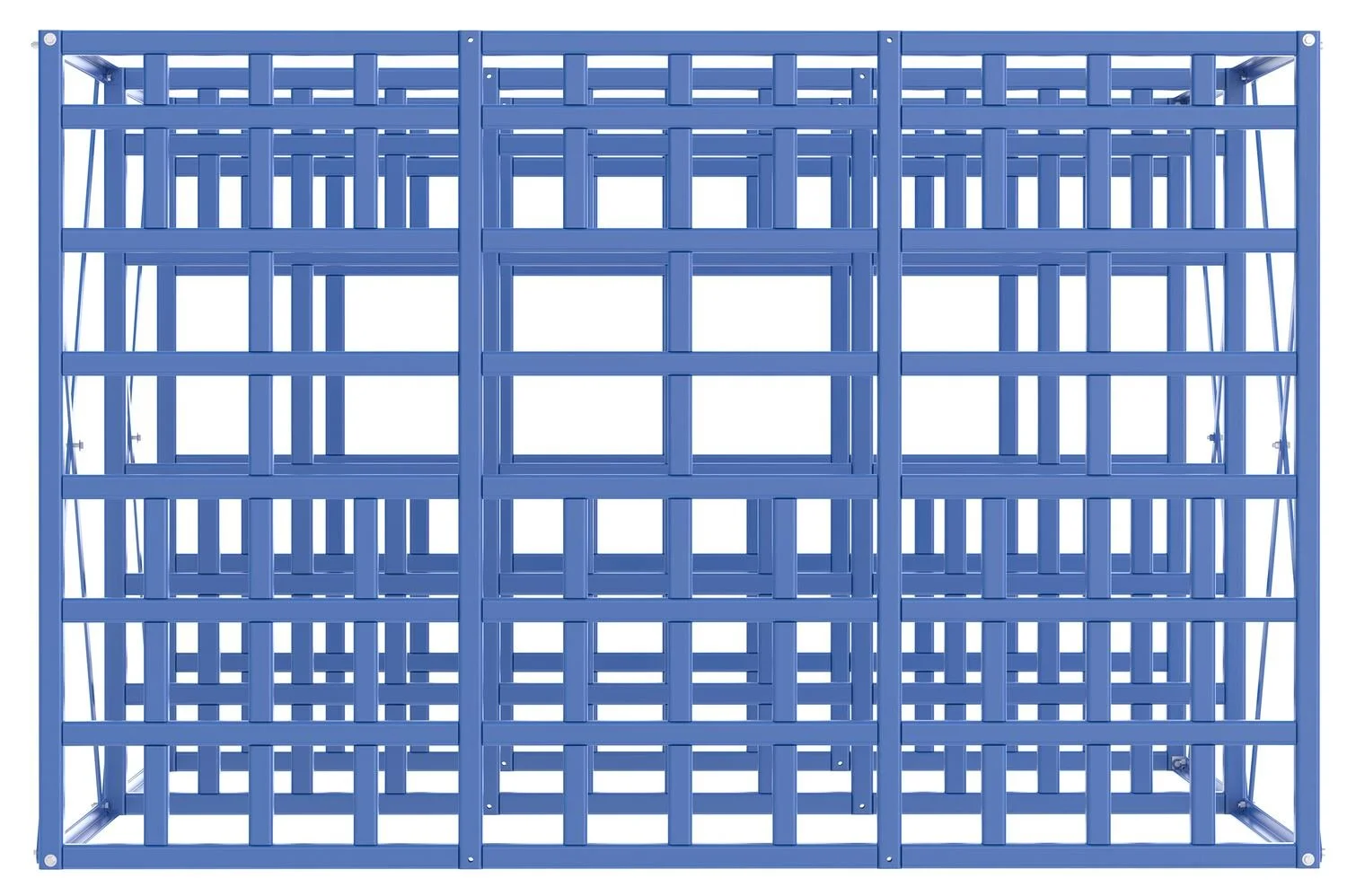

Long Bar Pigeon Hole Rack
Long Bar Pigeon Hole Rack
Ideal for storage of long items in a 5 hole high and 3 hole wide frame with easy identification and retrieval of materials.
Five-hole high and three-hole wide frame allows for easy identification and retrieval of materials. Frames are held in place by separator and bracing bars. 7,700 lbs. capacity per frame. Extension bay kit, model DS-LBPH-EXT, consists of one frame and one set of cross braces for joining to the starter set. Capacity is 2,000 pounds per level or 7,700 per frame. Steel construction.
Pricing
| Long Bar Pigeon Hole - Rack | ||||
|---|---|---|---|---|
| Model Number | Description | Overall Size [WxDxH] | Weight (lbs.) | Price |
| DS-LBPH-77 | Starter Kit | 48-1/82" x 48" x 60"H | 199 | $1,056 |
| DS-LBPH-EXT | Extension Bay Kit | 48-1/2" x 46-7/16" x 60" | 167 | $763 |
| All dimensions are in inches | ||||
Features
Standard Features:
15 bays
1-1/2" x 1-1/2" x 11 gauge box tubing steel construction
1/2" mounting hole [4] total [1] in each corner
Powder coated blue
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
No options available for this product.
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Manual:
DS-LBPH-77-MANUAL
Drawings:
DS-LBPH-77-DRAWING
DS-LBPH-EXT-DRAWING
