Removable Aluminum Stairways
Removable Aluminum Stairways

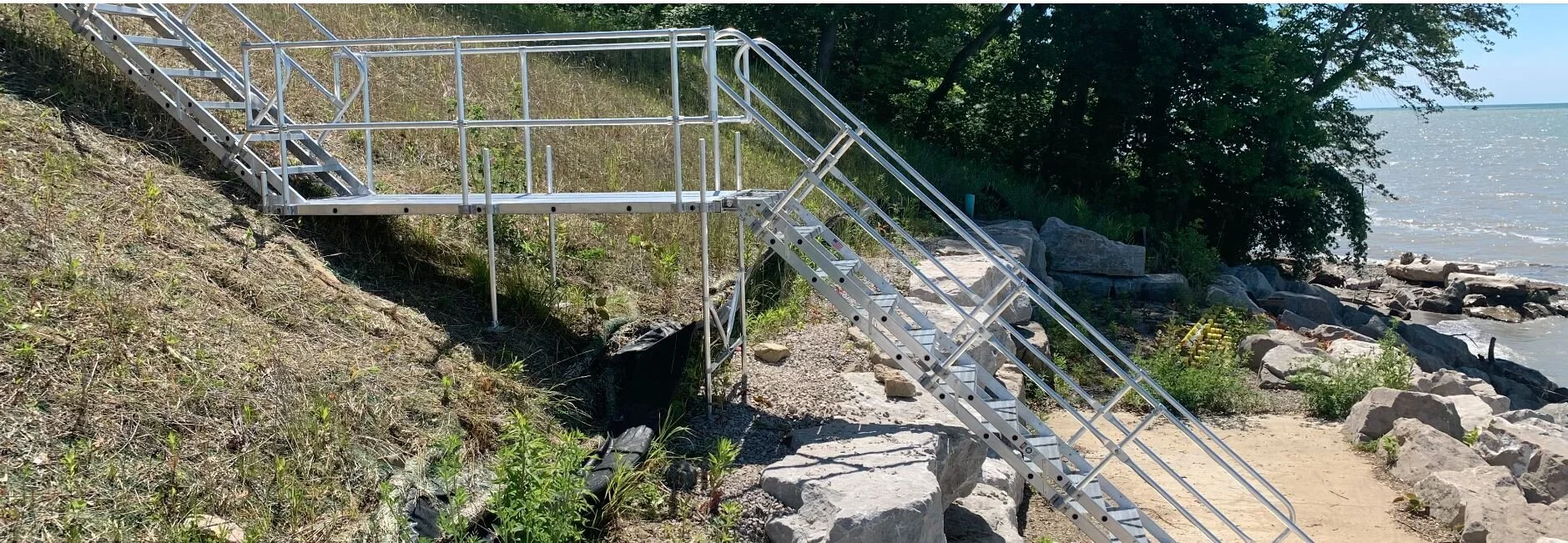

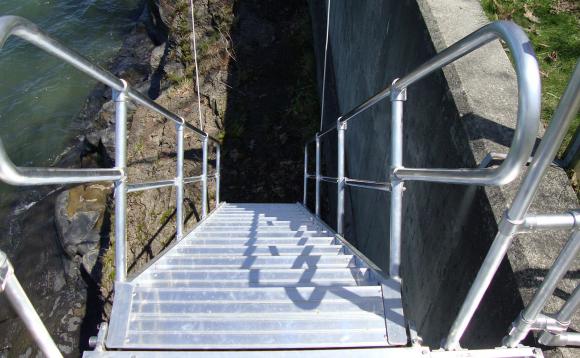

Our virtually maintenance free aluminum marine stairways are for waterfront, rooftop, outdoor and indoor applications and offer portability.

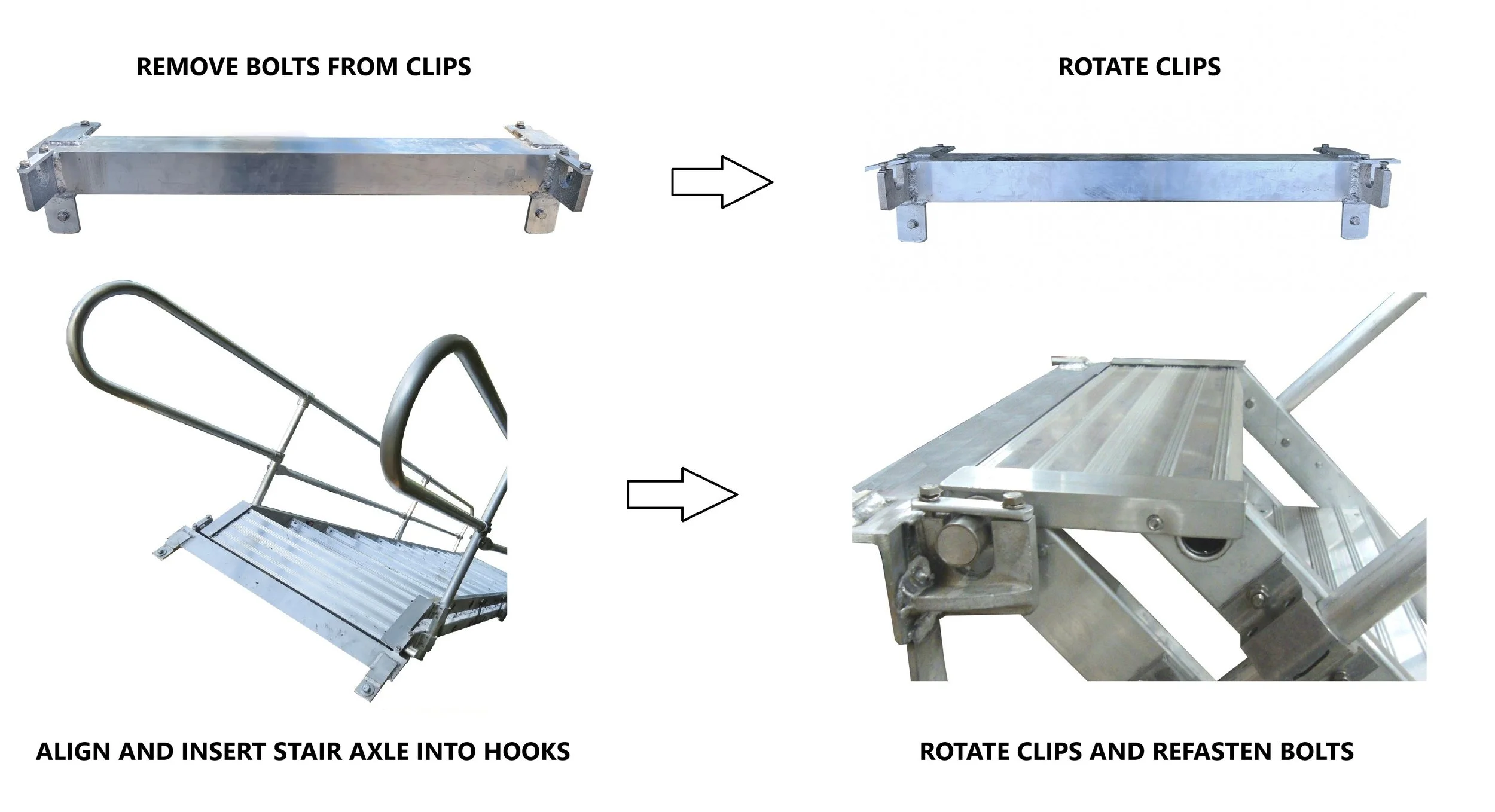

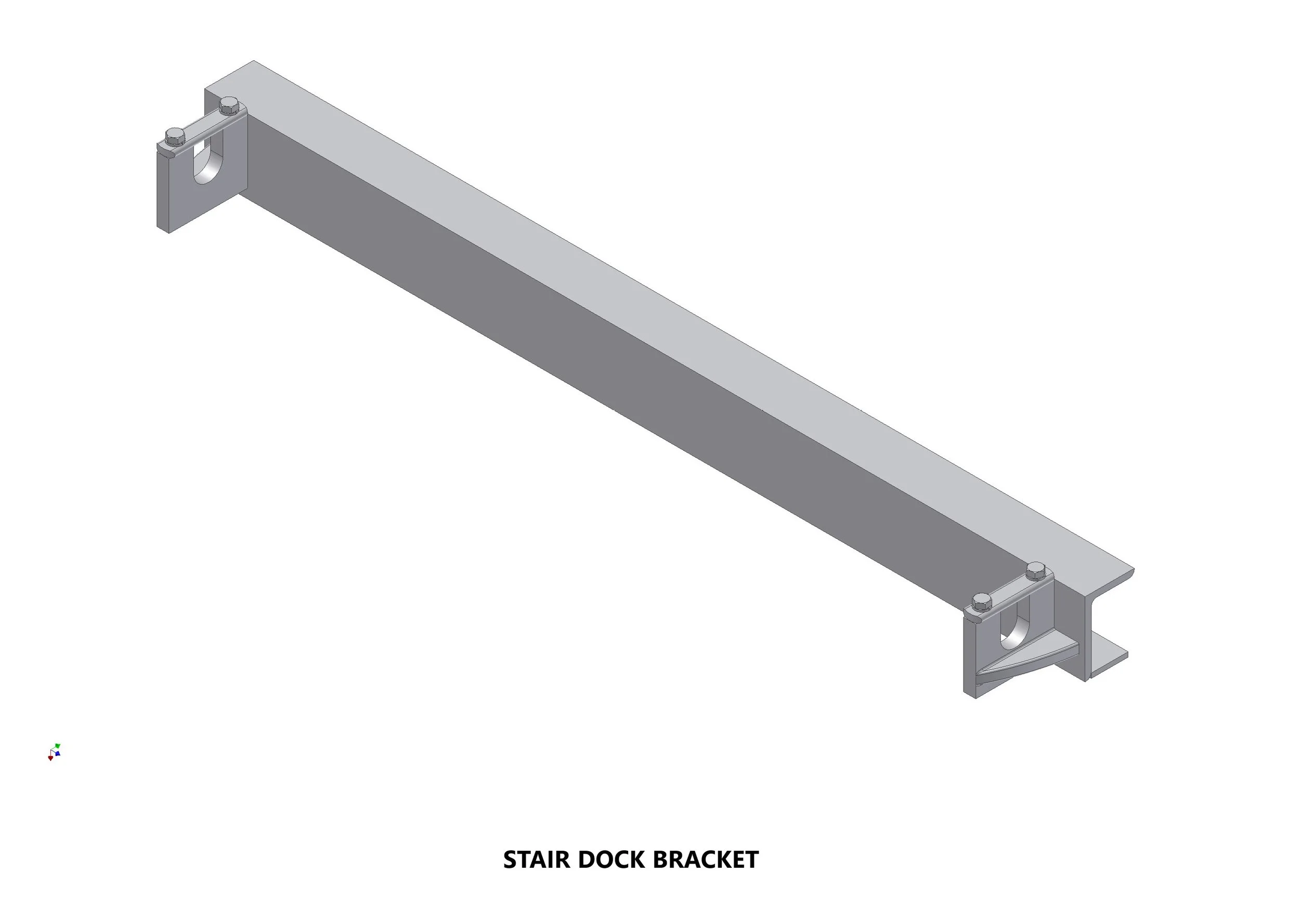

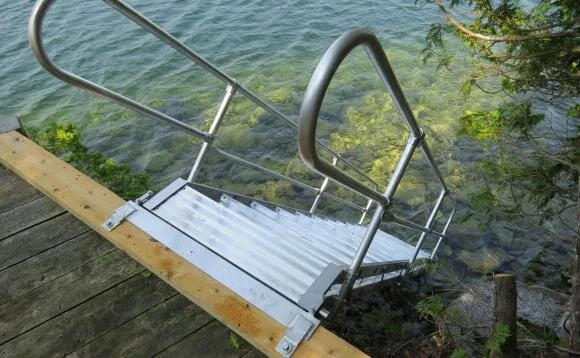

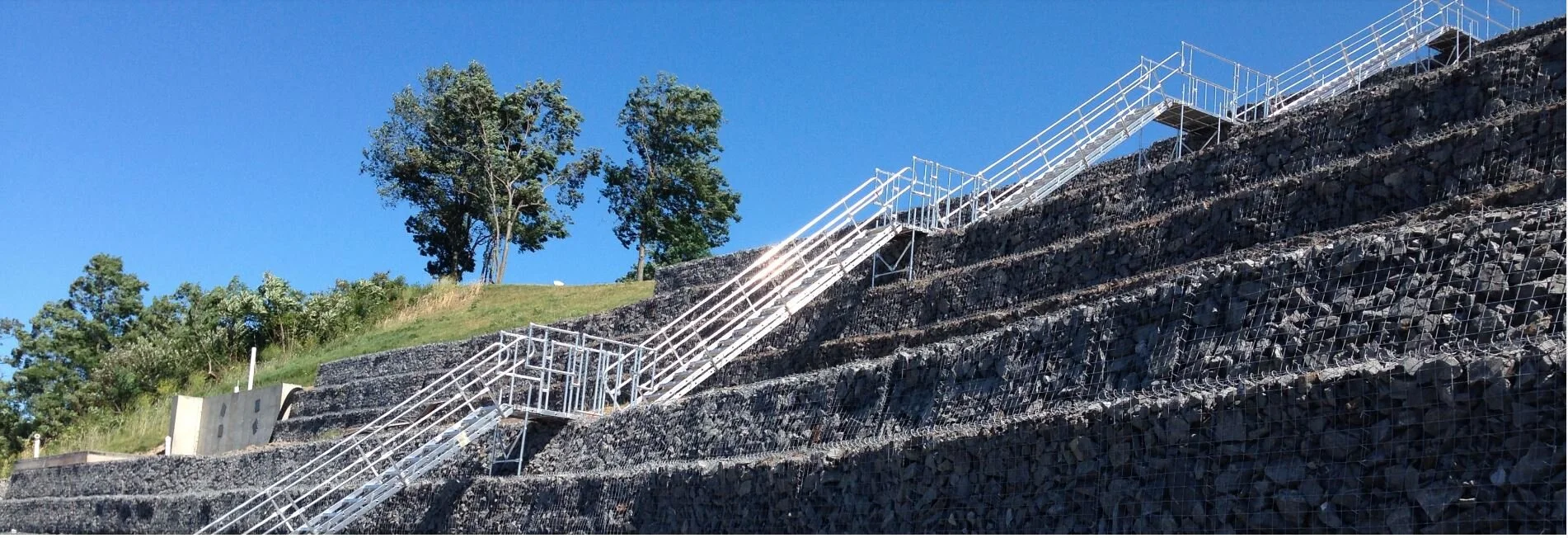

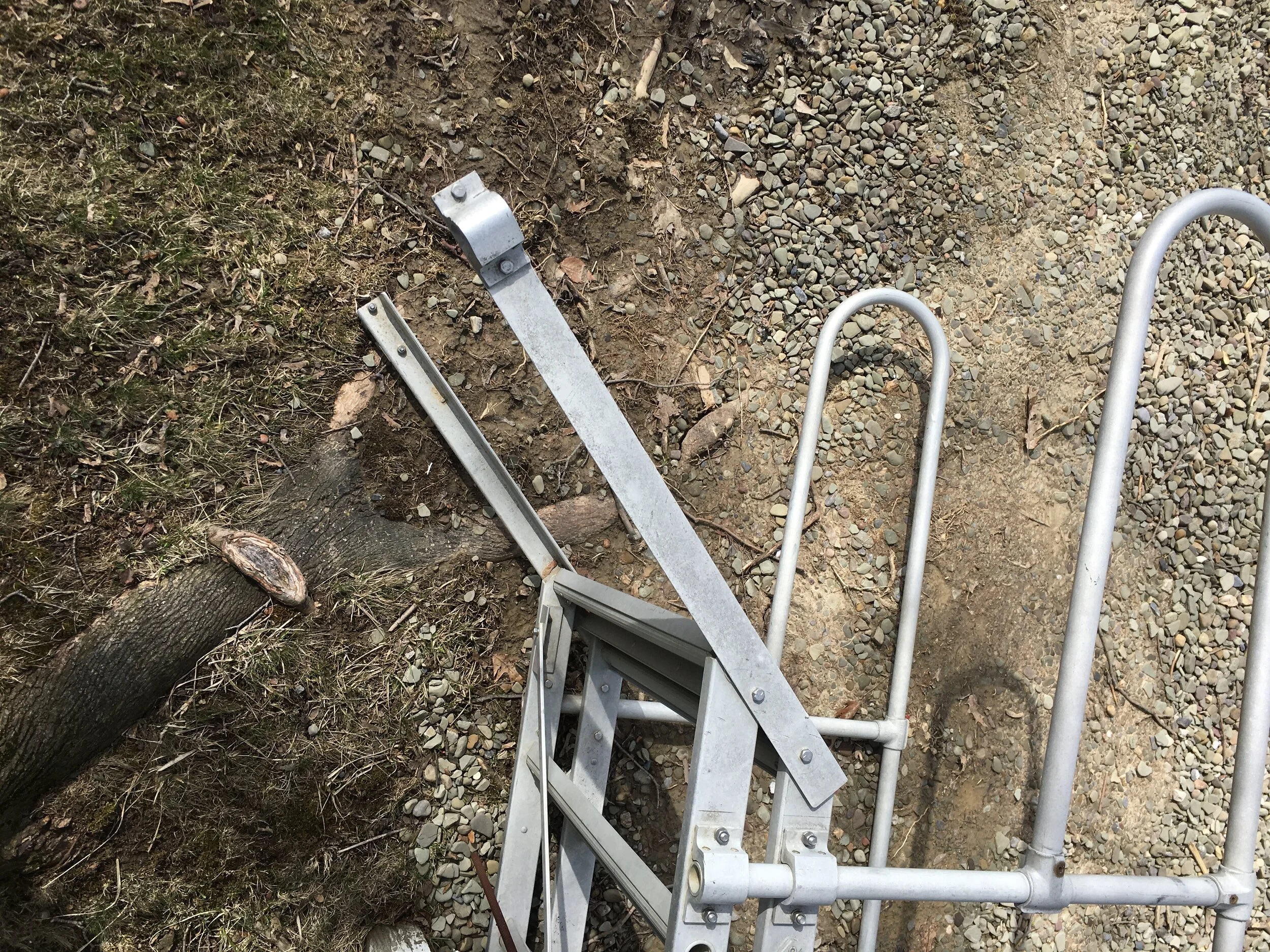

These Removable Aluminum Stairways have been used in waterfront, industrial and commercial locations. They are lightweight, durable pre-fabricated all aluminum stairways that do not require painting or finishing. The have sturdy, detachable handrails on both sides and a mounting bracket. We can custom fabricate for specific applications and lengths.

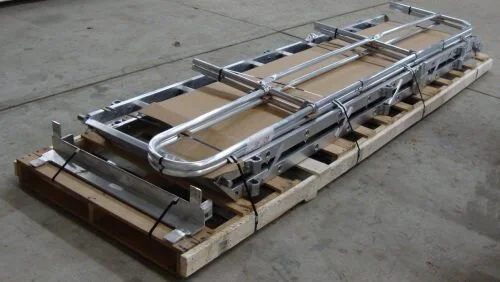

Aluminum marine stair can be easily carried and installed by two individuals. Corrosion-resistant aluminum puts an end to the problems of painting and the danger of rotting. Its lifetime attractiveness will add immeasurably to the value and enjoyment of any waterfront property.
Easy removal in the event of a severe storm or for seasonal storage
Sleek appearance requires little maintenance and eliminates the need for painting wood or the rusty exterior for steel
Corrosion-resistant, marine grade aluminum construction ensures a long service life.
Pricing
| Removable Aluminum Stairways 32" or 36" Overall Width | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model # 32" | Model # 36" | # Of Steps | Approx. Rise (FT) | Approx. Run (FT) | Length of Stair | Inside Width | Riser Height | Approx. Weight | Price 32" | Price 36" |
| DS-AS-4 | DS-AS-4-36 | 4 | 2' 10" | 2' 10" | 4' | 29 1/4" | 8 1/2" | 51 Lbs. | $1,869 | $2,096 |
| DS-AS-5 | DS-AS-5-36 | 5 | 3' 6.5" | 3' 6.5" | 5' | 29 1/4" | 8 1/2" | 61 Lbs. | $2,229 | $2,477 |
| DS-AS-6 | DS-AS-6-36 | 6 | 4' 3" | 4' 3" | 6' | 29 1/4" | 8 1/2" | 70 Lbs. | $2,589 | $2,889 |
| DS-AS-7 | DS-AS-7-36 | 7 | 4' 11.5" | 4' 11.5" | 7' | 29 1/4" | 8 1/2" | 78 Lbs. | $2,821 | $3,244 |
| DS-AS-8 | DS-AS-8-36 | 8 | 5' 8" | 5' 8" | 8' | 29 1/4" | 8 1/2" | 85 Lbs. | $3,063 | $3,519 |
| DS-AS-9 | DS-AS-9-36 | 9 | 6' 4" | 6' 4" | 9' | 29 1/4" | 8 1/2" | 96 Lbs. | $3,368 | $3,674 |
| DS-AS-10 | DS-AS-10-36 | 10 | 7' | 7' | 10' | 29 1/4" | 8 1/2" | 107 Lbs. | $3,666 | $3,901 |
| DS-AS-11 | DS-AS-11-36 | 11 | 7' 9" | 7' 9" | 11' | 29 1/4" | 8 1/2" | 118 Lbs. | $4,002 | $4,388 |
| DS-AS-12 | DS-AS-12-36 | 12 | 8' 6" | 8' 6" | 12' | 29 1/4" | 8 1/2" | 128 Lbs. | $4,331 | $4,658 |
| DS-AS-13 | DS-AS-13-36 | 13 | 9' 2.5" | 9' 2.5" | 13' | 29 1/4" | 8 1/2" | 139 Lbs. | $4,625 | $5,110 |
| DS-AS-14 | DS-AS-14-36 | 14 | 9' 11" | 9' 11" | 14' | 29 1/4" | 8 1/2" | 149 Lbs. | $4,924 | $5,448 |
| DS-AS-15 | DS-AS-15-36 | 15 | 10' 7.5" | 10' 7.5" | 15' | 29 1/4" | 8 1/2" | 160 Lbs | $5,233 | $5,952 |
| DS-AS-16 | DS-AS-16-36 | 16 | 11' 4" | 11' 4" | 16' | 29 1/4" | 8 1/2" | 170 Lbs. | $5,541 | $6,222 |
| DS-AS-17 | DS-AS-17-36 | 17 | 12' 5" | 12' 5" | 17' | 29 1/4" | 8 1/2" | 181 Lbs. | $5,825 | $6,684 |
| DS-AS-18 | DS-AS-18-36 | 18 | 12' 9" | 12' 9" | 18' | 29 1/4" | 8 1/2" | 191 Lbs. | $6,109 | $6,997 |
| DS-AS-19 | DS-AS-19-36 | 19 | 13' 5.5" | 13' 5.5" | 19' | 29 1/4" | 8 1/2" | 202 Lbs. | $6,406 | $7,468 |
| DS-AS-20 | DS-AS-20-36 | 20 | 14' 2" | 14' 2" | 20' | 29 1/4" | 8 1/2" | 212 Lbs. | $6,704 | $7,764 |
| All dimensions are in inches / Special orders available up to 60 steps - call for pricing | ||||||||||
Features
Standard Features:

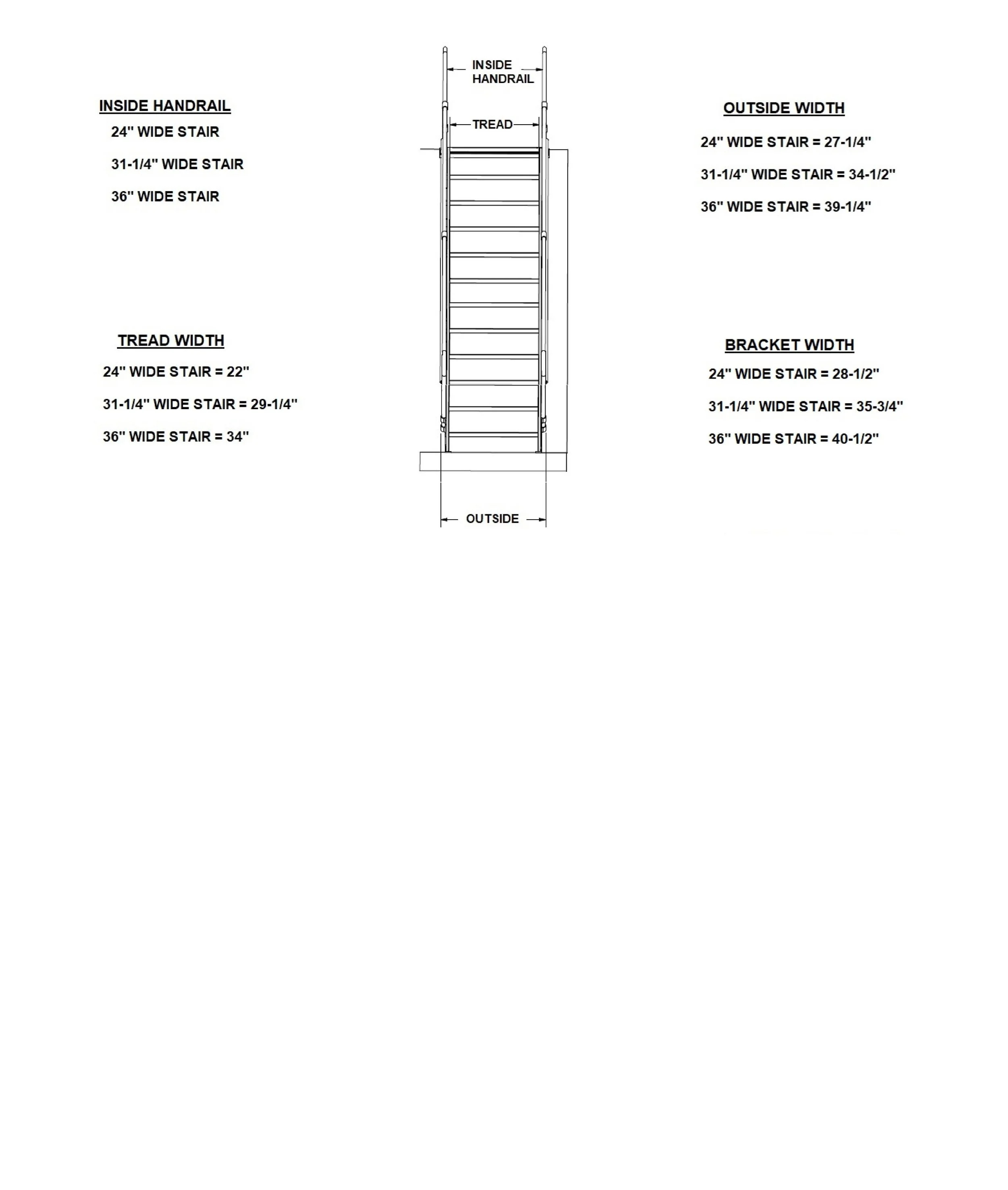

Choose your stairway tread width 29-1/4" or 34”
Ribbed, non-skid stair tread is 7"
Stair riser height is 8-1/2"
Approach angle is 45°
Handrail height is 24"
1-1/4” OD handrails with mid-rail for added safety
Approach angles available from 35-55 degree
All stairways include stainless steel fastened treads
Options
Options:

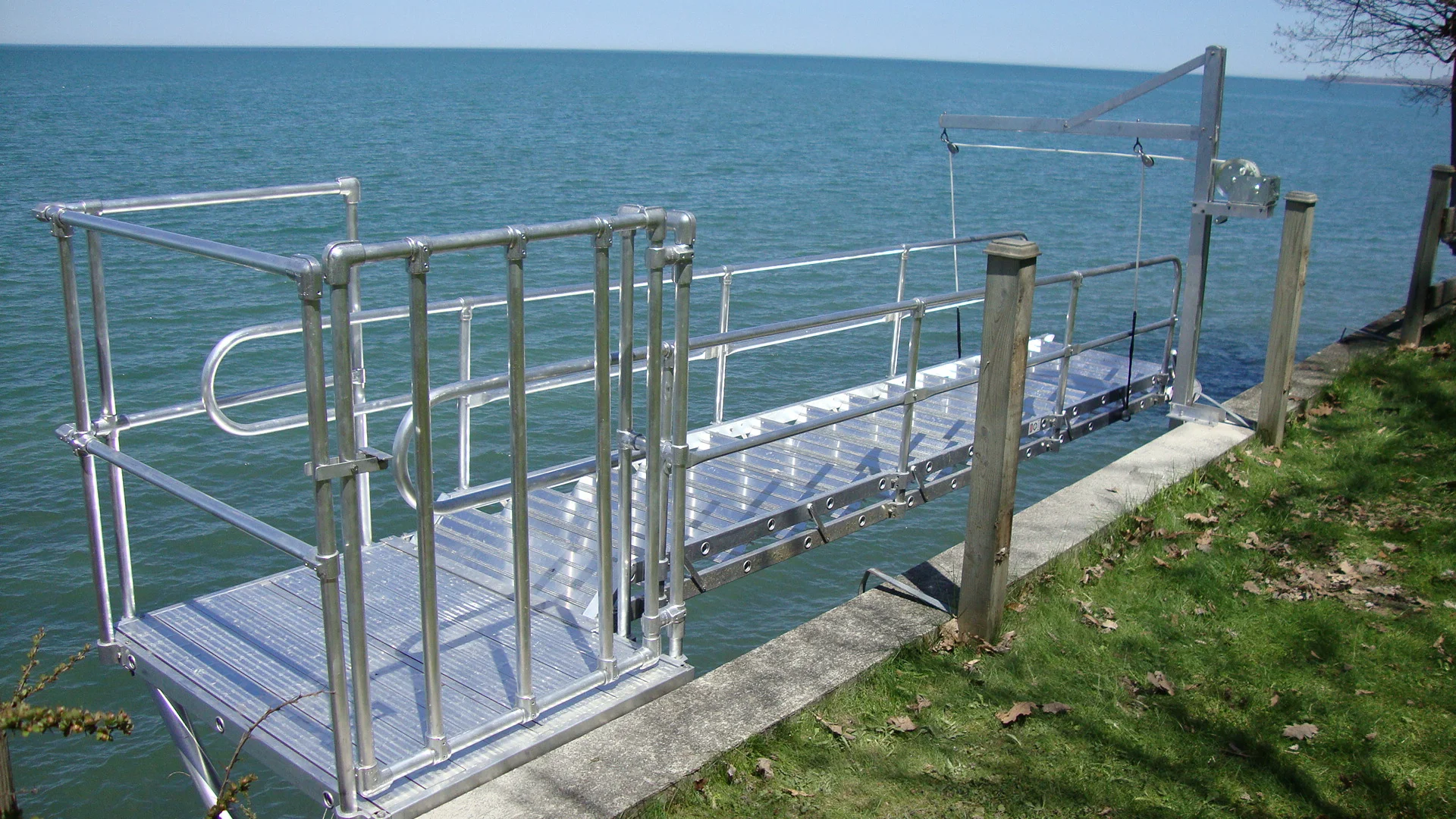

36IN W X 48IN L STAIR PLATFORM ASSEMBLY, W/HANDRAIL ON BOTH SIDES. 3' DRIVE PIPE PLUS UP TO 8' DRIVE PIPE LEG ASSEMBLIES WITH PAD - DS-AS-P-36-48 $2,610
48IN W X 48IN L STAIR PLATFORM ASSEMBLY, W/HANDRAIL ON BOTH SIDES. 3' DRIVE PIPE PLUS UP TO 8' DRIVE PIPE LEG ASSEMBLIES WITH PAD - DS-AS-P-48-48 $2,722
36IN W X 72IN L STAIR PLATFORM ASSEMBLY, W/HANDRAIL ON BOTH SIDES 3' DRIVE PIPE PLUS UP TO 8' DRIVE PIPE LEG ASSEMBLIES WITH PAD - DS-AS-P-36-72 $3,505
48IN W X 72IN L STAIR PLATFORM ASSEMBLY, W/HANDRAIL ON BOTH SIDES. 3' DRIVE PIPE PLUS UP TO 8' DRIVE PIPE LEG ASSEMBLIES WITH PAD - DS-AS-P-48-72 $3,675
Landing Platform 36" wide x 42" long with handrails and right side exit $2,725 - DS-AS-WPA-R
Landing Platform 36" wide x 42" long with handrails and left side exit $2,725 - DS-AS-WPA-L

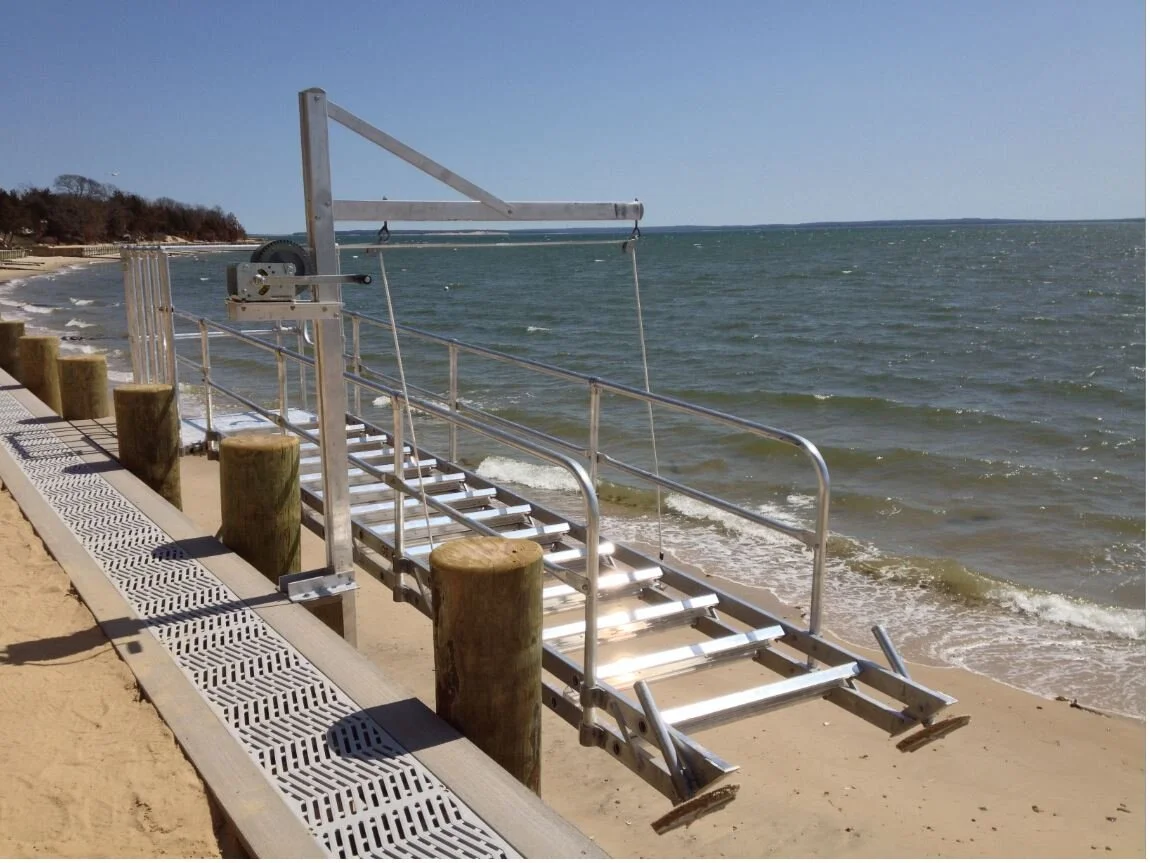

LIFTING MECHANISM FOR ALUMISTAIR - DS-AS-LM $2,074

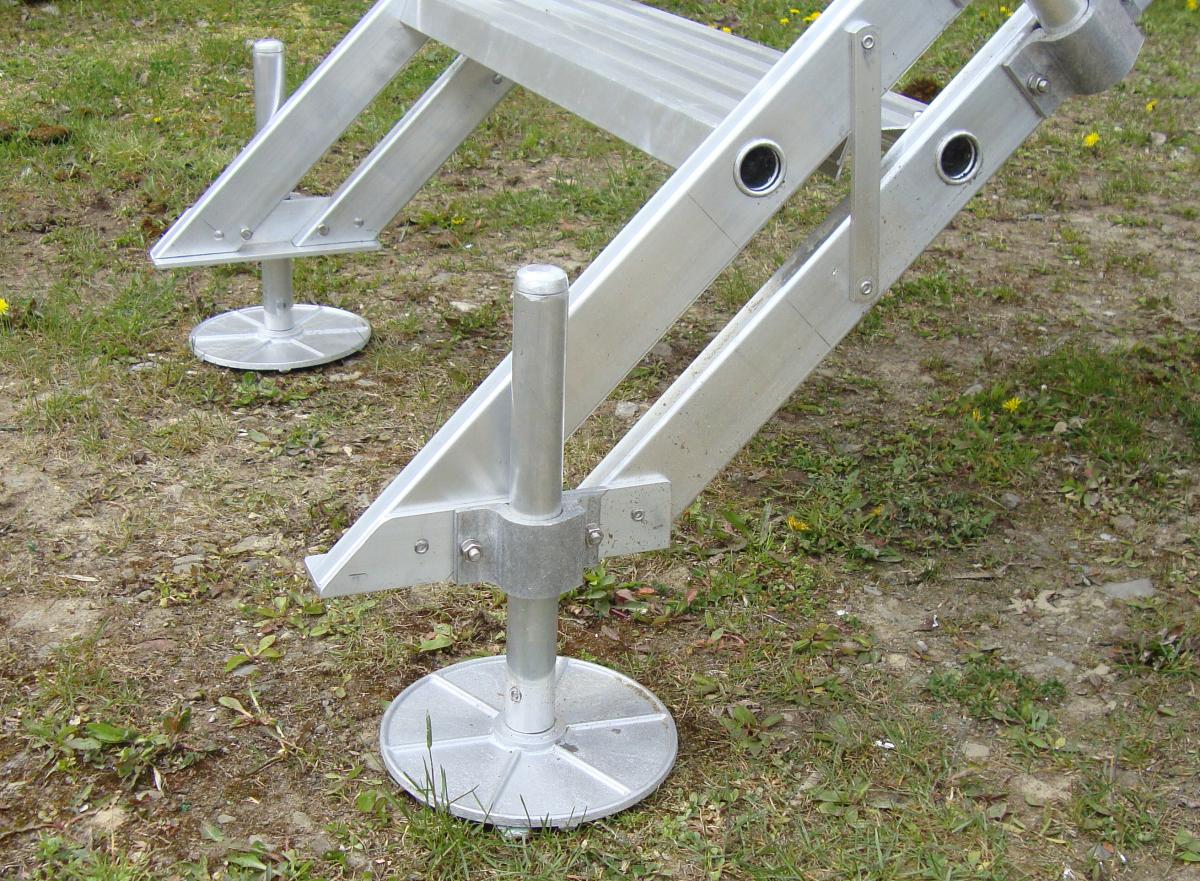

ADJUSTABLE LEG, PAIR, W/FASTENERS - DS-AS-AL $236
S.S. FASTENED TREAD UPGRADE, PER STEP - DS-AS-SSF $28
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Drawings:
DS-ASPLMA-1-Platform
/s/DS-ASPLMA-2-platform
