Access Stairway - 60 Degrees

$390.00

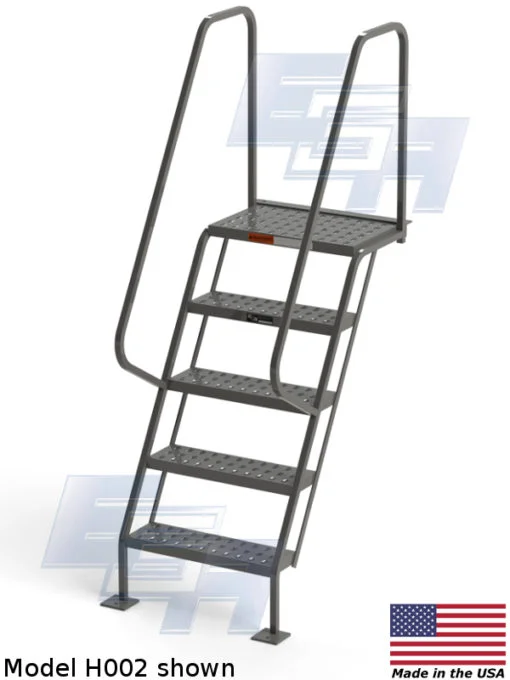

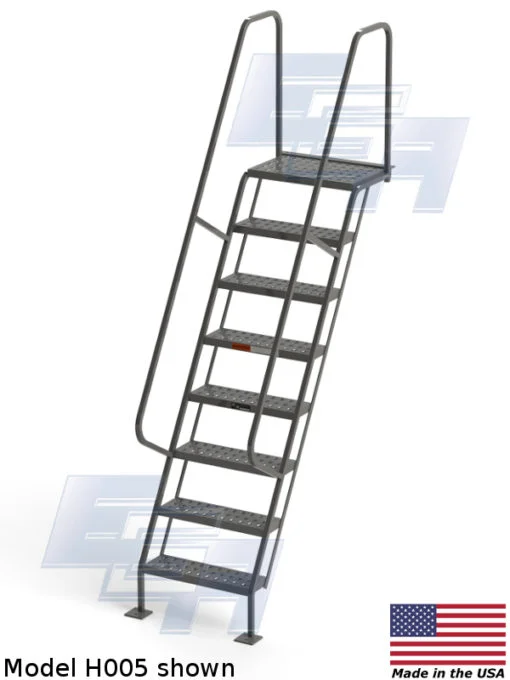

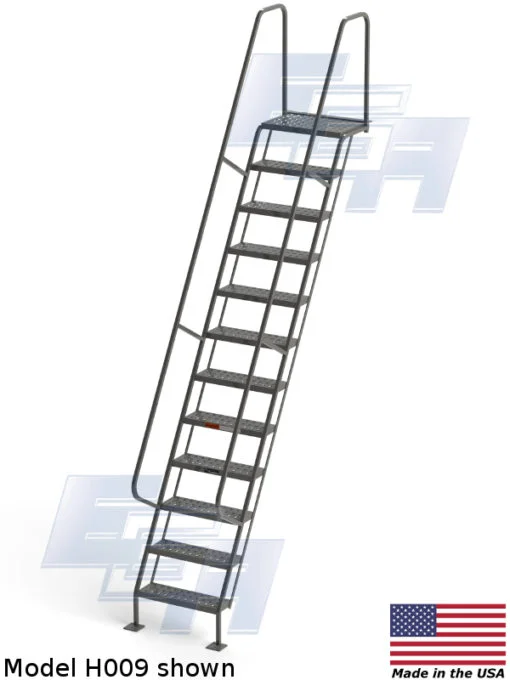

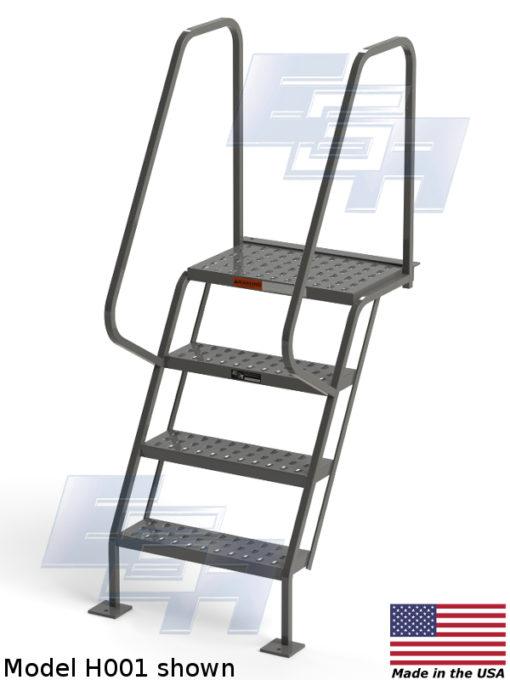

The Access Stairway - 60 Degrees is an an all welded stairway ladder that provides access to elevated areas.

Add To Cart

Pricing

 Access Stairway 60 Degrees  -  EZY Tread













    Model #
    # Of Steps
	 Total Rise
     Total Run
	 Hand Rails
	 Overall Height
	 Overall WxL
	 Weight Lbs.
    EZY Tread




    DS-H001
    4
    40"
	35"
	Yes
	70"
	29"x35"
	40
	$585



    DS-H002
    5
    50"
	41"
	Yes
	80"
	29"x41"
	50
	$618



    DS-H003
    6
    60"
	46"
	Yes
	90"
	29"x46"
	60
	$716



    DS-H004
    7
    70"
	52"
	Yes
	100"
	29"x52"
	71
	$801



    DS-H005
    8
    80"
	58"
	Yes
	110"
	29"x58"
	82
	$938



    DS-H006
    9
    90"
	64"
	Yes
	120"
	29"x64"
	93
	$1,011



    DS-H007
    10
    100"
	70"
	Yes
	130"
	29"x70"
	105
	$1,074



    DS-H008
    11
    110"
	75"
	Yes
	140"
	29"x75"
	122
	$1,143



    DS-H009
    12
    120"
	82"
	Yes
	156"
	29"x82"
	132
	$1,212



 All Dimensions are in inches

 Access Stairway 60 Degrees  -  GRIP Strut













    Model #
    # Of Steps
	 Total Rise
     Total Run
	 Hand Rails
	 Overall Height
	 Overall WxL
	 Weight Lbs.
    Grip Strut




    DS-H010
    4
    40"
	35"
	Yes
	70"
	29"x35"
	40
	$618



    DS-H011
    5
    50"
	41"
	Yes
	80"
	29"x41"
	50
	$683



    DS-H012
    6
    60"
	46"
	Yes
	90"
	29"x46"
	60
	$789



    DS-H013
    7
    70"
	52"
	Yes
	100"
	29"x52"
	71
	$881



    DS-H014
    8
    80"
	58"
	Yes
	110"
	29"x58"
	82
	$1,040



    DS-H015
    9
    90"
	64"
	Yes
	120"
	29"x64"
	93
	$1,125



    DS-H016
    10
    100"
	70"
	Yes
	130"
	29"x70"
	105
	$1,193



    DS-H017
    11
    110"
	75"
	Yes
	140"
	29"x75"
	122
	$1,251



    DS-H018
    12
    120"
	82"
	Yes
	156"
	29"x82"
	132
	$1,350



 All Dimensions are in inches

Features

Standard Features:

This ladder handles up to 300 lbs.
Meets or exceeds OSHA standards.
It is easily secured in place with top and bottom mounting plates with pre-punched holes.
1" square tube construction is stronger than round tube construction.
Steps are 24" wide and 7" deep leading to a top step which is 14" deep.
Choose either perforated EZY Tread or Grip Strut tread instead for slip resistant footing.
Also available in a custom 50 degree slope (at extra cost). The ladder ships fully assembled and ready to install.

Options

Options:

Available in 50 degree climbing angle as another option

Parts

Please call 1-888-802-3651 for replacement parts
