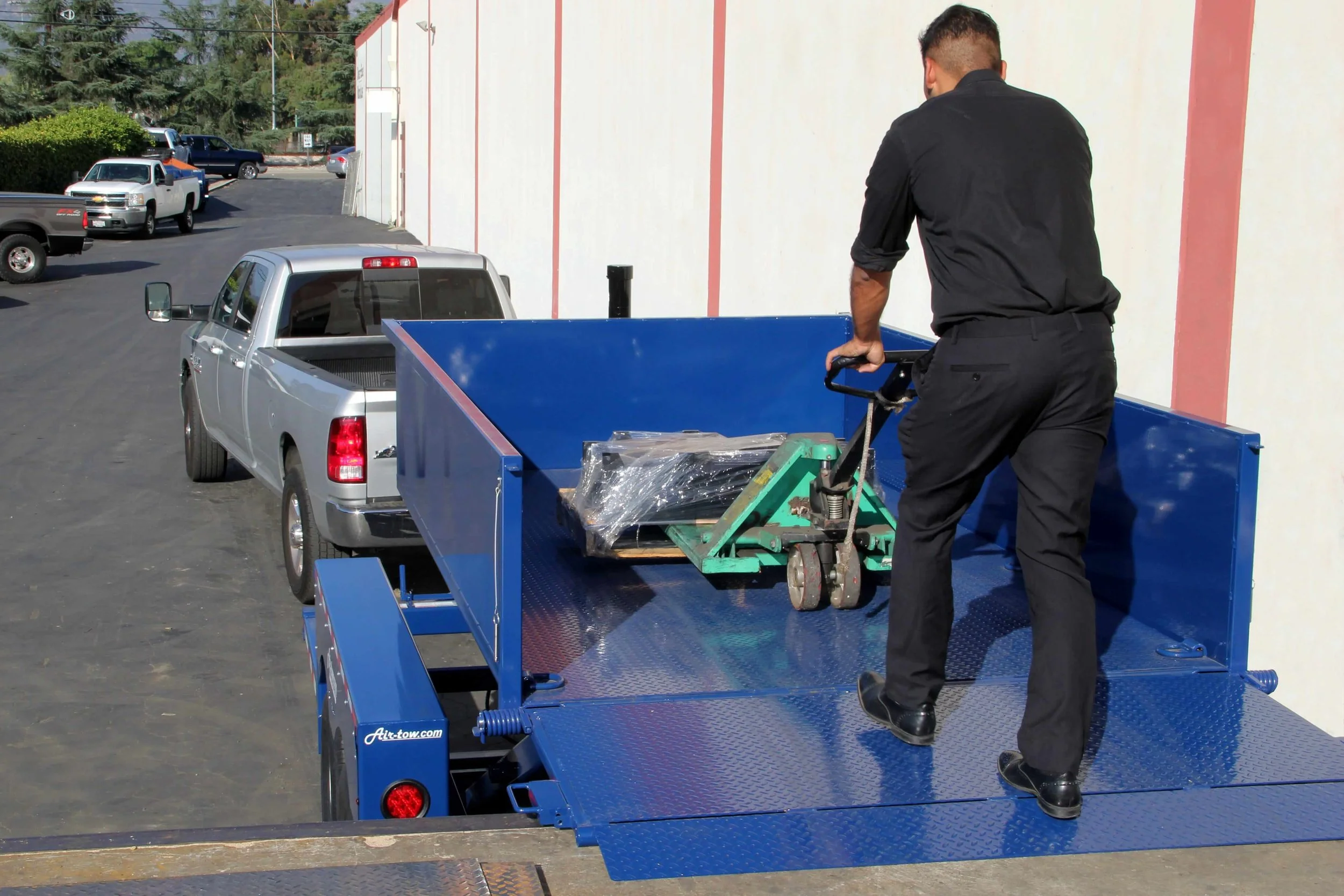

The Dock Loading Trailer offers features that Air-tow customers have come to love with the added benefit of 60” dock height loading.
The features of the Air-tow line are incorporated in a dock loading model. The 10’-5″ bed length length and 6’-2″ bed width combined with an 8,000 lb. capacity provides the versatility to handle many different jobs. Dock loading trailers are not for everyone. They may, however, be the ideal trailer for those that frequently encounter loading docks. When traveling to a loading dock and then to a job site, a dock loading trailer can often offer the perfect solution to one’s needs.
Pricing
| Model # | Deck Length |
Weight (varies with options) | Price |
|---|---|---|---|
| DS-DH-10 | 10'-5" | 5,700 | $46,230 |
Features
Standard Features:

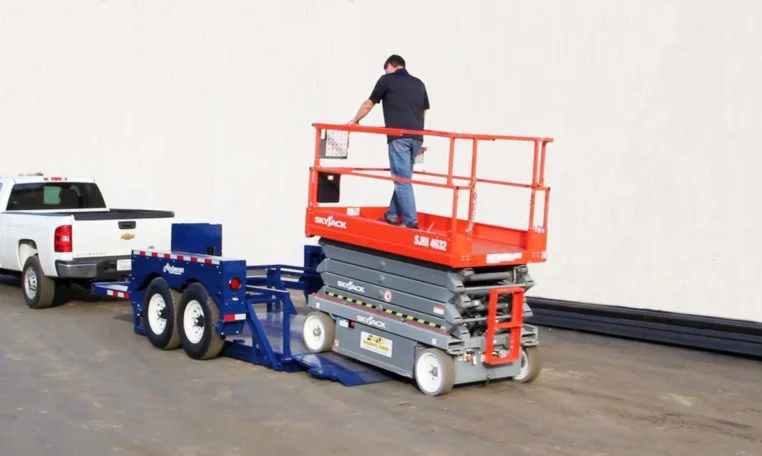

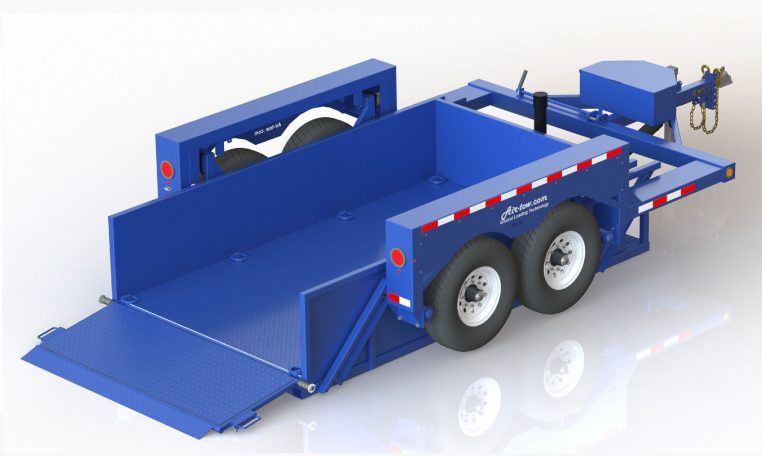

Ground-Level Loading
Hydraulic Lift Mechanism
Heavy-Duty Diamond Deck
8 Heavy-Duty D-Rings
8,000 lb. Capacity

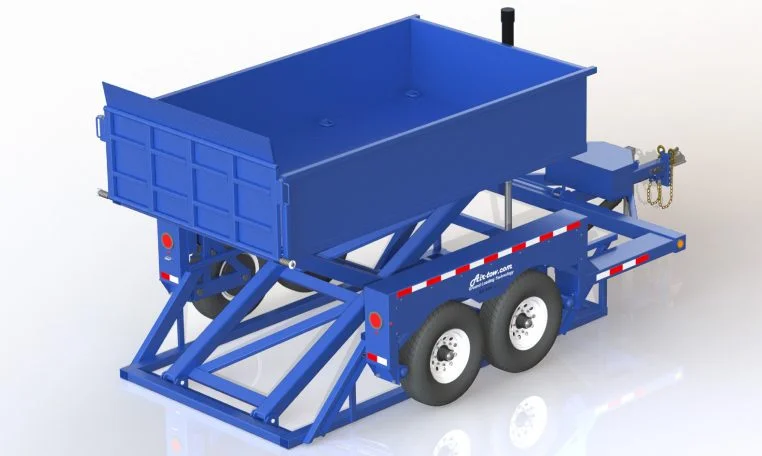

60” Raised Bed Height

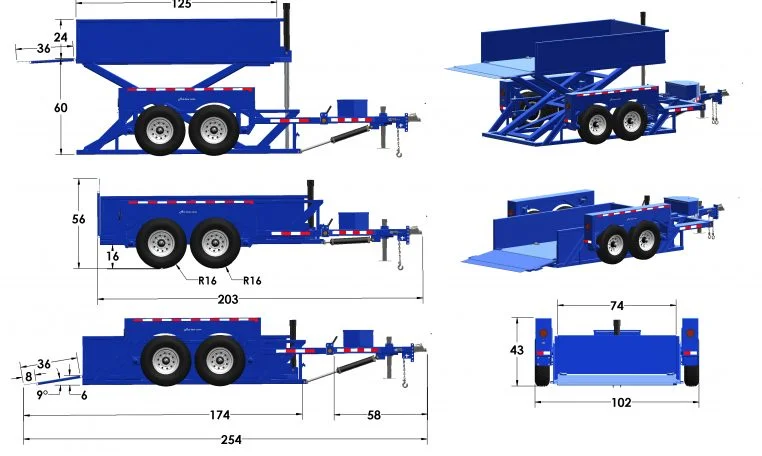

10’-5” Inside Bed Length
6’-2” Inside Bed Width
102” Overall Outside Width
Tandem Axles
16” Twelve Ply Tires
Electric Brakes
Rubber Suspension
2-5/16” Ball Coupler
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
| Model # | Name |
Description | Price |
|---|---|---|---|
| DS-700038 | Spare Wheel/Tire - 16" | 16" Tires are ST235/85R16-F (12 Ply) | $505 |
| DS-501003 | Spare Tire Bracket | Mounts on trailer frame | $309 |
| DS-501007 | Side Mounted Tool Box | Mounts on side frame ( 10" W x 16" H x 24" L) Shock mounted lid w/key lock | $677 |
| DS-700155 | Wireless Pump Control | Wireless remote pump control for raising or lowering trailer deck | $386 |
| DS-700198 | Upgrade to Aluminum Wheels | Aluminum Manba with center cap- ST235/85R16 - 8 lug | $575 |
| DS-501080 | Air Suspension Upgrade Tandem Axle | 2 compressors linked to airbags for equal load distribution and smooth ride | $2,629 |
| DS-700064 | Battery - 12 V - deep cycle | 12 V - deep cycle group-24 battery | $268 |
| DS-501027 | Electric Brakes | Added to second axle | $842 |
| DS-501033 | Surge Brakes (Drum) | Tandem axles (in place of standard electric brakes) | $2,824 |
| DS-501010 | Battery - Trickle Charger | Weatherproof 6 amp charger mounted in power compartment for 110V outlet | $321 |
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Air-tow Dock Loading Trailer Model DS-DH-10
Air-tow’s exclusive, proprietary swing-arm axles offer one of the smoothest ride available. The long pivot arm is mounted with large tapered roller bearings giving the greatest torsional effect possible that absorbs both horizontal and vertical stresses. No plastic guides or spring bushings that wear out! The axle has both camber and tow-in adjustments for perfect alignment ensuring minimal least tire wear. These axles will accommodate both rubber and air suspension. They come laser aligned with dynamically balanced tires. These axles are constructed with an automatic robotic welding system for precision and consistency.
