Stainless Steel Lock Step Rolling Ladder
Stainless Steel Lock Step Rolling Ladder

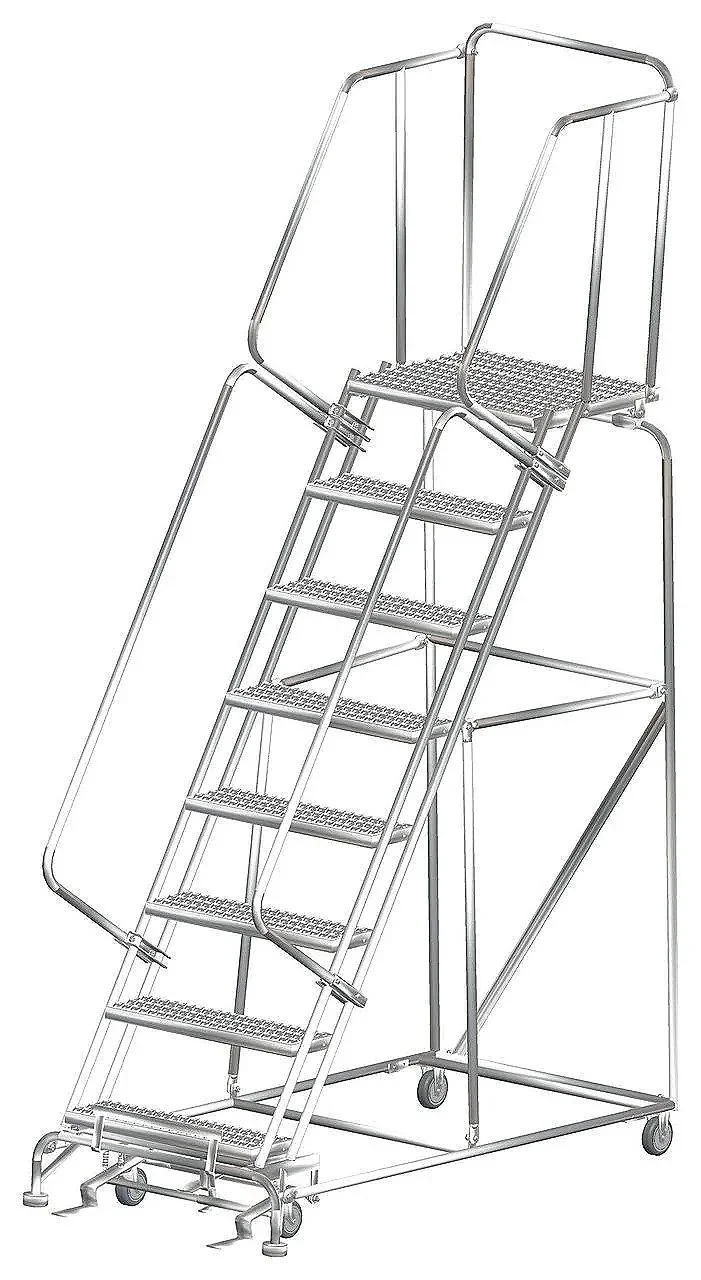

The Stainless Steel Lock Step Rolling Ladder is our best selling stainless steel rolling ladder and it comes in multiple configurations.
It is available in widths of 16” and 24” and deep top steps of 14”, 21” and 28” allowing this mobile ladder to be used in many different applications. There are 2 different tread types available. Considering the different tread widths, deep top steps and tread type combinations, along with the different top platform heights that are available, it is easy to see the many different possible combinations which result in different configurations of this rolling ladder.
Stainless steel ladders are known for their durability, corrosion resistance, and hygiene. They are ideal for various environments, including food processing, pharmaceuticals, and marine applications.
These stainless steel ladders are bead-blasted to provide smooth uniform finish
Pricing
Pricing
| . Stainless Steel - M-2000 Rolling Ladder - 16" Wide x 14" Deep Top Step | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | # Of Steps | Top Step | Overall Height | Hand Rails | Base [W x L] | Shipping Weight (lbs.) | G Tread | P Tread |

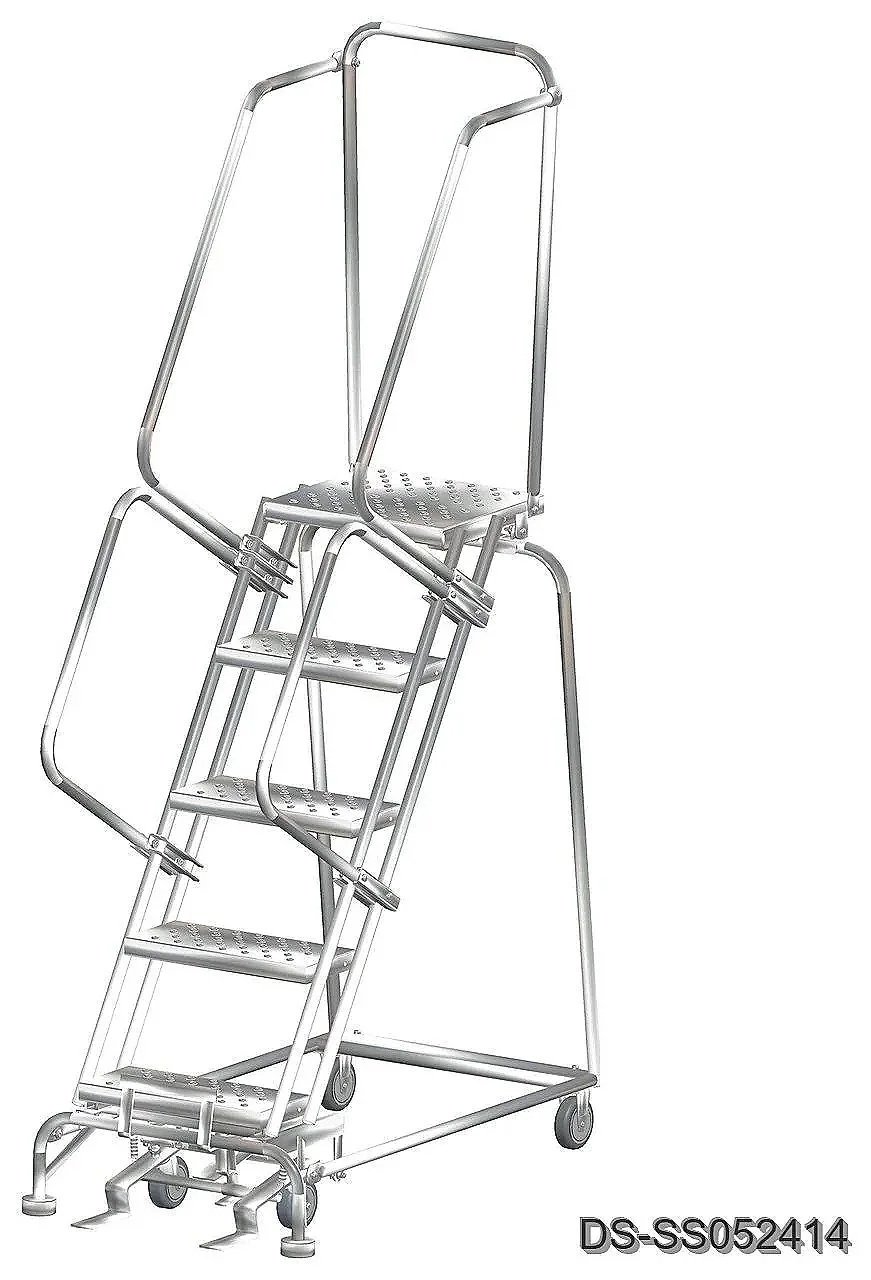

| DS-SS052414 | 5 | 50 | 83 | Y | 24x46 | 140 | $2,261 | $2,056 |

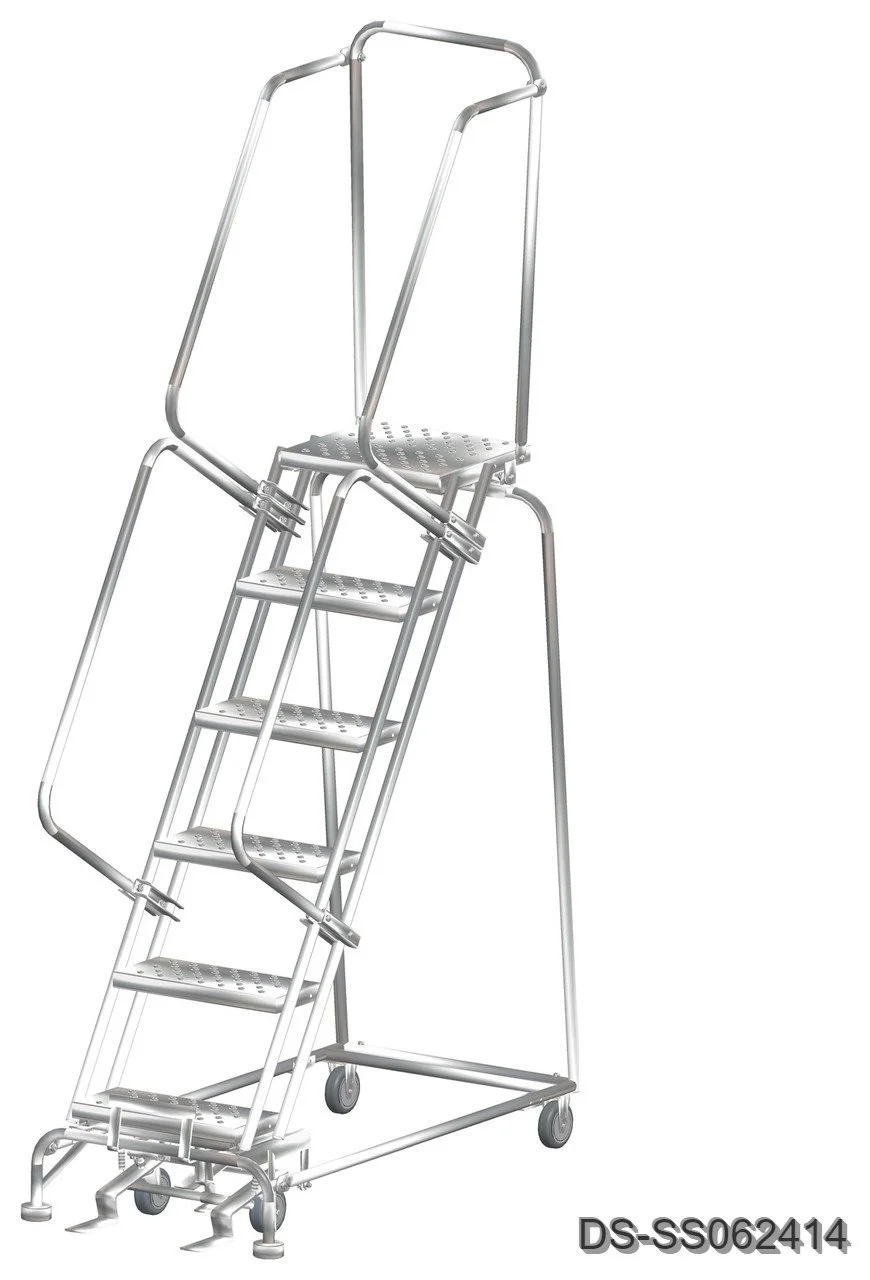

| DS-SS062414 | 6 | 60 | 93 | Y | 24x52 | 149 | $2,626 | $2,387 |

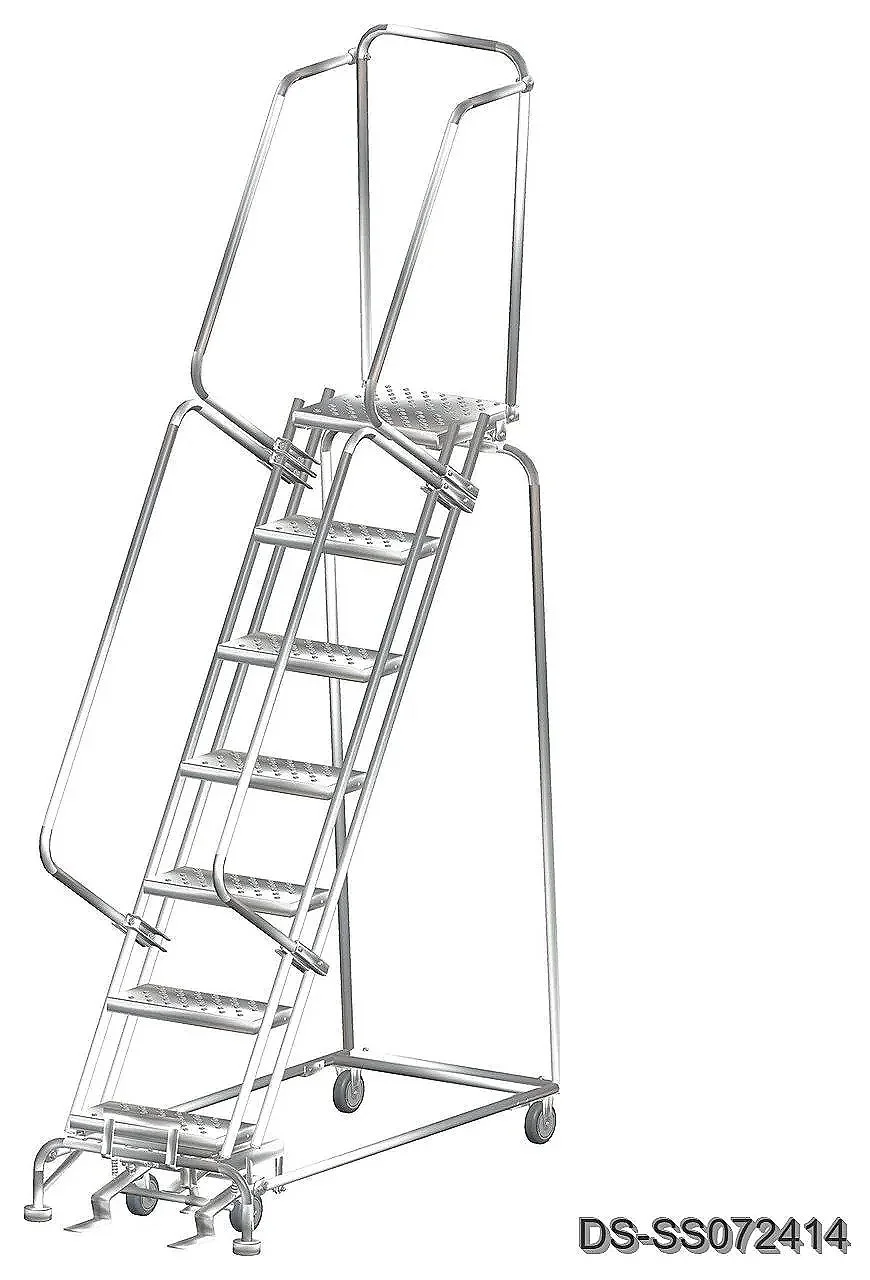

| DS-SS072414 | 7 | 70 | 103 | Y | 24x58 | 165 | $2,991 | $2,719 |

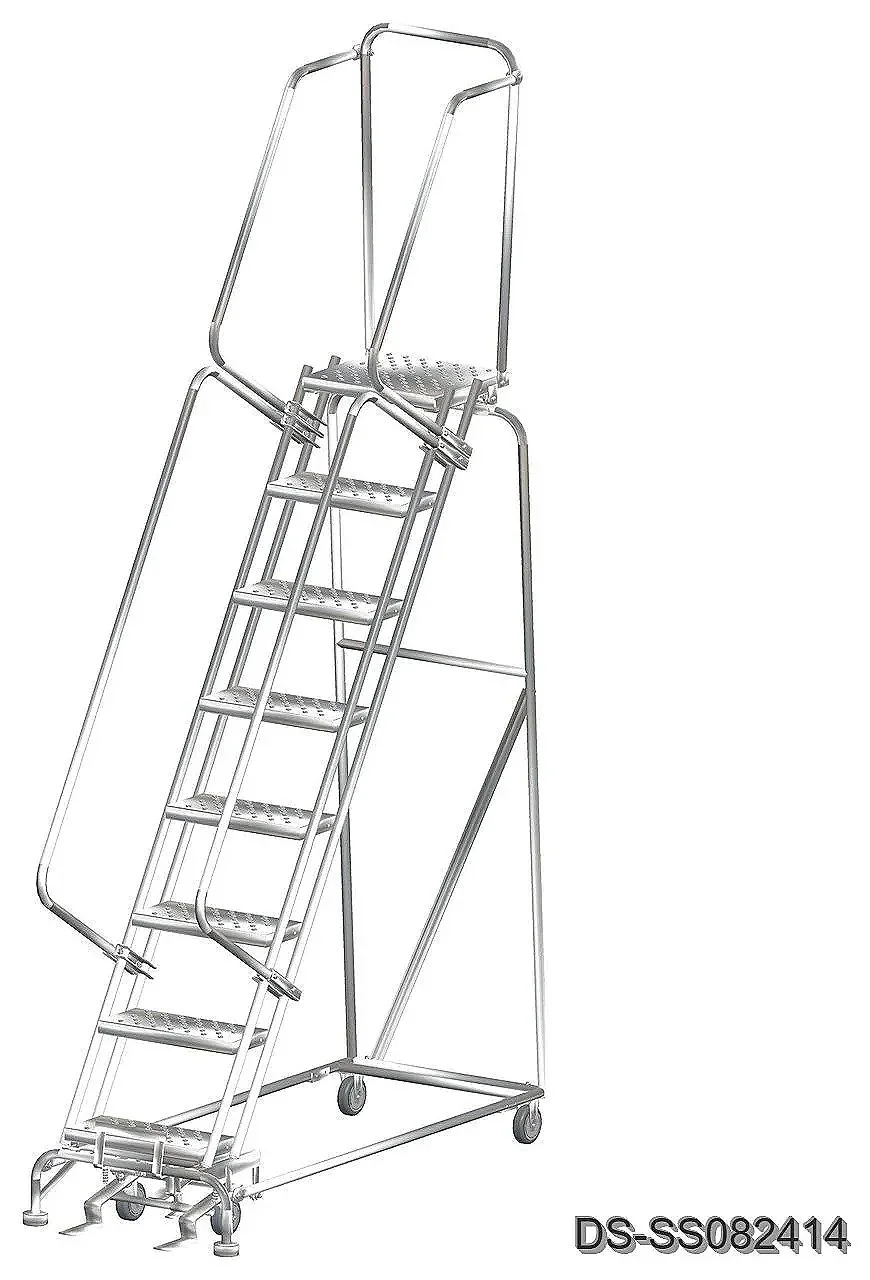

| DS-SS082414 | 8 | 80 | 113 | Y | 24x64 | 183 | $3,355 | $3,050 |
| . Stainless Steel - M-2000 Rolling Ladder - 16" Wide x 21" Deep Top Step | ||||||||
| Model Number | # Of Steps | Top Step | Overall Height | Hand Rails | Base [W x L] | Shipping Weight (lbs.) | G Tread | P Tread |

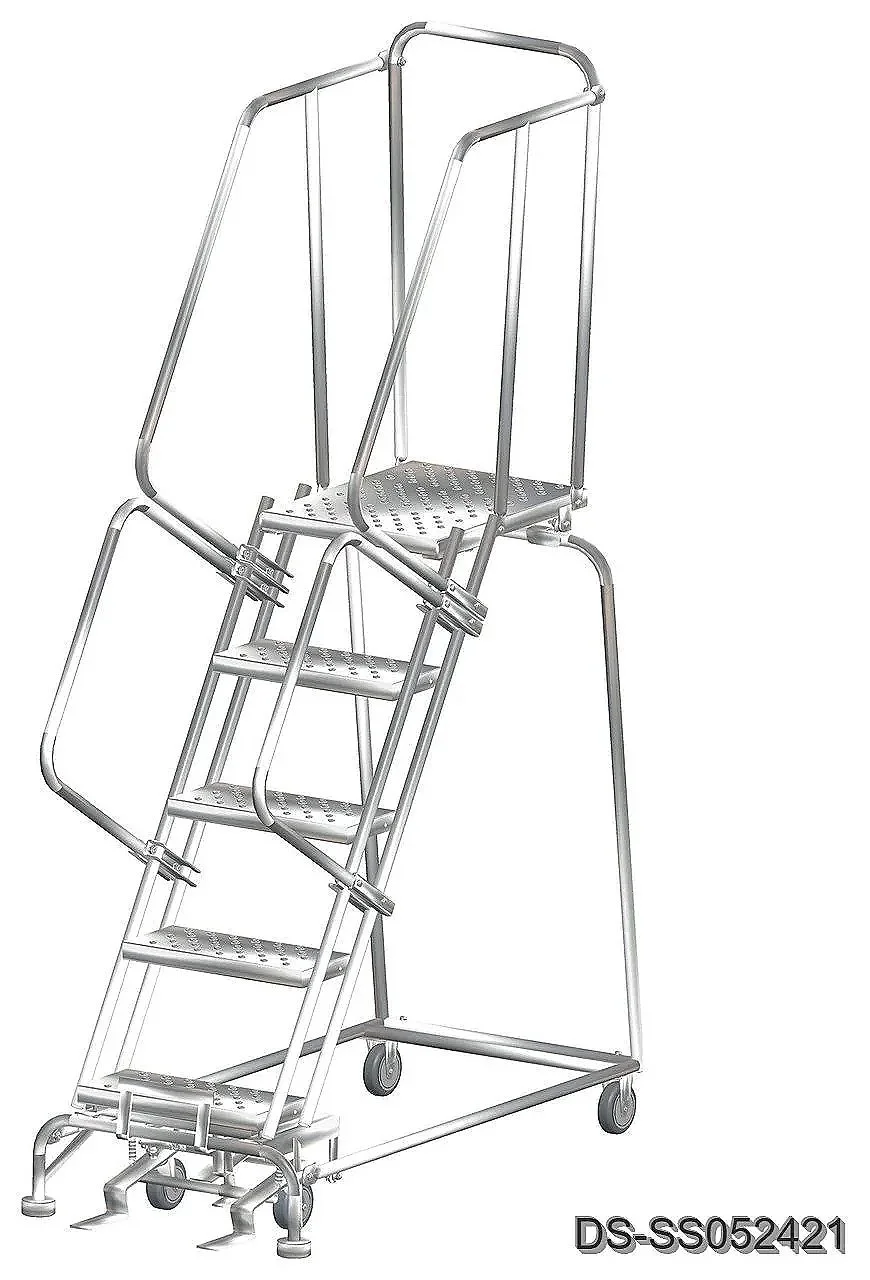

| DS-SS052421 | 5 | 50 | 83 | Y | 24x53 | 140 | $2,564 | $2,359 |

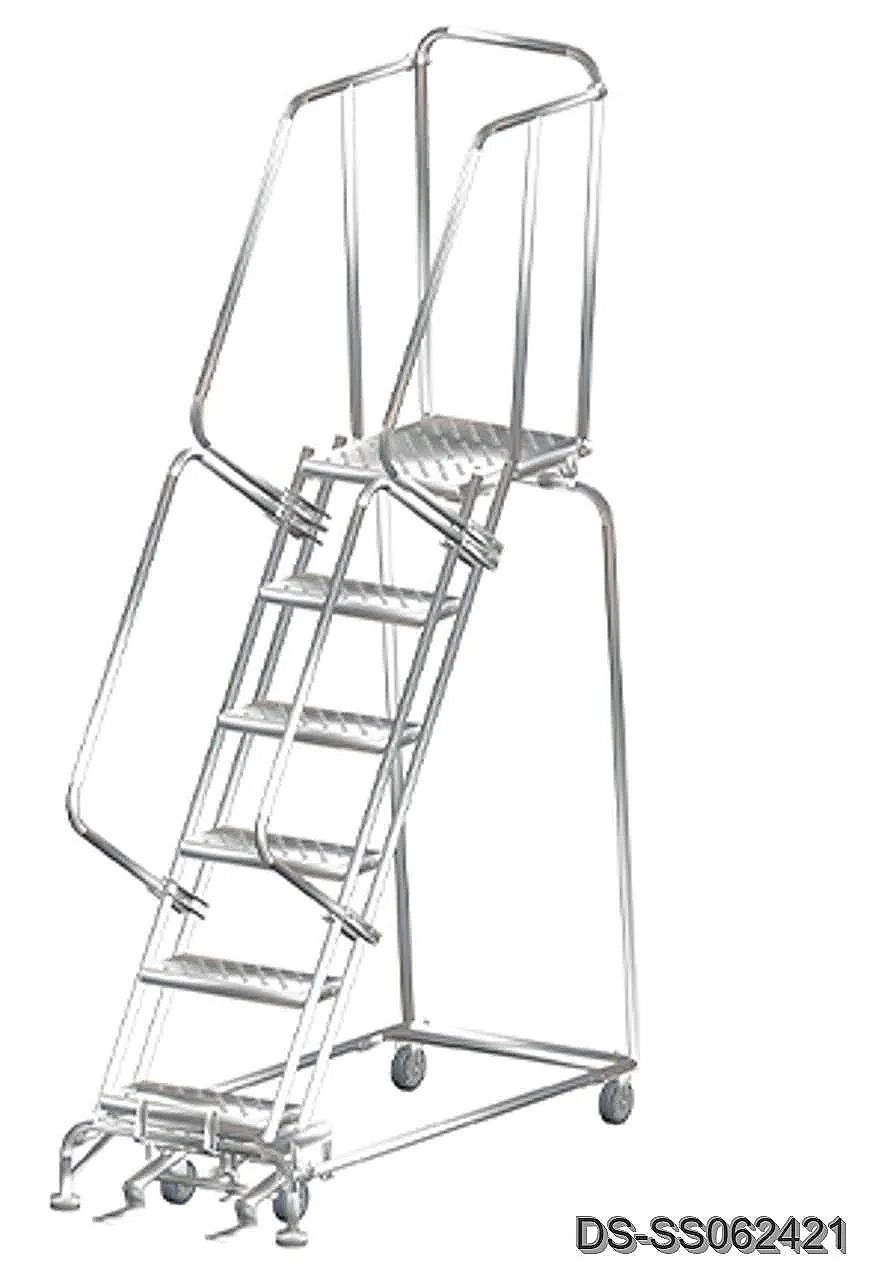

| DS-SS062421 | 6 | 60 | 93 | Y | 24x59 | 158 | $2,929 | $2,690 |

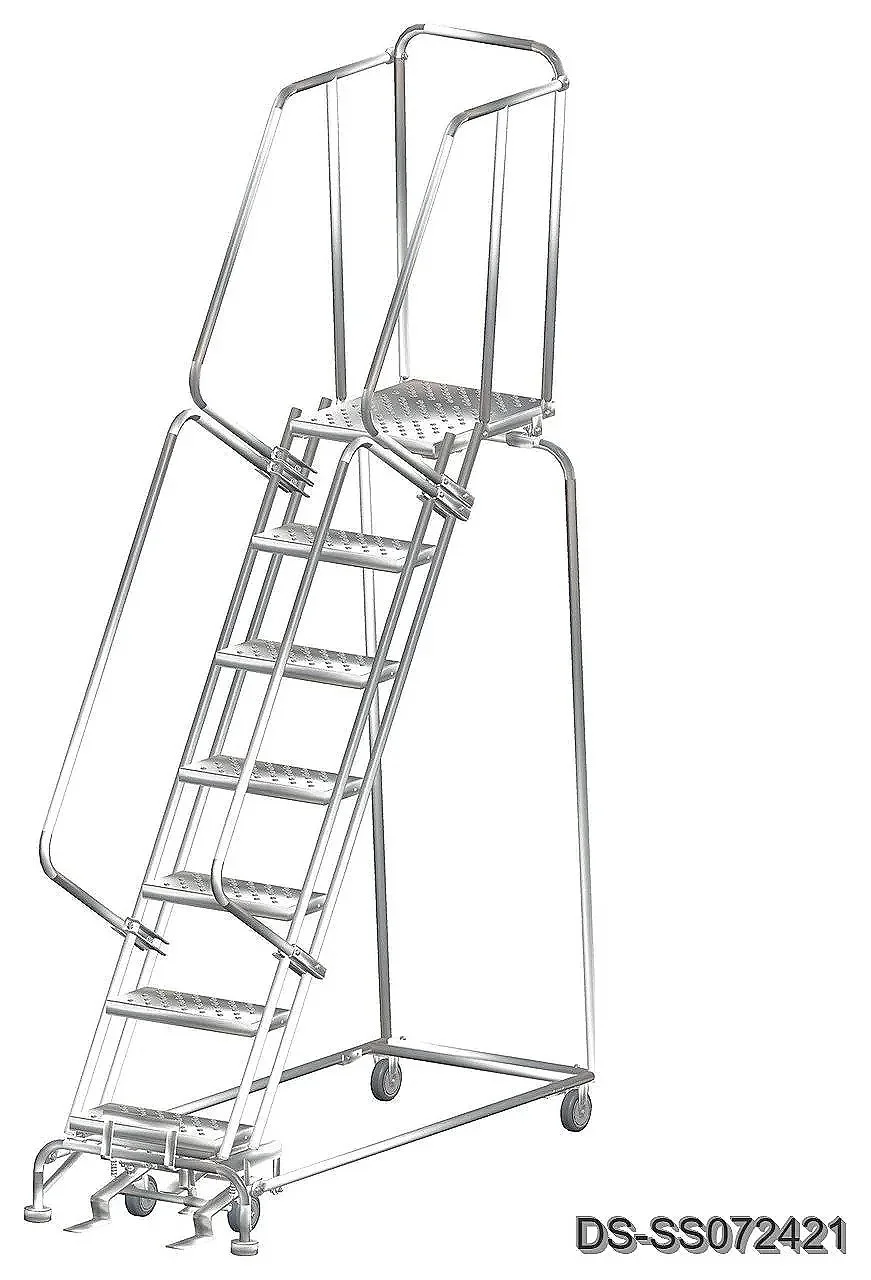

| DS-SS072421 | 7 | 70 | 103 | Y | 24x65 | 182 | Call | $3,022 |
| DS-SS082421 | 8 | 80 | 113 | Y | 24x71 | 212 | Call | Call |
| . Stainless Steel - M-2000 Rolling Ladder - 16" Wide x 28" Deep Top Step | ||||||||
| Model Number | # Of Steps | Top Step | Overall Height | Hand Rails | Base [W x L] | Shipping Weight (lbs.) | G Tread | P Tread |

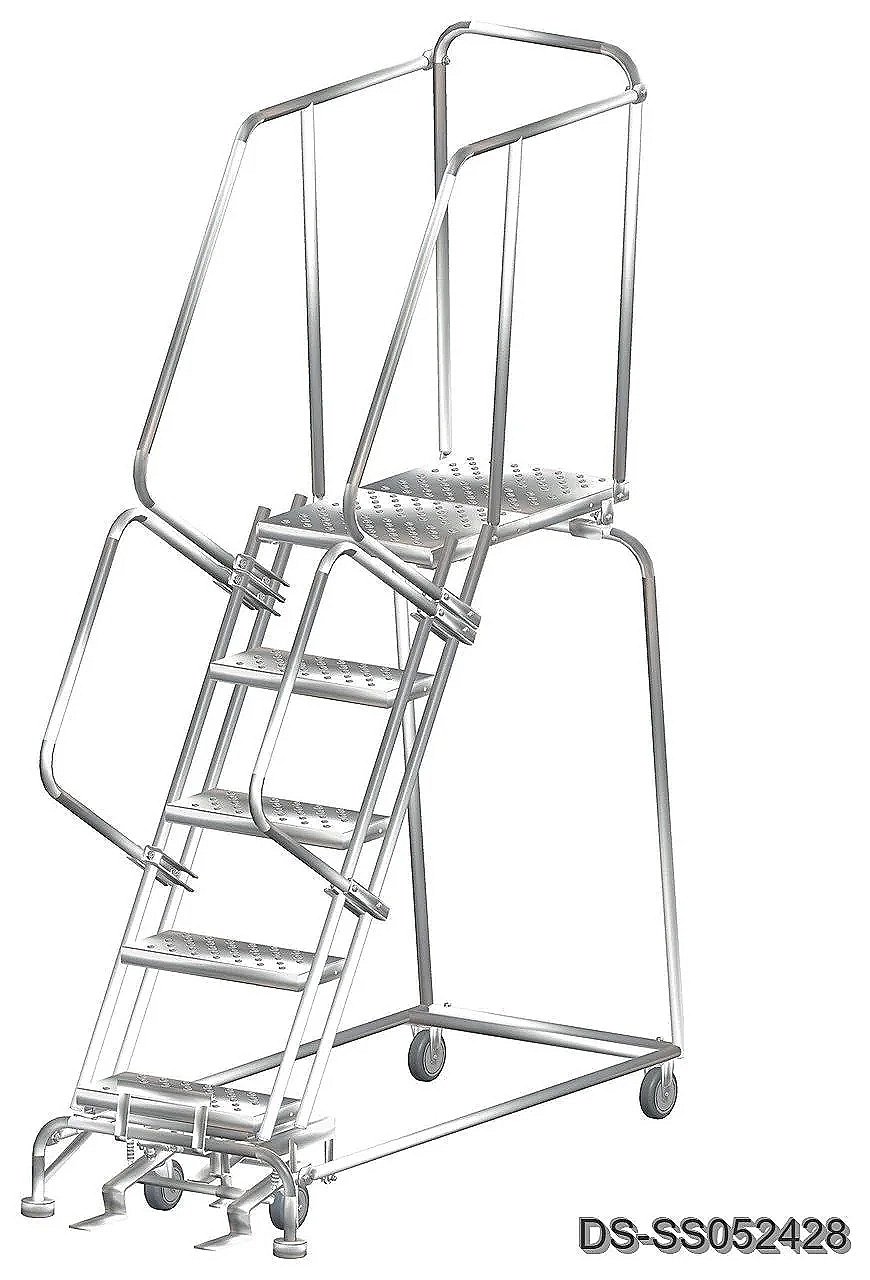

| DS-SS052428 | 5 | 50 | 83 | Y | 24x60 | 190 | $2,653 | $2,558 |

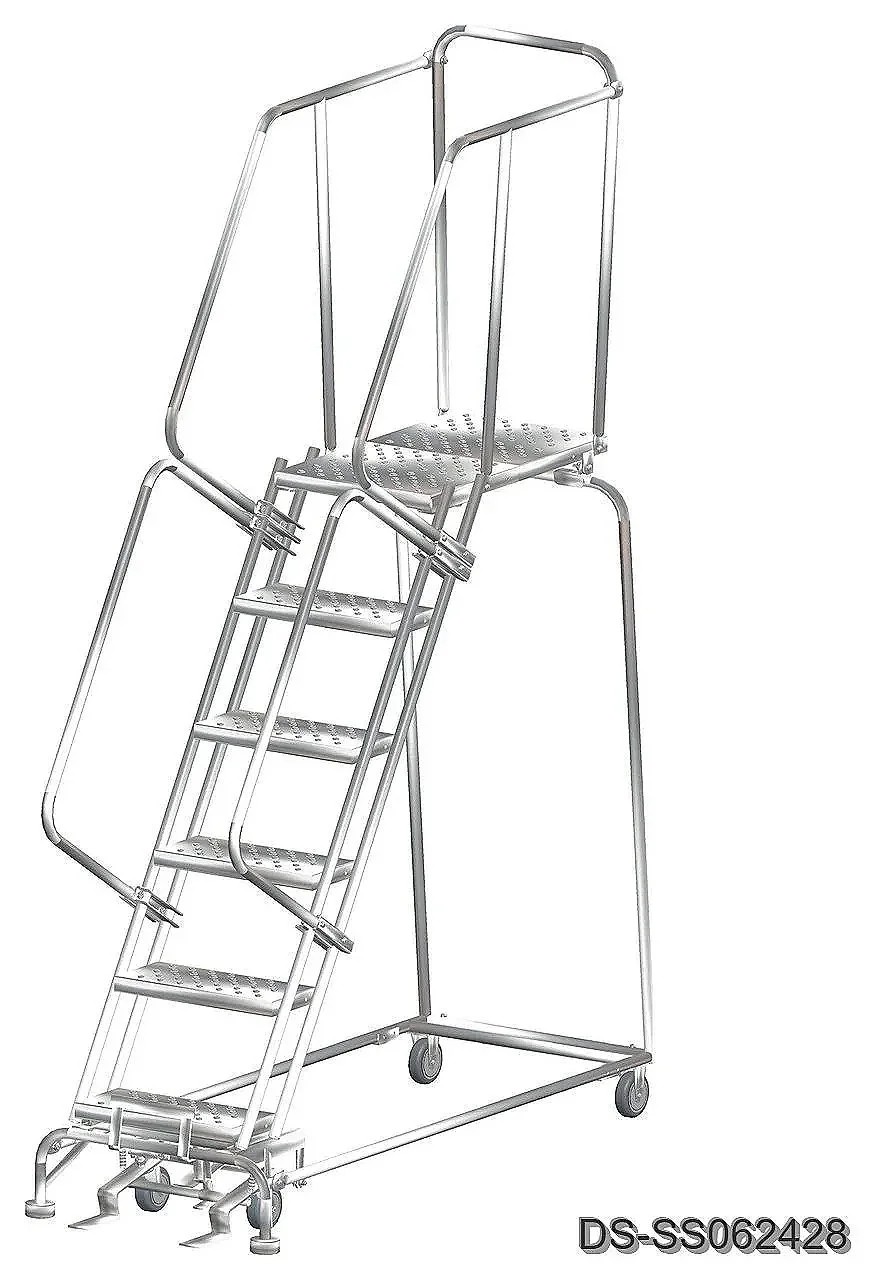

| DS-SS062428 | 6 | 60 | 93 | Y | 24x66 | 166 | $3,018 | $2,779 |

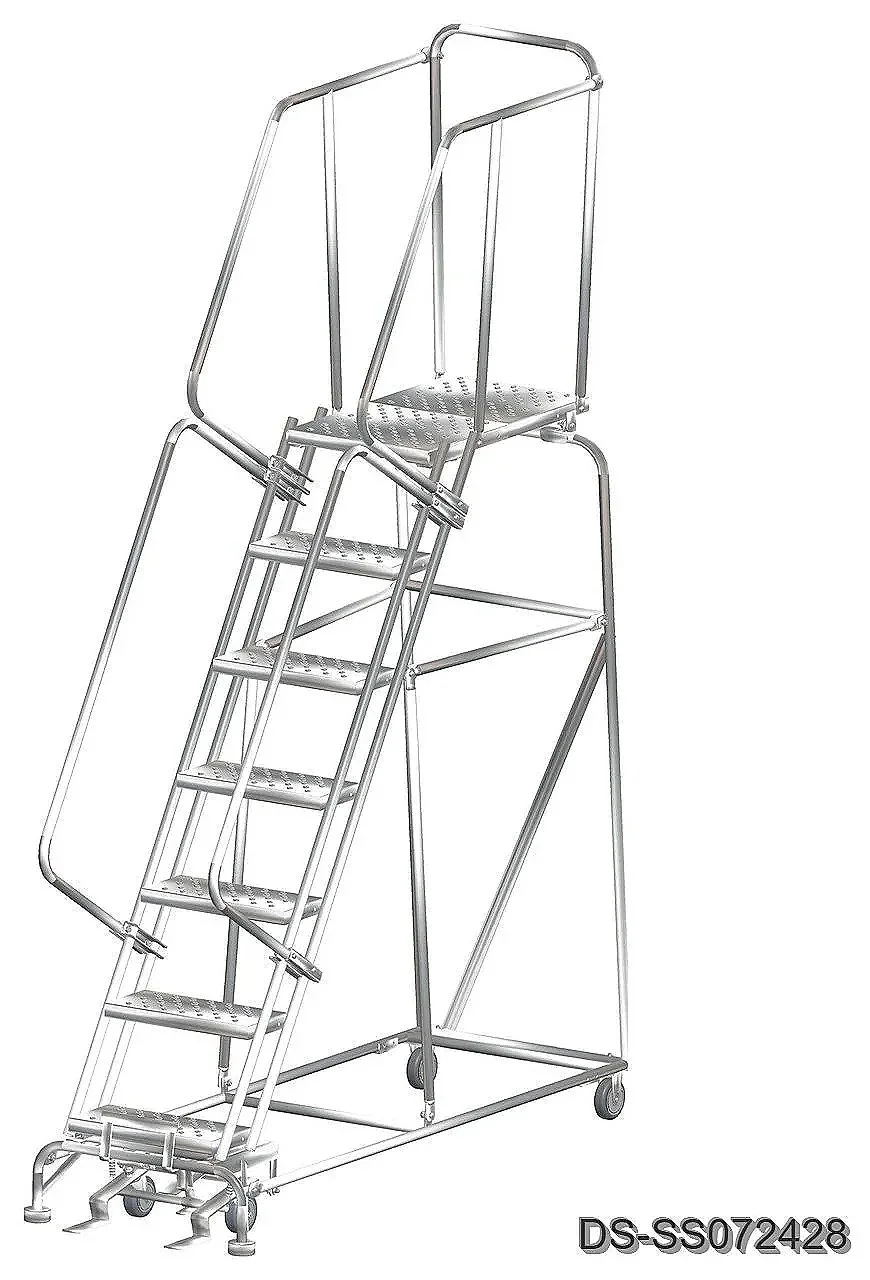

| DS-SS072428 | 7 | 70 | 103 | Y | 24x72 | 170 | $3,383 | $3,111 |
| DS-SS082428 | 8 | 80 | 113 | Y | 24x78 | 175 | Call | Call |
| . Stainless Steel - M-2000 Rolling Ladder - 32" Wide x 14" Deep Top Step | ||||||||
| Model Number | # Of Steps | Top Step | Overall Height | Hand Rails | Base [W x L] | Shipping Weight (lbs.) | G Tread | P Tread |
| DS-SS053214 | 5 | 50 | 83 | Y | 32x46 | 190 | $2,590 | $2,354 |

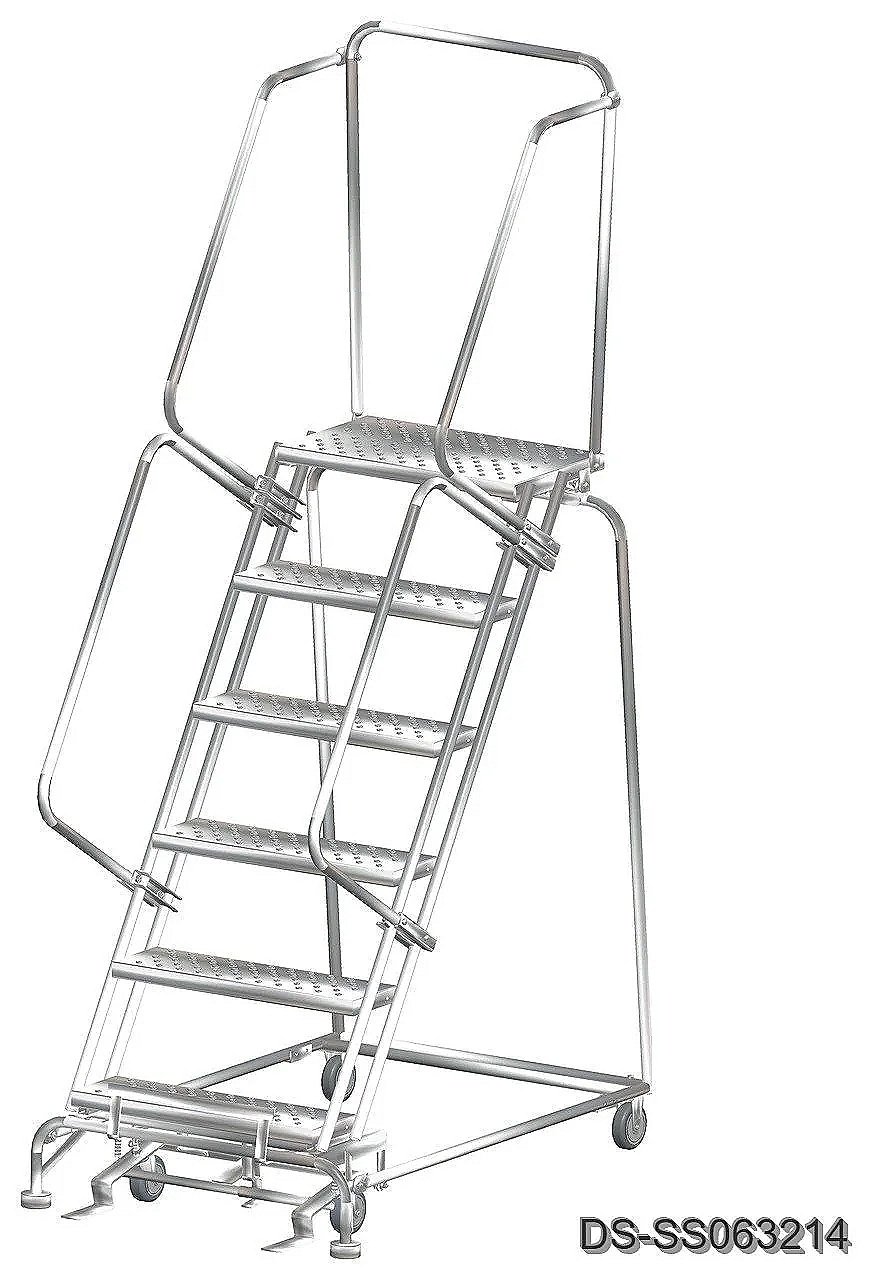

| DS-SS063214 | 6 | 60 | 93 | Y | 32x52 | 144 | $2,979 | $2,708 |

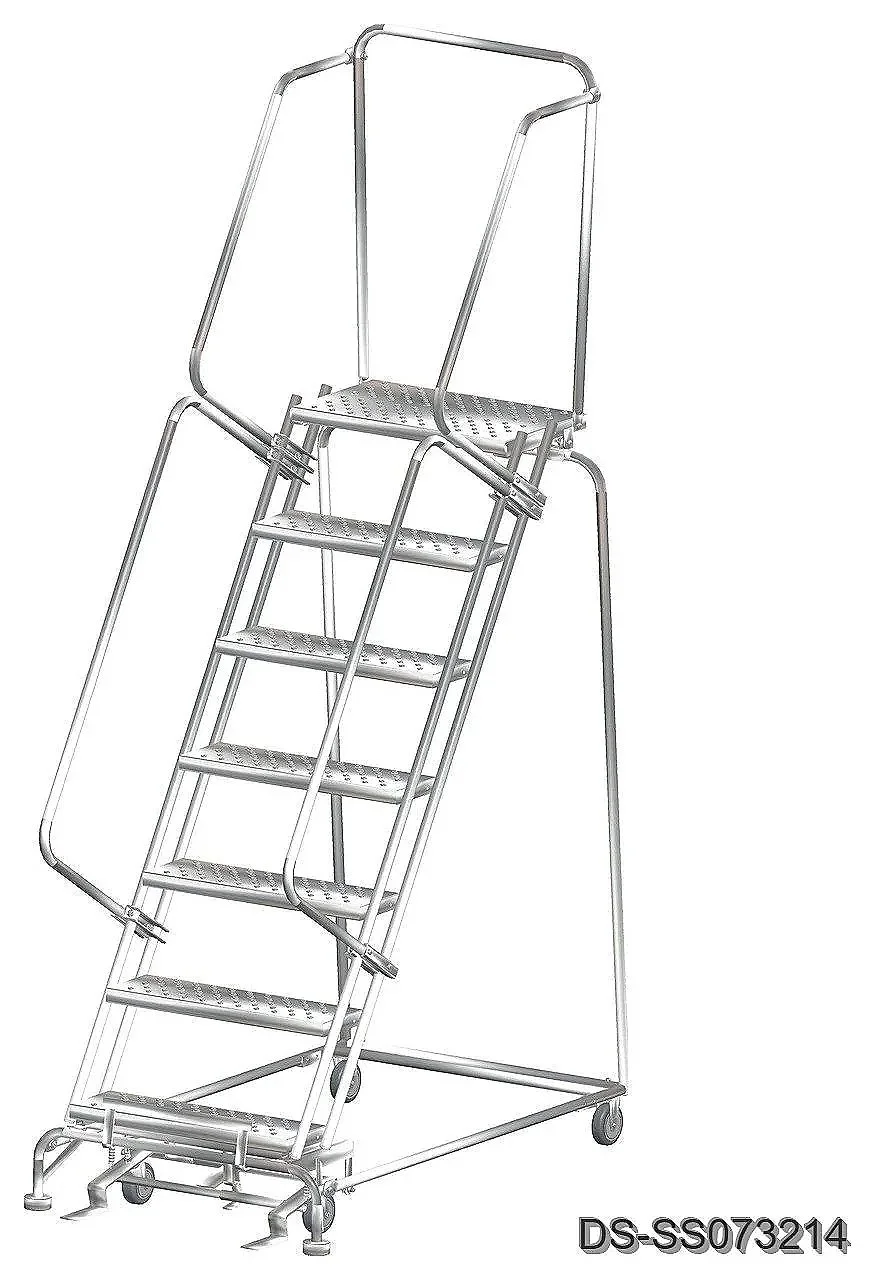

| DS-SS073214 | 7 | 70 | 103 | Y | 32x58 | 183 | $3,368 | $3,061 |

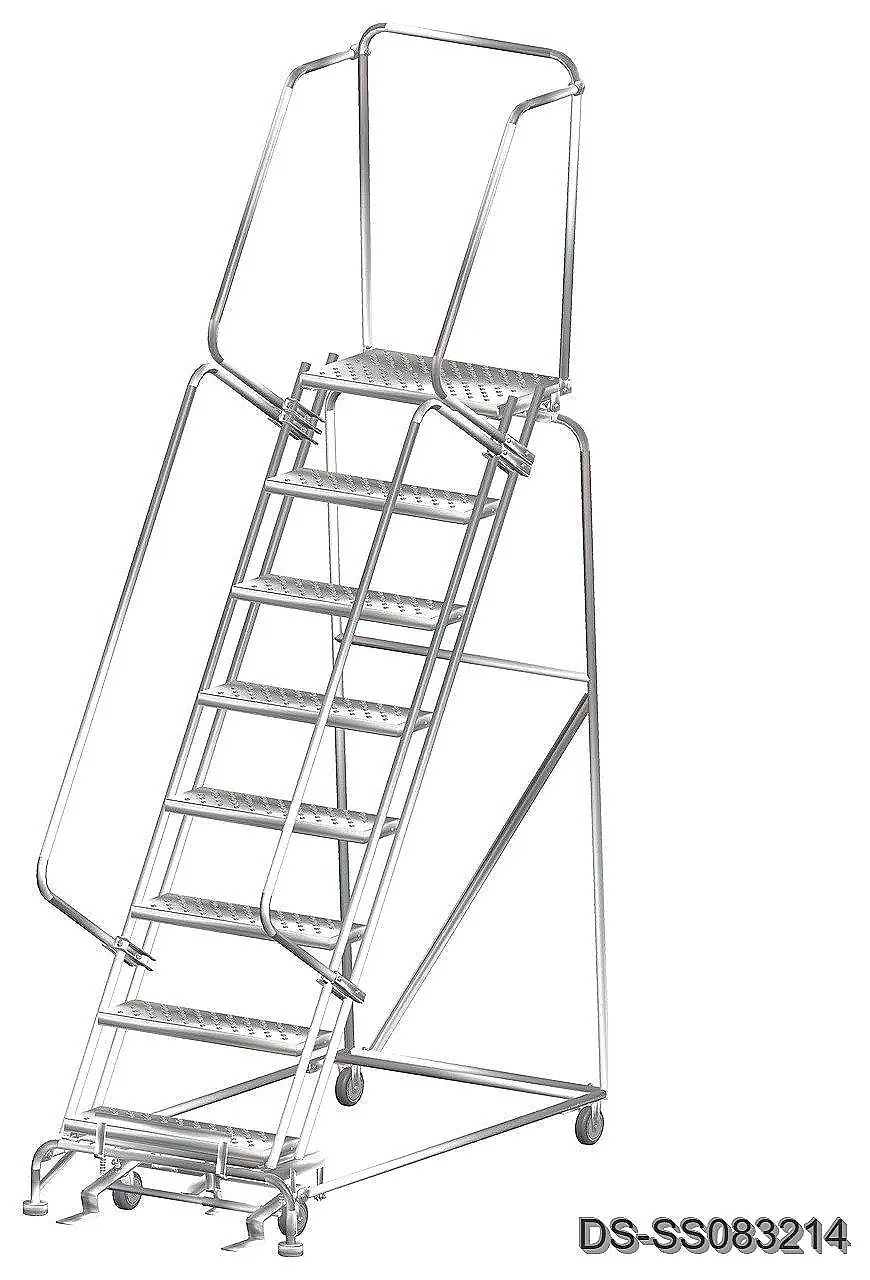

| DS-SS083214 | 8 | 80 | 113 | Y | 32x64 | 201 | $3,757 | $3,415 |

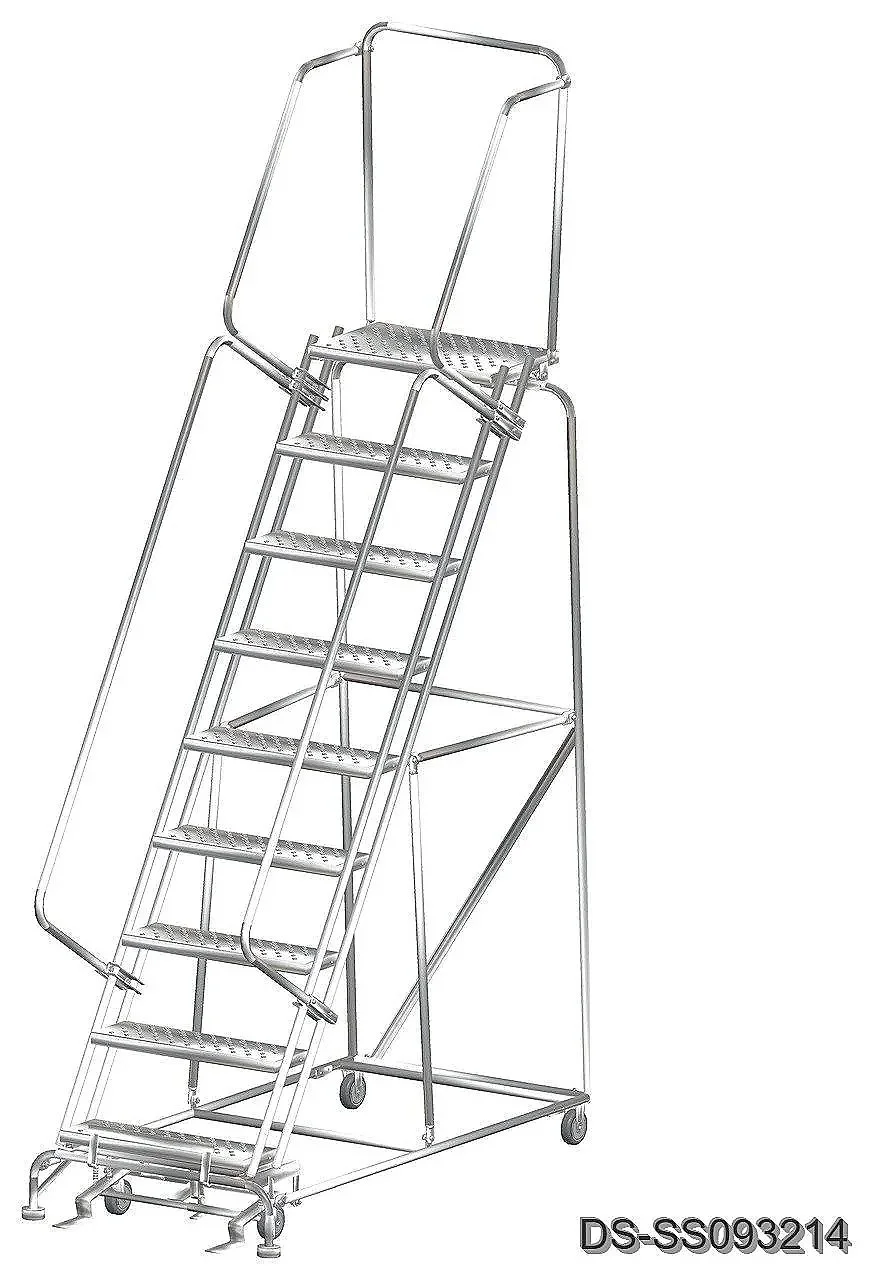

| DS-SS093214 | 9 | 90 | 123 | Y | 32x70 | 216 | $4,146 | $3,769 |

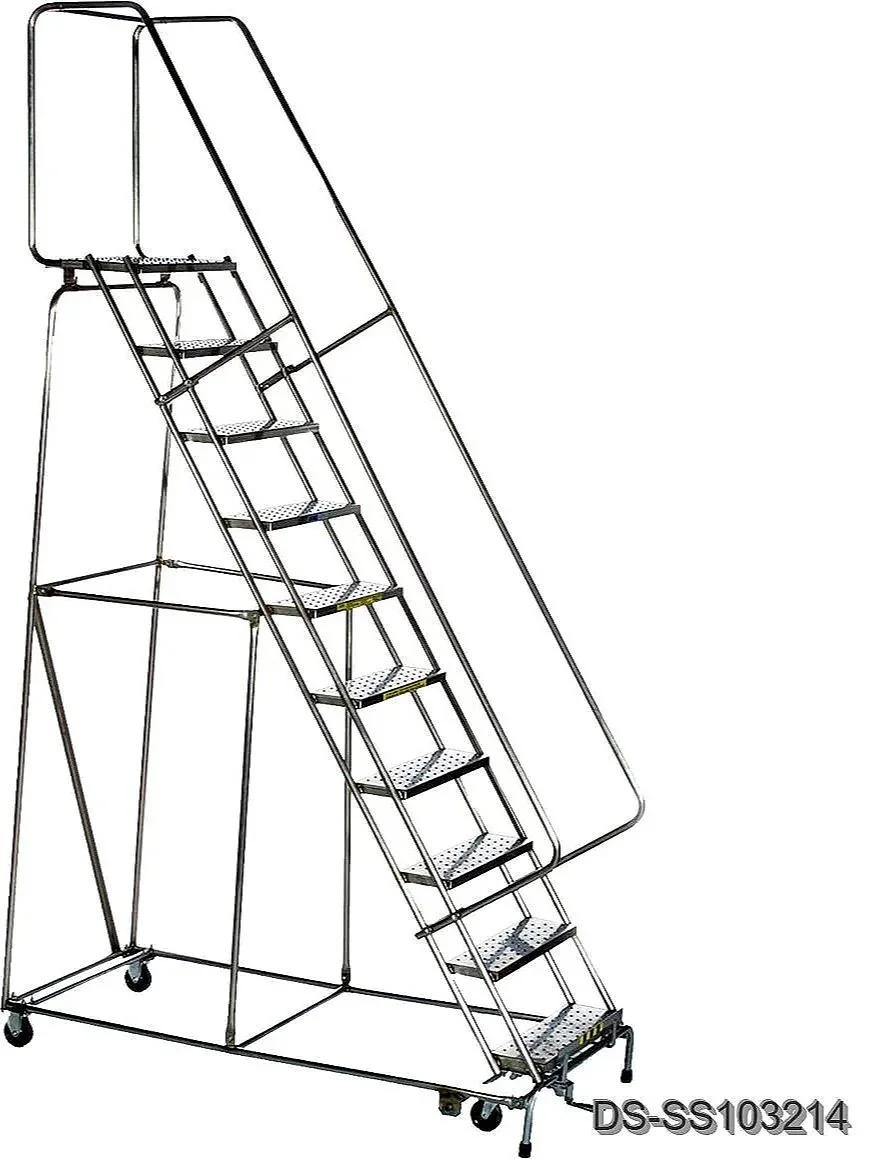

| DS-SS103214 | 10 | 100 | 133 | Y | 32x76 | 235 | $4,535 | $4,123 |

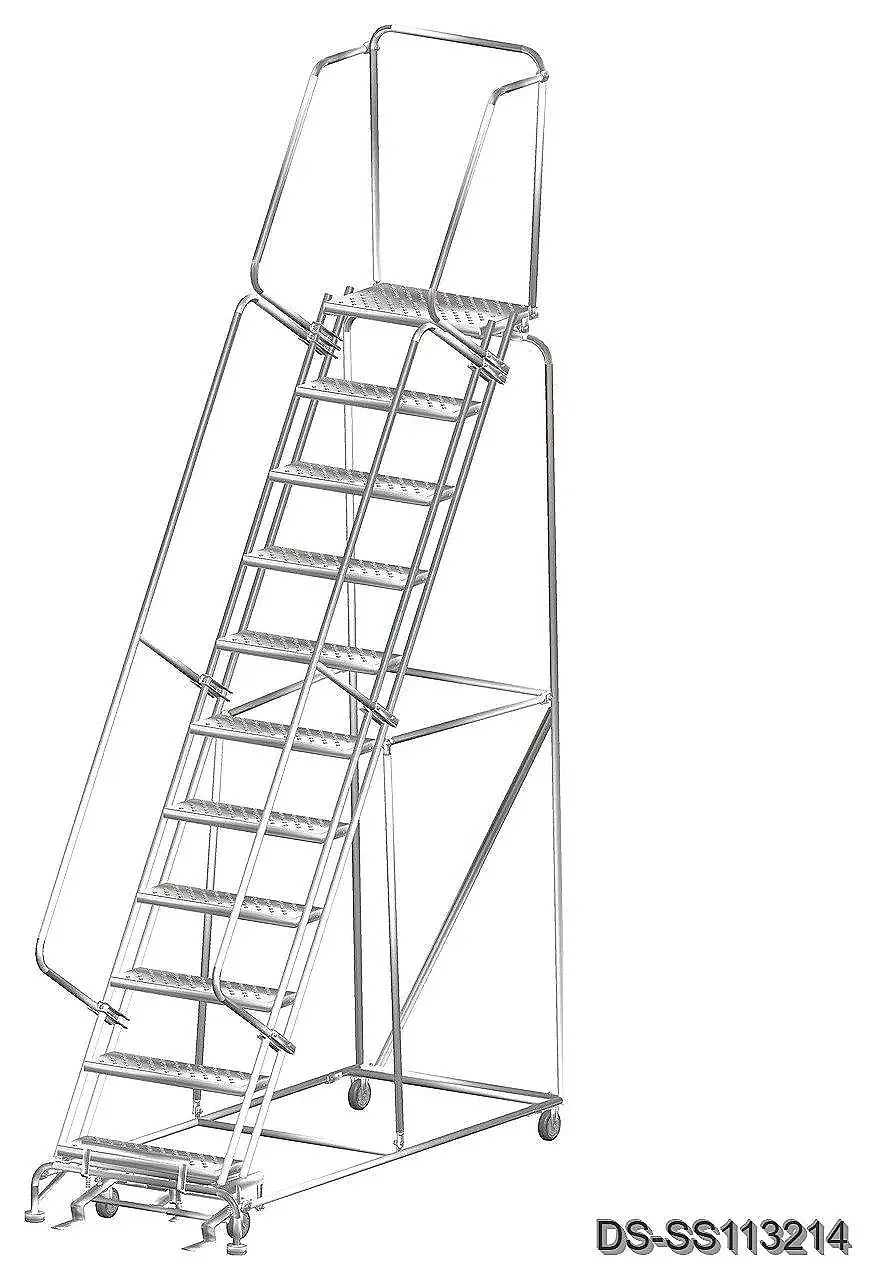

| DS-SS113214 | 11 | 110 | 143 | Y | 32x82 | 247 | $4,924 | $4,476 |

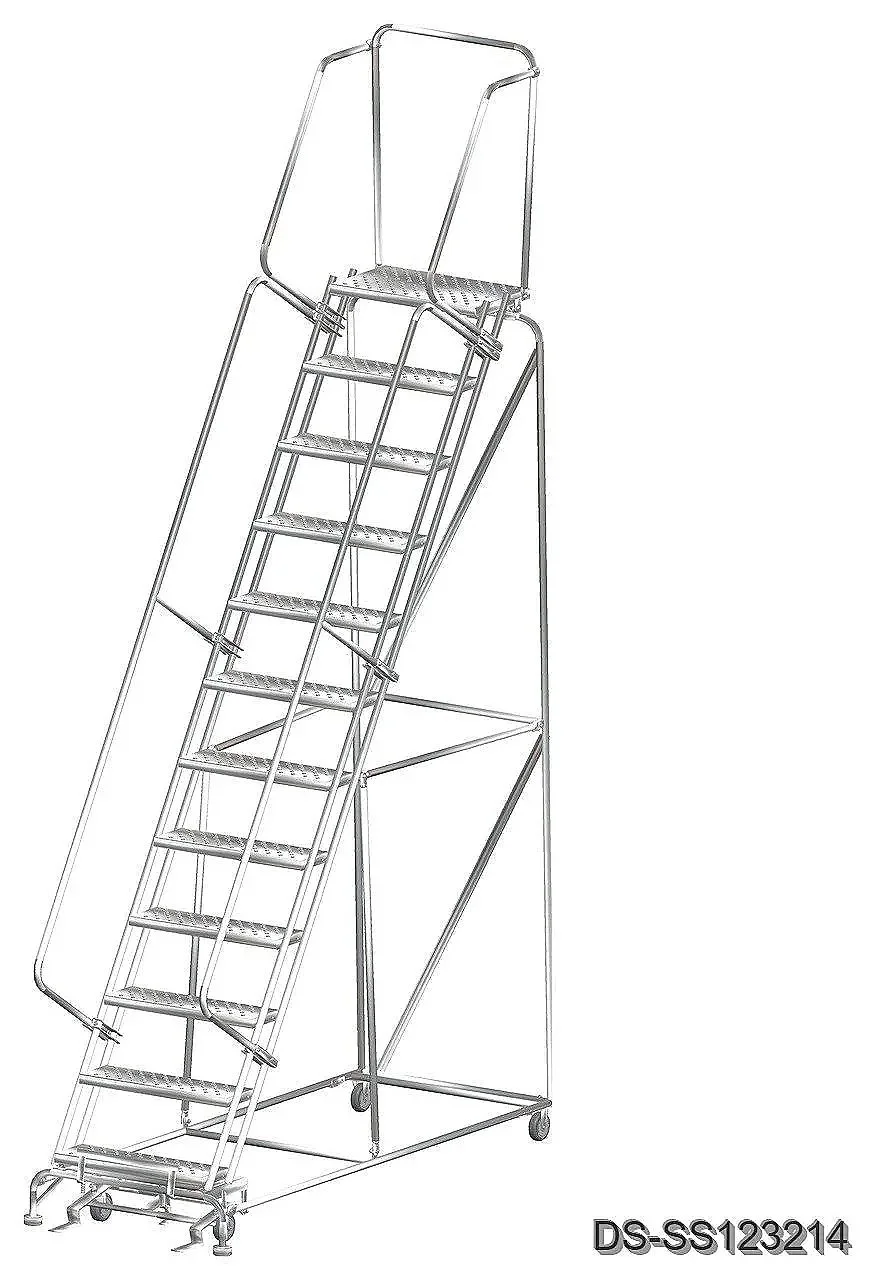

| DS-SS123214 | 12 | 120 | 153 | Y | 32x88 | 300 | $5,313 | $4,830 |
| DS-SS134014 | 13 | 130 | 172 | Y | 40x94 | Call | Call | Call |
| DS-SS144014 | 14 | 140 | 182 | Y | 40x100 | Call | Call | Call |
| DS-SS154014 | 15 | 150 | 192 | Y | 40x106 | Call | Call | Call |
| . Stainless Steel - M-2000 Rolling Ladder - 32" Wide x 21" Deep Top Step | ||||||||
| Model Number | # Of Steps | Top Step | Overall Height | Hand Rails | Base [W x L] | Shipping Weight (lbs.) | G Tread | P Tread |

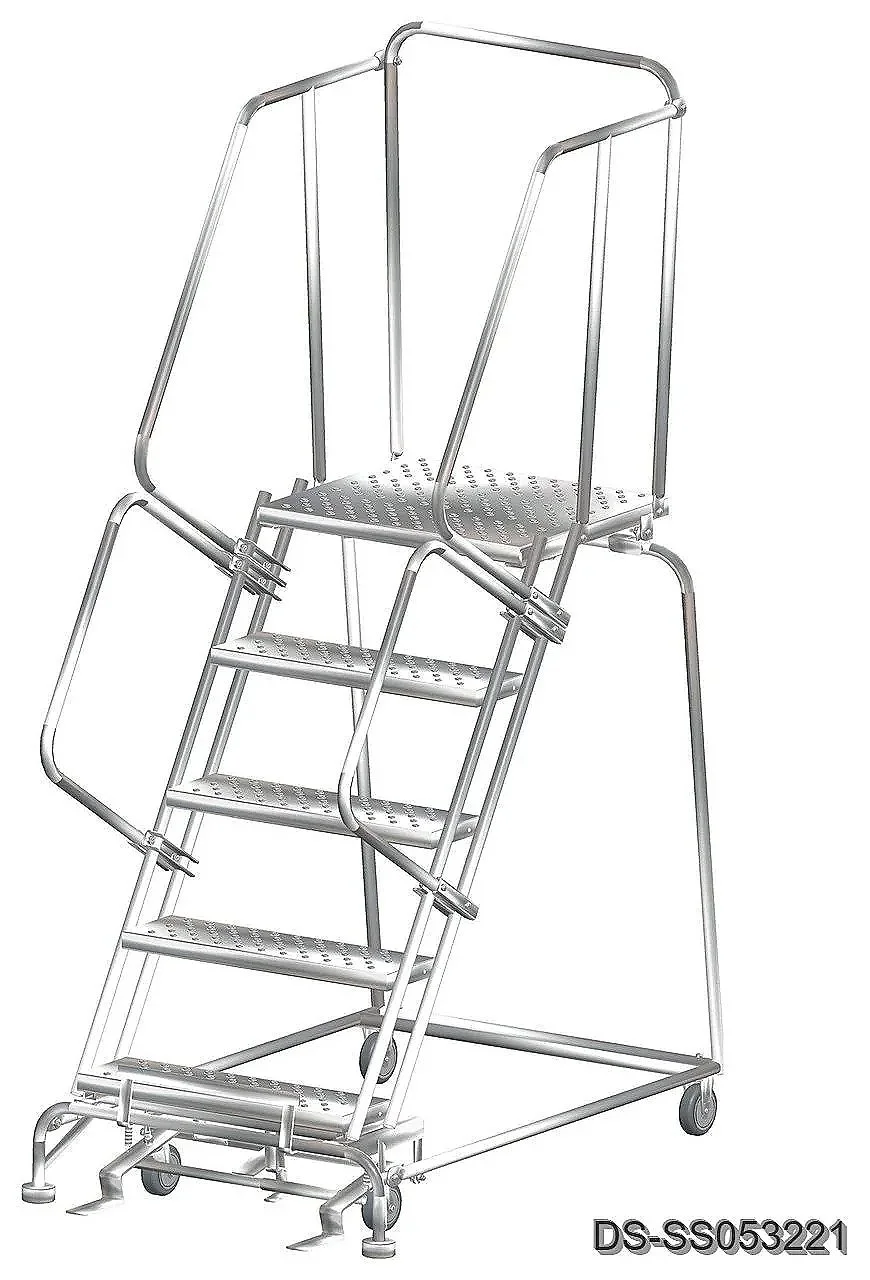

| DS-SS053221 | 5 | 50 | 83 | Y | 32x53 | 160 | $2,893 | $2,657 |

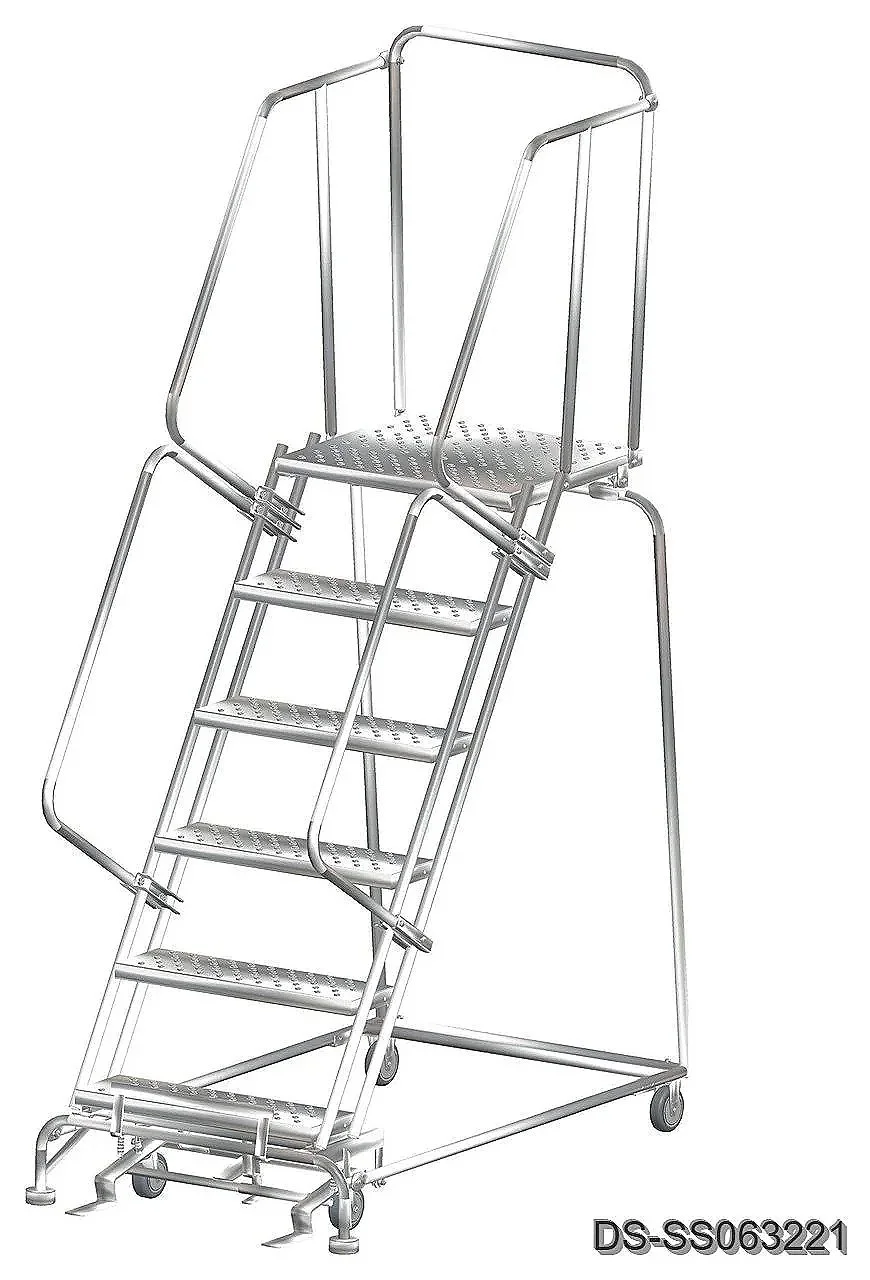

| DS-SS063221 | 6 | 60 | 93 | Y | 32x59 | 140 | $3,282 | $3,011 |

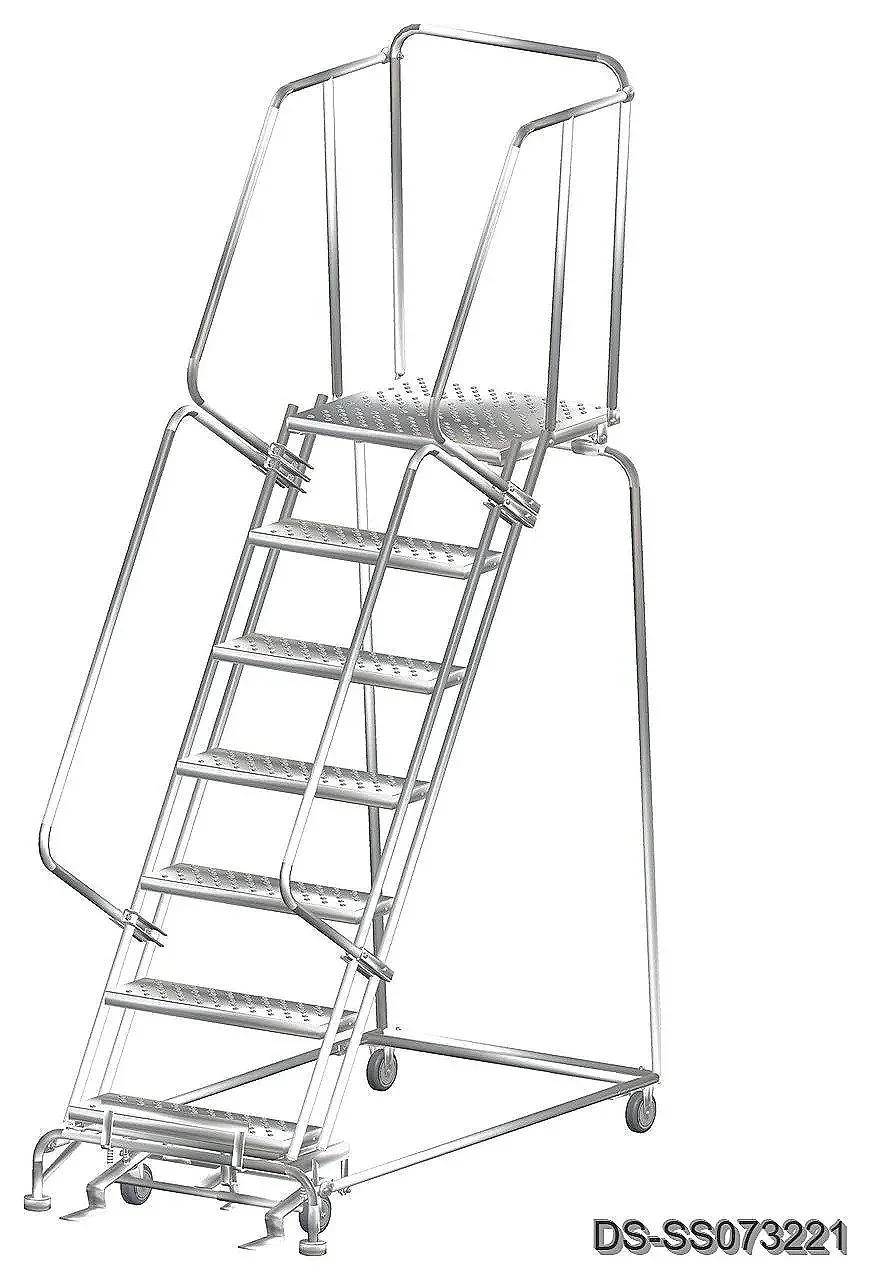

| DS-SS073221 | 7 | 70 | 103 | Y | 32x65 | 216 | $3,671 | $3,364 |

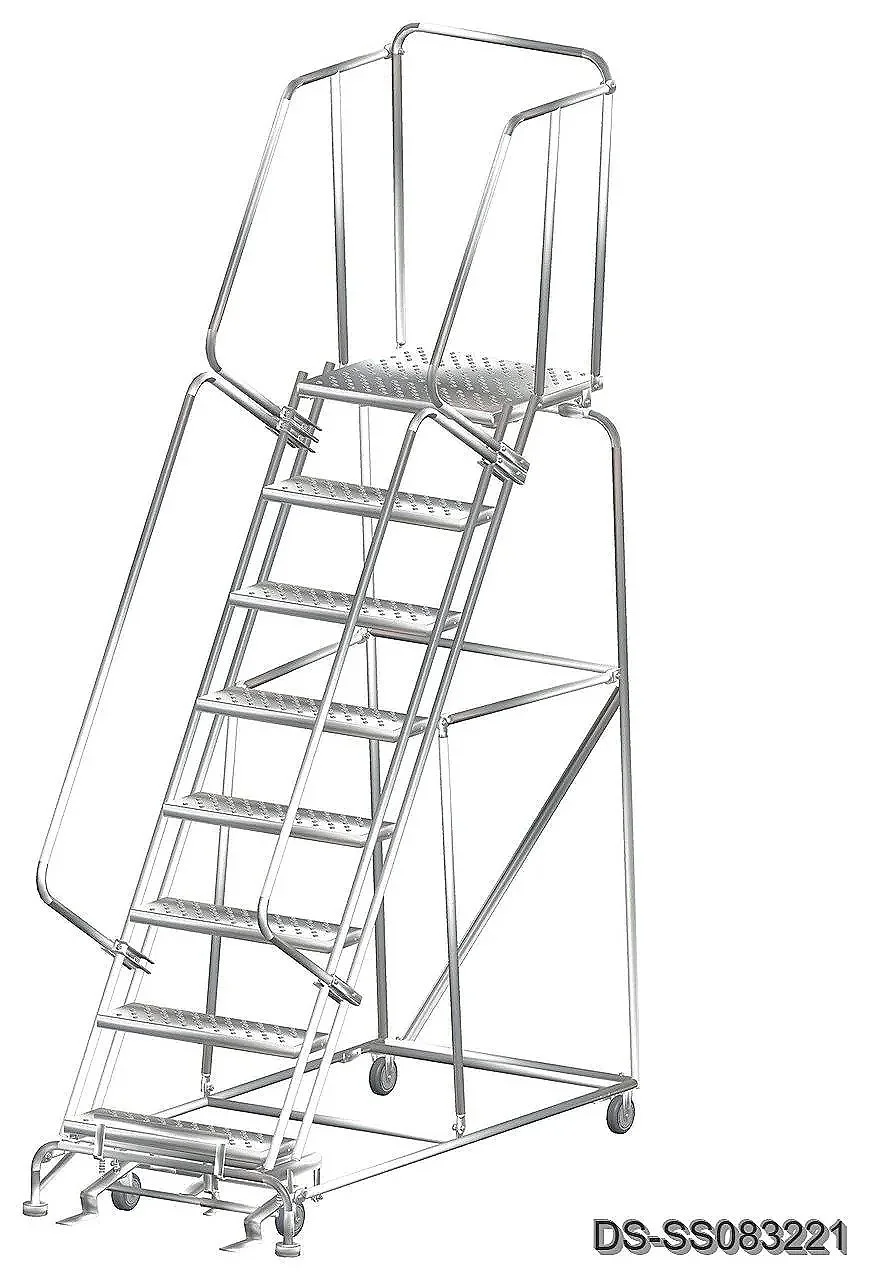

| DS-SS083221 | 8 | 80 | 113 | Y | 32x71 | 250 | $4,060 | $3,718 |
| DS-SS093221 | 9 | 90 | 123 | Y | 32x77 | 275 | $4,449 | $4,072 |
| DS-SS103221 | 10 | 100 | 133 | Y | 32x83 | 280 | $4,838 | $4,428 |
| DS-SS113221 | 11 | 110 | 143 | Y | 32x89 | 319 | $5,227 | $4,779 |
| DS-SS123221 | 12 | 120 | 153 | Y | 32x95 | 270 | $5,616 | $5,222 |
| DS-SS134021 | 13 | 130 | 172 | Y | 40x101 | Call | Call | Call |
| DS-SS144021 | 14 | 140 | 182 | Y | 40x107 | Call | Call | Call |
| DS-SS154021 | 15 | 150 | 192 | Y | 40x113 | Call | Call | Call |
| . Stainless Steel - M-2000 Rolling Ladder - 32" Wide x 28" Deep Top Step | ||||||||
| Model Number | # Of Steps | Top Step | Overall Height | Hand Rails | Base [W x L] | Shipping Weight (lbs.) | G Tread | P Tread |

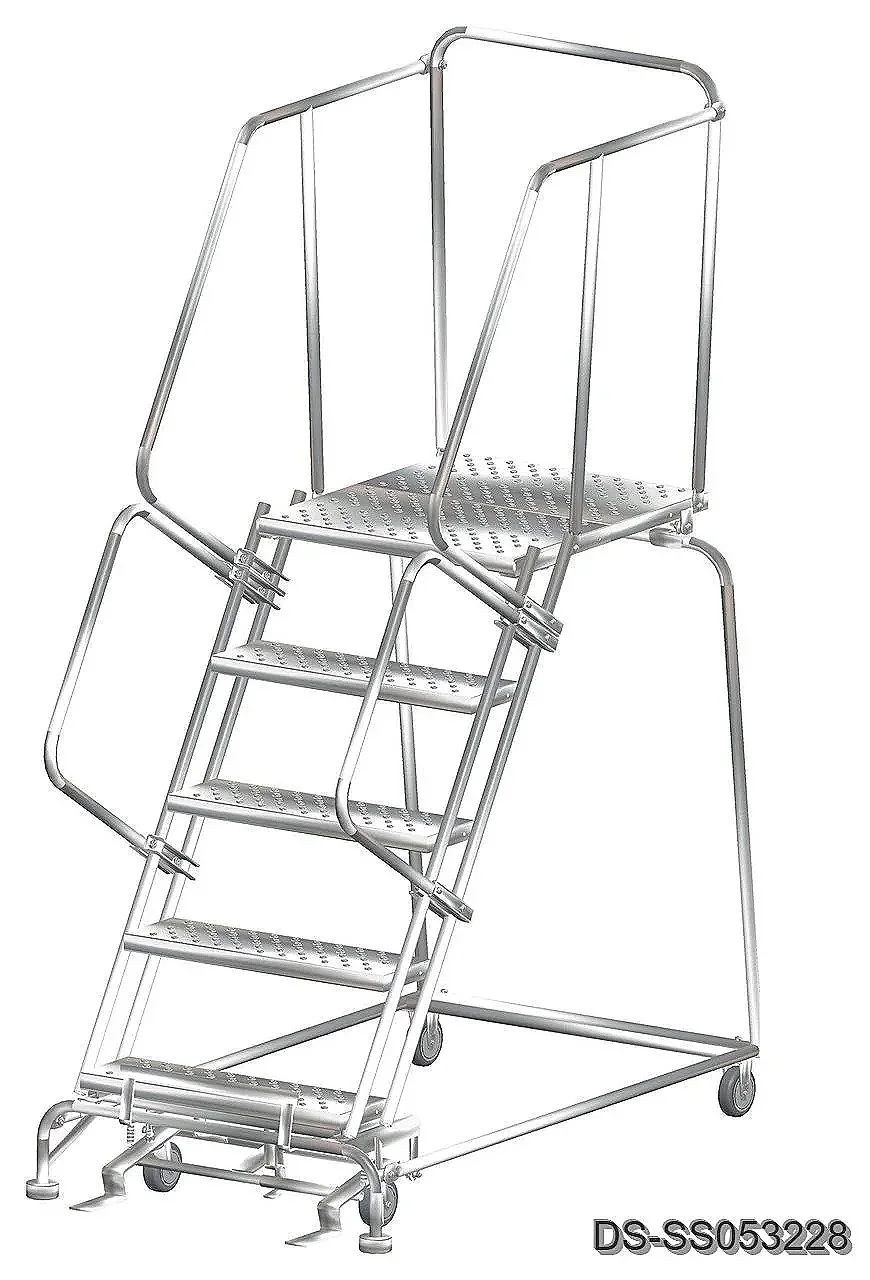

| DS-SS053228 | 5 | 50 | 83 | Y | 32x60 | 149 | $2,982 | $2,746 |

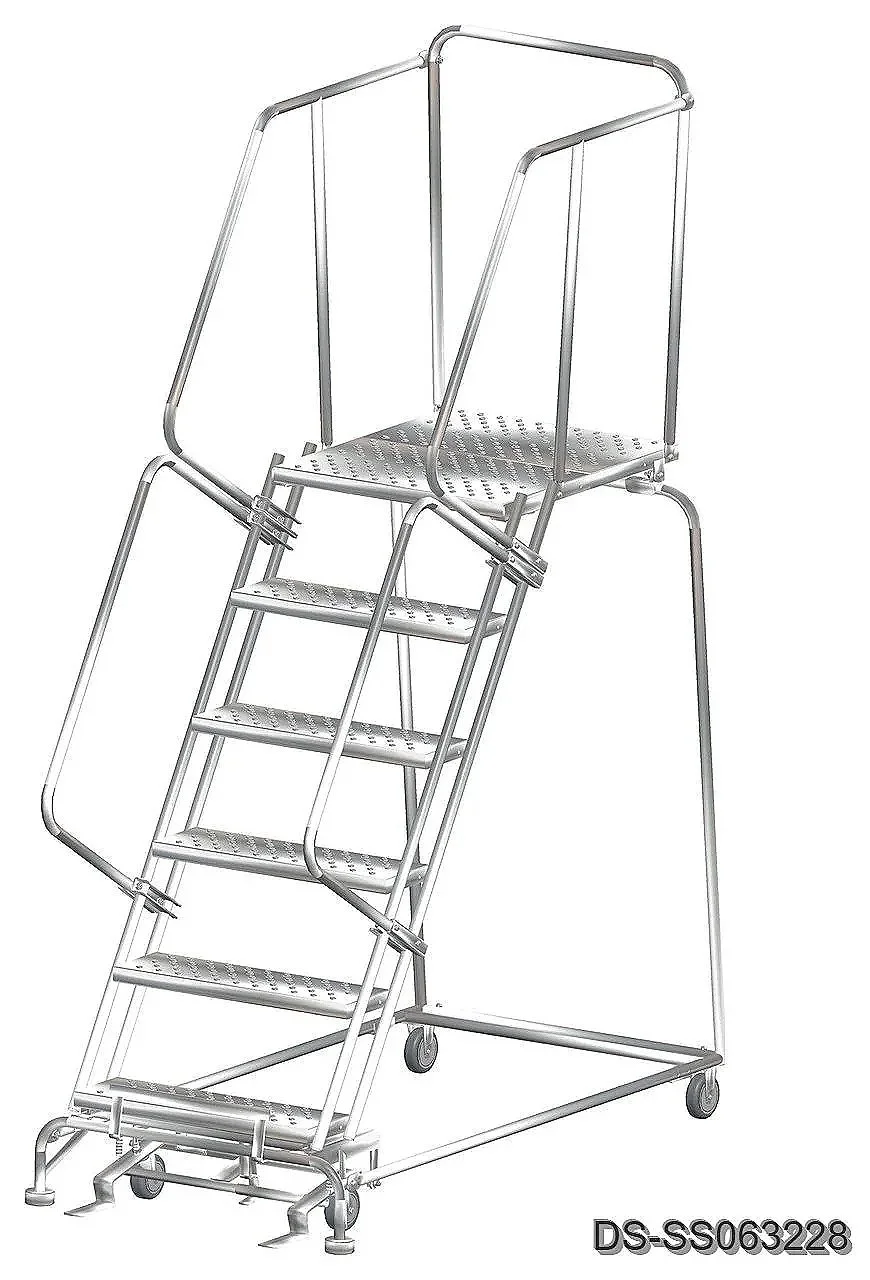

| DS-SS063228 | 6 | 60 | 93 | Y | 32x66 | 184 | $3,371 | $3,100 |

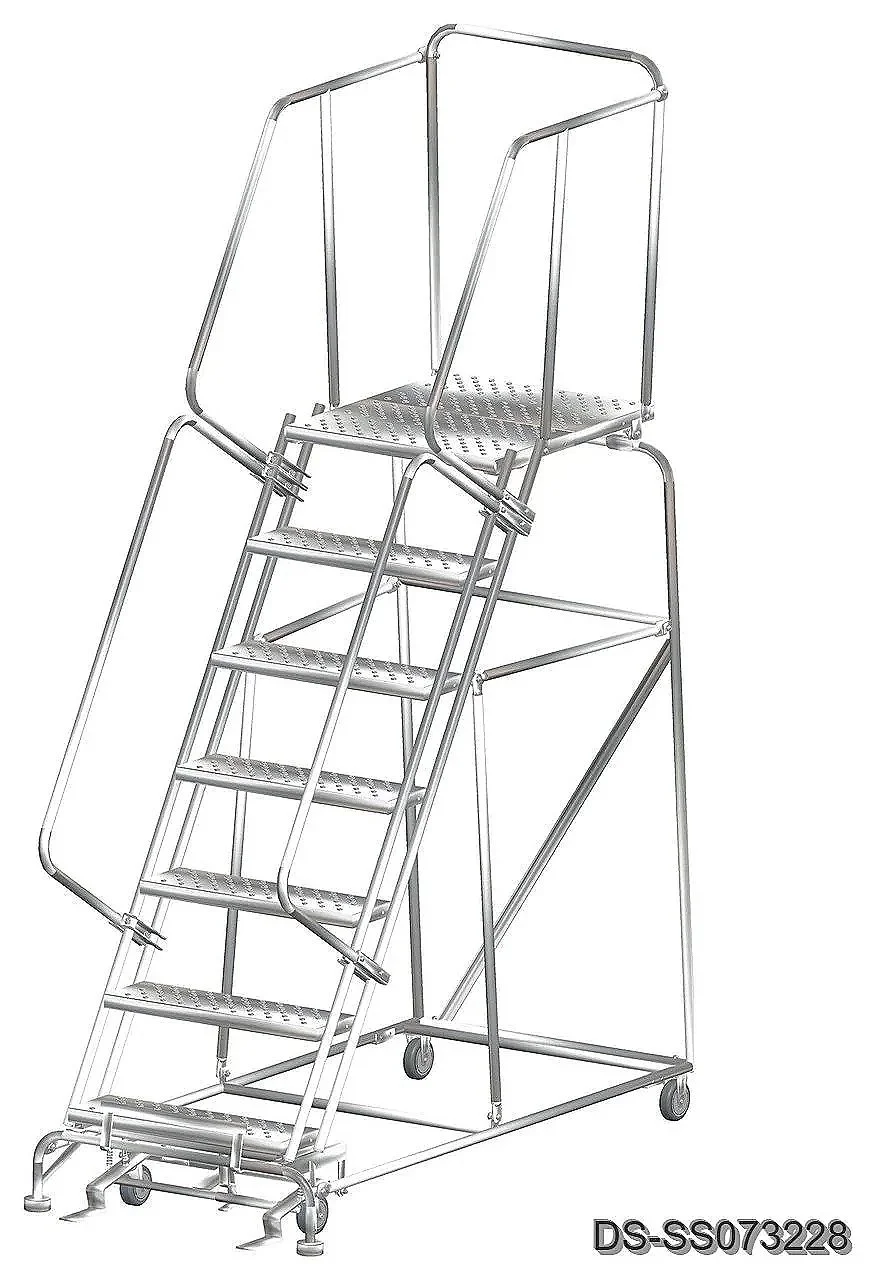

| DS-SS073228 | 7 | 70 | 103 | Y | 32x72 | 200 | $3,760 | $3,453 |

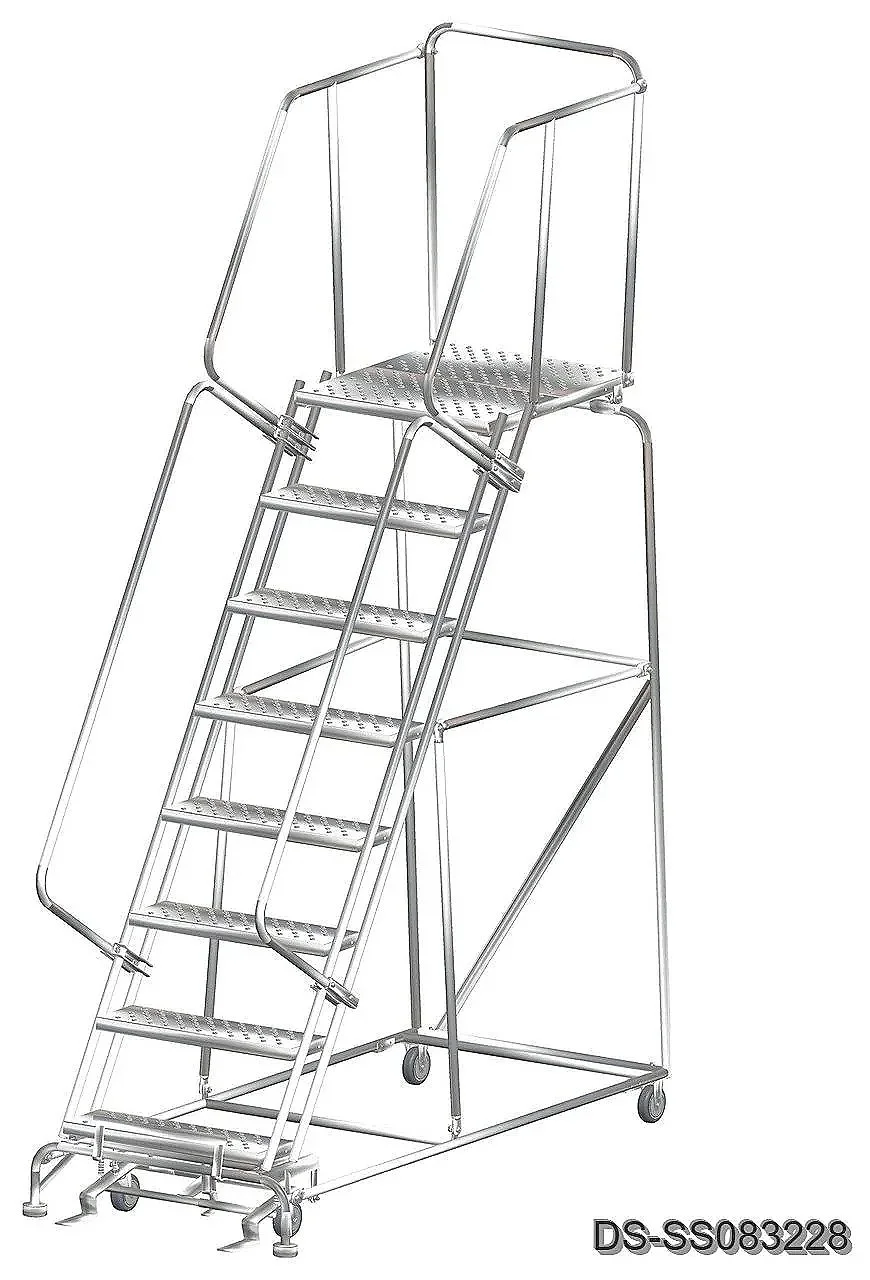

| DS-SS083228 | 8 | 80 | 113 | Y | 32x78 | 261 | $4,149 | $3,807 |

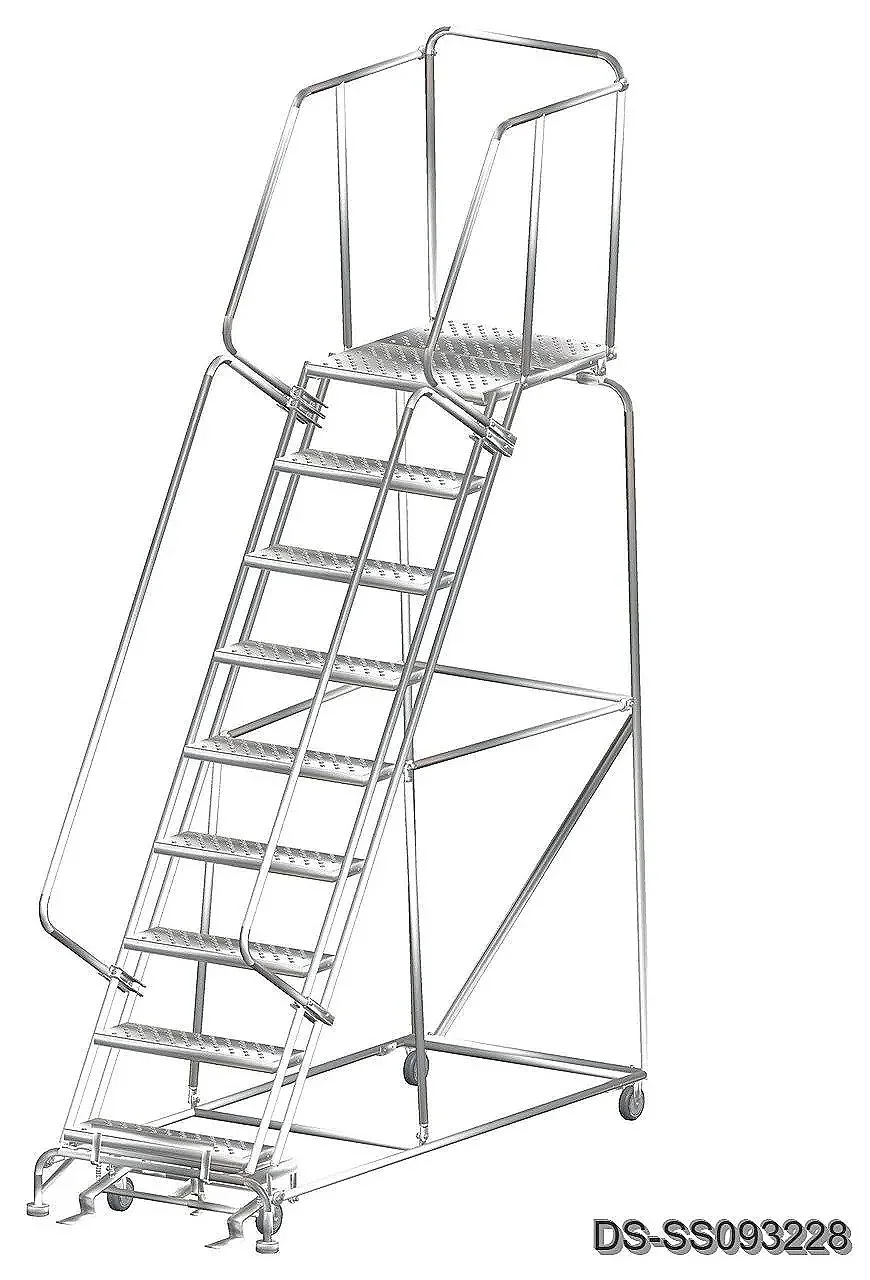

| DS-SS093228 | 9 | 90 | 123 | Y | 32x84 | 295 | $4,508 | $4,161 |

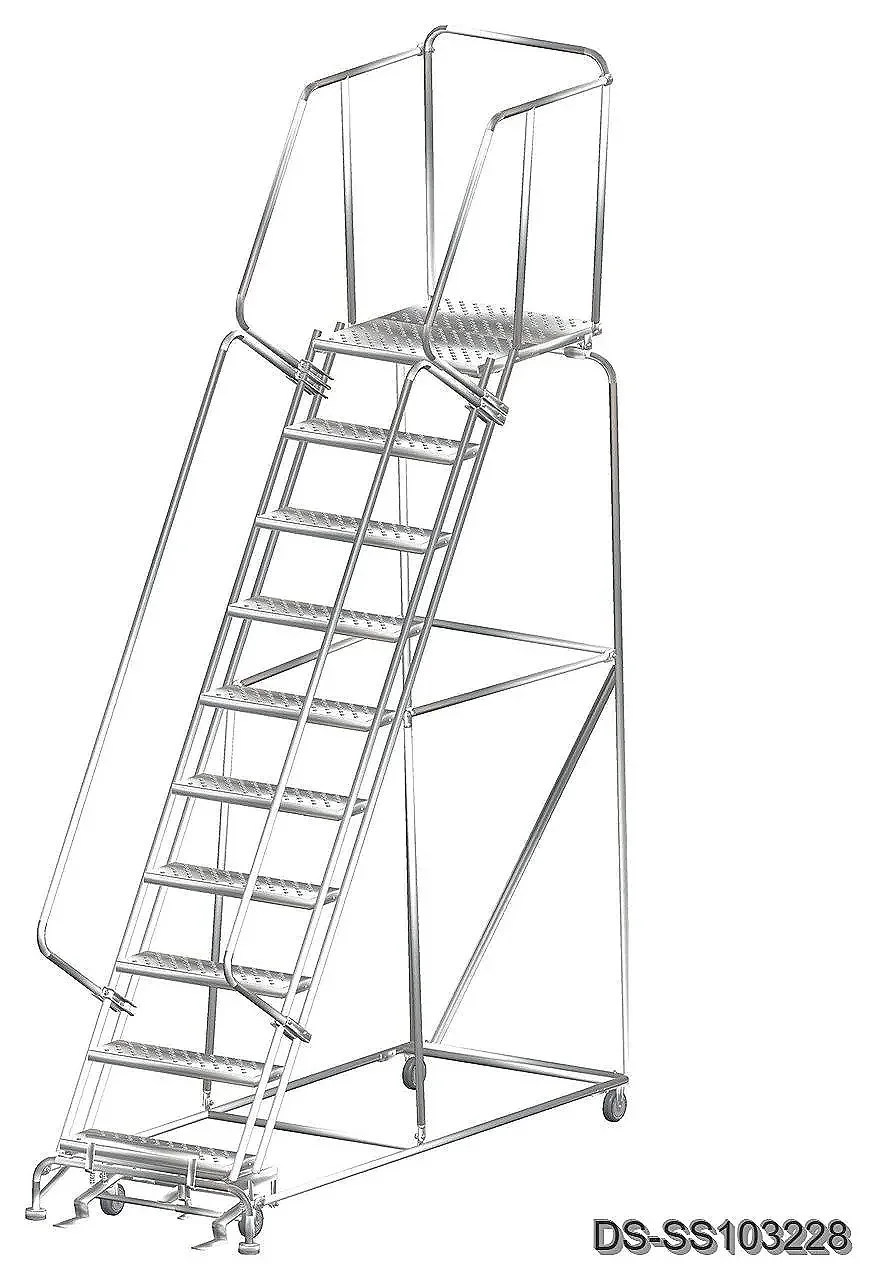

| DS-SS103228 | 10 | 100 | 133 | Y | 32x90 | 256 | $4,927 | $4,515 |

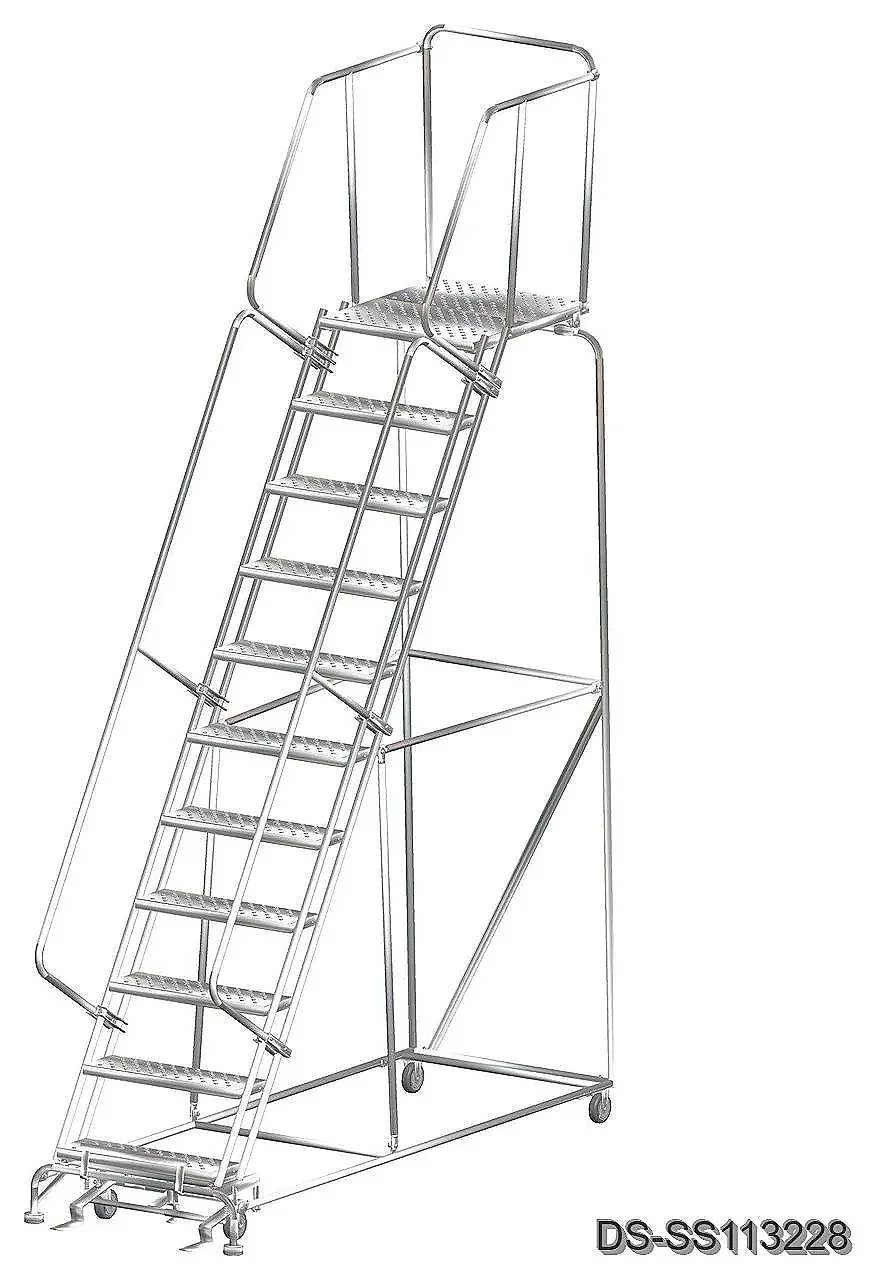

| DS-SS113228 | 11 | 110 | 143 | Y | 32x96 | 327 | $5,316 | $4,868 |

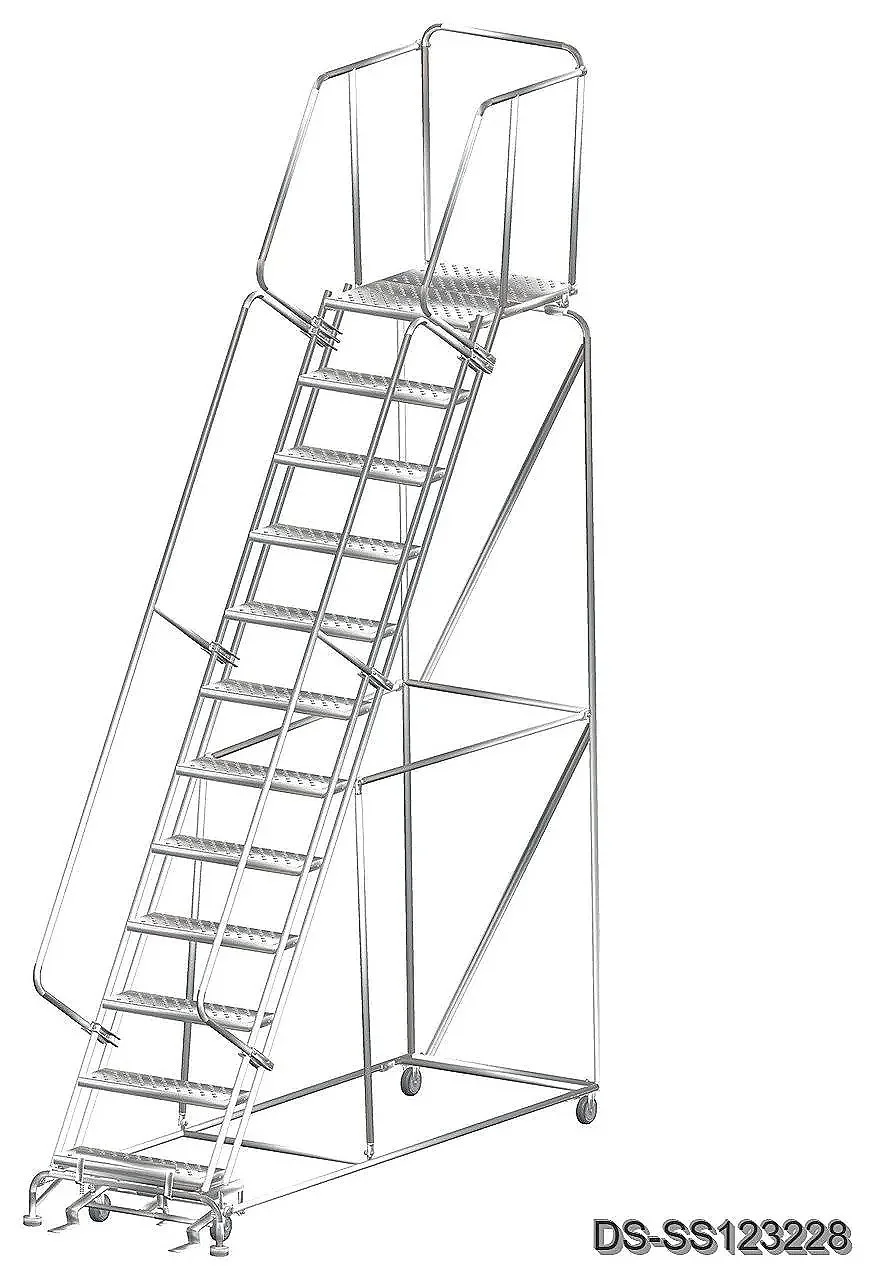

| DS-SS123228 | 12 | 120 | 153 | Y | 32x102 | 356 | $5,705 | $5,222 |
| DS-SS134028 | 13 | 130 | 172 | Y | 40x108 | Call | Call | Call |
| DS-SS144028 | 14 | 140 | 182 | Y | 40x114 | Call | Call | Call |
| DS-SS154028 | 15 | 150 | 192 | Y | 40x120 | Call | Call | Call |
| All dimensions are in inches | ||||||||
Features
Features
Standard Features:
5 steps to 12 steps
Handrails
450 Lb. Capacity
56 Degree Slope
Ideal For Wash Down And Corrosive Environments
Type T304 Stainless Steel Construction
5-12 Step Ladders Have 14" Deep Top Step Standard
Rear or Side exits available
Deeper Top Steps Available On All Models
Perforated or serrated treads
Bead Blasted For Uniform Finish
Casters For Lock Step Ladders Are Stainless Steel
Complies With Applicable OSHA & ANSI Standards
CAL OSHA Available
Note: All Stainless Ladders Are Manufactured With Industrial Grade Welds, Not Recommended For Clean Rooms.
Made in USA
Complies With Applicable OSHA & ANSI Standards
CAL OSHA Available
Ships Unassembled In A Box Available Tread Types Please Specify When Ordering.
Options
Options
No options available for this product
Parts
Parts
Please call 1-888-802-3651 for replacement parts
Tread Types
Tread Types
What is the Rule of Thumb when Choosing a Tread Type?
P Tread has holes in the metal and offer a non-aggressive, non-slip option to be used inside in a dry, non-dusty environment. This would be a good fit for warehouse, office, storefront and anywhere tennis shoes or street shoes are the norm.
G Tread is the most aggressive tread and will not allow slipping of any kind. Best used inside or outside in wet, oily or very dusty situations. This tread has a lot of grip and will allow snow and rain to fall thru the tread. You will want this type of tread in a work boot type environment.
Feel free to contact our qualified sales team at (888) 802-3651 and let us answer any questions you may have regarding tread types or any other questions you may have regarding industrial maintenance ladders, platforms or stairways.
Documentation / Videos
Documentation / Videos
No documentation or videos available for this product.
