Brandon Mini Lifter
Brandon Mini Lifter

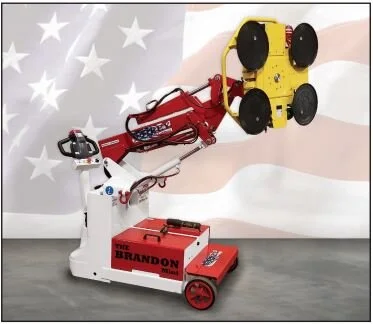

The Brandon Mini Telehandler has great glass lifting capability. Other materials it lifts include metals, granite, quartz and building panels.

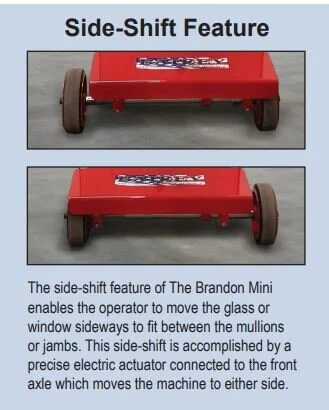

The side-shift feature of The Brandon Mini enables the operator to move the glass or window sideways to fit between the mullions or jambs. This side-shift is accomplished by a precise electric actuator connected to the front axle which moves the machine to either side.
Standard Features
9 Feet (2.75M) of Vertical Reach
3 Feet (.91M) of Horizontal Reach
700 LB (317 Kg) Capacity
Woods Power Grip system
Rear Wheel Electric Motor
24 Volt Battery Powered
Specifications
Model: Brandon Mini
Hook Capacity: 1,000 lbs
Glass Capacity: 700 lbs
Battery Power: 24 Volts

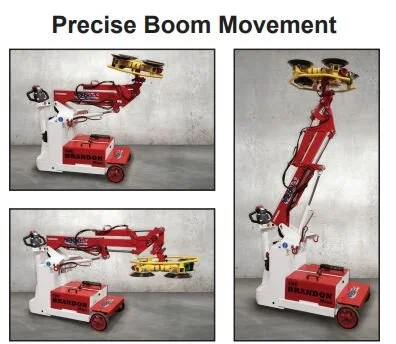

Boom: Proportional Telescoping Boom
Battery Power: 24V 435Amp-Hour
Steering: Rear Wheel
Drive: Rear Wheel Electric Motor
Weight: 2,000 lbs
Weight: Optional 1000# Lift Hook
Charger: On-board 110 Volts AC
Bailey Specialty Cranes & Aerials is an ISO 9001 REGISTERED MANUFACTURING COMPANY
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A LIFT FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE LIFTER.
| Model Number | Description | Weight Lbs. | Power | Price |
|---|---|---|---|---|
| DS-BT9-G | Mini with glass lifter | 2,000 | On-board 110 Volts AC | $96,250 |
| DS-BT9-H | Mini with Hook | 3,000 | On-board 110 Volts AC | $94,531 |
***PRICES SUBJECT TO CHANGE WITHOUT NOTICE***
