Brandon Trax Mini Crane
Brandon Trax Mini Crane
The Brandon Trax provides all-terrain performance that disperses low ground contact pressure for jobs where wheel-load pressure is critical.
The rugged Trax gas engine can also be converted to LP with our conversion kit.
24 Feet (7.33M) of Vertical Reach
16 Feet (4.88M) of Horizontal Reach
5000 LB (2722Kg) Capacity
Woods Power Grip system
5800 LB (2630 Kg) Machine Weight
Side Slope Operation: 15 Degrees
Tracks - Telescoping

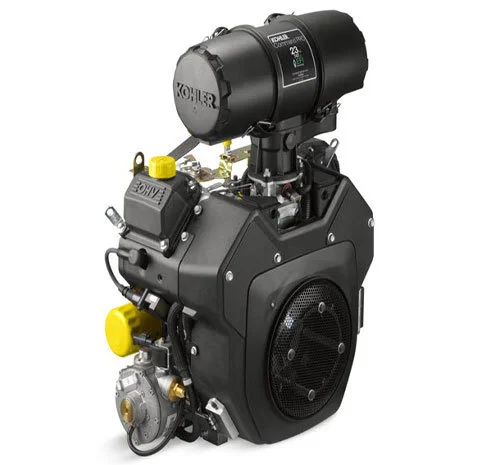

Propane-powered Kohler PCH740 Power-unit
Made in the USA
Specifications
Model: Brandon Trax

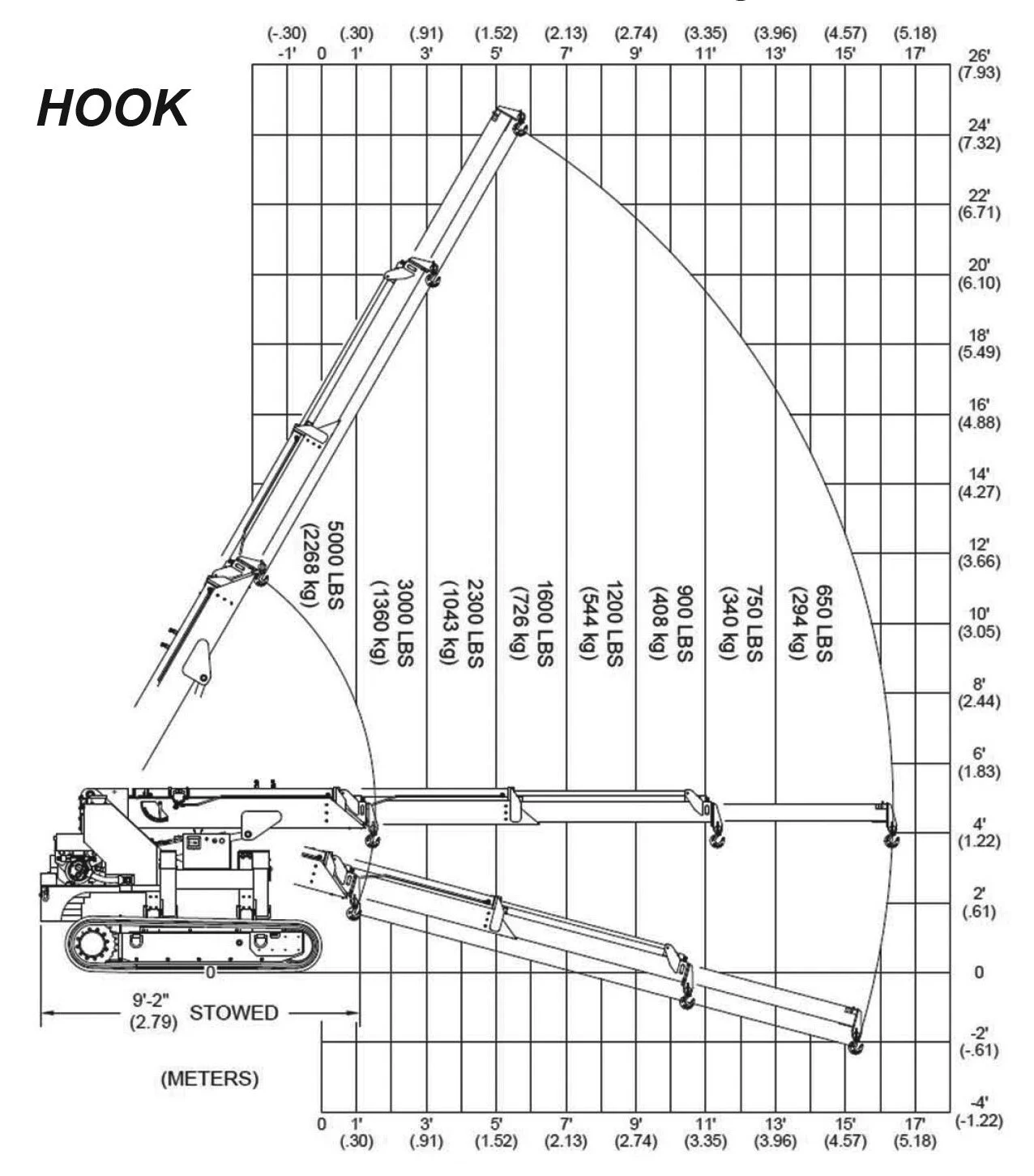

Hook Capacity: 5,000 lbs

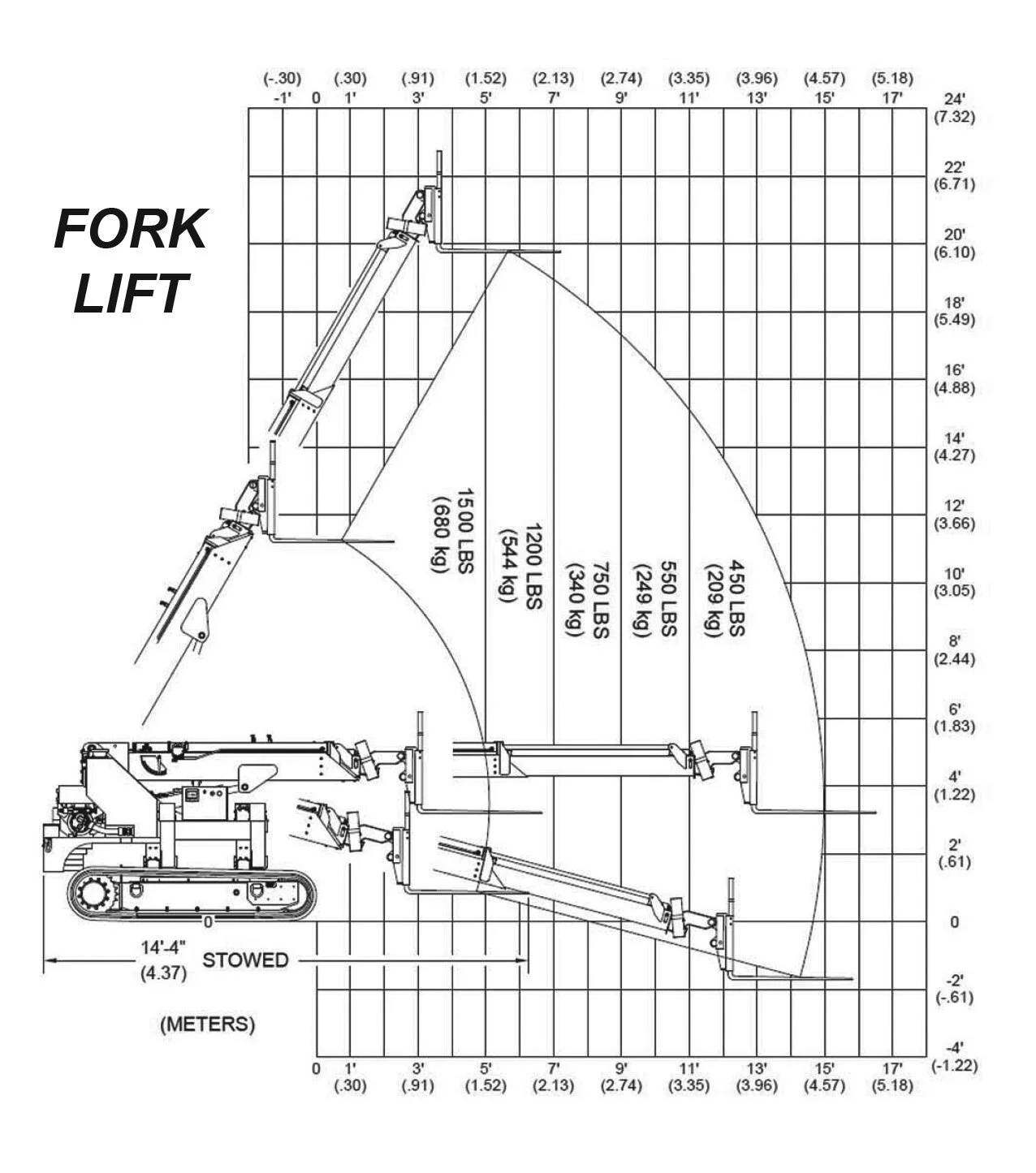

Fork Capacity: 1,500 lbs
Glazier Capacity: 1,400 lbs

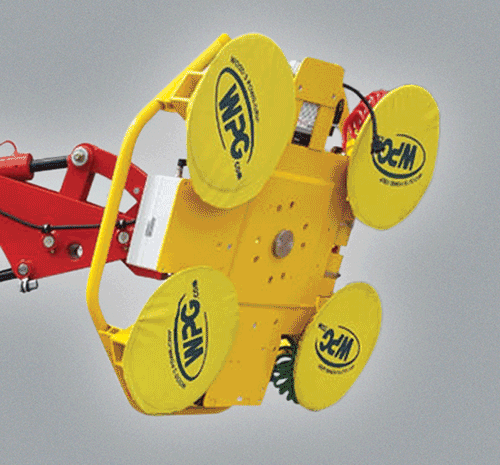

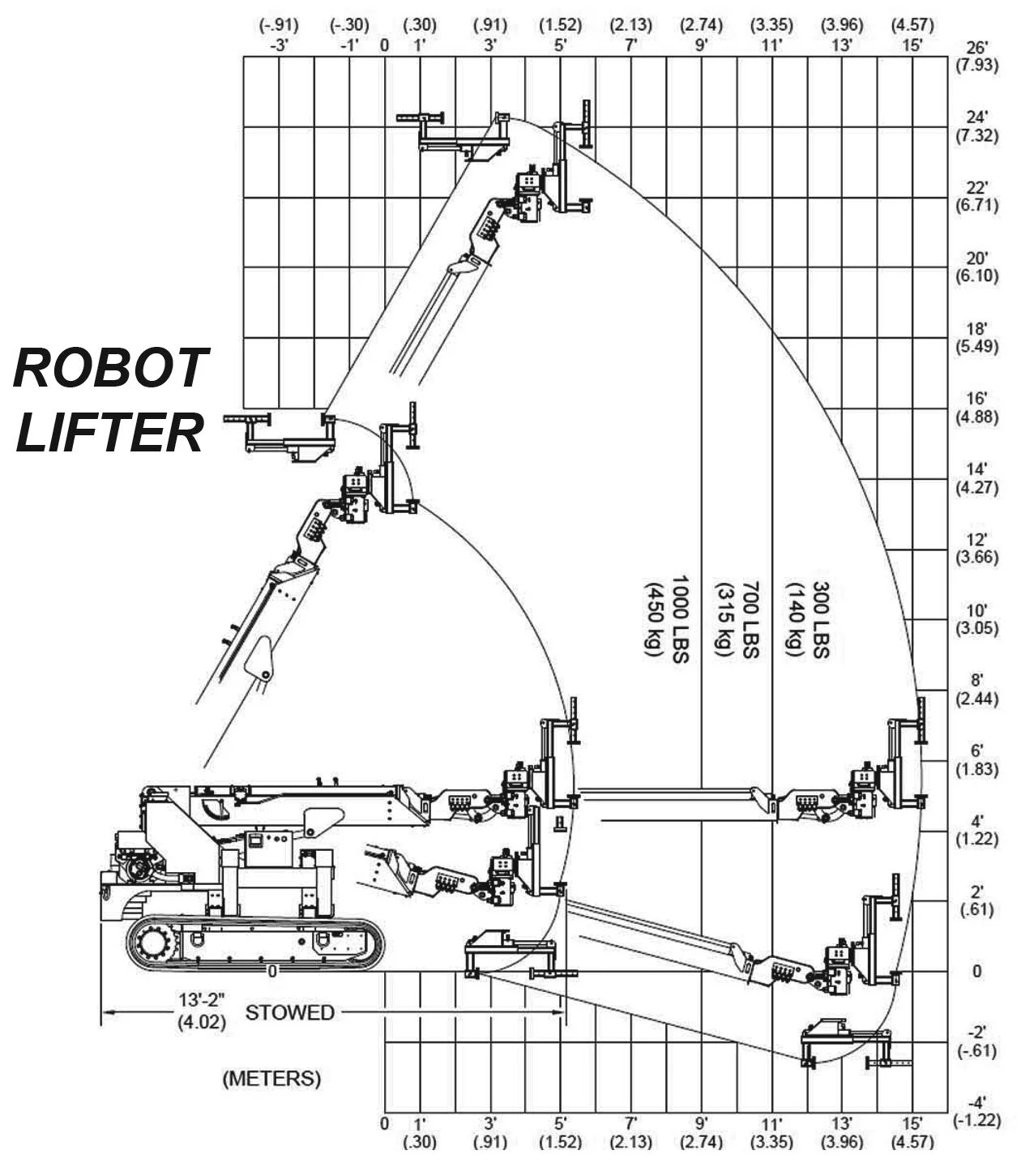

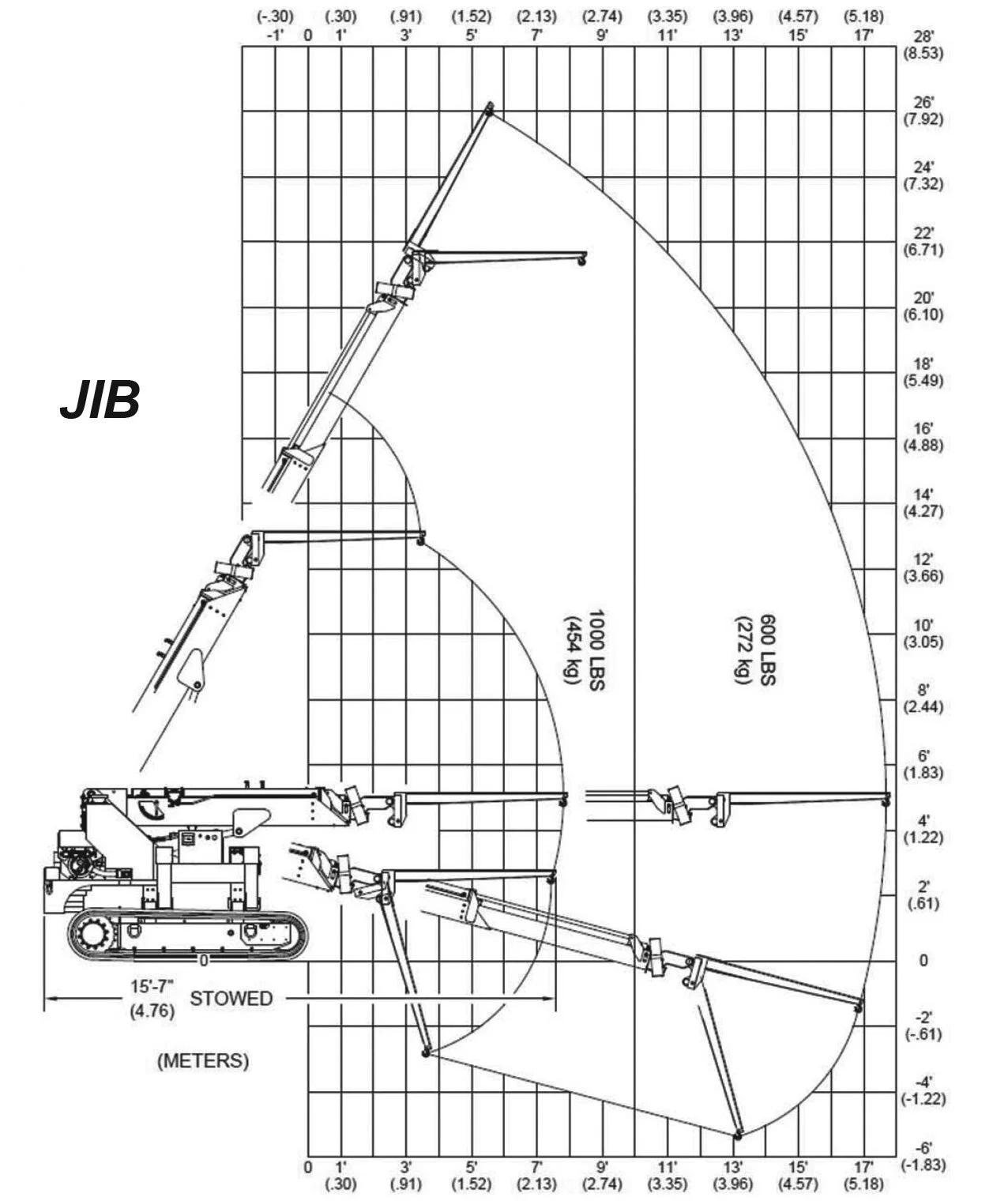

Robot or Jib Capacity: 1,000 lbs
Winch Capacity: 3,000 lbs
Reach: Industry leading reach with below grade capability.
Motor: Propane-powered Kohler PCH740 Power-unit
LP: Optional
Weight: 6,000 Lbs + Attachment

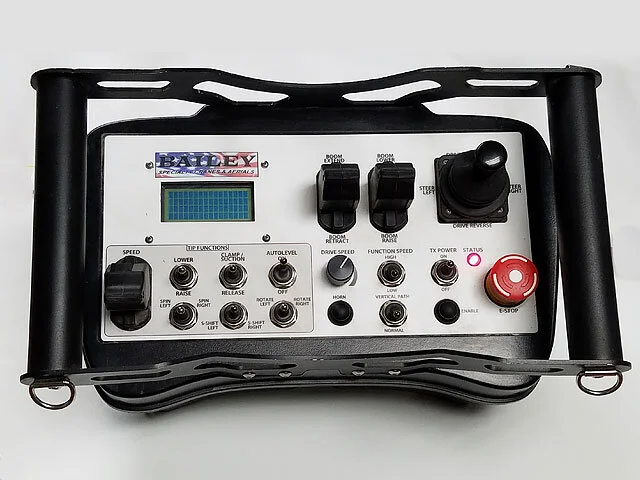

Radio Remote Controls
Proportional Controls: Electric Joystick for Proportional Lift and Extend. Includes 2-Speed HI/LOW switch for precise slow speed control.
Boom: Base unit, 2 telescoping booms and one manual pull-out boom. Attachments replace pull-out boom.
Hydraulics: Gear Pump with Load Sense Dump.
Rated Load Limiter: Displays rated load and actual load. Stops when rated load is reached. Detects which attachment is installed and automatically adjusts load parameters.
Precise & Efficient Piston Pump
Load Sensing
Horsepower Limiting

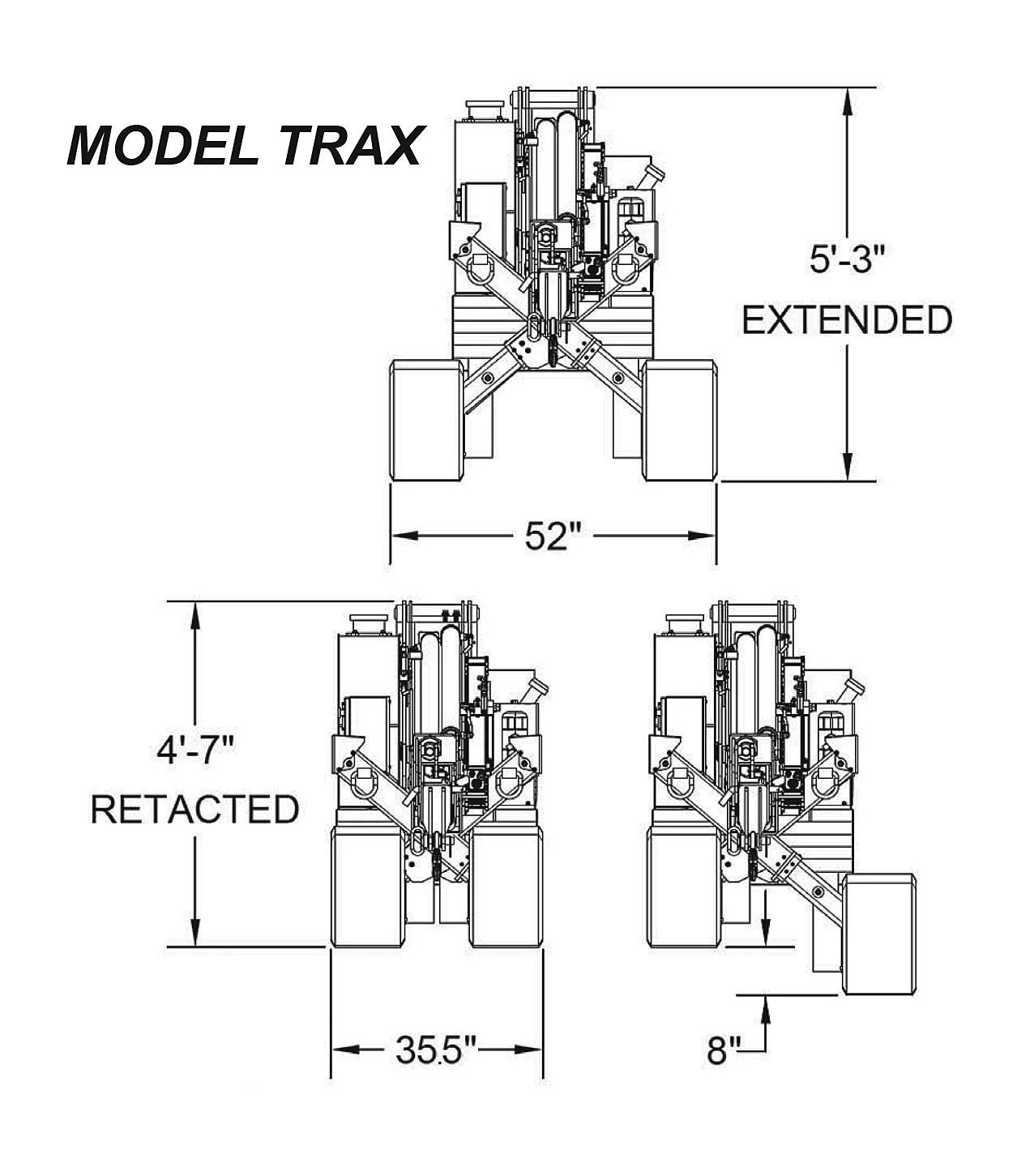

Adjustable Tracks

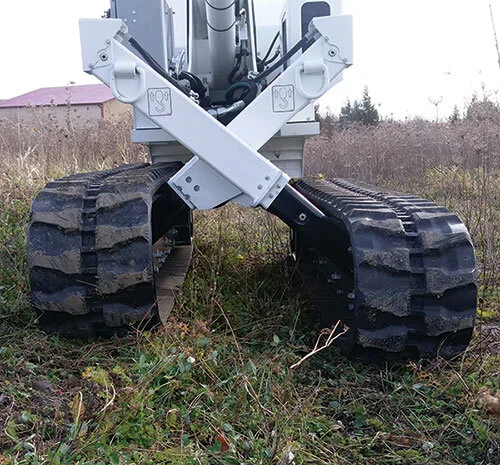

8” of Vertical Slope Adjustment
35.5” Retracted - Single Door
52” Max Width for Stability
No Outriggers Required
Pick & Carry Full Capacity
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
CALL US AT (888)-802-3651 OR CLICK BUTTON FOR A FREIGHT QUOTE
WHEN YOU PURCHASE A TELEHANDLER FROM DIVERSE SUPPLY, YOU ARE SIMULTANEOUSLY AGREEING THAT DIVERSE SUPPLY IS NOT LIABLE FOR ANY INJURY OR PROPERTY DAMAGE RELATED TO THE USE OF THE TELEHANDLER.
| Model Number | Weight Lbs. | Power | Price |
|---|---|---|---|
| DS-TRAX | 6,000 | Propane-powered Kohler PCH740 Power-unit | $139,375 |
***PRICES SUBJECT TO CHANGE WITHOUT NOTICE***

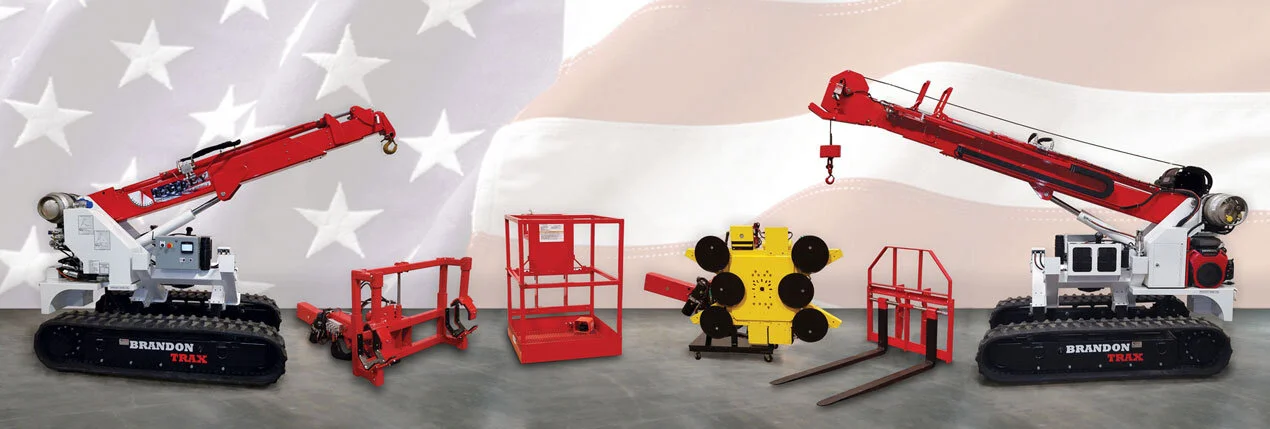

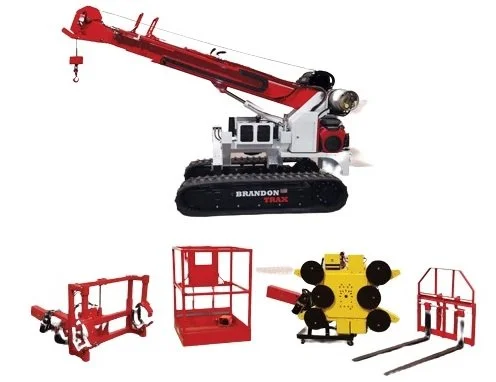

| Model Number | Description | Capacity [lbs] |
Price |
|---|---|---|---|
| DS-TPTA | Powered Tip Assembly* | n/a | 8,594 |
| DS-TRO | Robot [Includes 3 Axis Manipulator] | 1,000 | 19,465 |

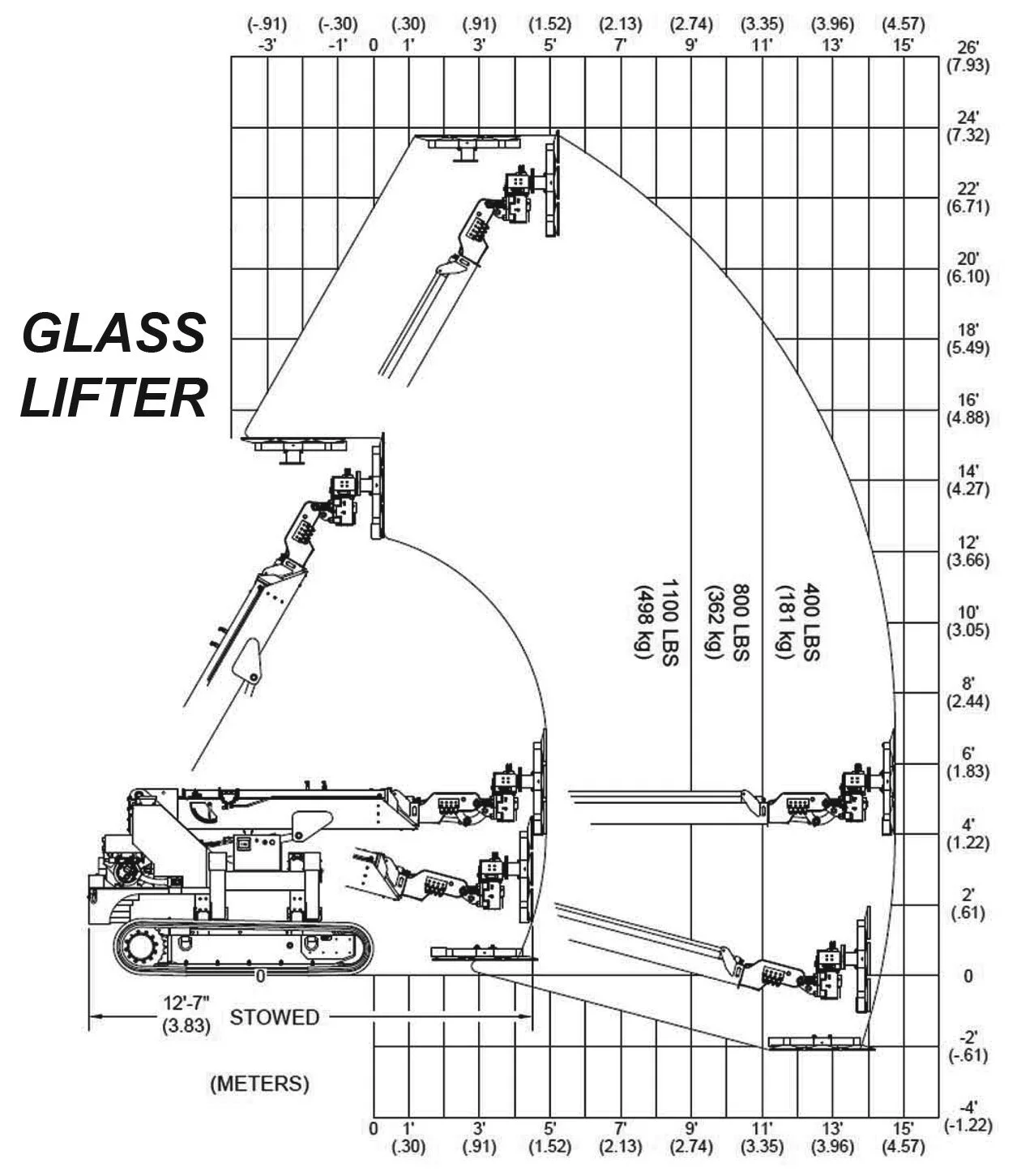

| DS-TGL | Glass Lifter w/side Shift [Includes 3 Axis Manipulator] | 1,100 | 28,532 |
| DS-FK* | Forks [requires powered tip assembly] | 1,500 | 3,456 |

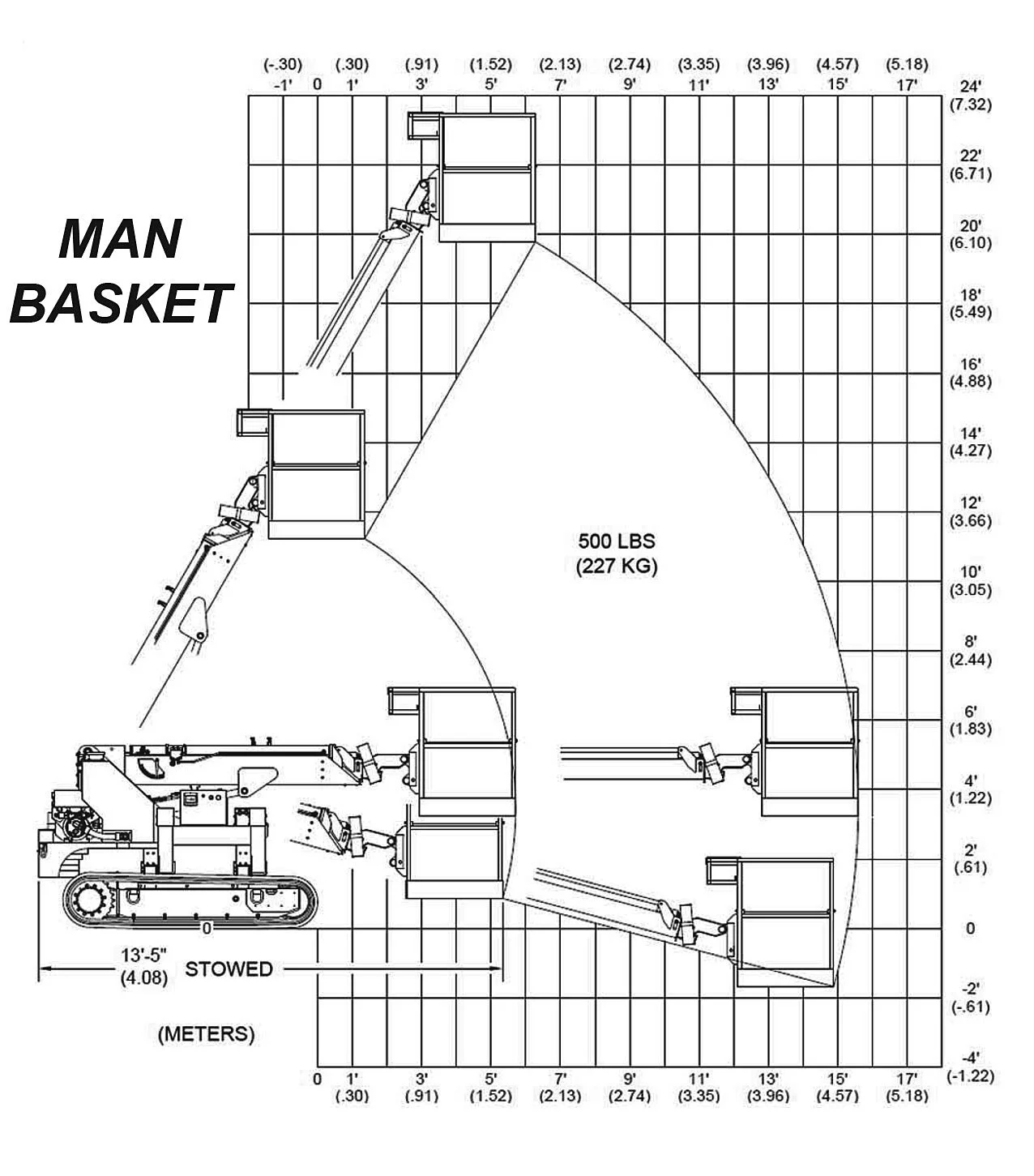

| DS-MB* | Man Basket [requires powered tip assembly] | 500 | 6,375 |
| DS-JB* | Jib [requires powered tip assembly] | 1,000 | 1,156 |

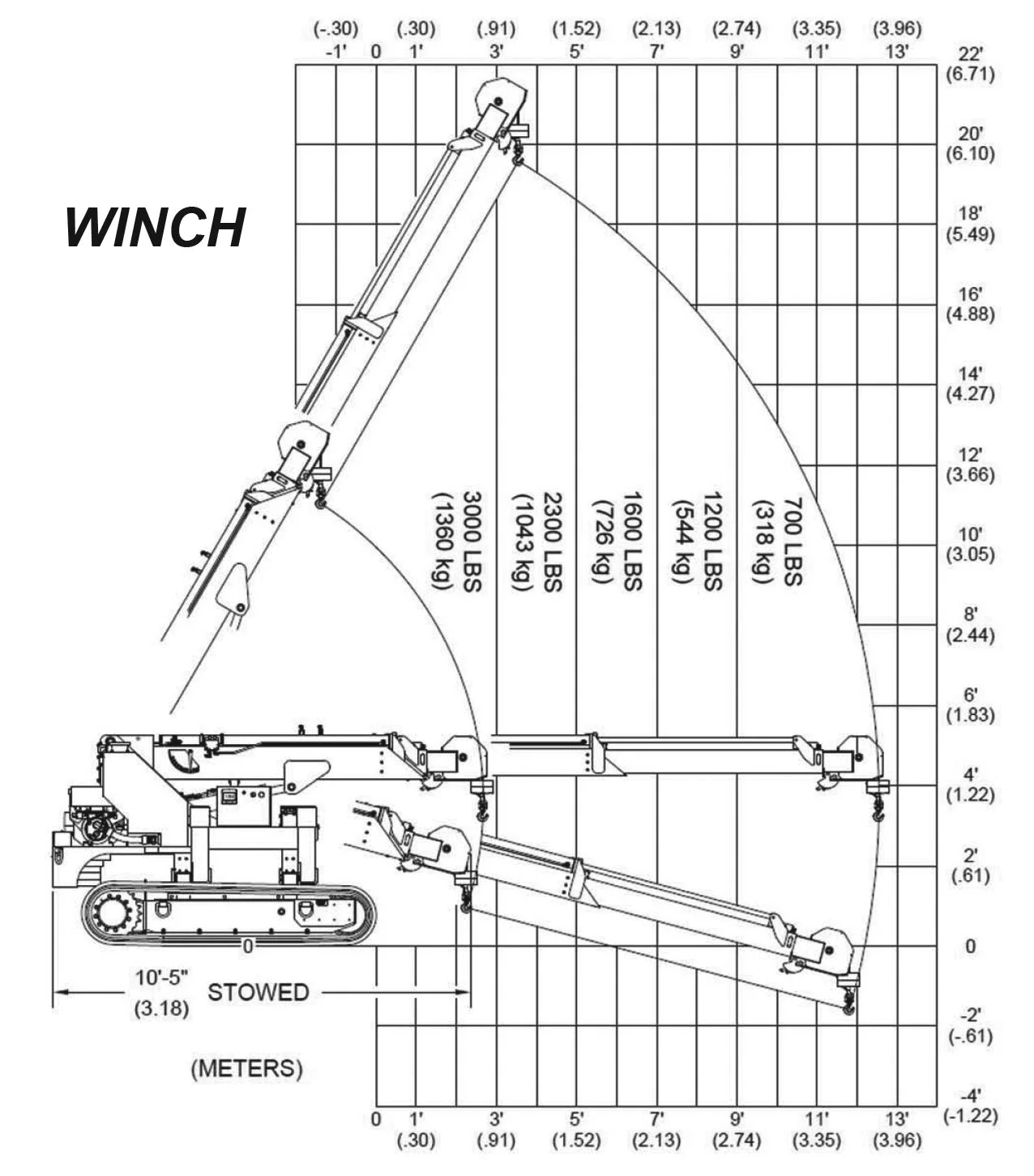

| DS-WN | Winch 90' of cable | 3,000 | 13,125 |
| DS-WN-1995 | Winch 230' of cable | 3,000 | 13,525 |
| DS-3708 | Hook Brandon 6 - 4th stage pull-out boom | 5,000 | 2,200 |
SO 9001 REGISTERED MANUFACTURING COMPANY
***PRICES SUBJECT TO CHANGE WITHOUT NOTICE***
