Rough Terrain Hydraulic Elevating Cart
Rough Terrain Hydraulic Elevating Cart

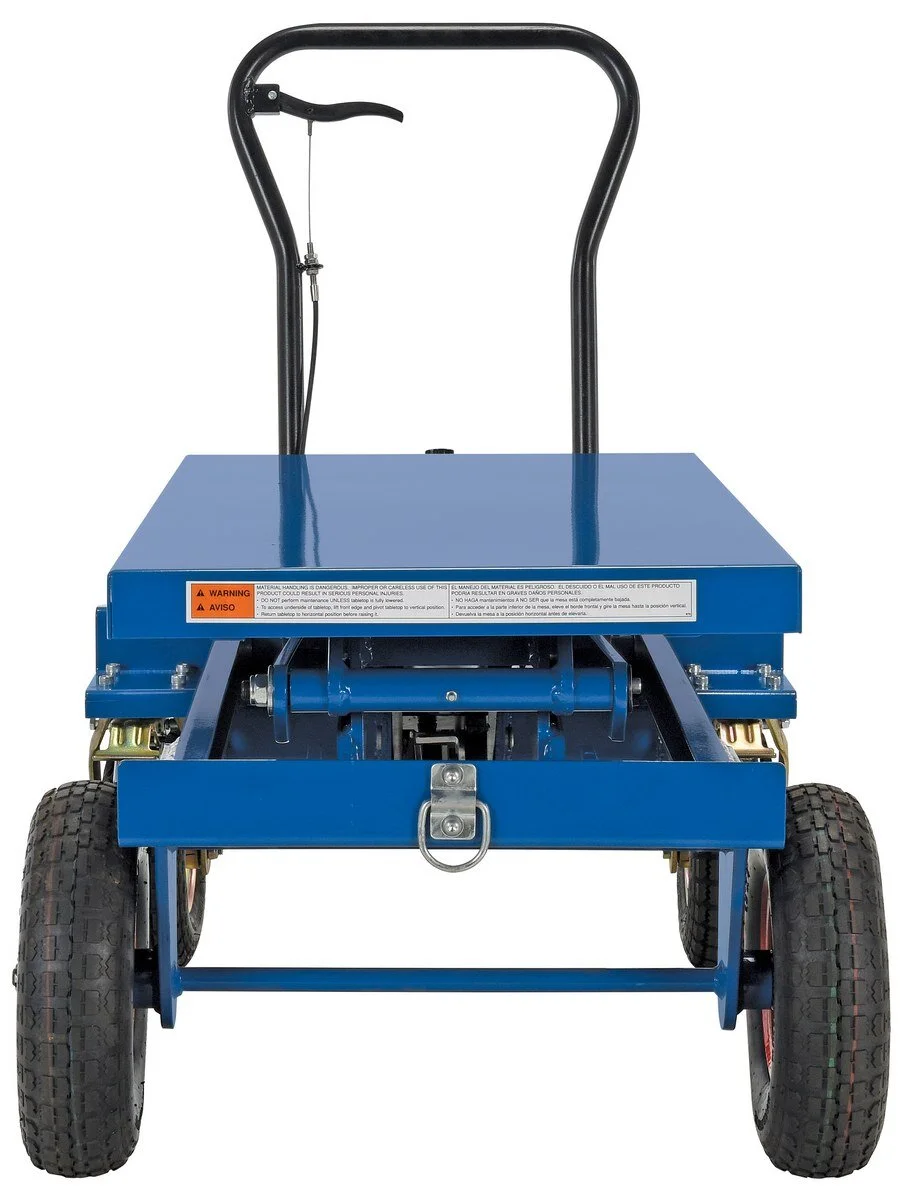

A Rough Terrain Hydraulic Elevating Cart moves loads over rough terrain at nurseries, garden centers and construction sites.
Large front and rear pneumatic tires allow for movement over most surfaces. These carts minimize operator bending and lifting. Little exertion is required to raise and lower while performing maintenance.
Pricing
| Rough Terrain Hydraulic Elevating - Cart | ||||||
|---|---|---|---|---|---|---|
| Model Number | Platform Size (W x L) | Service Range | Wheel Size Front/Rear | Uniform Capacity (lbs.) | Weight (lbs.) | Price |

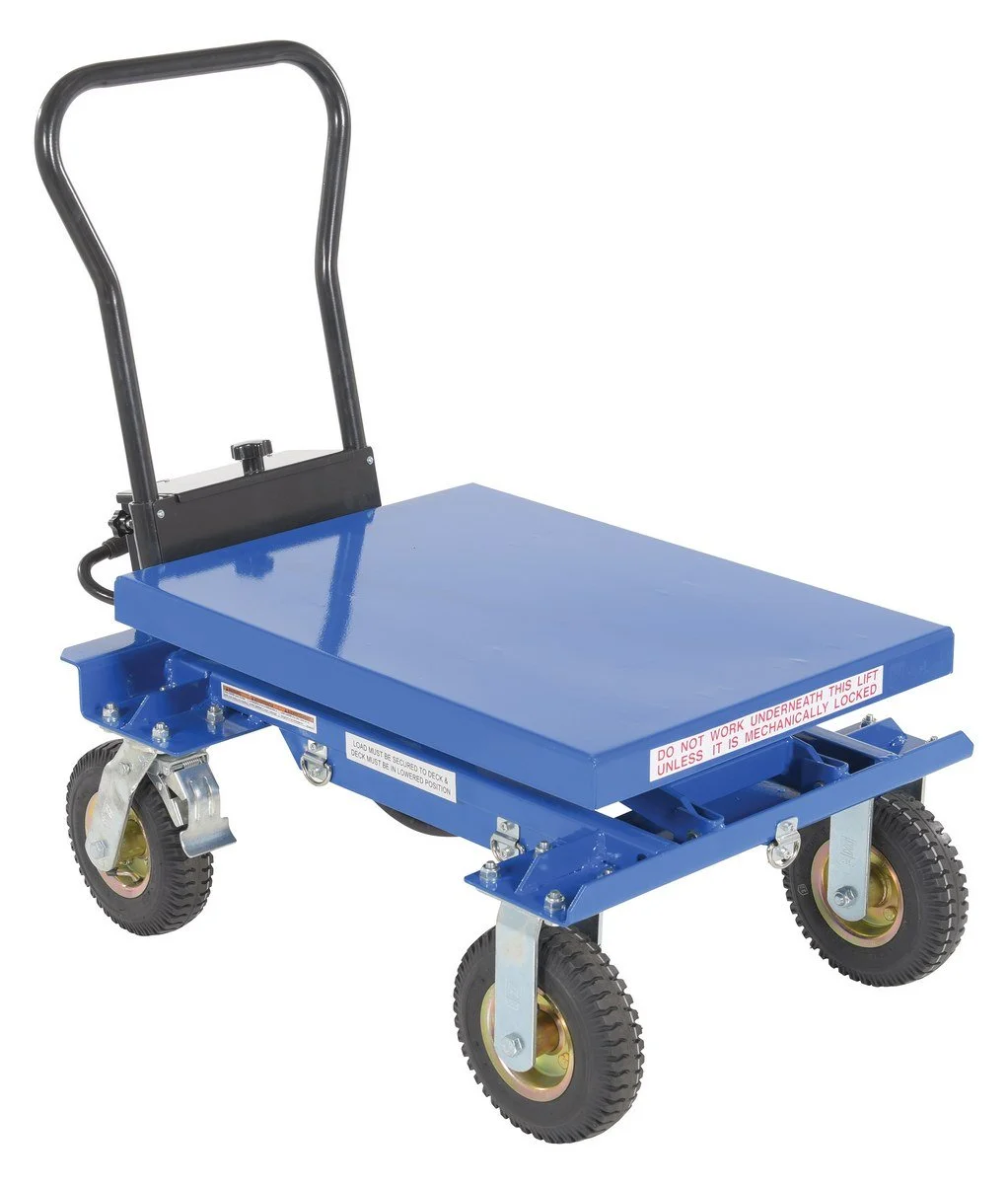

| DS-CART-PN-400 | 27-1/2" x 20-1/2" | 15" to 34-1/2" | 7-7/8" - 7-7/8" | 400 | 163 | $1,159 |

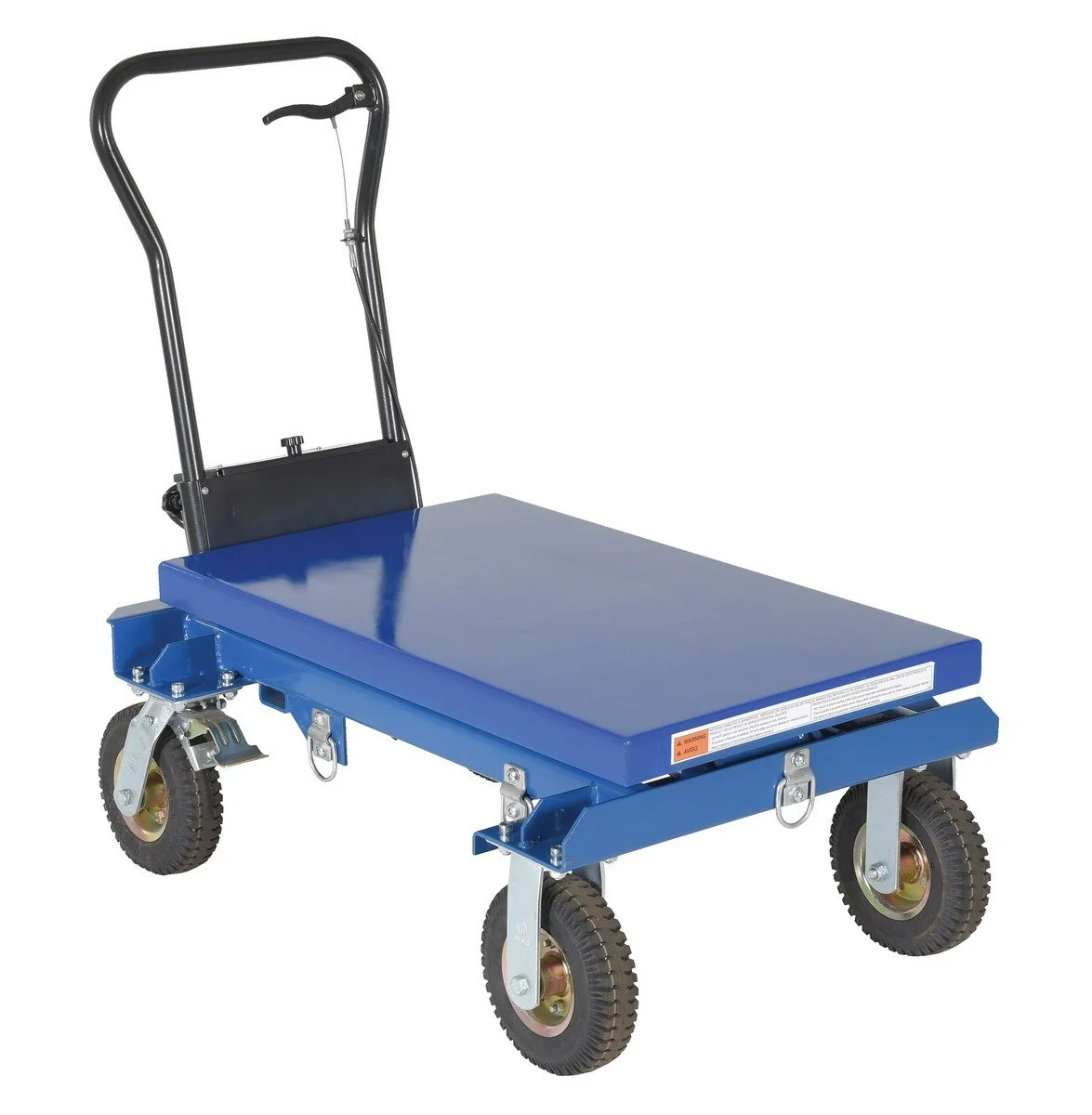

| DS-CART-PN-600 | 33-1/2" x 20-1/2" | 16-1/8" to 40" | 7-7/8" -7-7/8" | 600 | 218 | $1,575 |

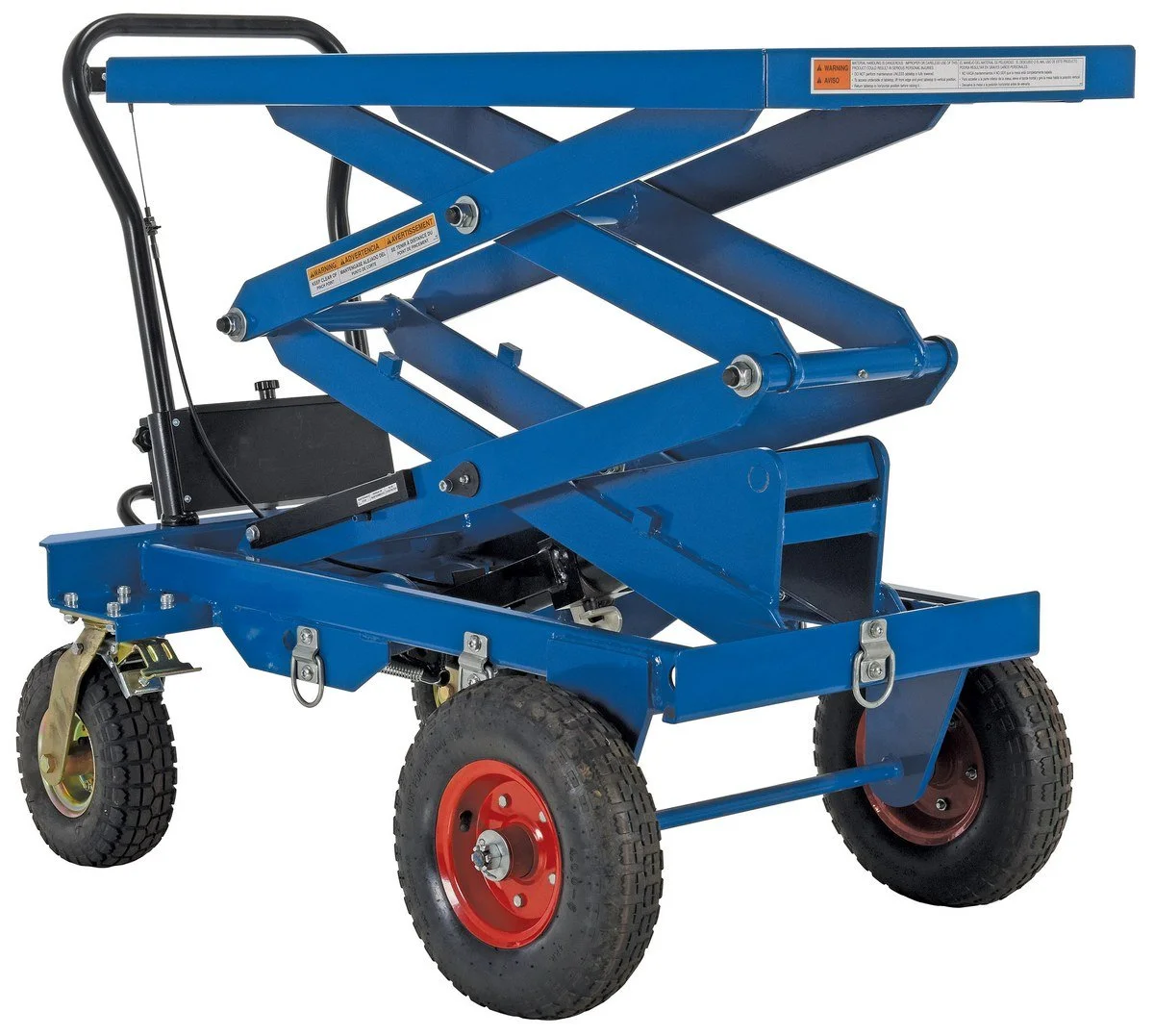

| DS-CART-PN-600-D | 40" to 20-1/2" | 21-1/2" to 67" | 13" - 9-7/8" | 600 | 350 | $2,116 |

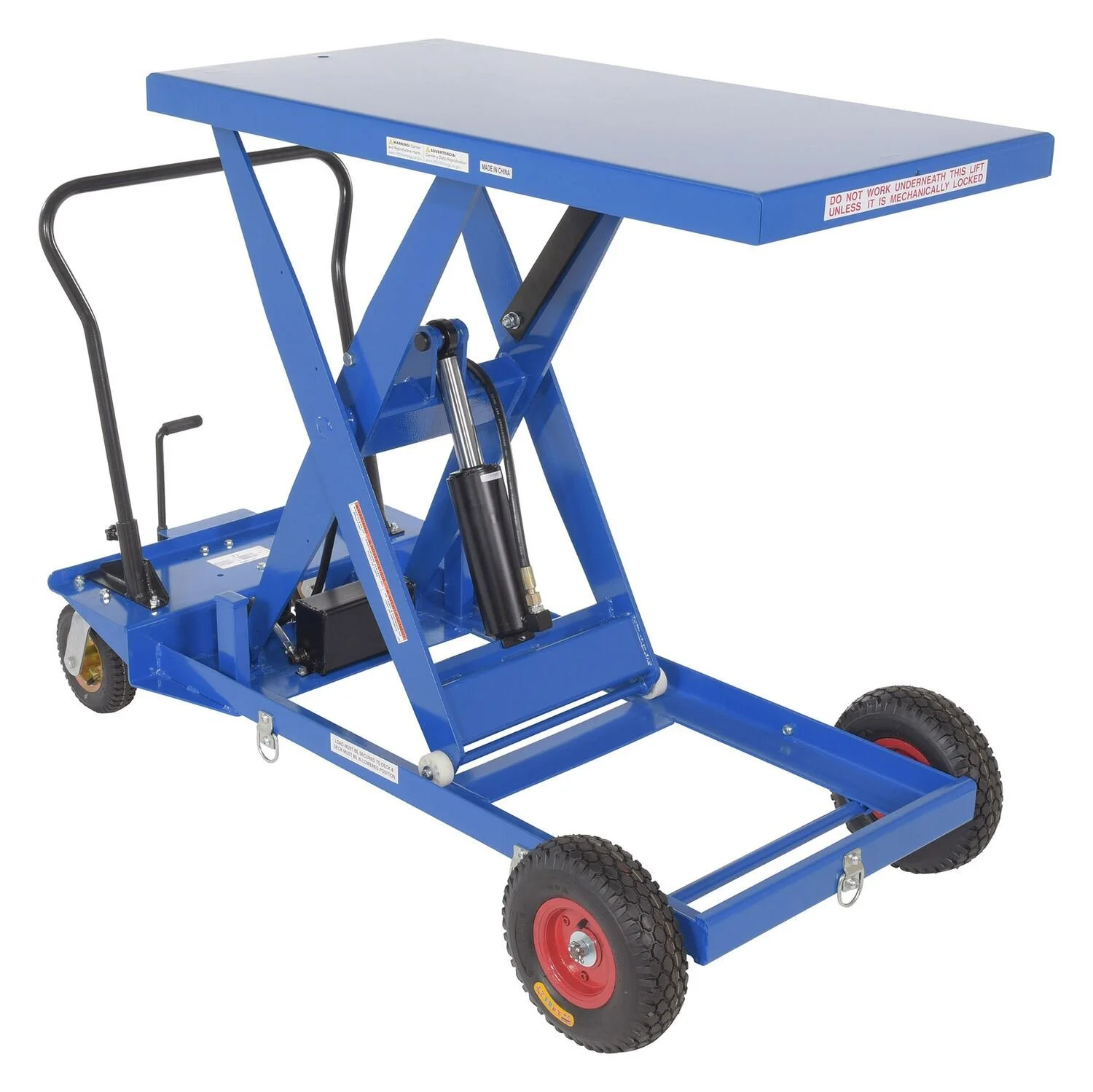

| DS-CART-PN-1000 | 48" x 24" | 13-1/2" to 46-1/2" | 13" - 9-7/8" | 1,000 | 490 | $2,116 |

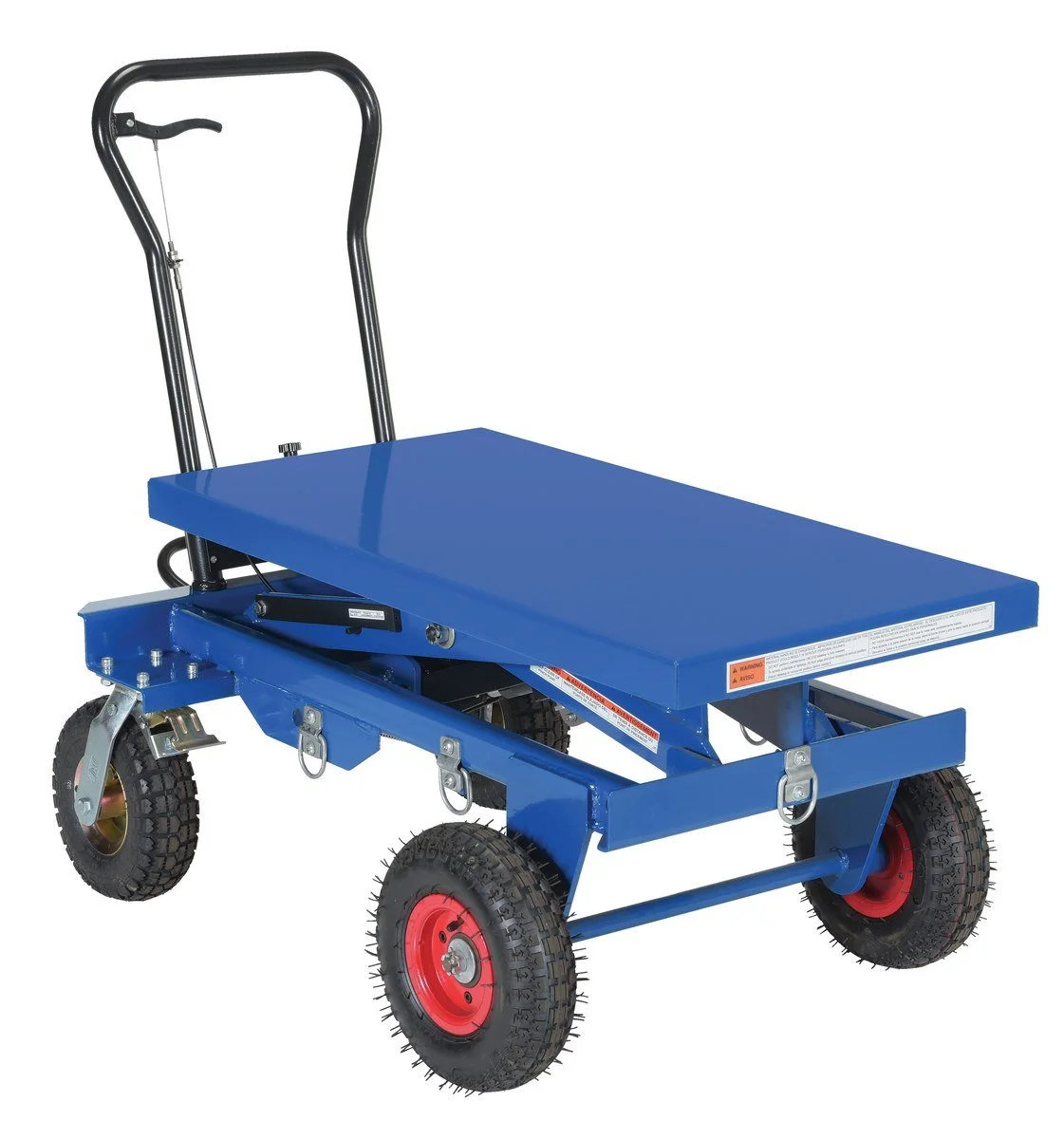

| DS-CART-PN-1500 | 40" x 20-1/2" | 21-1/2" to 43-3/4" | 13" - 9-7/8" | 1,500 | 317 | $1,872 |
| All dimensions are in inches | ||||||
Features
Standard Features:
Simple and compact
Hydraulic system includes a soft-lowering down valve
Rugged welded steel construction
Powder coated with a blue finish
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
No options available for this product.
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Drawings:
DS-CART-PN-1000
DS-CART-PN-1500
Videos:
Rough Terrain Hydraulic Elevating Cart
Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
