Air-tow Flatbed Trailers - Tandem Axle
Air-tow Flatbed Trailers - Tandem Axle

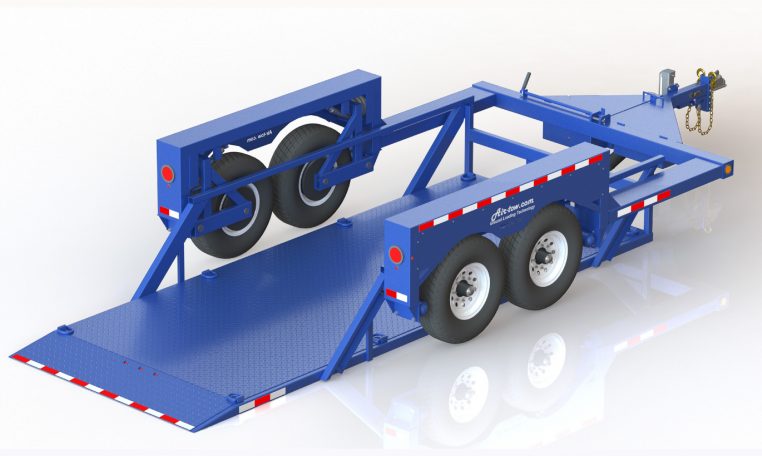

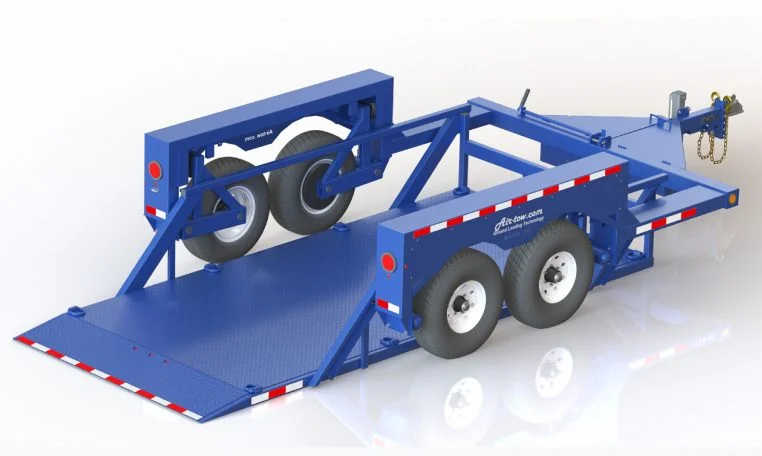

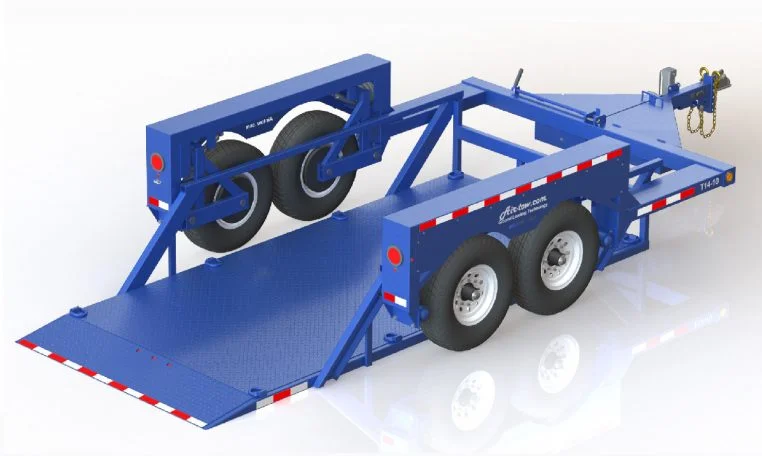

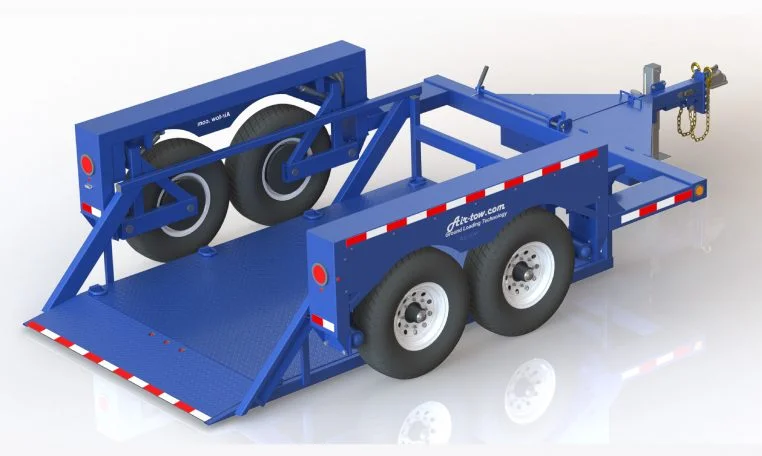

The Air-tow Flatbed Trailer Tandem Axle eliminates the need for tilt beds or loading ramps and often makes loading a one man job.
The Air-tow Flatbed Trailers with a tandem axles have a heavy duty steel diamond deck that remains level as it raises and lowers. You can now have easy and safe loading of your equipment or cargo at ground level. The tandem axle models are ideal for moving heavy cargo or equipment. The flatbed line of trailers also is available in single axle models for lightweight cargo or equipment.
Pricing
| Model # | Capacity lbs. |
Deck Width |
Deck Length Includes 18" Ramp |
Overall Width |
Tires | Weight lbs. |
Price |
|---|---|---|---|---|---|---|---|

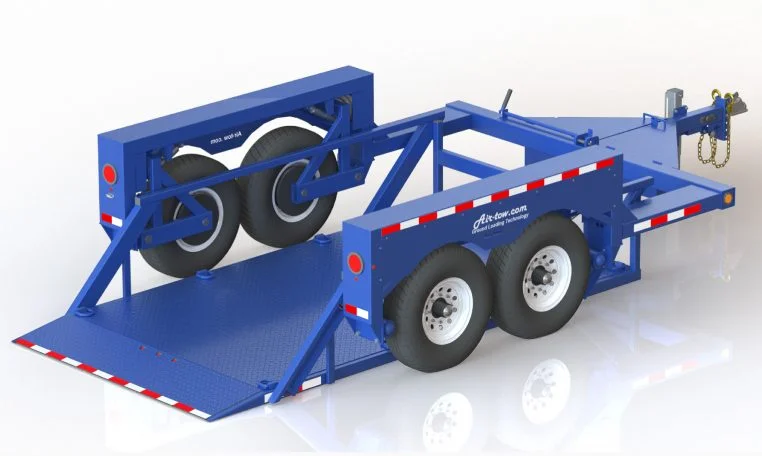

| DS-T12-7 | 7,000 | 75" | 144" | 102" | 15" - 8 ply | 3,060 | $23,782 |
| DS-T12-10 | 10,000 | 75" | 144" | 102" | 16" - 12 ply | 3,370 | $24,035 |
| DS-T14-10 | 10,000 | 75" | 168" | 102" | 16" - 12 ply | 3,545 | $24,668 |
| DS-T16-10 | 10,000 | 75" | 192" | 102" | 16" - 12 ply | 3,710 | $27,324 |
| DS-T14-12 | 12,000 | 75" | 168" | 102" | 16" - 12 ply | 3,745 | $26,565 |
| DS-T16-12 | 12,000 | 75" | 192" | 102" | 16" - 12 ply | 3,785 | $27,957 |
| DS-T16-14 | 14,000 | 75" | 192" | 102" | 16" - 12 ply | 3,995 | $30,487 |
Features
STANDARD FEATURES:
Ground-Level Loading
Hydraulic Lift Mechanism
Heavy-Duty Diamond Deck
18” Ramp Length
Tandem Axles
Electric Brakes
Rubber Suspension
2-5/16” Ball Coupler
Weights shown below vary with options
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
| Model # | Name |
Description | Price |
|---|---|---|---|
| DS-700040 | Spare Wheel/Tire - 15" | 15" Tires are ST225/75D15 (8 Ply | $371 |
| DS-700038 | Spare Wheel/Tire - 16" | 16" Tires are ST235/85R16-F (12 Ply) | $450 |
| DS-501007 | Side Mounted Tool Box | Mounts on side frame ( 10" W x 16" H x 24" L) Shock mounted lid w/key lock | $653 |
| DS-700155 | Wireless Pump Control | Wireless remote pump control for raising or lowering trailer deck | $386 |
| DS-700198-1 | Upgrade to Aluminum Wheels | Exchange standard wheel for aluminum (cost each) | $108 |

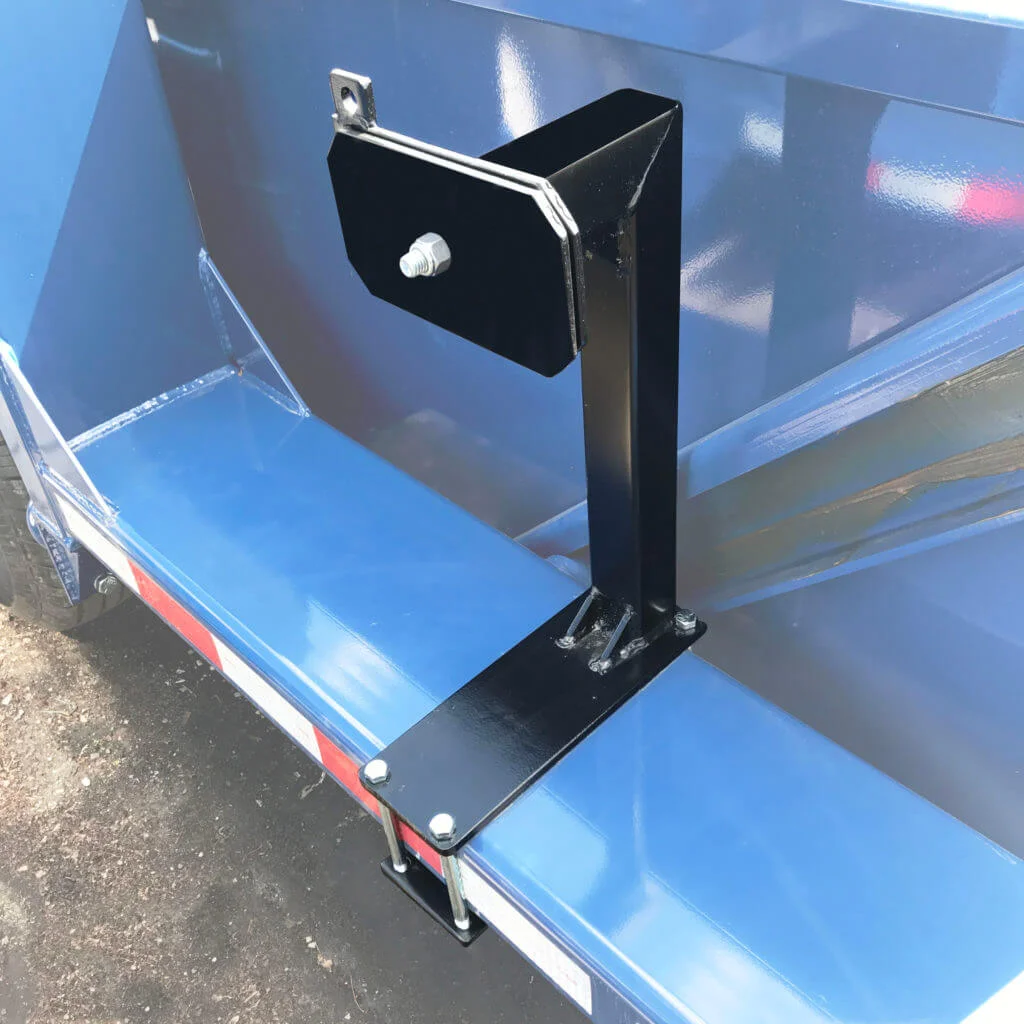

| DS-101003 | Spare Tire Bracket-15" wheel | Mounts on trailer frame/holds tire vertically | $276 |
| DS-501003 | Spare Tire Bracket-16" wheel | Mounts on trailer frame/holds tire verticallyk | $293 |
| DS-501080 | Air Suspension Upgrade Tandem Axle | 2 compressors linked to airbags for equal load distribution and smooth ride | $2,472 |
| DS-700064 | Battery - 12 V - deep cycle | 12 V - deep cycle group-24 battery | $262 |
| DS-501027 | Electric Brakes | Added to second axle | $834 |
| DS-501033 | Surge Brakes (Drum) | Tandem axles (in place of standard electric brakes) | $2,540 |
| DS-700147 | Winch | 12V DC with 10 ft. remote control - 9000 lb. cap. - custom mounted bracket | $1,605 |
| DS-700144 | Wireless Winch Control | Remote wireless control of winch operation | $513 |
| DS-501010 | Battery - Trickle Charger | Weatherproof 6 amp charger mounted in power compartment for 110V outlet | $312 |
| DS-501013-2 | Solar Charger | 12 V - 10 watt industrial grade with 5 Yr. warranty | $653 |
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Air-tow Utility Trailers - Flat Bed Trailer
Air-tow’s exclusive, proprietary swing-arm axles offer one of the smoothest ride available. The long pivot arm is mounted with large tapered roller bearings giving the greatest torsional effect possible that absorbs both horizontal and vertical stresses. No plastic guides or spring bushings that wear out! The axle has both camber and tow-in adjustments for perfect alignment ensuring minimal least tire wear. These axles will accommodate both rubber and air suspension. They come laser aligned with dynamically balanced tires. These axles are constructed with an automatic robotic welding system for precision and consistency.
THESE TRAILERS MAY NOT BE AVAILABLE FROM PLATFORMSANDLADDERS.COM IN OHIO AND CALIFORNIA.
Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
