Air-tow Gooseneck Trailers
Air-tow Gooseneck Trailers

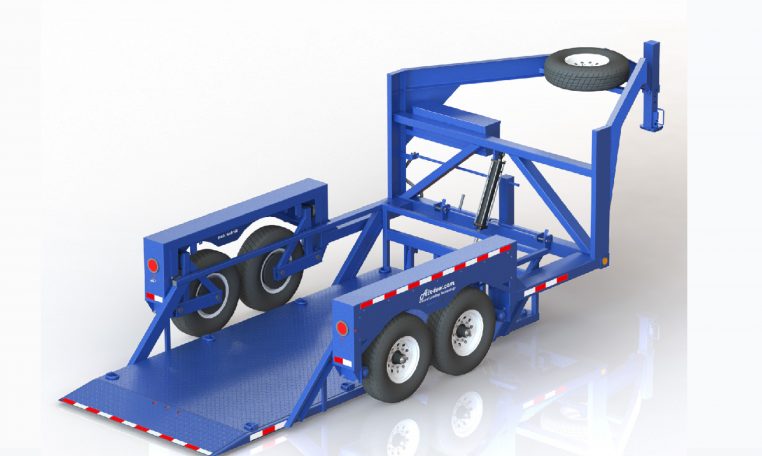

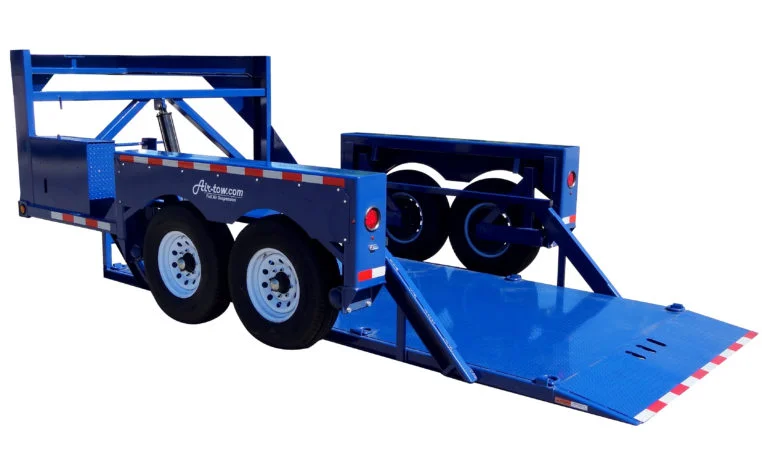

The Air-tow Gooseneck Trailer offers enhanced maneuverability which is a real plus when backing the trailer or when making a u-turn.
The features of the Air-tow line are now available in a gooseneck model. The heavy duty steel diamond deck remains level as it raises and lowers. You can now have safe and easy loading along with added maneuverability when towing. Goosenecks are not for everyone. They do have several advantages such as extra load and weight distribution to the tow vehicle which may offer safer and better operator control. A gooseneck can accept twenty to twenty five percent hitch load, while a bumper hitch can carry only ten to fifteen percent. The hitch weight is placed directly over the rear wheels so some lateral pressure is transferred directly to the ground through the truck tires. A gooseneck is noticeably more stable when traveling curvy roads.
Pricing
| Model # | Deck Length (inc. 18" ramp) |
Weight (varies with options) | Price |
|---|---|---|---|
| DS-G-14 | 14' | 4,295 | $29,484 |
| DS-G-16 | 16' | 4,495 | $31,174 |
Features
Standard Features:
Ground-Level Loading
Hydraulic Lift Mechanism
Heavy-Duty Diamond Deck
8 Heavy-Duty D-Rings
12,000 lb. Capacity
18” Outside Ramp Length
75” Inside Deck Width
101” Overall Outside Width
Tandem Axles
16” Twelve Ply Tires
Electric Brakes
Rubber Suspension
2-5/16” Ball Coupler
36" - 41" Coupler Height Adjustment
84" Gooseneck length
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
| Model # | Name |
Description | Price |
|---|---|---|---|
| DS-501005 | Front Rail Cushion | 3" x 3" Full width rubber cushion mounted along front cross bar | $426 |
| DS-501008 | Folding Rear Ramp | 24" Rear ramp, folds up & replaces 18" stationary ramp | $2,250 |
| DS-700038 | Spare Wheel/Tire - 16" | 16" Tires are ST235/85R16-F (12 Ply) | $504 |
| DS-501003 | Spare Tire Bracket | Mounts on trailer frame | $309 |
| DS-501007 | Side Mounted Tool Box | Mounts on side frame ( 10" W x 16" H x 24" L) Shock mounted lid w/key lock | $677 |
| DS-700155 | Wireless Pump Control | Wireless remote pump control for raising or lowering trailer deck | $386 |
| DS-700198 | Upgrade to Aluminum Wheels | Aluminum Manba with center cap- ST235/85R16 - 8 lug | $575 |
| DS-501025 | Extended "E" Rails | 14" high rails - front & both sides - "E" track along both sides | $1,565 |
| DS-700169 | "E" Track Shoring Bar | Cross bar that snaps into "E" track to assist in positioning loads | $268 |
| DS-700168 | "E" Track Straps | 2" x 12' Ratchet strap - Snaps into E-track | $48 |
| DS-501080 | Air Suspension Upgrade Tandem Axle | 2 compressors linked to airbags for equal load distribution and smooth ride | $2,628 |
| DS-700064 | Battery - 12 V - deep cycle | 12 V - deep cycle group-24 battery | $267 |
| DS-501027 | Electric Brakes | Added to second axle | $843 |
| DS-501033 | Surge Brakes (Drum) | Tandem axles (in place of standard electric brakes) | $2,824 |
| DS-700147 | Winch | 12V DC with 10 ft. remote control - 9000 lb. cap. - custom mounted bracket | $1,728 |
| DS-501010 | Battery - Trickle Charger | Weatherproof 6 amp charger mounted in power compartment for 110V outlet | $321 |
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Air-tow Gooseneck Trailer
Air-tow’s exclusive, proprietary swing-arm axles offer one of the smoothest ride available. The long pivot arm is mounted with large tapered roller bearings giving the greatest torsional effect possible that absorbs both horizontal and vertical stresses. No plastic guides or spring bushings that wear out! The axle has both camber and tow-in adjustments for perfect alignment ensuring minimal least tire wear. These axles will accommodate both rubber and air suspension. They come laser aligned with dynamically balanced tires. These axles are constructed with an automatic robotic welding system for precision and consistency.
THESE TRAILERS MAY NOT BE AVAILABLE FROM PLATFORMSANDLADDERS.COM IN OHIO AND CALIFORNIA.
Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
