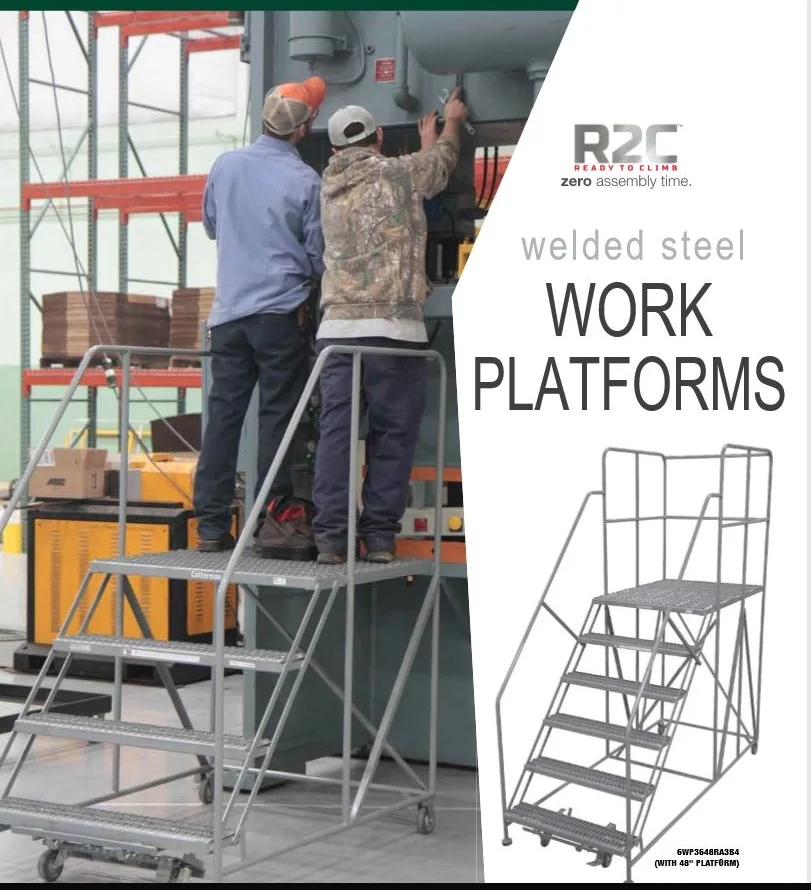

Heavy Duty Work Platform
Heavy Duty Work Platform
Designed to access a work area with a platform large enough to provide room for tools and an additional person.
To move this platform, simply tilt on the rear casters and roll the unit to another area.
Pricing
| Heavy Duty Mobile Work Platform - No Handrails | ||||||
|---|---|---|---|---|---|---|
| Model Number | # Of Steps Incuding Platform | Platform Height | Platform [W x L] | Base [W x L] | Weight (lbs.) | Serrated |
| DS-2WP2424 | 2 | 20" | 24" x 24" | 28"x34" | 47 | $634 |
| DS-2WP2436 | 2 | 20" | 24" x 36" | 28"x46" | 60 | $777 |
| DS-2WP2448 | 2 | 20" | 24" x 48" | 28"x58" | 77 | $924 |
| DS-2WP2460 | 2 | 20" | 24" x 60" | 28"x70" | 83 | $1,105 |
| DS-2WP3624 | 2 | 20" | 36" x 24" | 40"x34" | 62 | $797 |
| DS-2WP3636 | 2 | 20" | 36" x 36" | 40"x46" | 80 | $956 |
| DS-2WP3648 | 2 | 20" | 36" x 48" | 40"x58" | 104 | $1,203 |
| DS-2WP3660 | 2 | 20" | 36" x 60" | 40"x70" | 122 | $1,397 |
| DS-3WP2424 | 3 | 30" | 24" x 24" | 28"x43" | 62 | $774 |
| DS-3WP2436 | 3 | 30" | 24" x 36" | 28"x55" | 75 | $902 |
| DS-3WP2448 | 3 | 30" | 24" x 48" | 28"x66" | 94 | $1,042 |
| DS-3WP2460 | 3 | 30" | 24" x 60" | 28"x78" | 107 | $1,159 |
| DS-3WP3624 | 3 | 30" | 36" x 24" | 40"x43" | 81 | $924 |
| DS-3WP3636 | 3 | 30" | 36" x 36" | 40"x55" | 98 | $1,225 |
| DS-3WP3648 | 3 | 30" | 36" x 48" | 40"x46" | 125 | $1,384 |
| DS-3WP3660 | 3 | 30" | 36" x 60" | 40"x78" | 143 | $1,793 |
| DS-4WP2424 | 4 | 40" | 24" x 24" | 28"x51" | 77 | $919 |
| DS-4WP2436 | 4 | 40" | 24" x 36" | 28"x63" | 89 | $1,048 |
| DS-4WP2448 | 4 | 40" | 24" x 48" | 28"x75" | 112 | $1,176 |
| DS-4WP2460 | 4 | 40" | 24" x 60" | 28"x86" | 124 | $1,373 |
| DS-4WP3624 | 4 | 40" | 36" x 24" | 40"x51" | 100 | $1,058 |
| DS-4WP3636 | 4 | 40" | 36" x 36" | 40"x63" | 117 | $1,244 |
| DS-4WP3648 | 4 | 40" | 36" x 48" | 40"x75" | 146 | $1,602 |
| DS-4WP3660 | 4 | 40" | 36" x 60" | 40"x86" | 164 | $1,782 |
| All Dimensions are in inches / Add 30" handrails to the above ladders for $143 / Add a safe lock caster system for $212 | ||||||
| . Heavy Duty Mobile Work Platform - With Handrails | ||||||
| Model Number | # Of Steps Incuding Platform | Platform Height | Platform [W x L] | Base [W x L] | Weight (lbs.) | Serrated |
| DS-5WP2424R | 5 | 50" | 24" x 24" | 28"x58" | 106 | $1,238 |
| DS-5WP2436R | 5 | 50" | 24" x 36" | 28"x70" | 121 | $1,360 |
| DS-5WP2448R | 5 | 50" | 24" x 48" | 28"x82" | 152 | $1,587 |
| DS-5WP2460R | 5 | 50" | 24" x 60" | 28"x94" | 165 | $1,767 |
| DS-5WP3624R | 5 | 50" | 36" x 24" | 40"x58" | 136 | $1,493 |
| DS-5WP3636R | 5 | 50" | 36" x 36" | 40"x70" | 184 | $1,589 |
| DS-5WP3648R | 5 | 50" | 36" x 48" | 40"x82" | 172 | $1,888 |
| DS-5WP3660R | 5 | 50" | 36" x 60" | 40"x94" | 210 | $2,082 |
| DS-6WP2424R | 6 | 60" | 24" x 24" | 28"x67" | 123 | $1,389 |
| DS-6WP2436R | 6 | 60" | 24" x 36" | 28"x78" | 136 | $1,498 |
| DS-6WP2448R | 6 | 60" | 24" x 48" | 28"x90" | 170 | $1,872 |
| DS-6WP2460 | 6 | 60" | 24" x 60" | 28"x102" | 184 | $1,953 |
| DS-6WP3624R | 6 | 60" | 36" x 24" | 40"x67" | 155 | $1,766 |
| DS-6WP3636R | 6 | 60" | 36" x 36" | 40"x78" | 173 | $1,946 |
| DS-6WP3648R | 6 | 60" | 36" x 48" | 40"x90" | 213 | $2,380 |
| DS-6WP3660R | 6 | 60" | 36" x 60" | 40"x90" | 213 | $2,548 |
| DS-7WP2424R | 7 | 70" | 24" x 24" | 28"x75" | 139 | $1,541 |
| DS-7WP2436R | 7 | 70" | 24" x 36" | 28"x87" | 150 | $1,644 |
| DS-7WP2448R | 7 | 70" | 24" x 48" | 28"x99" | 187 | $1,970 |
| DS-7WP2460R | 7 | 70" | 24" x 60" | 28"x110" | 208 | $2,097 |
| DS-7WP3624R | 7 | 70" | 36" x 24" | 40"x75" | 174 | $1,968 |
| DS-7WP3636R | 7 | 70" | 36" x 36" | 40"x87" | 192 | $2,174 |
| DS-7WP3648R | 7 | 70" | 36" x 48" | 40"x99" | 235 | $2,549 |
| DS-7WP3660R | 7 | 70" | 36" x 60" | 40"x110" | 262 | $2,697 |
| All Dimensions are in inches / Add a safe lock caster system for $212 | ||||||
Features
Standard Features:
800 lb. weight capacity
50 degree climbing angle
1" O.D. tubular frame
Grip Strut treads
Large 2-1/2" diameter, 1" thick rubber pads on front legs
Two 4" rigid heavy duty casters on the rear
2 to 4 steps can either have no handrails or 30" handrails
5 to 7 steps have 36" handrails with mid rails
Gray powder coating standard
Light or dark gray [default color], red, black, blue, orange, brown, safety yellow, green, beige, white
Chrome color would be an added cost
CAL OSHA available at extra cost
Complies with OSHA 1910 Subpart D and ANSI standards for use by one or two persons
Made in the USA
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
Options:
No Handrails
Add 30" handrails to the above ladders for $143
Add a safe lock caster system for $212
With Handrails
Add a safe lock caster system for $212
Parts
Please call 1-888-802-3651 for replacement parts
