WORKMASTER® Overhead Work Platforms
WORKMASTER® Overhead Work Platforms
These platforms add versatility to your forklift by providing access to overhead jobs, stock selection or just light bulb replacement.
The WORKMASTER® Overhead Work Platforms boost the versatility of your forklift trucks and meet applicable OSHA and ANSI standards. Several options and their price that are shown below the platform pricing table.
Pricing
| WORKMASTER® - Overhead Work Platforms | ||||
|---|---|---|---|---|
| Model Number | Description | Tine Sleeve Spacing | Weight (lbs.) | Price |
| DS-WM-100 | WORKMASTER® 36" wide x 48" deep, 66" high backguard | 26″ C/C | 204 | $1,389 |
| DS-WM-101 | WORKMASTER® 48" wide x 36" deep, 66" high backguard | 30″ C/C | 194 | $1,309 |
| DS-WM-103 | WORKMASTER® 36" wide x 36" deep, 66" high backguard | 26″ C/C | 173 | $1,121 |
| DS-WM-104 | WORKMASTER® 48" wide x 48" deep, 66" high backguard | 30″ C/C | 309 | $1,547 |

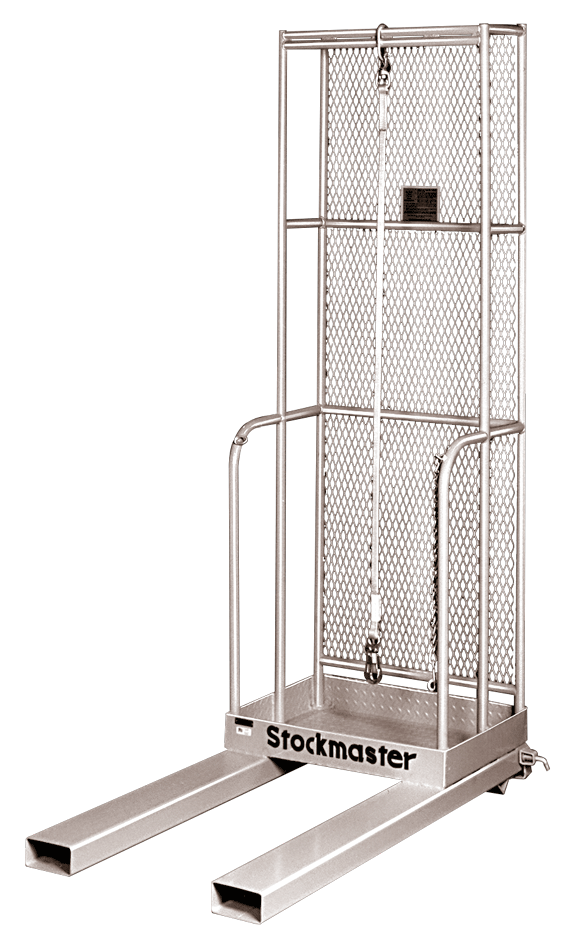

| DS-SM-301 | STOCKMASTER® for use with 42" pallets | 42″ C/C | 223 | $1,293 |
| All dimensions are in inches | ||||
Features
Standard Features:
1000 lb. capacity
66″ high back guard (84″ high back guard on STOCKMASTER®)
42″ railing height
1-1/4″ steel tube railing
3-3/4″x7-1/2″ tine sleeve
4″ toeboard
Options
WORKMASTER® Options (see pictures shown at top of page):

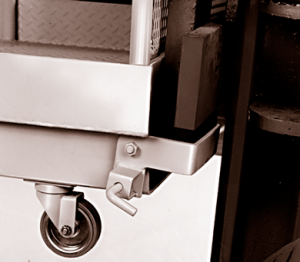

SC - Set of 4 swivel casters - 4" O.D. $104

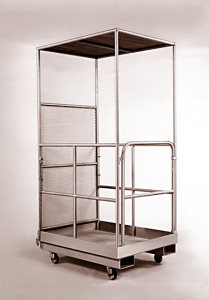

OG - Overhead protection for model WM-100 $389

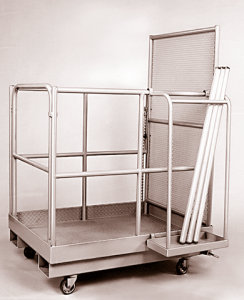

VT - Tube caddy - vertical $71

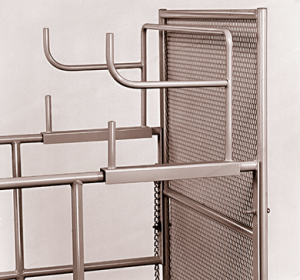

HT - Tube Caddy - horizontal $83

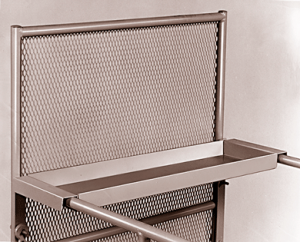

TT - Tool tray - 34" long x 10" wide x 2" deep $67
CO - Optional California OSHA Backguard 84" high $164
BH - Full Body Harness for use on SM-301 $178
GR - Optional gate for right side of unit* $31
GL - Optional gate for left side of unit* $31
*Right or left side is determined by facing the unit as it is mounted on the lift truck.
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
No documentation or videos available for this product.
