Aluminum Industrial Stairways
Aluminum Industrial Stairways

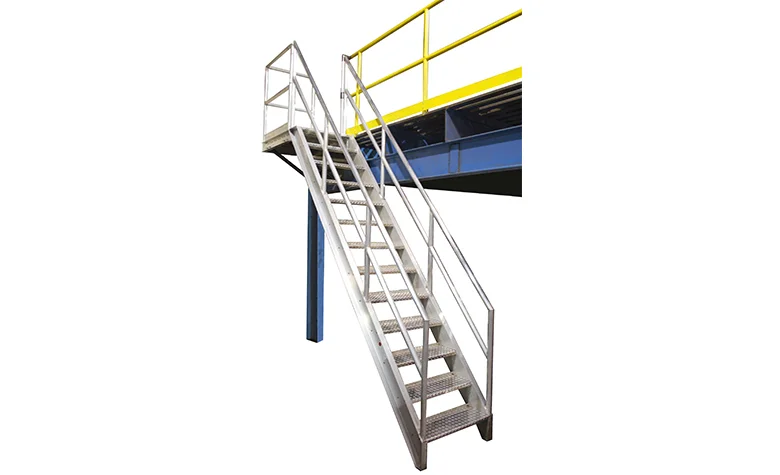

Fixed Industrial Stairs are built to meet or exceed OSHA 1910.25. The much lighter weight of these units as compared to traditional steel ones make them much easier to install.

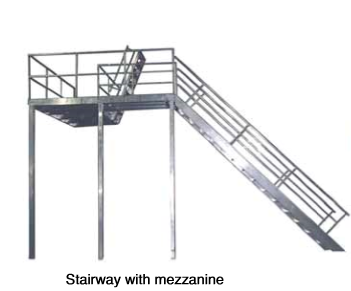

The aluminum construction makes them virtually maintenance-free. Industrial Stairs have a climbing angle between 30° and 50° which means the climber can carry such items as toolboxes, equipment, supplies, etc., while accessing mezzanines, catwalks or roof hatches and still comply with OSHA standards. These stairways are built per job conditions and shipped to the job site ready to install.
Pricing
Please call 1-888-802-3651 for pricing and configuration
Features
Standard Features:
All components shall be aluminum alloy 6000 (6005-T5 typical)
Stringers are 8" x 2.29" x 1/4" aluminum channel

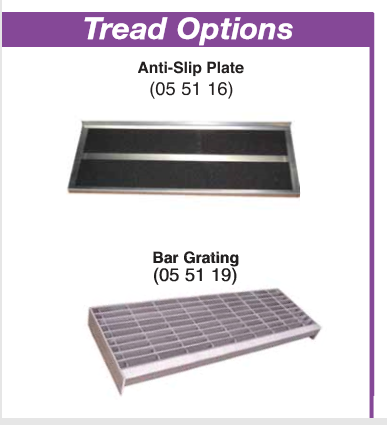

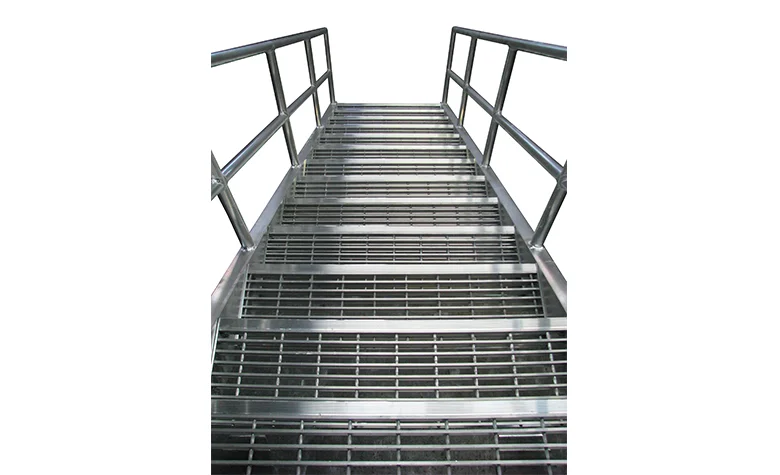

Treads are aluminum bar grating (standard) both welded and bolted to stringer to withstand a minimum 1000 loading per tread (depth determined by rise and run)
1000 lb loading per tread
30" width provides 26" clear tread width

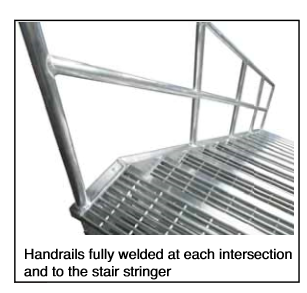

Handrails are 2-line, 1-1/4" schedule 40 pipe (1.66" OD)
Available in pitches from 30 degrees to 50 degrees
All welded construction
Designed to be permanently attached at the top and the bottom
Mill finish aluminum
Under normal use these stairs shall require no preventive maintenance
Options
Options:
Wider stairs up to 56” clear width maximum
Other finishes: powder coat or anodized
Anti-slip grip plate treads [3003-H14]
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
No documentation or videos available for this product.
