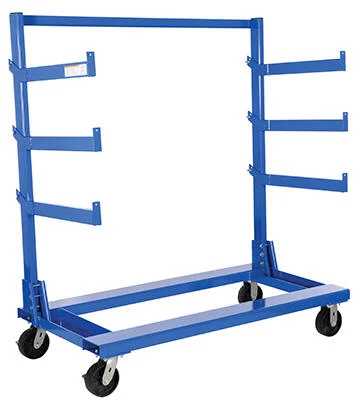

Cantilever Carts
Cantilever Carts
These portable cantilever carts are great for storage of bar stock type items or any other long product you need to move.
Pricing
| Cantilever - Cart | ||||||
| Model Number | Overall Size [WxLxH] | Usable Arm Length | Uniform Load Capacity | Capacity Per Level | Weight | Price |

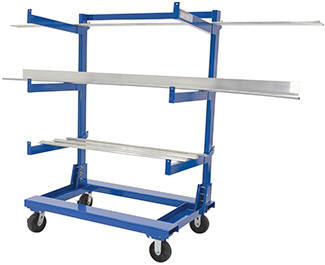

| DS-CANT-3048 | 30" x 48-9/16" x 64-11/16" | 24" | 2,000 lbs. | 400 | 212 | $866 |
| DS-CANT-3648 | 36" x 48-9/16" x 64-11/16" | 30" | 2,000 lbs. | 400 | 226 | $957 |

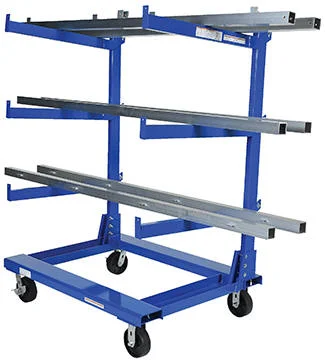

| DS-CANT-3060 | 30" x 60-9/16" x 64-11/16" | 24" | 2,000 lbs. | 400 | 225 | $941 |
| All dimensions are in inches | ||||||
Features
Standard Features:
Includes 3 pairs of arms
Arm height adjustable in 6" increments
Arms secured to cart with a bolt and nut
Arms have 2 holes so you choose a level or inclined position
Lowest height is 18-3/4"
Highest position is 60-3/4"
10" high base
Built-in fork pockets [5-3/8" wide x 2" high usable]
[2] rigid and [2] locking swivel 6" x 2" casters
All steel construction
Powder coated blue
CANT-A30 Extra pair of 30" L [24" usable arms] $64
CANT-A36 Extra pair of 36" L [30" usable arms] $70
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
Options
| Picture | Model # | Description | Overall Size [W x L x H] |
Capacity [lbs] |
Price |
|---|---|---|---|---|---|
 |
DS-CANT-A30 | Steel Portable Cantilever Cart Arms 24 In. Blue | 2" x 27.75" x 4.5" | 12 | $69 |
 |
DS-CANT-A36 | Steel Portable Cantilever Cart Arms 36 In. Blue | 2" x 33.75" x 4.5" | 14 | $78 |
Parts
Please call 1-888-802-3651 for replacement parts
Documentation / Videos
Manual:
Cantilever Cart
Drawings:
DS-CANT-3048
DS-CANT-3060
DS-CANT-3648
Videos:
Cantilever Cart
Information in videos subject to change without notice. Prior to ordering, please discuss critical features of the product with your Platforms and Ladders salesperson.
