Cradle & Bar Trucks
Cradle & Bar Trucks

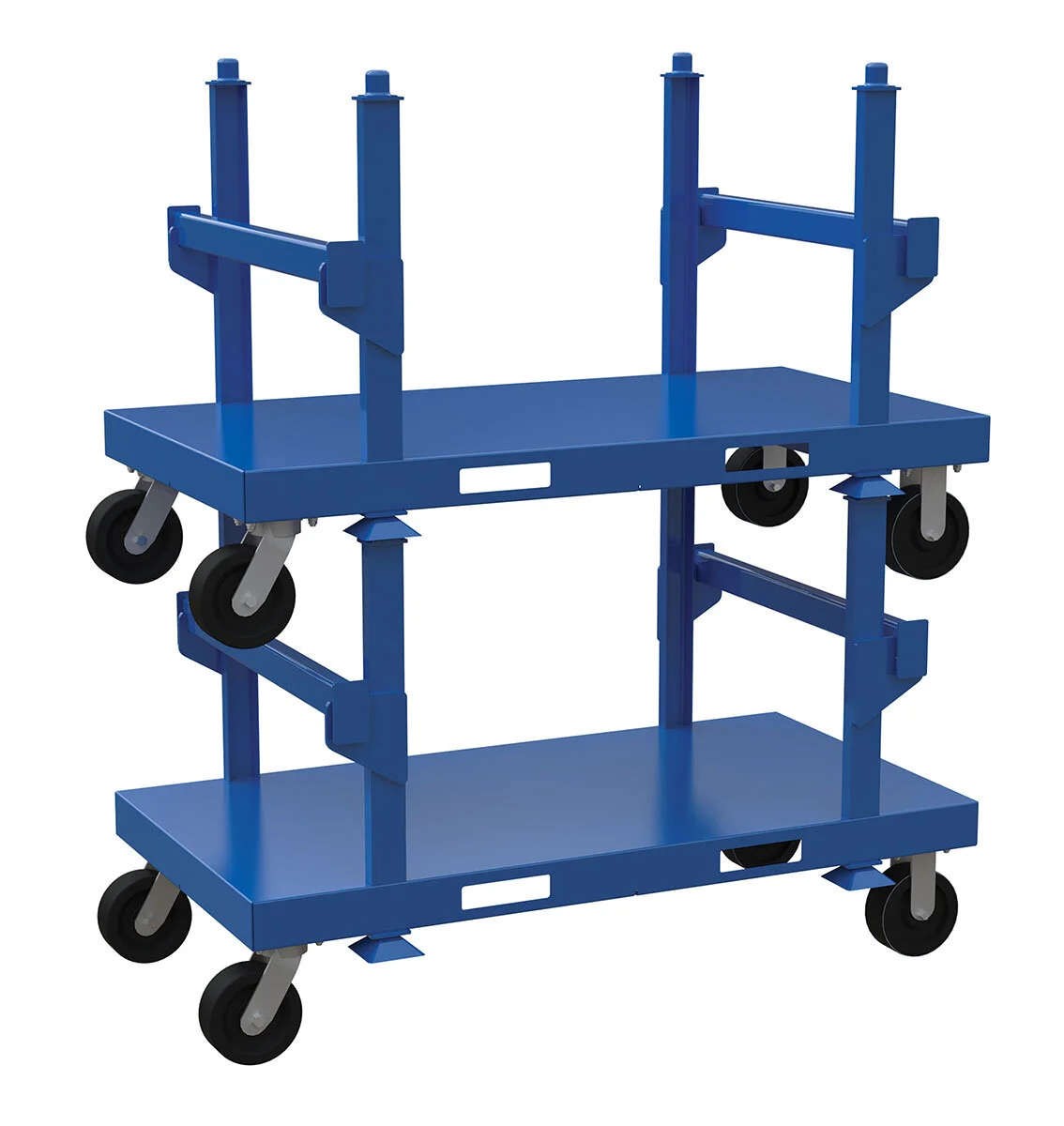

Framed with structural channel, this Bar Cradle Truck is as rock solid as it looks.
Transport bundles of steel, pipe, tube, lumber or any other long, heavy material with these trucks. The 3" wide cradles are supported by structural channel on the bottom and both sides.
Pricing
| Model # | Description | Length | Casters/Wheels | Capacity | Shipping Weight |
Price |
|---|---|---|---|---|---|---|
| DS-BCT60-4 | Cradle Truck w/ 3 cradles | 60" | [2] 12" x 2-1/2" Phenolic Load Wheels | 4,000 lbs | 194 lbs | $901 |
| DS-BCT96-4 | Cradle Truck w/ 3 cradles | 96" | [2]-8" x 2" Polyolefin | 4,000 lbs | 229 lbs | $977 |
| DS-BCT60-10 | Cradle Truck w/ 3 cradles | 60" | [2]-12" x 3"Phenolic/ [2] 8" x 2" Swivel | 8,000 lbs | 248 lbs | $1,052 |
| DS-BCT72-10 | Cradle Truck w/ 3 cradles | 72" | [2]-12" x 3"Phenolic/ [2] 8" x 2" Swivel | 8,000 lbs | 262 lbs | $1,093 |
| DS-BCT96-10 | Cradle Truck w/ 4 cradles | 96" | [2]-12" x 3"Phenolic/ [2] 8" x 2" Swivel | 8,000 lbs | 316 lbs | $1,290 |
| DS-BCT120-10 | Cradle Truck w/ 4 cradles | 120" | [2]-12" x 3"Phenolic/ [2] 8" x 2" Swivel | 8,000 lbs | 423 lbs | $1,430 |
| DS-BCT144-10 | Cradle Truck w/ 5 cradles | 144" | [2]-12" x 3"Phenolic/ [2] 8" x 2" Swivel | 8,000 lbs | 483 lbs | $1,709 |

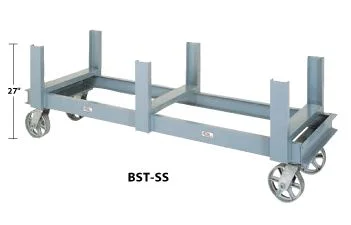

| DS-BST-PH | Bar Truck | 84" | 8" x 2" Phenolic | 5,600 lbs | 242 lbs | $933 |
| DS-BST-SS | Bar Truck | 84" | 8" x 2" Steel | 5,600 lbs | 240 lbs | $989 |
Features
Standard Features:
Cradles are 24" across and 13" DEEP
Cradle trucks have 12" phenolic load wheels
Wheels have exceptional strength and resistant to oil, gasoline and most commonly used solvents and chemicals
8" swivel casters at each end a tilt pattern allows the truck to turn on its own radius
All wheels have roller bearings
Bar Trucks have [6] 4" structural channel posts
4" structural channel frame handles loads to 5600 lbs.
16" high deck height
Gray enamel finish
Note: All products should be inspected frequently to insure safe operation. Final testing and inspection left to end user after final assembly has been completed.
